❒warn anybody nearby that the vehicle is about to be
lifted. They must stay clear and not touch the vehicle
until it is back on the ground. Lift the vehicle.
After lifting the vehicle:
❒for all versions, when gaining access through the
vehicle’s rear right wheel arch, adjust the screw
A-fig. 161 for the spare wheel retaining device, using
the spanner provided with the extension/adaptor B;
❒indicate that the vehicle has broken down using the
devices required by the regulations in the current
country (e.g. warning triangle, hazard lights etc.);
❒take the extension arm and the wrench from the
tool kit under the passenger seat (see
“Compartment under front passenger seat” in the
“Dashboard and Controls” section);
❒for versions with alloy jacks, remove the press-fitted
hub cap;
❒loosen the bolts on the wheel to be replaced by one
turn;
❒turn the wheel to extend the jack partly;
❒arrange the jack near the lift support closest to the
wheel to be replaced at the points shown in fig. 159.
For short wheelbase versions with retractable
footboard, the jack must be positioned at the lift
point shown in fig. 160 aligned (45°) so that it does
not interfere with the retractable footboard;

173
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0836mfig. 162F0N0165mfig. 163
❒use the wheel dismantling spanner to remove the
wheel from the vehicle fig. 163;
❒undo the retaining knob D-fig. 164 and release the
wheel releasing the support E.
❒turn wrench C-fig. 162 anticlockwise 1 to allow the
lowering of the spare wheel.
❒continue turning anticlockwise until the stop point,
signaled by the stiffening of the manoeuvre or a click
from the clutch present in the device.
F0N0835mfig. 161
The device should only be operated by
hand, without using any type of tool
other than the crank provided like pneumatic or
electrical screwers.
WARNING
The moving components of the jack
(screws and joints) can also cause
injuries: avoid touching them. In the event of
soiling with the lubricating grease, clean
thoroughly;
WARNING

174
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0370mfig. 164F0N0168mfig. 166
F0N0167mfig. 165

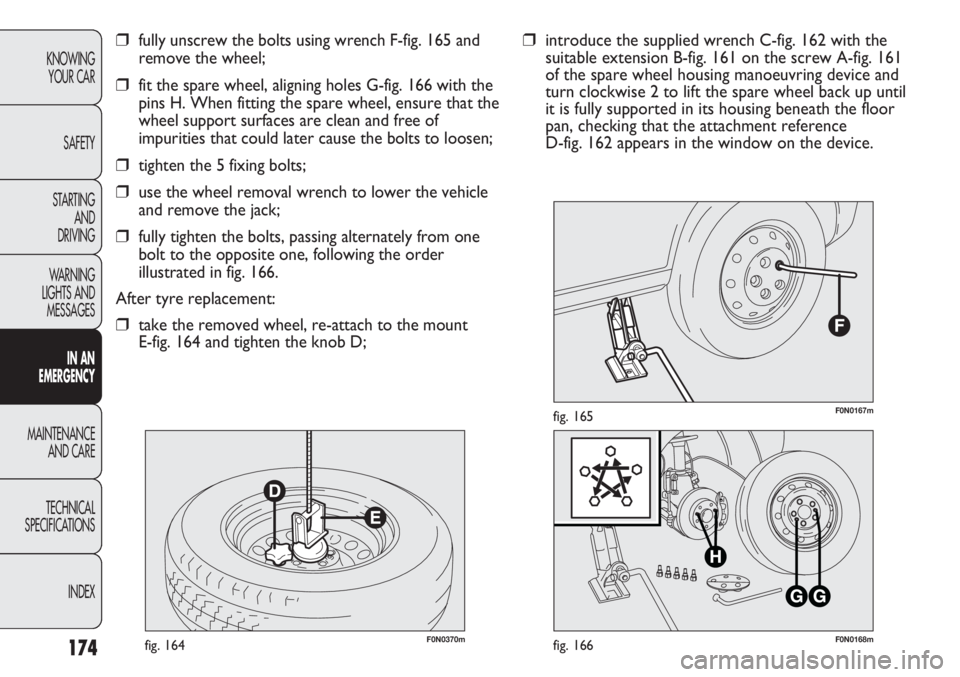

❒introduce the supplied wrench C-fig. 162 with the
