INCREASING THE MEMORISED SPEED
This can be done in two ways:
❒by pressing the accelerator and then memorising the
new speed reached;
or
❒by moving the lever upwards (+).
Each operation of the lever will correspond to a slight
increase in speed of about 1 km/h, while keeping the
lever upwards will correspond to a continuous speed
increase.
REDUCING THE MEMORISED SPEED
This can be done in two ways:
❒by turning the device off and then storing a new
speed;
or
❒by moving the stalk downwards (–) until reaching the
new speed which will be memorised automatically.
Each movement of the lever will correspond to a slight
reduction in speed of about 1 km/h, while keeping the
lever held downwards will correspond to a continuous
speed reduction.SWITCHING THE DEVICE OFF
The device can be switched off by the driver in the
following ways:
❒turning the ring nut A to the OFFposition;
❒turning the engine off;
❒pressing the brake pedal or operating the handbrake;
❒pressing the clutch pedal;
❒requesting a gear change with an automatic gearbox
in sequential mode;
❒with vehicle speed below the set limit;
❒by pressing the accelerator pedal; in this case the
system is not really switched off but the request for
acceleration takes priority over the system. The
cruise control is, however, active and it will not be
necessary to press the RES button to restore the
previous conditions after the acceleration is over.
The device is automatically switched off in the following
cases:
❒if the ABSor ESPsystems cut in;
❒if there is a system failure.

76
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0041mfig. 73
CEILING LIGHTS
FRONT CEILING COURTESY LIGHT WITH
SPOT LIGHTS
Switch A-fig. 73 is used to switch the ceiling courtesy
lights on/off. With the switch A in the middle position,
the lights C and D go on/off when front doors are
opened/closed. With switch A pressed to the left, the
lights C and D are always off. With switch A pressed to
the right, the lights C and D are always on. Lights switch
on/off progressively.
The switch B is a spot light; when the ceiling light is off,
it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
While travelling with the device
engaged, do not place the gear lever in
neutral.
WARNING
In case of malfunctioning or if the device
is faulty, turn the ring nut A to OFF and
contact a Fiat Dealership, after checking that
the protective fuse has not blown.
WARNING

77
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
❒when opening one of the side doors for about
3 minutes;
❒when one of the doors is closed for a period of
about 10 seconds.
The timed delay period ends automatically when the
doors are locked.

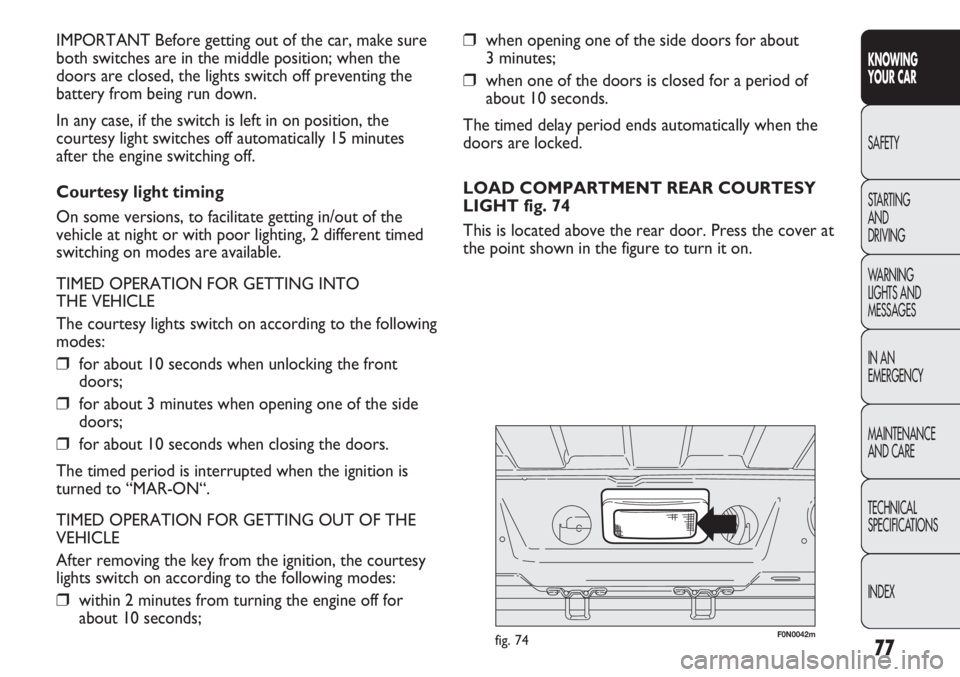

LOAD COMPARTMENT REAR COURTESY
