Page 95 of 287

91
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CAB GLOVE COMPARTMENT fig. 102
(for versions/markets where provided)
The storage compartment is fitted above the sun visors
and is designed for the quick storage of light objects
(e.g. documents, road maps etc.).
FLAP ON BENCH fig. 103
(for versions/markets where provided)
To use, the pull tab A and lower the flap.
The flap is equipped with two cup holders and a support
surface with a paper holder clip.
SATELLITE NAVIGATOR CAPABILITY fig. 104
(for versions/markets where provided)
This is located in the dashboard area illustrated in the
diagram for connecting the navigator.
F0N0191mfig. 102
F0N0149mfig. 103
F0N0512mfig. 104
Portable navigators to be fitted in the seat
in figure 104 have a mechanical release
device activated by pressing the two side
buttons on the stem. The failed operation of the
release may damage the seat of the navigator.
Page 96 of 287

92
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0217mfig. 105F0N0214mfig. 106
The rear view display is adjusted in mirror mode. When
not in use, it must be closed in the upper oddments
compartment console area.
ACTIVATION
The system is activated with the ignition on and reverse
engaged or by means of a dedicated button. If the
vehicle is in motion, e.g. during a reversing manoeuvre,
the system will operate up to a speed of 15 km/h and go
off when a speed of approximately 18 km/h is exceeded.
When reverse is deactivated, the image will appear on
the display for a further 5 seconds. TV CAMERA SYSTEM
AND REAR VISIBILITY DISPLAY
(for versions/markets where provided)
The parking TV camera system fig. 105 allows the driver
a view of the scene behind the vehicle by means of
a display A-fig. 106 in the passenger compartment.
The system consists of a TV camera installed in a plastic
casing on the rear roof crossmember, which also
includes a third brake light and a display in a plastic
casing housed in the upper glove compartment console
area.
The display has buttons (On/Off, brightness, backlight);
to use them, operate the release button and move to
the open position.
Page 97 of 287

93
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
GENERAL WARNINGS
Area of visibility
The area of visibility may vary according to the vehicle
position (full load condition included), according to the
vehicle specification and according to weather
conditions (high brightness, rain, snow and fog). Visibility
may be reduced during poor lighting or full load
conditions.

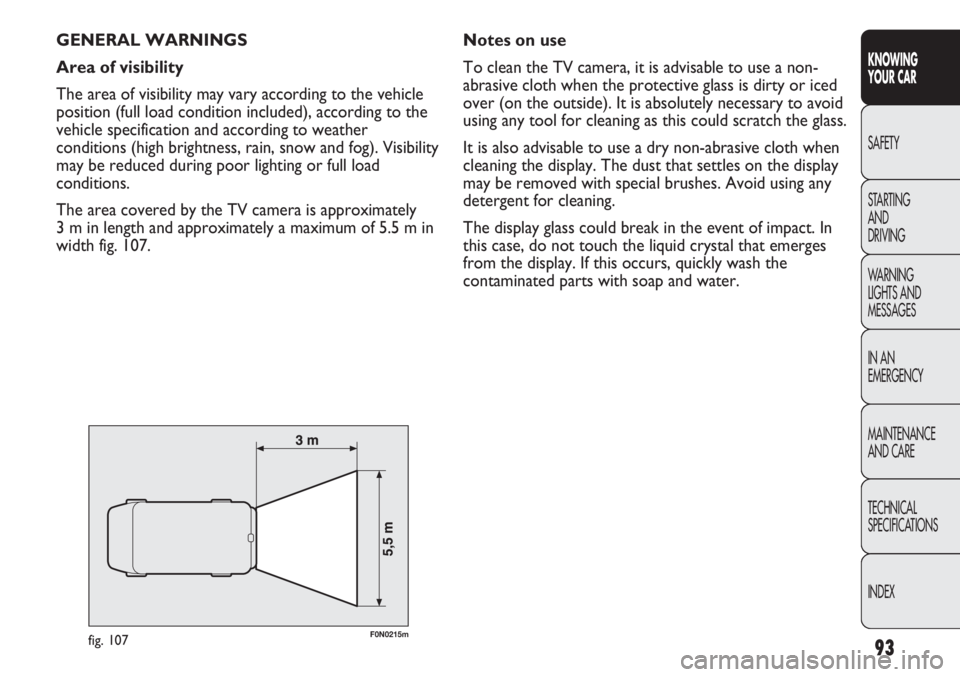

The area covered by the TV camera is approximately
3 m in length and approximately a maximum of 5.5 m in
width fig. 107.
F0N0215mfig. 107
Notes on use
To clean the TV camera, it is advisable to use a non-
abrasive cloth when the protective glass is dirty or iced
over (on the outside). It is absolutely necessary to avoid
using any tool for cleaning as this could scratch the glass.
It is also advisable to use a dry non-abrasive cloth when
cleaning the display. The dust that settles on the display
may be removed with special brushes. Avoid using any
detergent for cleaning.
The display glass could break in the event of impact. In
this case, do not touch the liquid crystal that emerges
from the display. If this occurs, quickly wash the
contaminated parts with soap and water.
Page 98 of 287

94
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0216mfig. 108
MESSAGES ON THE SCREEN
Messages are shown on the display under the following
conditions:
❒An alert message is displayed during the 5 seconds
following reverse engagement.
❒When a speed of approximately 18 km/h is exceeded
and only the activation button is ON, the image
disappears and a message reporting that the system
has gone into stand-by mode is displayed for
approximately 5 seconds.
❒When a speed of approximately 18 km/h is exceeded
and reverse gear is engaged, the image disappears
and an alert message is displayed that remains until
the speed drops to approximately 15 km/h. In this
case, the image is displayed again.
The system makes it possible to change the language in
which the text messages are displayed. For this
selection, with the system deactivated, press the
ON/OFF button and any other button simultaneously
and then select the language by scrolling through the
menu using the ON/OFF button. When the desired
language is reached, wait for about 3 seconds so that it
is programmed. USER INTERFACE
The display user interface consists of fig. 108:
❒Brightness adjustment: 2 buttons;
❒Backlight adjustment: 2 buttons;
❒ON/OFF button: this allows images from the TV
camera to be seen even with reverse gear not
engaged.
The system makes it possible to return to the initial
configuration, keeping the ON/OFF button pressed for
approximately 3 seconds with the system deactivated.
In this case, the ON/OFF button flashes twice to
confirm the operation.
Page 99 of 287

95
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
TACHOGRAPH
For tachograph operation and use, consult the owner
handbook supplied by the device manufacturer.
The tachograph must be installed on the vehicle when
the vehicle weight (with or without trailer) exceeds
3.5 tons.
IMPORTANT Anyone making changes to the
monitoring device or signal transmission system that
affects recording by the monitoring instrument,
particularly if this is done for purposes of fraud, may be
in breach of criminal or administrative state regulations.
IMPORTANT If a tachograph is fitted, if the vehicle is
parked for more than 5 days, it is advisable to
disconnect the negative battery terminal to maintain its
charge.
IMPORTANT NOTES
Do not use abrasive detergents or solvents to clean the
device. To clean the outside of the device, use a damp
cloth or special products for the care of synthetic
materials.The tachograph is installed and sealed by authorised
personnel: do not try and access the device or the
supply and recording leads in any way. It is the
responsibility of the owner of the vehicle on which the
tachograph is installed to check the device regularly.
The check must be carried out at least every two years
and a test must be carried out to ensure that it is
working properly. Ensure that the data label is renewed
after every check that that the label contains the
specified data.
Page 100 of 287

96
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0800mfig. 109
DOORS
CENTRAL DOOR LOCKING/UNLOCKING
SYSTEM
Locking the doors from the outside
With the doors shut, press button
Áon the remote
control fig. 109-110 or slide the metal insert A into the
lock of the door on the driver’s side and turn it
clockwise. The doors will only be locked if all doors are
shut.
To extract the metal insert, press button B.
If one or more doors are open after pressing button
Á
on the remote control, the direction indicators and the
LED in the button A-fig. 112 flash quickly for
approximately 3 seconds. The Buttons A and B fig. 112
are disabled with the function activated. Pressing button
Áon the remote control twice in quick succession
activates the dead lock device (see “Dead lock”).
SPEED BLOCK
(for versions/markets where provided)
The vehicle is equipped with a function that limits the
speed that can be set, when requested by the user,
to one of 4 preset values: 90, 100, 110, 130 km/h.
This function must be activated/deactivated by a Fiat
Dealership. Following the operation, a sticker will be
applied to the windscreen showing the top speed
setting.
WARNING The speedometer could show a higher top
speed than the effective one set by the Dealership in
accordance with the regulations in force.
Page 101 of 287
97
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0059mfig. 111F0N0801mfig. 110
All the doors can be unlocked by turning the metal
insert anticlockwise in the door lock on the driver’s side
fig. 111. With the battery disconnected, access to the
vehicle will only be possible by unlocking the driver’s
door using the mechanical lock. Door unlocking from the outside
Press the button
Qfig. 109 or Ëfig. 110 briefly,
depending on the version, to release the front doors
remotely, for timed activation of the interior courtesy
lights and a double signal from the direction indicators.
Page 102 of 287

98
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0047mfig. 112F0N0132mfig. 113
IMPORTANT With the central locking engaged, pulling
the opening lever for one of the front doors switches
off the central locking function. Individual doors can be
unlocked by pulling the opening handle of one of the
rear doors.
If a power supply is not present (blown fuse, battery
disconnected, etc.) it is, however, possible to lock the
doors manually.
After exceeding 20 km/h, all the doors will be locked
automatically if the setup menu function has been
selected (see “Multifunction display” paragraph in this
section).
LOAD COMPARTMENT BUTTON fig. 113
Lock activation is indicated by the LED in the button. Door locking/unlocking from the inside
Press the button A-fig. 112 to lock the doors, press
button B to unlock the doors. The locking/unlocking
actions take place centrally (front and rear). When the
doors are locked, the LED in the button A is on and
pressing button B brings about central unlocking of all
the doors and turns off the warning light. When the
doors are unlocked, the LED is off and pressing the
button brings about central locking of all the doors.
The doors will be locked only if all the doors are
properly shut.
Following the locking of the doors using:
❒remote control;
❒door locking mechanism;
it will not be possible to unlock the doors using button
A-fig. 112 located in the controls in the dashboard.
