Page 256 of 283
252
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO
NS
INDEX
VERSIONS CONSUMPTION
1.4 Euro 4UrbanExtra-urban Combined
Cargo short wheelbase 9.85.7 7.2
Cargo short wheelbase extra capacity 10.35.7 7.4
Cargo long wheelbase
5 seater N1 – 5and 7 seater M1 9.75.9 7.3
Cargo short wheelbase, high roof 10.35.6 7.3
5 seats M1 High roof 9.96.1 7.5
1.4 T-JET Euro 5 UrbanExtra-urban Combined
Cargo short wheelbase 9.55.9 7.2Cargo long wheelbase
Cargo short wheelbase, high roof 9.56.4 7.5
Cargo long wheelbase high roof 9.76.5 7.7
5 seats N1 9.55.9 7.2
5 seats N1 Long wheelbase 9.76.1 7.4
5 seats M1 9.55.9 7.2
7 seats M1
1.3 Multijet Euro 5 Start&Stop UrbanExtra-urban Combined
Cargo short wheelbase 5.94.2 4.8
Cargo short wheelbase extra capacity 5.94.2 4.8
Cargo long wheelbase 64.3 4.9
5 seats N1 64.3 4.9
Page 257 of 283
253
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO
NS
INDEX
VERSIONS CONSUMPTION
1.3 Multijet 90HP Euro 5
NO Start&Stop with DPFUrbanExtra-urban Combined
Cargo short wheelbase 6.54.2 5.0
Cargo short wheelbase extra capacity
Cargo long wheelbase
Truck Long wheelbase 6.84.4 5.3
5 seats N1 Short wheelbase 6.64.3 5.1
5 seats N1 Long wheelbase
1.3 Multijet Euro 4 UrbanExtra-urban Combined
Cargo short wheelbase 6.44.5 5.2
Cargo short wheelbase extra capacity 6.44.5 5.2
Cargo long wheelbase 6.64.5 5.3
5 seats N1 6.64.5 5.3
Low-level chassis 6.64.6 5.3
1.3 Multijet Euro 4 Start&Stop with DPF UrbanExtra-urban Combined
5 and 7 seats M1 64.3 4.9
Page 258 of 283
254
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO
NS
INDEX
VERSIONS CONSUMPTION
1.6 Multijet Euro 5 Start&StopUrbanExtra-urban Combined
Cargo short wheelbase 6.14.6 5.2
Cargo short wheelbase extra capacity 6.24.6 5.2
Cargo long wheelbase
5 seater N1 short wheelbase 6.14.7 5.2
5 seater N1 long wheelbase 6.34.8 5.4
5 and 7 seater M1 6.14.7 5.2
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity 6.3 5.1 5.5
5 seats M1 High roof
6.45.3 5.7
1.6 Multijet 105HP Euro 5 NO Start&Stop UrbanExtra-urban Combined
Cargo short wheelbase 6.74.7 5.4
Cargo short wheelbase extra capacity 6.84.7 5.5
Cargo long wheelbase
5 seater N1 short wheelbase 6.84.7 5.5
5 seater N1 long wheelbase 6.94.9 5.6
5 and 7 seater M1 6.84.7 5.5
5 and 7 seater M1 high roof 7.15.4 6.0
Truck Long wheelbase
Cargo short wheelbase, high roof 7.15.1 5.8
Cargo short wheelbase, high roof
increased capacity
5 seats M1 High roof 7.15.4 6.0
1.6 Multijet 90HP Euro 5 NO Start&Stop UrbanExtra-urban Combined
5 and 7 seater M1 6.84.7 5.5
5 seats M1 High roof 7.15.3 6.0
Page 259 of 283
255
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO
NS
INDEX
VERSIONS CONSUMPTION
1.6 Multijet Euro 4 UrbanoExtraurbano Combinato
Cargo 7 Q short wheelbase 6.64.7 5.4
Cargo 10 Q short wheelbase/long wheelbase 6.74.7 5.4
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity 6.8 5.1 5.7
1.6 Multijet Euro 4 Start&Stop with DPF
UrbanExtra-urban Combined
5 and 7 seater M1 6.14.7 5.2
5 seats M1 High roof 6.45.3 5.7
2.0 Multijet Euro 5 Start&Stop UrbanoExtraurbano Combinato
Cargo short wheelbase/long wheelbase 6.55.1 5.6
5 seater N1/5 and 7 seater M1 6.75.1 5.7
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity 6.7 5.2 5.8
5 seats M1 High roof
6.85.5 6.0
Page 260 of 283
256
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO
NS
INDEX
VERSION CONSUMPTION
2.0 Multijet 135HPEuro 5 NO Start&StopUrbanExtra-urban Combined
Cargo short wheelbase 7.25.1 5.9
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seater N1 short wheelbase 7.35.1 5.9
5 seater N1 long wheelbase
5 and 7 seater M1
Cargo short wheelbase, high roof 7.45.5 6.2
Truck Long wheelbase
Cargo short wheelbase, high roof 7.35.2 6.0
Cargo short wheelbase, high roof
increased capacity
Cargo short wheelbase, high roof 7.85.5 6.3
Cargo short wheelbase, high roof
increased capacity
5 seats M1 High roof 7.45.5 6.2
5 seater N1 long wheelbase high roof 7.85.5 6.3
Page 261 of 283
257
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO
NS
INDEX
CO2EMISSIONS
These are measured by analysing the exhaust gases emitted under testing,\
and are correlated to the consumption values th-
rough the carbon balance of the emissions. The CO
2emission levels given in the following tables refer to combined consumpt\
ion.
Emissioni di CO
2secondo direttiva vigente (g/km)
VERSIONI
1.4 Euro 5 Start&Stop Combined
Cargo short wheelbase 163
Cargo short wheelbase extra capacity 168
Cargo long wheelbase
5 seats N1 – 5/7 seater M1 166
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity 167
5 seats M1 High roof
171
1.4 16V Euro 5 NO Start&StopCombined
Cargo short wheelbase 169
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seats N1 short wheelbase
5 seats N1 long wheelbase 172
5 and 7 seats M1
Cargo short wheelbase, high roof 173
Cargo short wheelbase, high roof, increased capacity
5 and 7 seats M1 high roof 177
1.3 Multijet 90HP Euro 5 NO Start&Stop with DPFCombined
Cargo short wheelbase 133
Cargo short wheelbase extra capacity
Cargo long wheelbase
Truck Long wheelbase 140
5 seats N1 short wheelbase 136
5 seats N1 long wheelbase
1.4 Euro 4Combined
Cargo short wheelbase 169
Cargo short wheelbase extra capacity 174
Cargo long wheelbase
5 seats N1 - 5 and 7 seats M1 172
Cargo short wheelbase, high roof173
5 seats M1 High roof 177
1.3 Multijet Euro 5 Start&StopCombined
Cargo short wheelbase 126
Cargo short wheelbase extra capacity126
Cargo long wheelbase 129
5 seats N1129
VERSIONI
1.4 T-JET Euro 5Combined
Cargo short wheelbase 169
Cargo long wheelbase
Cargo short wheelbase, high roof 175
Cargo long wheelbase high roof179
5 seats N1169
5 seats N1 long wheelbase 173
5 seats M1 169
7 seats M1
Page 262 of 283
258
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO
NS
INDEX
VERSIONS
1.3 Multijet Euro 4 Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity 136
Cargo long wheelbase 139
5 seater N1139
Low-level chassis141
1.3 Multijet Euro 4 Start&Stop con DPFCombined
5 and 7 seater M1 129
1.6 Multijet Euro 5 Start&Stop Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity 137
Cargo short wheelbase
5 seater N1 short wheelbase 138
5 seater N1 long wheelbase 141
5 and 7 seater M1138
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 146
5 seats M1 High roof 150
1.6 Multijet Euro 4 Start&Stop with DPFCombined
5 and 7 seater M1138
5 seats M1 High roof 158
VERSIONS
1.6 Multijet 105HP Euro 5 NO Start&Stop Combined
Cargo short wheelbase 143
Cargo short wheelbase extra capacity 144
Cargo long wheelbase
5 seats N1 short wheelbase 145
5 seats N1 long wheelbase148
5 and 7 seats M1145
Cargo short wheelbase, high roof
Truck Long wheelbase 158
Cargo short wheelbase, high roof 154
Cargo short wheelbase, high roof, increased capacity
5 seats M1 High roof 158
Page 263 of 283
259
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO
NS
INDEX

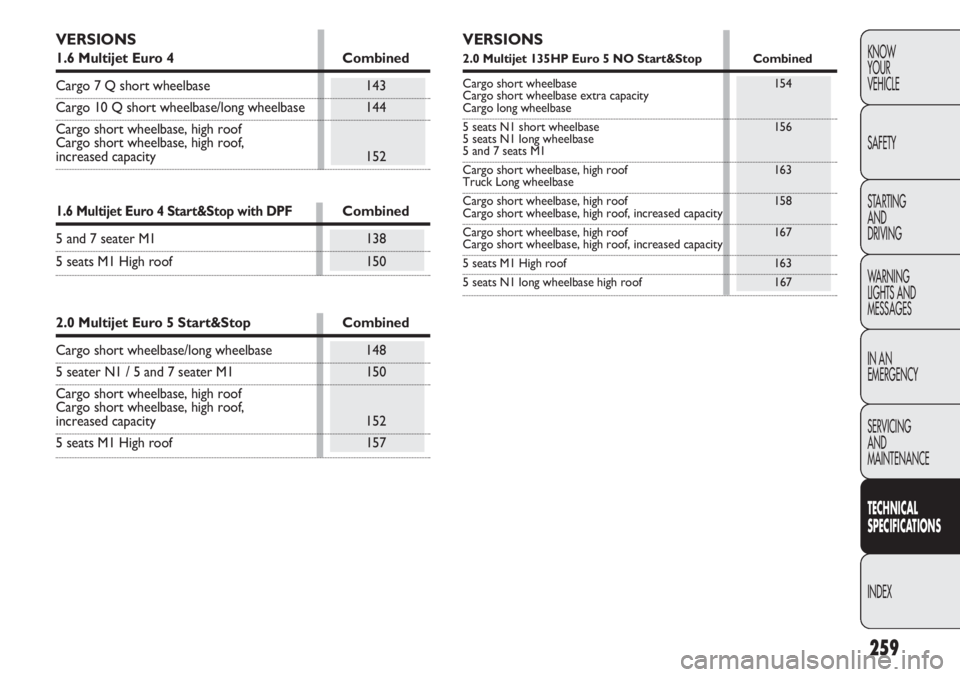

VERSIONS
1.6 Multijet Euro 4 Combined
Cargo 7 Q short wheelbase 143
Cargo 10 Q short wheelbase/long wheelbase 144
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity152
1.6 Multijet Euro 4 Start&Stop with DPFCombined
5 and 7 seater M1 138
5 seats M1 High roof 150
2.0 Multijet Euro 5 Start&StopCombined
Cargo short wheelbase/long wheelbase 148
5 seater N1 / 5 and 7 seater M1 150
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 152
5 seats M1 High roof 157
VERSIONS
2.0 Multijet 135HP Euro 5 NO Start&Stop Combined
Cargo short wheelbase 154
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seats N1 short wheelbase 156
5 seats N1 long wheelbase
5 and 7 seats M1
Cargo short wheelbase, high roof 163
Truck Long wheelbase
Cargo short wheelbase, high roof158
Cargo short wheelbase, high roof, increased capacity
Cargo short wheelbase, high roof167
Cargo short wheelbase, high roof, increased capacity
5 seats M1 High roof 163
5 seats N1 long wheelbase high roof 167
