2012 FIAT 500 ABARTH bluetooth

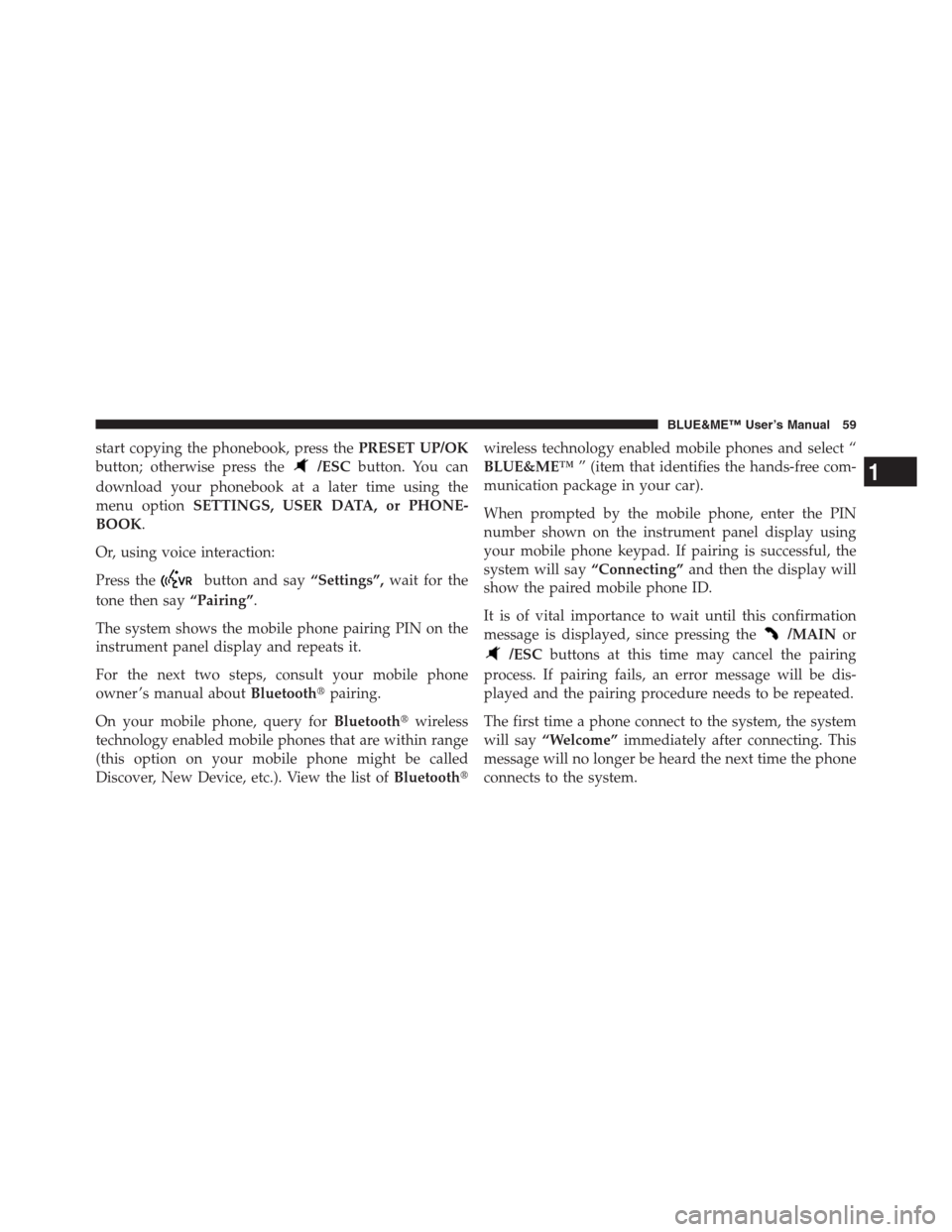

start copying the phonebook, press thePRESET UP/OK
button; otherwise press the
/ESCbutton. You can
download your phonebook at a later time using the
menu optionSETTINGS, USER DATA, or PHONE-
BOOK.
Or, using voice interaction:
Press the
button and say“Settings”,wait for the
tone then say“Pairing”.
The system shows the mobile phone pairing PIN on the
instrument panel display and repeats it.
For the next two steps, consult your mobile phone
owner ’s manual aboutBluetoothpairing.
On your mobile phone, query forBluetoothwireless
technology enabled mobile phones that are within range
(this option on your mobile phone might be called
Discover, New Device, etc.). View the list ofBluetoothwireless technology enabled mobile phones and select “
BLUE&ME™” (item that identifies the hands-free com-
munication package in your car).
When prompted by the mobile phone, enter the PIN
number shown on the instrument panel display using
your mobile phone keypad. If pairing is successful, the
system will say“Connecting”and then the display will
show the paired mobile phone ID.
It is of vital importance to wait until this confirmation
message is displayed, since pressing the
/MAINor
/ESCbuttons at this time may cancel the pairing
process. If pairing fails, an error message will be dis-
played and the pairing procedure needs to be repeated.
The first time a phone connect to the system, the system
will say“Welcome”immediately after connecting. This
message will no longer be heard the next time the phone
connects to the system.
1
BLUE&ME™ User’s Manual 59

NOTE:
•You only need to pair your mobile phone a single time.
•You can pair up to five mobile phones, but only one
phone can be used at a time. To use one of the other
paired phones, the currently connected phone needs to
be powered off or it’sBluetoothsetting must be
turned off.BLUE&ME™will then search the paired
phone list looking for a phone to connect to.
•On your paired mobile phone, theBluetoothsetting
must be turned on in order to connect your mobile
phone withBLUE&ME™Hands-Free Communica-
tion.
•Before transferring your mobile phone contacts to the
hands-free communication system, make sure that
each contacts first and last name is unique and dis-
tinctly recognizable to improve the voice recognition
results.
•Depending on the size of your phonebook,
BLUE&ME™may take some time to download or
check for updates. So, if you try to immediately make
a phone call after getting into the vehicle, the
BLUE&ME™system may tell you to wait.
•The system will download only valid contact entries.
A valid contact entry must include both a name and at
least one phone number.
•If you would like to re-pair your mobile phone, delete
the old pairing relationship first. During this operation
all paired phones and their associated phonebook
information will be deleted. To delete a paired phone
from the system, from theUSER DATAmenu, select
DELETE USERS. On your mobile phone, delete
BLUE&ME™from the list ofBluetoothmobile
phones following the specific instructions for your
mobile phone (refer to your mobile phone owner ’s
manual).
1
BLUE&ME™ User’s Manual 61

Repeat
Use the Repeat option to repeat a track.
To activate the Repeat option using manual interaction,
proceed as follows:
Open the Main Menu, select MEDIA PLAYER, SET-
TINGS, REPEAT and then press thePRESET UP/OK
button.
To activate the Repeat option, select REPEAT ON and
press thePRESET UP/OKbutton. To deactivate it, select
REPEAT OFF and press thePRESET UP/OKbutton.
Or, using voice interaction:
Press the
and say“Repeat on”or“Repeat off”.
NOTE:With the Repeat option on, the previous and
next commands will play the previous or next track and
the new track will be repeated.
Exit the settings menu
At the end of any of the operations described above, you
can exit the SETTINGS menu as described below or the
message will disappear from the display in less than
10 seconds.
To exit the SETTINGS menu using manual interaction:
Select EXIT and then press thePRESET UP/OKbutton.
BLUE&ME™ HANDS-FREE COMMUNICATION
SUPPORTED MOBILE PHONES
BLUE&ME™Hands-Free Communication supports
your personal devices viaBluetoothwireless technol-
ogy and USB.
To get updated information about devices supported by
BLUE&ME™, contact a FIAT Dealership or consult the
dedicated website at www.fiatusa.com.
68 BLUE&ME™ User’s Manual

Mobile Phones With BluetoothWireless
Technology
BLUE&ME™Hands-Free Communication supports
most mobile phones withBluetooth1.1 and Hands-Free
1.5 profile support (refer to theBluetoothwireless
connection specifications given in your mobile phone
owner ’s manual).
Due to the different software versions supported on
mobile phones, certain functions (e.g., answering a sec-
ond incoming phone call, transferring phone a phone call
from hands-free communication system to mobile phone
and vice versa, etc.) may not be supported as described in
this manual. In any case, phone conversation using the
hands-free communication package will not be impaired.
“Pull” phones
“Pull” phone means that your mobile phone supports
automatic phonebook download withBluetoothwire-
less technology, your whole phonebook will be automati-
cally downloaded toBLUE&ME™during the initial
phone pairing procedure and updated every time your
phone connects toBLUE&ME™.
To consult the list of mobile phones and functions
supported, consult the dedicated website at www.fia-
tusa.com or Customer Services on 888-CIAO-FIAT
(888-242-6342).
“Push” phones (phonebook not automatically
downloaded)
“Push” phone means that your mobile phone supports
single contact download withBluetoothwireless tech-
nology. After the pairing process you will need to go to
the USER DATA, ADD CONTACTS menu to send phone-
book contacts from your mobile phone toBLUE&ME™.
1
BLUE&ME™ User’s Manual 69

Mobile phones with message reader (not all
mobile phones support reading incoming SMS
messages)
If your mobile phone can send messages through the
Bluetoothwireless technology, it is possible to read
incoming messages using theBLUE&ME™Hands-Free
Communication Package, to store them in the dedicated
inbox or to delete them.
Supported USB Memory Devices
USB Memory Devices
The media player supports most USB memory devices.
1.0, 1.1 or 2.0.
NOTE:It is not possible to use USB devices equipped
with a “password” function.
Supported digital audio files
The media player supports audio files with the following
formats:
Extension Audio Coding
.wma Windows Media Audio Decode
(Format Tag: WMA2 = 353,
WMA1=352) Decodes all CBR pro-
files from 5kbps to 192kbps, 8kHz
to 48kHz, mono and stereo De-
codes all v9 CBR profiles, from
5kbps to 320kbps, 8kHz to 48kHz,
mono and stereo Decodes all qual-
ity based, bit rate based and peak
constrained VBR profiles Supports
WMA v1 and WMA v2 bit streams
70 BLUE&ME™ User’s Manual

Problem Probable Cause Possible Solution
Display screen shows:
NO PHONE
And the system says
“No Bluetooth telephone
is connected.”•The paired mobile phone is turned off
•The paired mobile phone is not within
range of the system (the mobile phone
should be located within approximately
30 feet of the system)
•Bluetoothwireless technology connec-
tion has been disabled on your mobile
phone•Turn the paired mobile phone on
•Make sure that your phone is paired
•Make sure that theBluetoothwireless
technology connection on your mobile
phone is enabled
•Make sure that the mobile phone you
paired with the system is within range
Problem Probable Cause Possible Solution
Display screen shows:
DISCONNECTED.•A technical error occurred with the mo-
bile phoneBluetoothwireless technol-
ogy capabilities
•During an ongoing phone conversation,
the mobile phone was taken out of the
system range•ResetBLUE&ME™by turning the mo-
bile phone off and on
•ResetBLUE&ME™by turning the igni-
tion key to OFF and then to ON again
1
BLUE&ME™ User’s Manual 85

Problem Probable Cause Possible Solution
•If you don’t press the
button be-
fore pronouncing a voice command, the
system will not activate voice recogni-
tion and therefore will not recognize
your voice commands
•If you don’t press the
/MAINbut-
ton to enter the Main Menu, it will not
be possible to manually access the
BLUE&ME™menu
•If after pressing the
/MAINbutton,
you don’t take action within approxi-
mately eight seconds, the system will
not respond to your key press
The mobile phone
prompts you to enter a
PIN number, but no
phone pairing proce-
dure was running•After you delete the pairing-related user
information on your mobile phone or
on the system, theBluetoothpairing
relationship between your mobile phone
andBLUE&ME™will no longer work•
Select option DELETE USERS on the system
and delete all users; then, pair the phone
again – see the section SETTING FUNCTIONS
- MANAGING USER DATA AND PHONE-
BOOK and also the section SETTING FUNC-
TIONS - PAIRING YOUR MOBILE PHONE
88 BLUE&ME™ User’s Manual

PERSONAL DATA PROTECTION
BLUE&ME™Hands-Free Communication functions en-
tail personal data handling. In order to protect and to
prevent non-authorized access to personal data,
BLUE&ME™has been implemented with the following
criteria:
•Personal data connected to hands-free communication
functions (phonebook and last calls) can only be
accessed after automatic recognition of your
Bluetoothwireless technology enabled mobile
phone;
•Stored personal data can be deleted using specific
BLUE&ME™functions.
NOTE:For further details on how to delete personal
data, refer to SETTINGS FUNCTION - MANAGING
USER DATA.
CAUTION!
Take into account that when leaving your car at a
service center, personal data stored on BLUE&ME™
(phonebook and last calls) may be disclosed or may
be subject to improper use. Before leaving your car at
the service center you can delete stored data and
phonebook from BLUE&ME™.
NOTE:For further details on how to delete personal
data and phonebook, refer to SETTINGS FUNCTION -
MANAGING USER DATA
SYSTEM SOFTWARE USE NOTICE
This system contains software that is licensed to Manu-
facturer pursuant to a license agreement. Any removal,
reproduction, reverse engineering or other unauthorized
use of the software from this system in violation of the
license agreement is strictly prohibited and may subject
you to legal action.
1
BLUE&ME™ User’s Manual 101
