OVERVIEW
FIAT’s Windows Mobile™ basedBLUE&ME™Hands-
Free Communication is a personal telematics system that
incorporates communication and entertainment applica-
tions that are expressly designed for use in your car.
TheBLUE&ME™Hands-Free Communication package
installed in your car is equipped with integral hands-free
kit, message reader, and media player.BLUE&ME™is
designed to support the future installation of additional
services.
TheBLUE&ME™Hands-Free Communication package
features integrated voice recognition, steering wheel con-
trols and a multifunction electronic display that allows
you to use yourBluetoothwireless technology enabled
mobile phone without having to take your eyes off the
road. You can even keep your phone in a pocket or a bag.
You are not required to train the voice recognition systemto recognize your voice. The system is “speaker indepen-
dent” and performs equally well for different users.
With this system, you can also play your favorite music
stored on a USB stick or iPodand select tracks and
playback modes with both voice commands or buttons
on the steering wheel.
This device complies with Part 15 of the FCC rules
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept all interference received,
including interference that may cause undesired
operation
The BLUE&ME™ Hands-Free Communication
Package
The basic characteristic of this hands-free package is
voice recognition withBluetoothwireless technology.
With this system you can make and receive calls safely
1
BLUE&ME™ User’s Manual 5

Button Short press function (less than 1 second) Long press function
(more than 1 second)
VOICE RECOG-
NITION (VR)•Activate voice recognition
•Interrupt voice announcement to provide a new voice com-
mand•Repeat the last utter-
ance in a voice inter-
action
PHONE HANG UP
•Reject an incoming call and end a phone call in progress
•End an active call and switch to a call waiting (on hold)–
PRESET UP/OK (left
side back of steering
wheel)•Confirm manually selected menu option
•Switch phone conversation from the hands-free phone to
your mobile phone and vice versa
•Select displayed message–
SCAN UP
/SCAN
DOWN
(left side
back of steering wheel•ScrollBLUE&ME™menu items
•Scroll though media player tracks
•Scroll inbox messages–
NOTE:
•For both operating modes of Voice Command steering
wheel buttons (short or long press), the function
chosen will be activated when you release the button.
•When connecting toBLUE&ME™Hands-Free Com-
munication for the first time, your phone’s phonebook
will automatically be downloaded. If this operation is
not allowed immediately after pairing for the first
time, theBLUE&ME™system will prompt you for the
1
BLUE&ME™ User’s Manual 17

•Once a mobile phone is paired to theBLUE&ME™
system, the phone will automatically connect
/disconnect to theBLUE&ME™system whenever the
ignition is turned to ON/OFF. All of theBLUE&ME™
features are fully functional when the phone is con-
nected toBLUE&ME™.
NOTE:Some mobile phones may require you to accept
theBLUE&ME™connection, depending on the mobile
phone settings.
•Entries stored in SIM card or mobile phone memory
can be transferred toBLUE&ME™with different
procedures, according to your mobile phone model.
Try Out the Voice Commands
At each stage of your dialogue with the system, you can
always use the voice command“Help”,to get detailed
indications about the voice commands available.To try out the“Help”function, proceed as follows:
•Press thesteering wheel button.
•AfterBLUE&ME™says “Say a command” and plays
a tone indicating that voice recognition is active, say
“Help”.BLUE&ME™will speak the list of voice
commands available.
•After the general help message is finished, say“Set-
tings”and then“Help”.BLUE&ME™will speak the
list of voice commands available for the Settings
menu.
•You can then say or pronounce one of the available
commands and proceed with the dialogue as you like.
•If you need additional help, press thesteering
wheel button and say“Help”again.
1
BLUE&ME™ User’s Manual 19

There is no voice training required for using voice
commands with this system.
To issue a voice command to the system, press the
steering wheel button and wait for the radio to mute,
then listen for “Say a command” and then a tone indi-
cating that voice recognition is active. Then, speak the
command in your natural voice at a moderate pace.
When the system recognizes the command, it will ac-
knowledge your command by speaking a response or
acting on your command.
Voice commands are organized according to three in-
creasing levels: 1st level, 2nd level and 3rd level.
When a valid* 1st level keyword is said, the system will
activate 2nd level keywords; when a valid 2nd level
keyword is said, the system will activate 3rd level
keywords.If the user says a valid 1st level keyword, then the
submenu relevant to that command will remain active
until a keyword leading to another level is given, the
interaction is interrupted or the system times out because
no command has been given; the same rule applies for
the other lower levels (2nd and 3rd level).
NOTE:For the list of available keywords, refer to
VOICE COMMANDS (KEYWORDS) - SUMMARY.
* Valid means that the keyword said is included in the
BLUE&ME™“dictionary” and can therefore be recog-
nized by the system for the concerned level.
To repeat the last system voice announcement, press the
steering wheel button and say“Repeat”or hold
the
steering wheel down for longer than 1 second.
The system can issue voice announcements. A voice
announcement is a spoken message initiated by the
system. To cancel a voice announcement, press the
1
BLUE&ME™ User’s Manual 25

•Say words clearly, in your natural voice at a moderate
pace, without stops.
•If possible, try to minimize background noise in the
car.
•Ask the other passengers to keep silent while you are
speaking voice commands to prevent misunderstand-
ing since the system could recognize other words (in
addition to or different from your voice command) if
several people are speaking.
•If your car has a convertible top, close it before using
voice recognition.
NOTE:
•In countries where theBLUE&ME™version in native
language is not available, voice recognition of the
different commands and phonebook contacts could be
difficult. You are therefore recommended to adopt a
pronunciation/accent meeting the language available
onBLUE&ME™.
•The display language can be changed from the instru-
ment cluster menu, but to change the voice recognition
(VR) language and announcements, contact your FIAT
Dealership or consult the dedicated site at www.fia-
tusa.com website.
Display
The differentBLUE&ME™Main Menu options are dis-
played on the instrument panel multifunction display.
The display shows the following information:
•Status information for theBluetoothwireless tech-
nology enabled mobile phone (e.g., on a call).
•Indicates thatBLUE&ME™is currently con-
nected with aBluetoothwireless technology enabled
mobile phone.
28 BLUE&ME™ User’s Manual

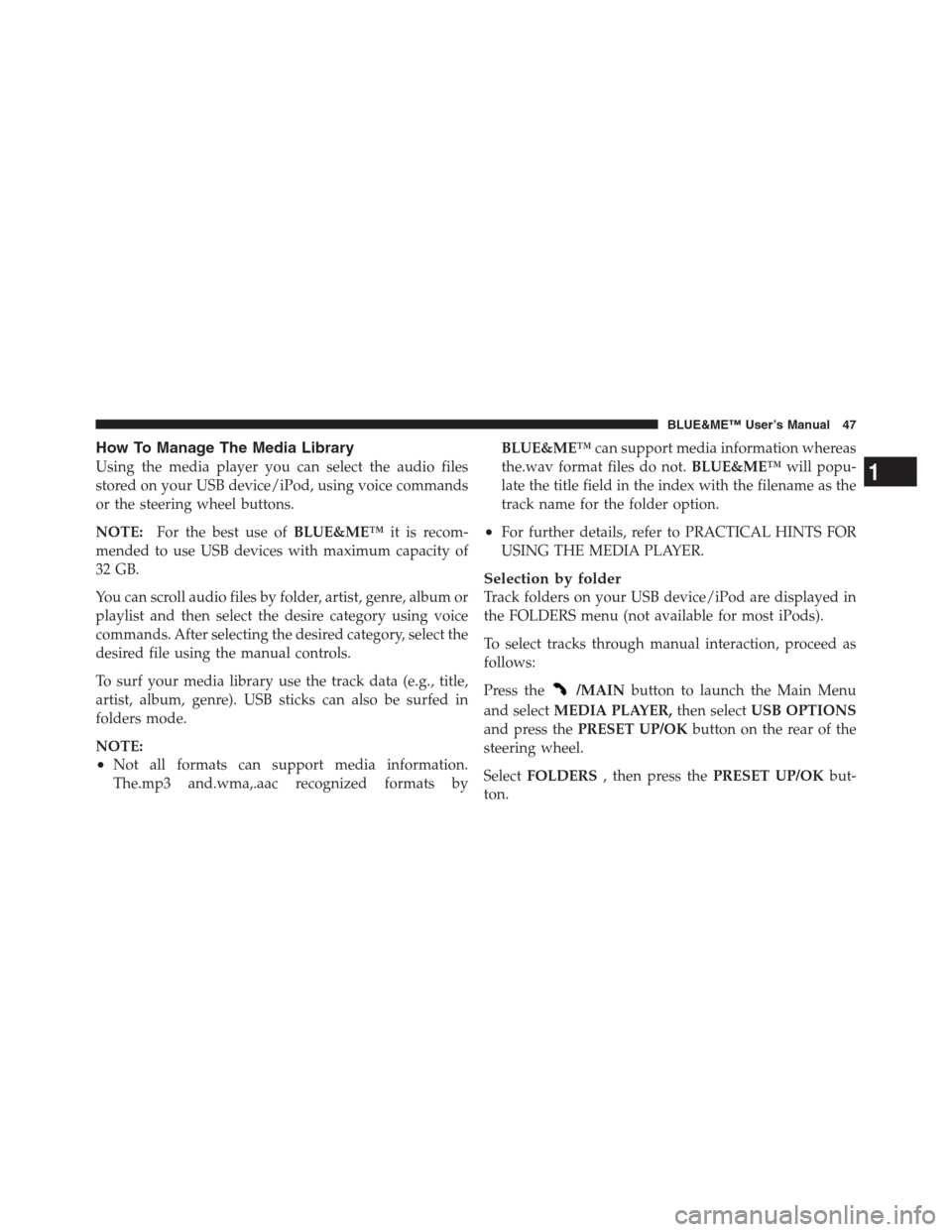

How To Manage The Media Library
Using the media player you can select the audio files
stored on your USB device/iPod, using voice commands
or the steering wheel buttons.
NOTE:For the best use ofBLUE&ME™it is recom-
mended to use USB devices with maximum capacity of
32 GB.
You can scroll audio files by folder, artist, genre, album or
playlist and then select the desire category using voice
commands. After selecting the desired category, select the
desired file using the manual controls.
To surf your media library use the track data (e.g., title,
artist, album, genre). USB sticks can also be surfed in
folders mode.
NOTE:
•Not all formats can support media information.
The.mp3 and.wma,.aac recognized formats byBLUE&ME™can support media information whereas
the.wav format files do not.BLUE&ME™will popu-
late the title field in the index with the filename as the
track name for the folder option.
•For further details, refer to PRACTICAL HINTS FOR
USING THE MEDIA PLAYER.
Selection by folder
Track folders on your USB device/iPod are displayed in
the FOLDERS menu (not available for most iPods).
To select tracks through manual interaction, proceed as
follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,then selectUSB OPTIONS
and press thePRESET UP/OKbutton on the rear of the
steering wheel.
SelectFOLDERS, then press thePRESET UP/OKbut-
ton.
1
BLUE&ME™ User’s Manual 47

Previous Track
To play the previous track using manual interaction,
proceed as follows:
While playing a digital track press the Scan Down
rear steering wheel button.
Or, using voice interaction:
While playing a digital track, press the
steering
wheel button and say“Previous”.
NOTE:If the“Previous”track (manual or voice) com-
mand is given after playing the first 3 seconds of the
track, the track will be started over. If it is given within
the first 3 seconds, the previous track will be played.
Changing audio sources
To change the current sound source (Radio, CD, CD
Changer, Media player), press thePRESET UP/OKbut-
ton on the rear of the steering wheel orFM, AM or
MEDIAbuttons on the radio.NOTE:For further details on voice commands (key-
words) to be used with the media player, refer to VOICE
COMMANDS (KEYWORDS) - SUMMARY.
iPodcompatibility
What I can do
•Listen to tracks in digital quality
•Select tracks by category (Artist, Album, Genre, etc.)
by voice control or using the controls on the steering
wheel
•Recharge the iPodvia USB
NOTE:
•The device must be in playback mode or paused to
start playing a track on some iPod/iPhone models.
•Load the tracks onto the iPod/iPhone device using
the procedure specified in the device manual.
•It is advisable to keep telephones and iPods updated
for optimal operation with theBLUE&ME™system.
54 BLUE&ME™ User’s Manual

Problem Probable Cause Possible Solution
iPodcontinues playing the
same track or the “forward”
button has to be pressed to
move on to the next track•The repetition function for each indi-
vidual track may have inadvertently
been activated
•When browsing music by a selecting
playback mode, the selected artist,
album, genre or playlist may contain
only 1 track.There is a specific item in the menu, like
“continuous play” or “individual track
repetition”, which must be deactivated
Proceed with the deactivation:
•press the controls activation button on
the steering wheel
•when requested by the system, say
“Repeat Off” in a clear tone
•wait for voice confirmation by the sys-
tem which will say “Repeat Off”
•wait for voice confirmation by the sys-
tem which will say “Repeat Off” Se-
lect another playback mode or use the
“Play Anything” voice recognition
command
The iPodconnected to the
BLUE&ME™is not
charged•When the ignition is ON the car re-
charges the iPodunless the iPodis
completely run down•Remember that your iPodmust have
some charge or wait a few minutes
until the system recharges it
100 BLUE&ME™ User’s Manual
