2012 DODGE AVENGER Owners Manual

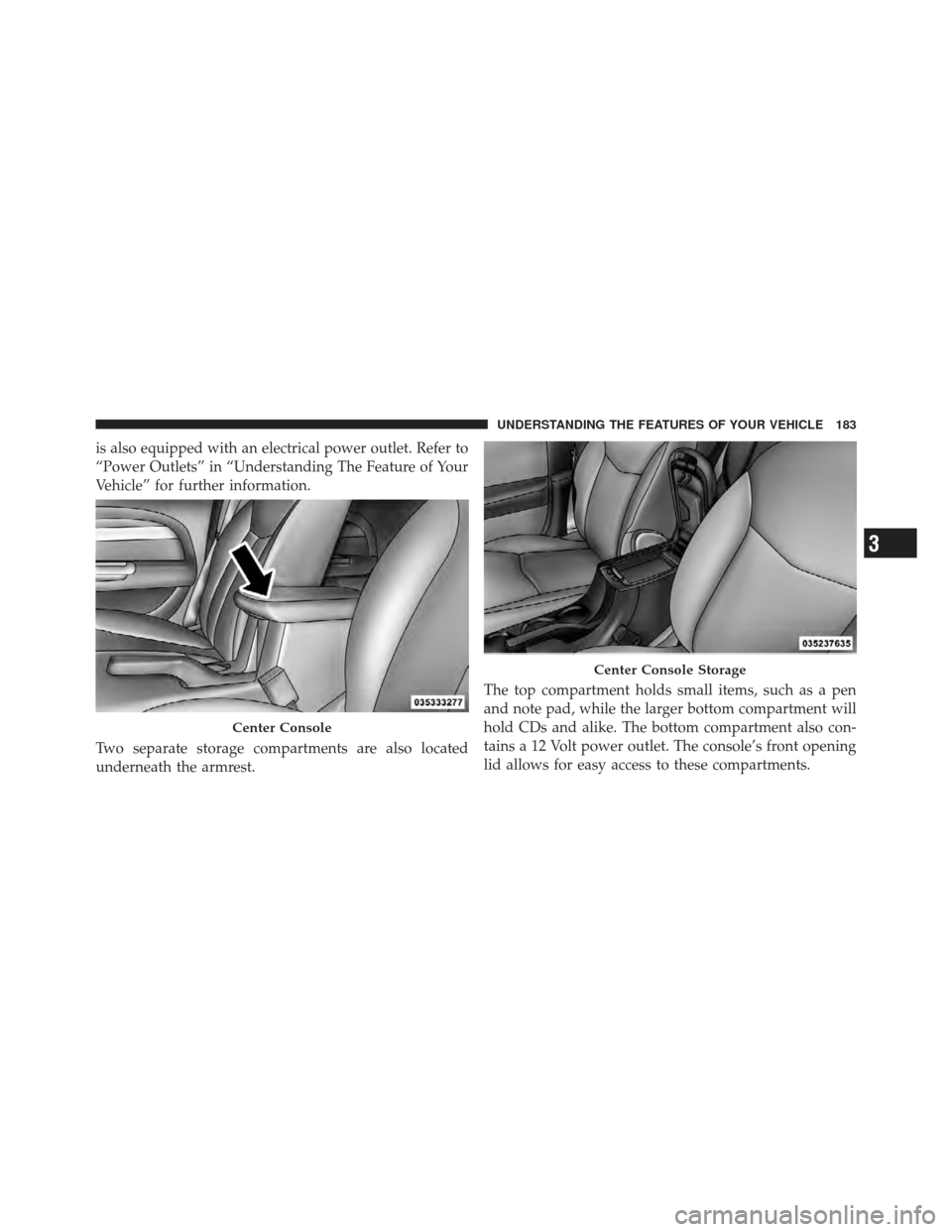

is also equipped with an electrical power outlet. Refer to
“Power Outlets” in “Understanding The Feature of Your
Vehicle” for further information.
Two separate storage compartments are also located
underneath the armrest.The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12 Volt power outlet. The console’s front opening
lid allows for easy access to these compartments.
Center Console
Center Console Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183

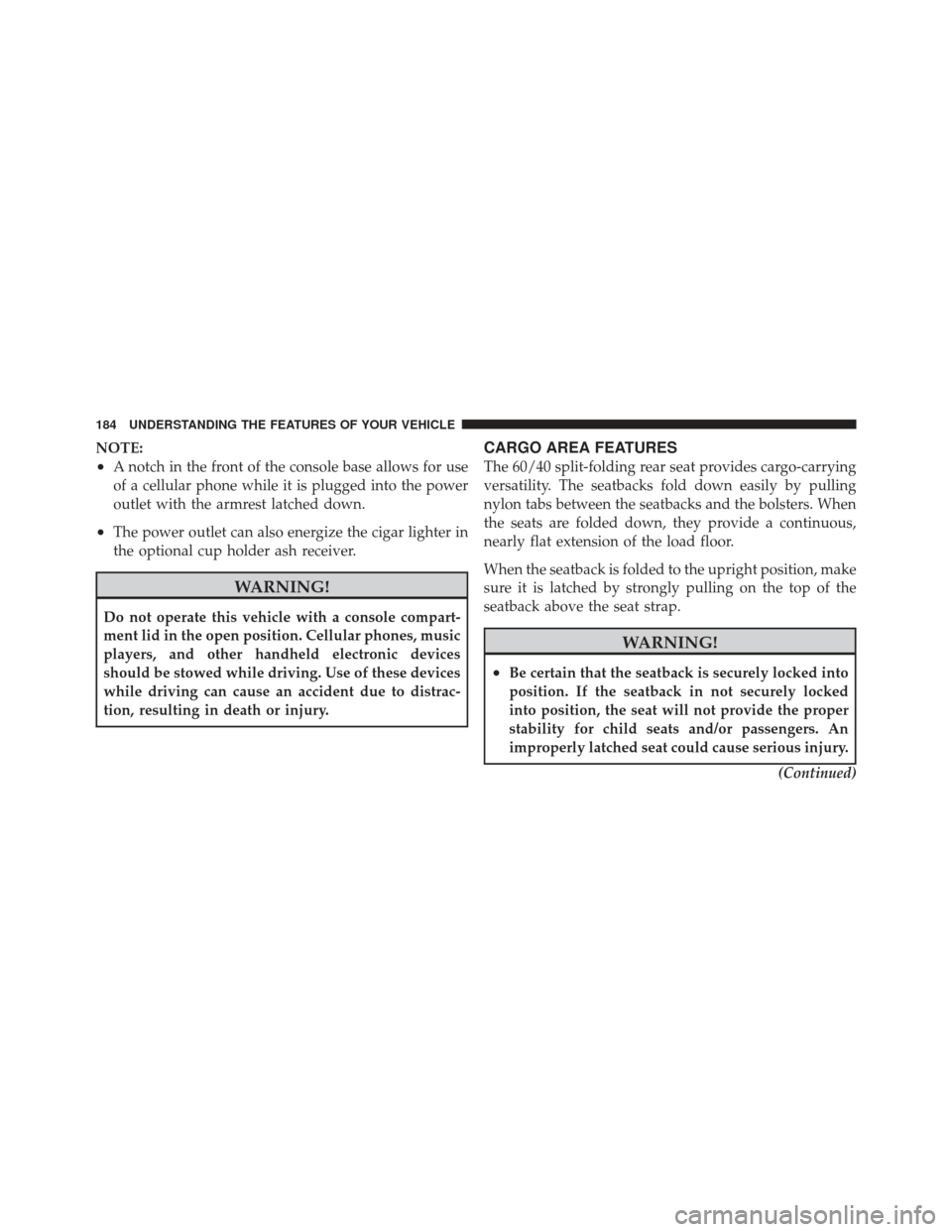

NOTE:
•A notch in the front of the console base allows for use
of a cellular phone while it is plugged into the power
outlet with the armrest latched down.
•The power outlet can also energize the cigar lighter in
the optional cup holder ash receiver.
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
CARGO AREA FEATURES
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.(Continued)
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

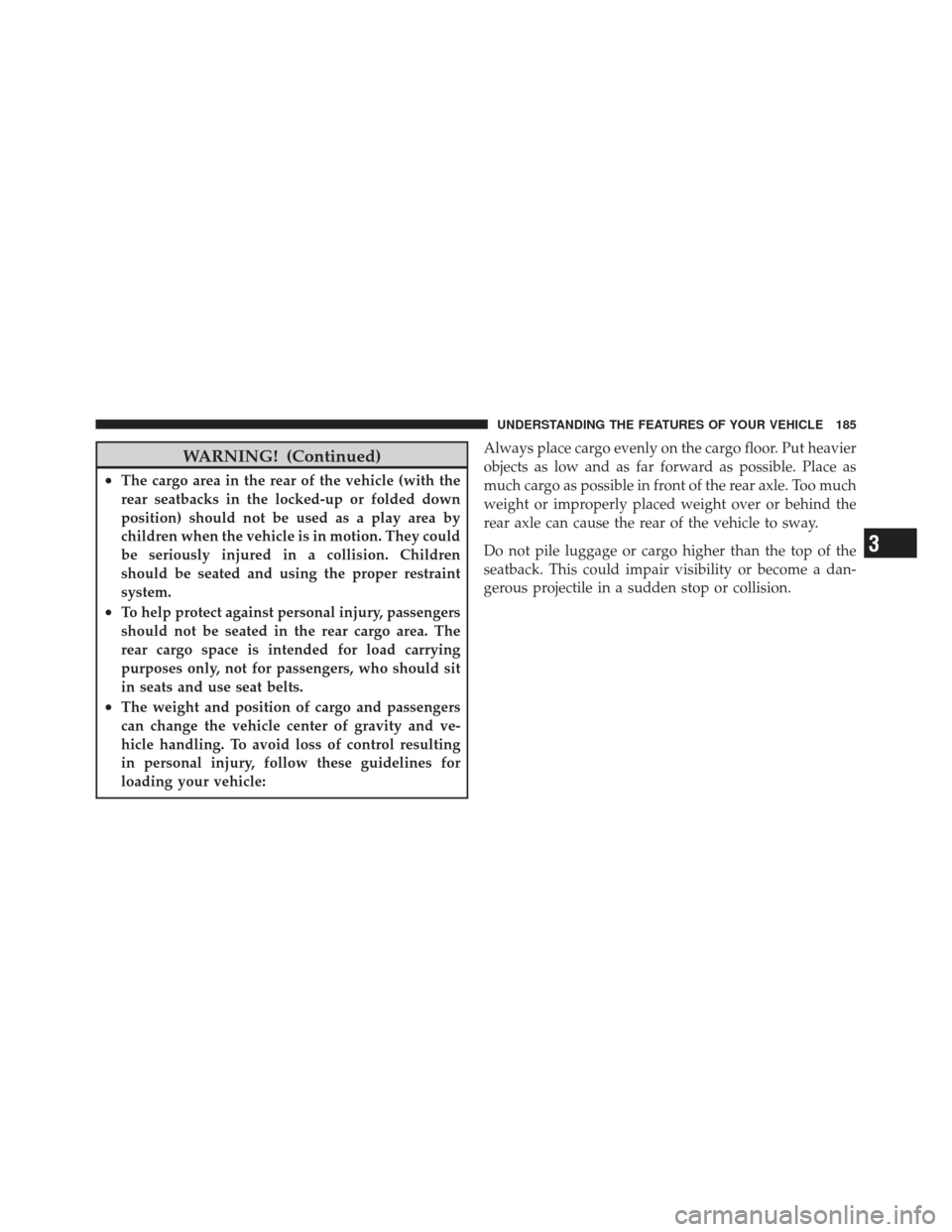

WARNING! (Continued)
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children
should be seated and using the proper restraint
system.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:Always place cargo evenly on the cargo floor. Put heavier
objects as low and as far forward as possible. Place as
much cargo as possible in front of the rear axle. Too much
weight or improperly placed weight over or behind the
rear axle can cause the rear of the vehicle to sway.
Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a dan-
gerous projectile in a sudden stop or collision.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185

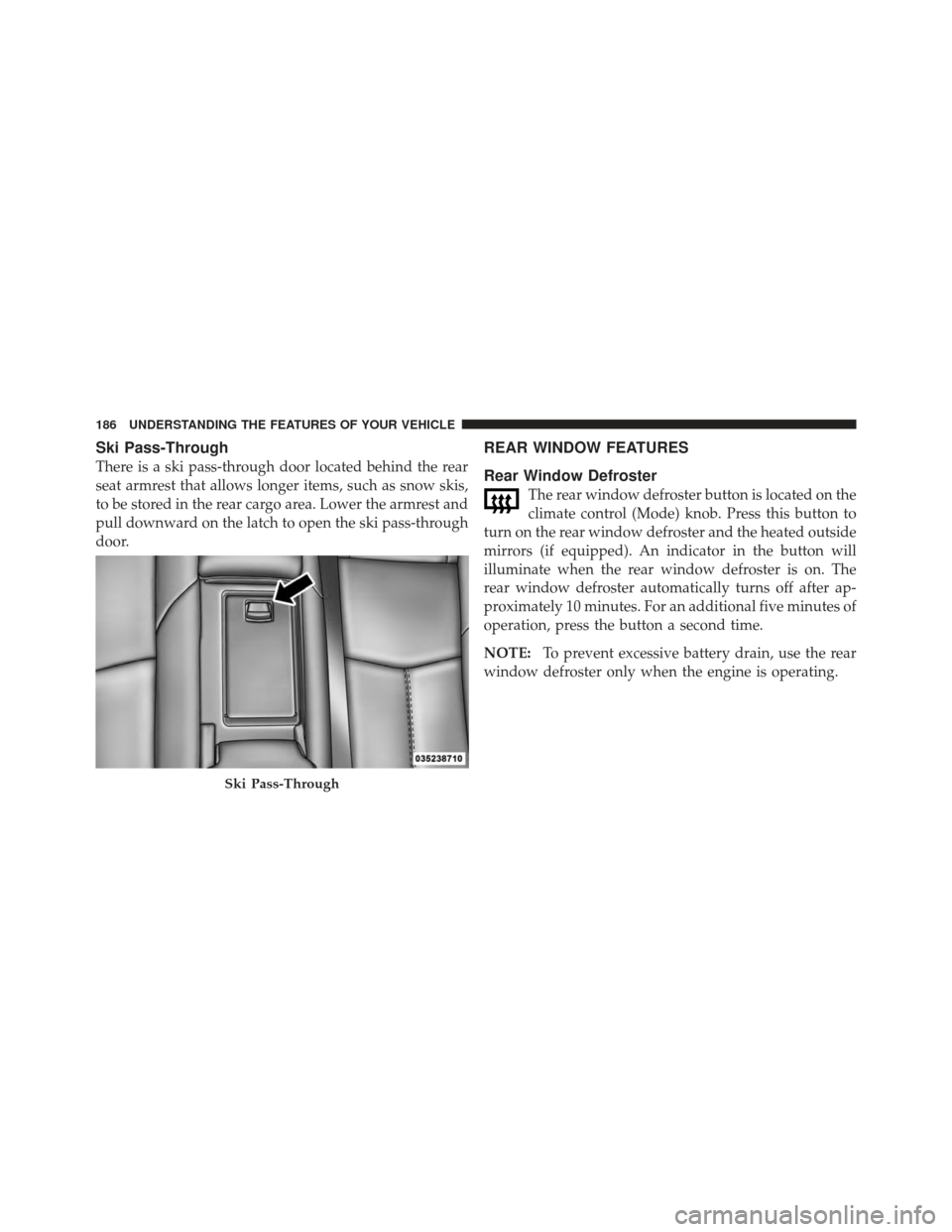

Ski Pass-Through
There is a ski pass-through door located behind the rear
seat armrest that allows longer items, such as snow skis,
to be stored in the rear cargo area. Lower the armrest and
pull downward on the latch to open the ski pass-through
door.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Ski Pass-Through
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187

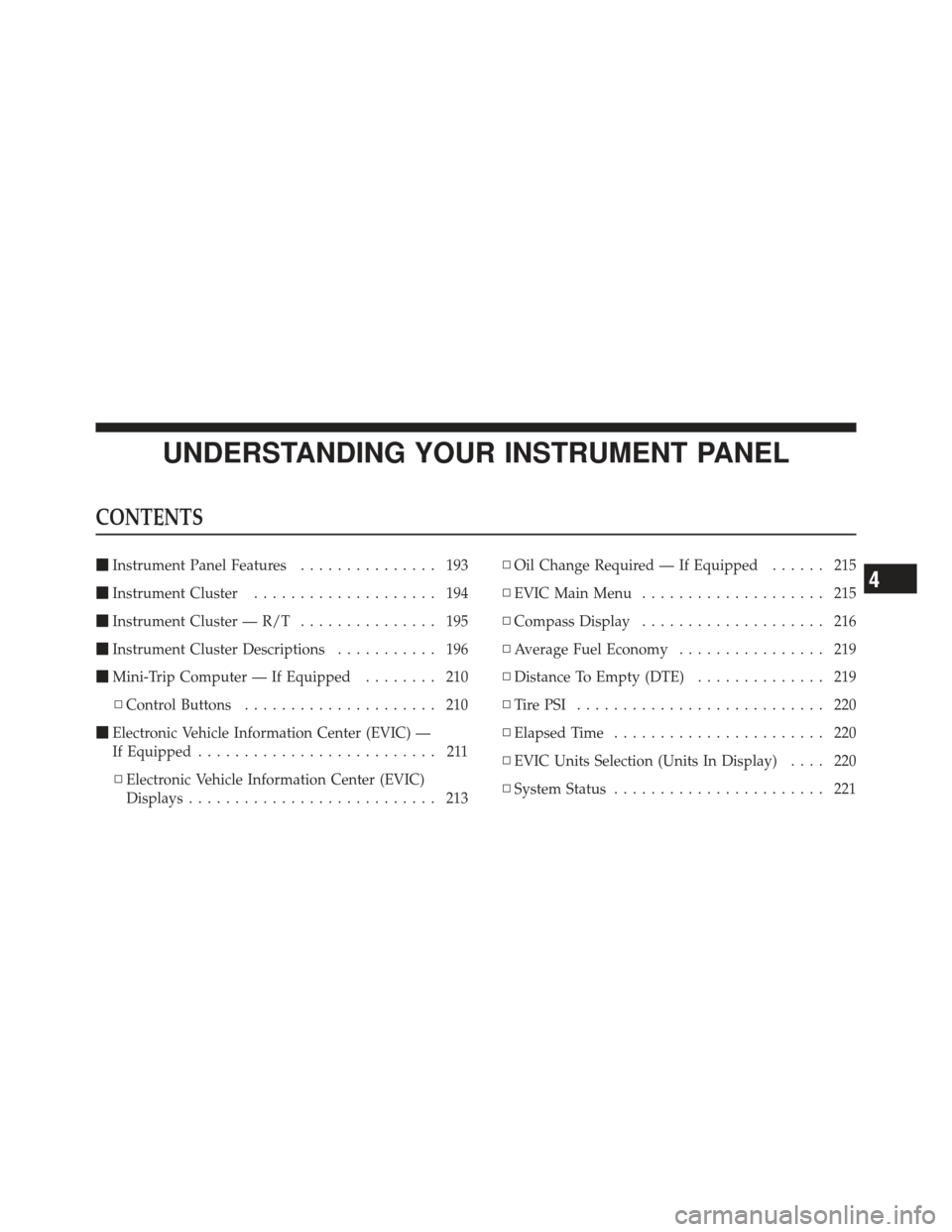

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 193
 Instrument Cluster .................... 194
 Instrument Cluster — R/T ............... 195
 Instrument Cluster Descriptions ........... 196
 Mini-Trip Computer — If Equipped ........ 210
▫ Control Buttons ..................... 210
 Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 211
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 213 ▫
Oil Change Required — If Equipped ...... 215
▫ EVIC Main Menu .................... 215
▫ Compass Display .................... 216
▫ Average Fuel Economy ................ 219
▫ Distance To Empty (DTE) .............. 219
▫ TirePSI ........................... 220
▫ Elapsed Time ....................... 220
▫ EVIC Units Selection (Units In Display) .... 220
▫ System Status ....................... 221
4

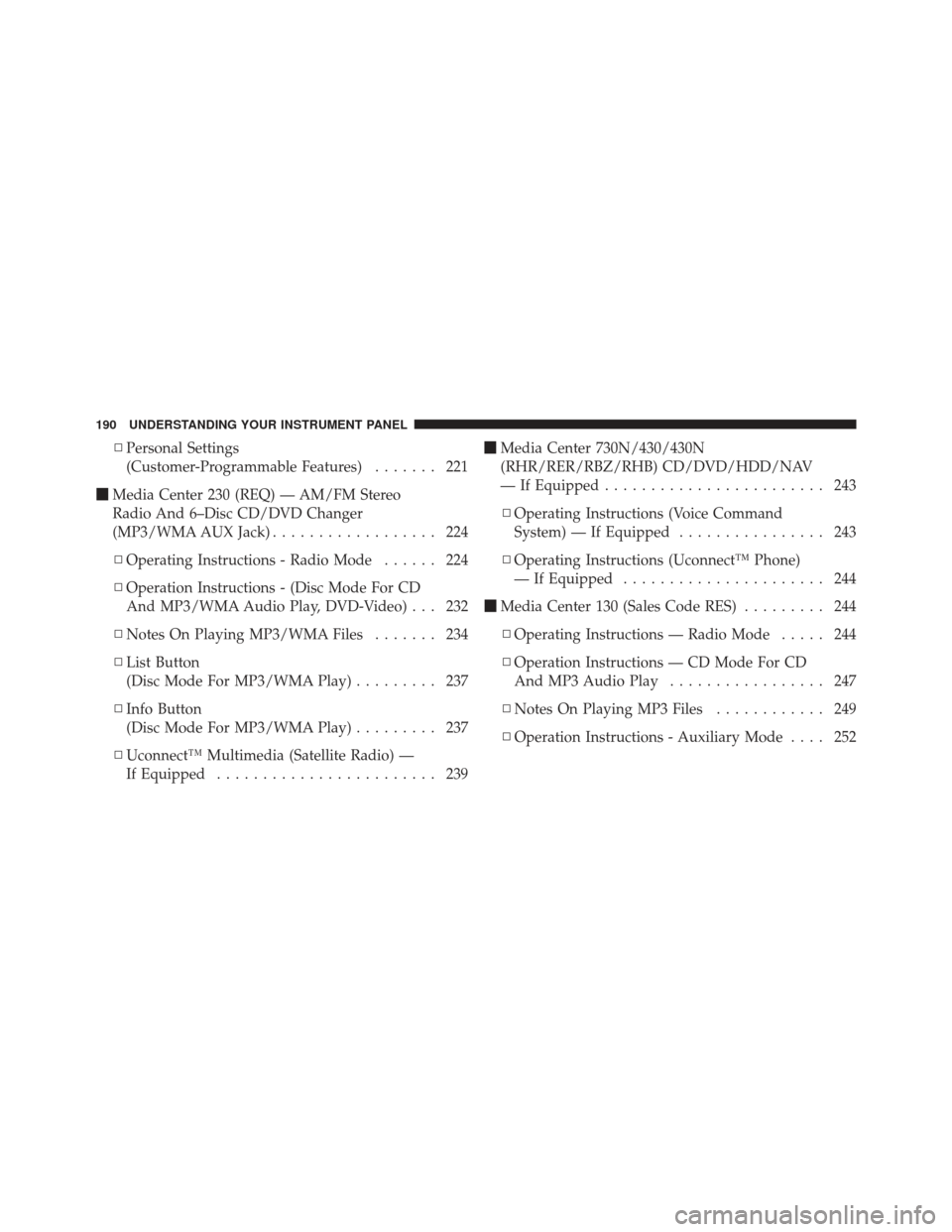

▫Personal Settings
(Customer-Programmable Features) ....... 221
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 224
▫ Operating Instructions - Radio Mode ...... 224
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 232
▫ Notes On Playing MP3/WMA Files ....... 234
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 237
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 237
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 239
Media Center 730N/430/430N
(RHR/RER/RBZ/RHB) CD/DVD/HDD/NAV
— If Equipped ........................ 243
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 243
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 244
 Media Center 130 (Sales Code RES) ......... 244
▫ Operating Instructions — Radio Mode ..... 244
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 247
▫ Notes On Playing MP3 Files ............ 249
▫ Operation Instructions - Auxiliary Mode .... 252
190 UNDERSTANDING YOUR INSTRUMENT PANEL
