Fuse Mini Fuse Description
16 — 15 Amp
Lt. Blue Sunroof – If
Equipped
17 — 10 Amp
Red Wireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp
Green —Auto Shutdown
(ASD) Relay
19 — 20 Amp
Yellow Audio Amplifier –
If Equipped
20 — 15 Amp
Lt. Blue Radio
21 — 10 Amp
Red Siren – If EquippedCavity Cartridge
Fuse Mini Fuse Description
22 — 10 Amp
Red Ignition Run – Cli-
mate Controls/Hot
Cupholder – If
Equipped
23 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 3
24 — 25 Amp
Natural Sunroof – If
Equipped
25 — 10 Amp
Red Ignition Run —
Heated Mirrors - If
Equipped
26 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 2
7
MAINTAINING YOUR VEHICLE 455

CavityCartridge
Fuse Mini Fuse Description
27 — 10 Amp
Red Ignition Run – Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
28 — 10 Amp
Red Ignition Run —
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
29 — — Hot Car (No Fuse
Required)
30 — 20 Amp
Yellow Ignition Run –
Heated Seats – If
EquippedCavity
Cartridge
Fuse Mini Fuse Description
31 — — Spare
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay 1
33 — 10 Amp
Red Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp
Pink —Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC)
Module – If
Equipped
456 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini Fuse Description
35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC)
Module – If
Equipped
36 30 Amp
Pink —Passenger Door
Module (PDM)/
Driver Door Mod-
ule (DDM)
37 — 25 Amp
Natural Power Top Module
– If EquippedCAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 457

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
458 MAINTAINING YOUR VEHICLE

LIGHT BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal Lamp ..............3457A
Front Fog Lamp ......................... H11
Front Side Marker Lamp .................WY5W
Center High Mounted Stop (CHMSL) Lamp ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal Lamp ............ LED
(Serviced at Authorized Dealer)
Backup Lamp ........................... 921
License Lamp .......................... W5W
BULB REPLACEMENT
Headlamp
1. Raise the hood and locate the connector behind the
headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
MAINTAINING YOUR VEHICLE 459

3. Rotate bulb and connector14turn and pull outward
from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. 4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise14turn to secure.
460 MAINTAINING YOUR VEHICLE

Fog Lamps
1. Access to the lamps through the lower fascia cutout is
limited.
2. Turn the steering wheel to allow access and remove
the inner fender shield.
3. Rotate the bulb and connector
14turn counterclock-
wise.
4. Pull the bulb off of connector and replace with a new
one.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.

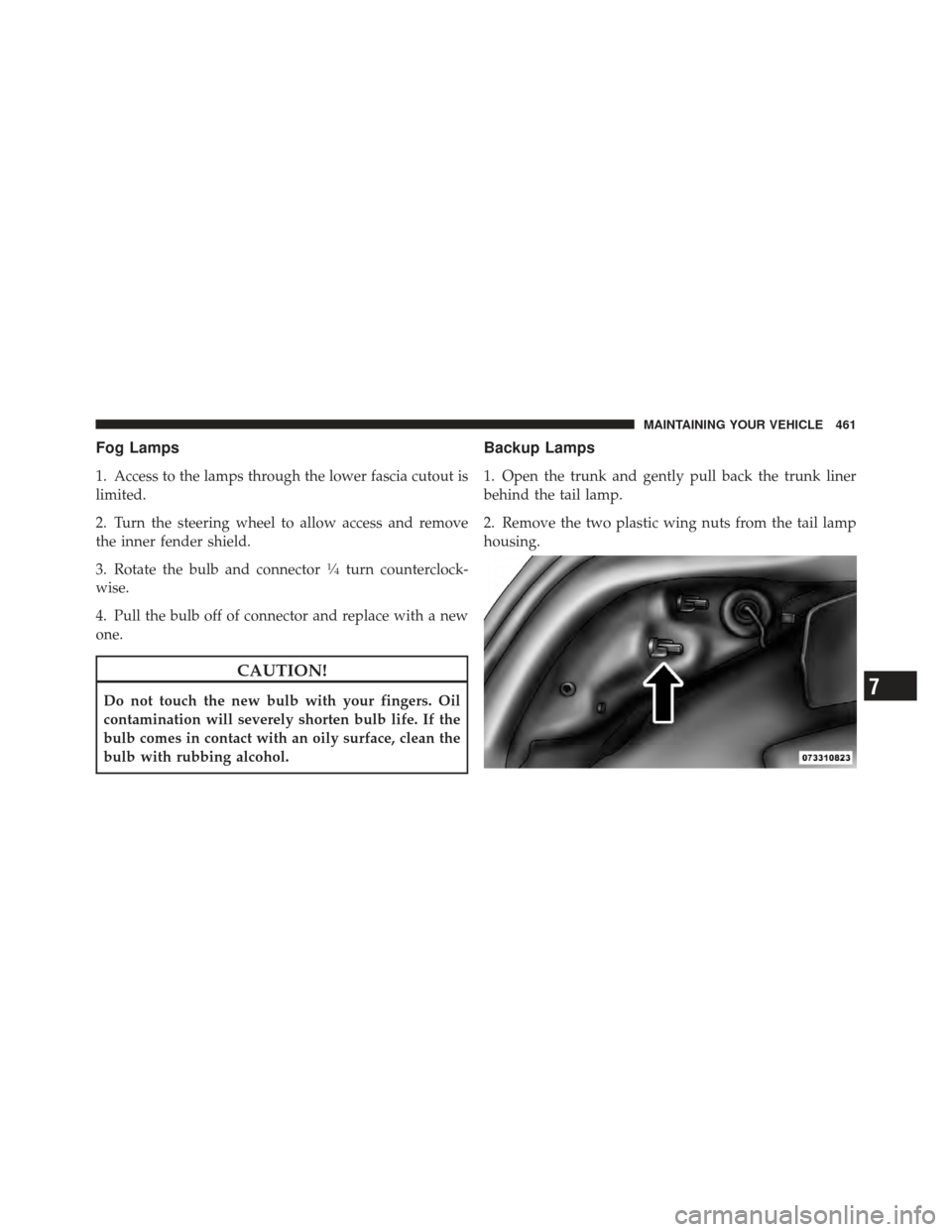

Backup Lamps
1. Open the trunk and gently pull back the trunk liner
behind the tail lamp.
2. Remove the two plastic wing nuts from the tail lamp
housing.
7
MAINTAINING YOUR VEHICLE 461

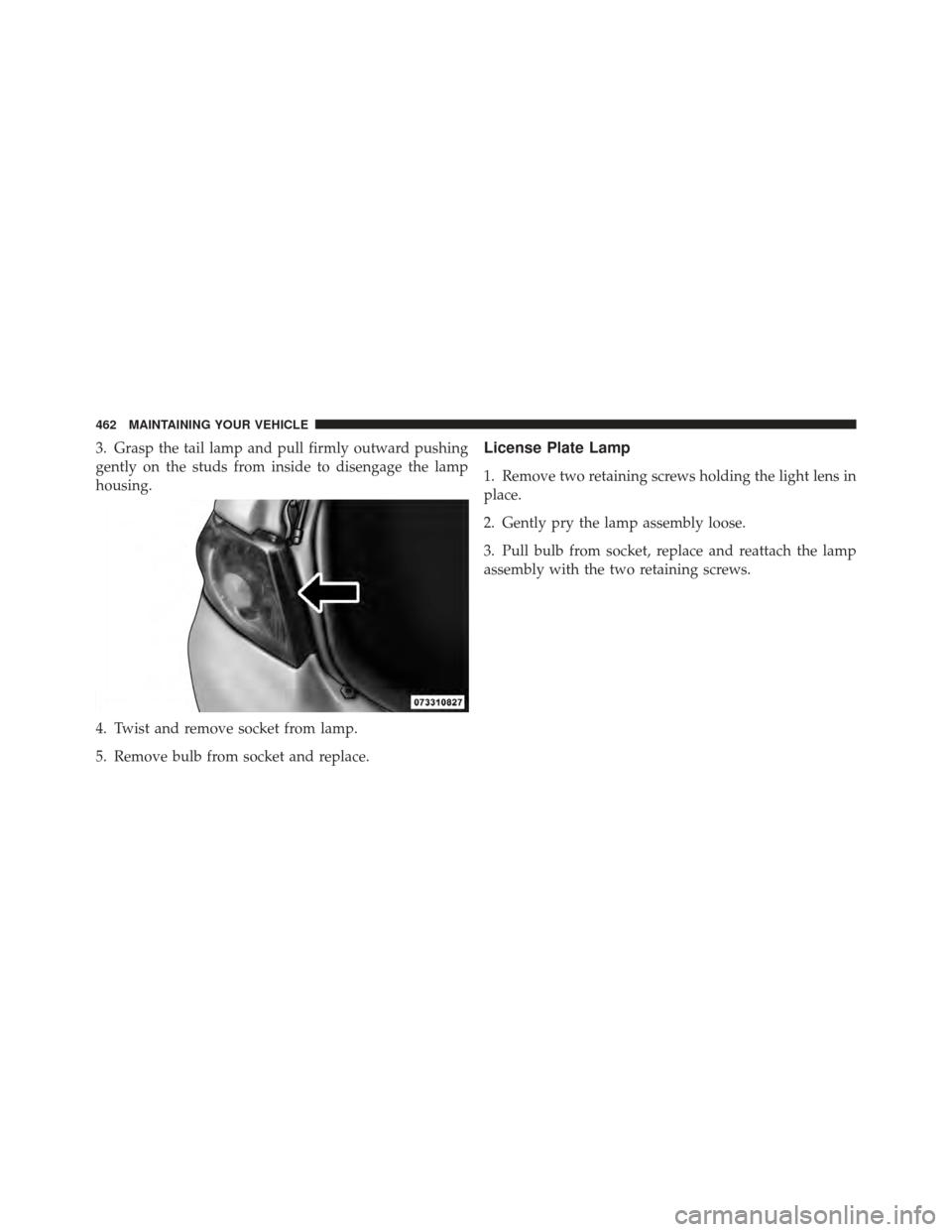

3. Grasp the tail lamp and pull firmly outward pushing
gently on the studs from inside to disengage the lamp
housing.
4. Twist and remove socket from lamp.
5. Remove bulb from socket and replace.License Plate Lamp
1. Remove two retaining screws holding the light lens in
place.
2. Gently pry the lamp assembly loose.
3. Pull bulb from socket, replace and reattach the lamp
assembly with the two retaining screws.
