2012 DACIA LOGAN Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.25
ENG_UD32482_1
Banquette arrière (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
REAR BENCH SEAT: operation (2/2)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear seat is moved.
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
When moving the rear
bench seat, check that
the bench seat ancho-
rage points are clean (they
should be free from grit, cloths or
any other item which may prevent
the bench seat from locking secu-
rely).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.26
ENG_UD32520_3
Coffre à bagages (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
BOOT
1
To open
Electric central locking
With the opening elements unlocked,
press button 1 and lift the tailgate.
Manual locking
From the outside
Insert the key in the boot lock, turn
it (depending on the vehicle, press
button 1) and lift the boot lid.
2
From the inside
Pull the lever 2, then lift the boot lid.
3
To close
Lower the boot lid using, at first, the
handle 3 inside the boot, if fitted to
the vehicle.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.27
ENG_UD30505_1
Rangements / aménagements coffre à bagage (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Anchorage points
Anchorage points 1 located on each
corner of the luggage compartment
allow loads to be secured.
Always place objects being trans-
ported so that the heaviest items
are resting against the back of the
rear bench seat.
Always position the heavi-
est items directly on the
floor. If the vehicle is
equipped with anchorage
points on the luggage compart-
ment floor, use them. The luggage
should be loaded in such a way that
no items will be thrown forward and
strike the occupants if the driver has
to brake suddenly. Fasten the rear
seat belts, even if the seats are not
occupied.
11
11
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.28
ENG_UD31054_3
Transport d\’objet dans le coffre/Remorquage (attelage) (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
TRANSPORTING OBJECTS IN THE BOOT
Always position the objects trans-
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads (eg: A);
– the front seats when the rear seats
are folded down. Refer to the infor-
mation on the “Rear bench seat:
functions” in this section (eg: B).
Always position the heaviest items di-
rectly on the floor.
Always place objects being trans-
ported so that the heaviest items are
resting against the back of the rear
bench seat.
A
B
Always position the heavi-
est items directly on the
floor. Use the lashing
points 1 on the boot floor, if
these are fitted to the vehicle. The
luggage should be loaded in such a
way that no items will be thrown for-
ward and strike the occupants if the
driver has to brake suddenly. Fasten
the rear seat belts, even if the seats
are not occupied.
1
1
1
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

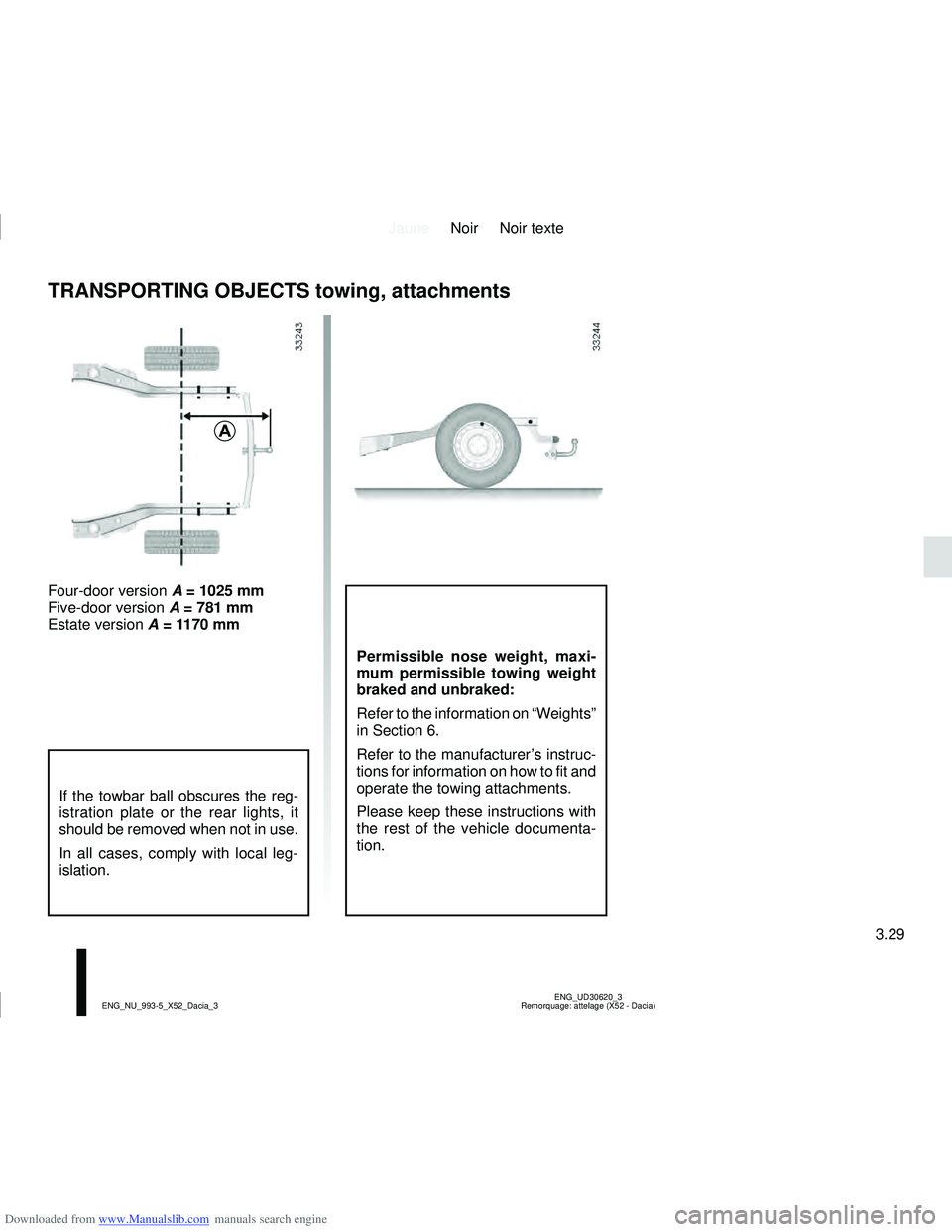

3.29
ENG_UD30620_3
Remorquage: attelage (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Four-door version A = 1025 mm
Five-door version A = 781 mm
Estate version A = 1170 mm
TRANSPORTING OBJECTS towing, attachments
Permissible nose weight, maxi-
mum permissible towing weight
braked and unbraked:
Refer to the information on “Weights”
in Section 6.
Refer to the manufacturer’s instruc-
tions for information on how to fit and
operate the towing attachments.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
A
If the towbar ball obscures the reg-
istration plate or the rear lights, it
should be removed when not in use.
In all cases, comply with local leg-
islation.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.30
ENG_UD26964_1
Cache-bagages (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
REAR PARCEL SHELF
Five-door version
Removal
Unhook the two cords 1 (tailgate side).Lift rear parcel shelf
2 slightly and pull it
towards you.
To refit it, proceed in reverse order to
removal.
Do not place any objects,
especially heavy or hard
objects, on parcel shelf 2
or 3. These may pose a risk
to the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
Four-door version
1
2
3

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.31
ENG_UD30605_2
Cache-bagages version break (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Do not place any objects, especially heavy or solid objects on the lug-
gage compartment cover. These may pose a risk to the vehicle occu-
pants if the driver has to brake suddenly or if the vehicle is involved in
an accident.
LUGGAGE COMPARTMENT COVER: estate version
This consists of a rigid section (parcel
shelf A) and a soft section B.
To remove the flexible section B
Pull the boot cover gently by its handle 1
to release it from the contact points.
Guide the luggage cover onto the roller.Removing the boot cover
When the soft section B has been rolled
up, gently lift the parcel shelf A and pull
it towards you.
To refit, carry out the above operations
in reverse order.
A
B
A
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.32
ENG_UD30619_2
Filet de séparation (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
TRANSPORTING OBJECTS Luggage net (1/2)
Estate version
Luggage net A
If fitted, this can be used when trans-
porting animals or luggage to isolate
them from the passenger section.
It fits behind the driver and passenger
seats or behind the rear bench seat. Fitting the luggage net behind the
front seats
Inside the vehicle on each side:
– lower cover 1
to gain access to the
anchoring points for the top part of
the luggage net;
– insert the top rod of net 3 into the an- choring points; – move the cut-out section 2
in the
carpet to access the lower mount-
ing 6 for the net;
– attach the two hooks 5 of the straps 4
from the net onto the anchoring
points 6;
– adjust the net strap 4 so that it is taut.
2
A
1
6
3
5
4
1
The luggage net must not
be used to restrain or hold
objects.
Risk of injury.
