2012 DACIA LOGAN Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.9
ENG_UD32522_3
Air conditionné automatique (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
ØThe air flow is mainly distrib-
uted between the front side
window demisting air vents and the
windscreen demisting vents.
½The air flow is mainly directed
to the dashboard air vents.
¿The air flow is directed mainly
towards the footwells.
Adjusting the distribution
of air in the passenger
compartment
Press one of the buttons 4 . The in-
tegrated warning light in the button
comes on.
It is possible to combine two or three
positions simultaneously – press two or
three buttons 4.
AUTOMATIC CLIMATE CONTROL (3/4)
4

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.10
ENG_UD32522_3
Air conditionné automatique (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
AUTOMATIC CLIMATE CONTROL (4/4)
76
Air recirculation (isolation of
the passenger compartment)
K
This function is managed automatically
(operation is confirmed by a warning
light on button 7), but you can also acti-
vate it manually. Manual use
Press button 7 – the integrated indica-
tor light comes on.
Prolonged use of this position may lead
to odours, caused by non-renewal of
air, and the formation of condensation
on the windows.
We therefore advise you to return to au-
tomatic mode as soon as air recircula-
tion is no longer needed, by pressing
button 7.
To exit this function, press button
7
again.
Stopping the system
Turn control 6 to “OFF” to stop the
system. To start, turn control 6 again
to adjust the blower speed or press
button 1.
1
NB:
– during recirculation, air is taken from the passenger compartment and
is recycled, with no air being taken
from outside the vehicle;
– air recirculation allows the external atmosphere to be cut off (when driv-
ing in polluted areas, etc.);
– bringing the passenger compartment to the desired temperature as quickly
as possible.
The demisting/de-icing will still take
priority over the air recirculation.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.11
ENG_UD26949_1
Air conditionné : informations et conseils utilisation (X52 - Dacia)\
ENG_NU_993-5_X52_Dacia_3
Fuel consumption
You will normally notice an increase in
fuel consumption (especially when driv-
ing in town) when the air conditioning is
operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre-
quency.
AIR CONDITIONING: information and advice on use
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting
or air conditioning performance .
This may be caused by the passen-
ger compartment filter cartridge be-
coming clogged.
– No cold air is being produced .
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.12
ENG_UD26950_1
Vitres (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Manual window winders
Turn handle 1 to lower or raise the
window to the desired height. Dashboard switches B
Press the bottom of switch 4
or 5 to
open the window or press the top of
switch 4 or 5 to close it to the desired
level.
4 for the driver’s side.
5 for the front passenger side.
ELECTRIC WINDOWS (1/4)
Electric front windows
The electric windows operate with the
ignition switched on.
From the driver’s seat
Door switches A
Press the window switch down or lift it
up to lower or raise the window to the
desired height.
2 for the driver’s side.
3 for the front passenger side.
2
3
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.
4
5
Closing windows can cause
serious injury.
1
A
B

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.13
ENG_UD26950_1
Vitres (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3

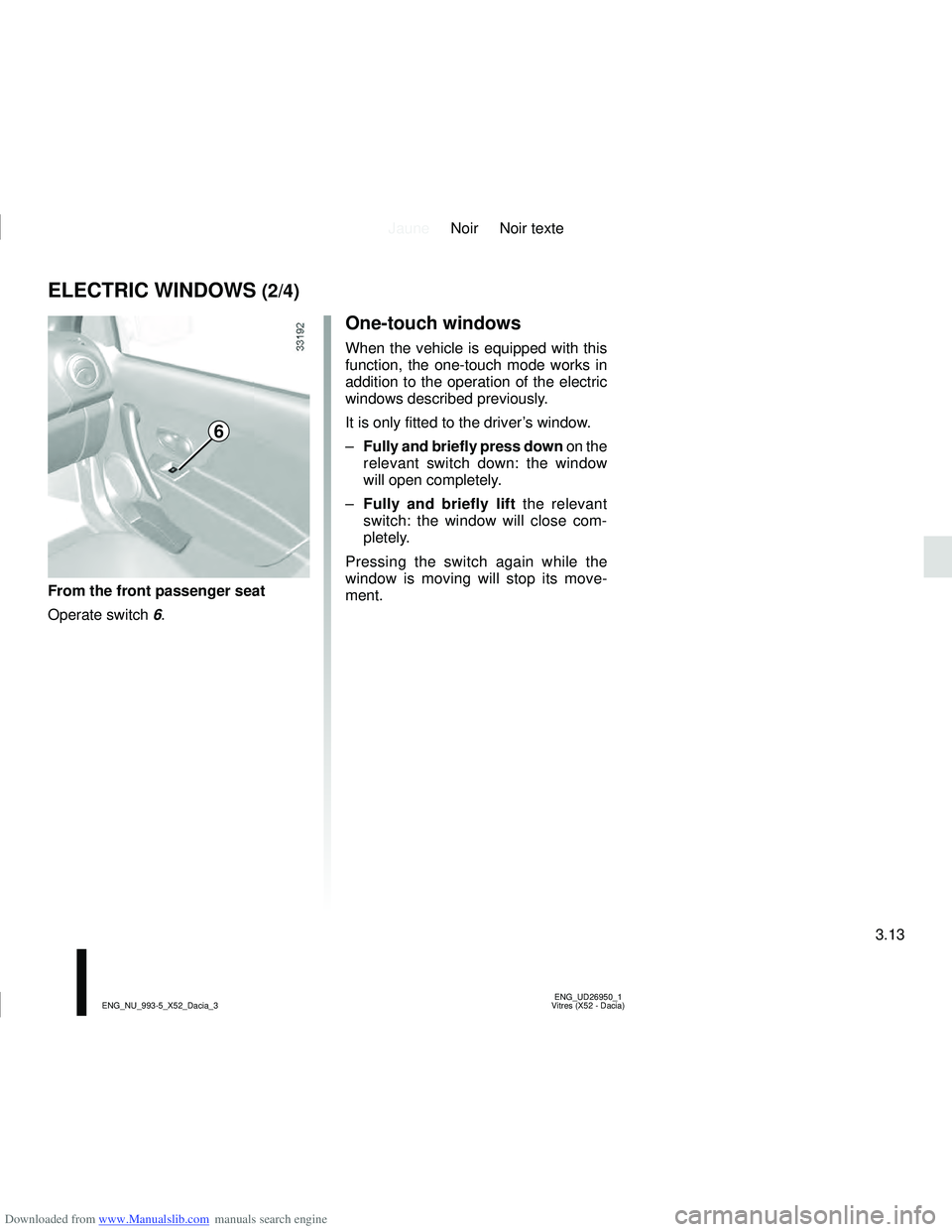

ELECTRIC WINDOWS (2/4)
6
From the front passenger seat
Operate switch 6.
One-touch windows
When the vehicle is equipped with this
function, the one-touch mode works in
addition to the operation of the electric
windows described previously.
It is only fitted to the driver’s window.
– Fully and briefly press down on the
relevant switch down: the window
will open completely.
– Fully and briefly lift the relevant
switch: the window will close com-
pletely.
Pressing the switch again while the
window is moving will stop its move-
ment.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.14
ENG_UD26950_1
Vitres (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Rear seat switches D
With the ignition on , press switch 9
or 10 to open the window or lift switch 9
or 10 to raise it to the desired height.
ELECTRIC WINDOWS (3/4)
Rear electric windows
Dashboard switches C
With the ignition on, press the bottom
of switch 7 or 8 to open the window or
press the top of switch 7 or 8 to close it
to the desired level.
7
10
9
C
D
Door switch E
Operate switch 11 .
8
E
11

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.15
ENG_UD26950_1
Vitres (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
ELECTRIC WINDOWS (4/4)
Locking and unlocking the
rear window controls
Press the top of switch 12 to lock the
operation of the rear electric windows
or on the bottom of switch 12 to unlock.
Safety of rear occupants
The driver can prevent op-
eration of the rear elec-
tric windows by pressing
switch 12.
Driver’s responsibility
Never leave your vehicle with the
key inside and never leave a child
(or a pet) unsupervised, even for a
short while. They may pose a risk
to themselves or to others by start-
ing the engine, activating equipment
such as the electric windows or by
locking the doors. If a body part
gets trapped, reverse the direction
of travel of the window as soon as
possible by pressing the relevant
switch.
Risk of serious injury.12

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.16
ENG_UD26951_1
Eclairage intérieur (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Luggage compartment light 4
It comes on when the tailgate or one of
the doors is opened
INTERIOR LIGHTING
1
3
Courtesy light
Press switch 2 for:
– permanent lighting;
– intermittent lighting, which comes
on when a door is opened. It only
switches off after a time delay and
when the doors concerned have
been closed correctly;
– lighting switches off immediately.
Map reading lights
Press switch 1 for the driver, 3 for the
front passenger.
2
4
4
Unlocking and opening the doors or
tailgate switches on the timed cour-
tesy lights and lights.
