2012 Citroen DS5 Owner's Manual

103Driving
SituationsConsequences
To a p p ly the electric parking brake: )
immobilise the vehicle and switch off the ignition. )
pull the control for at least 5 seconds or until application is complete.)
switch on the ignition and check that the electric parking brake
warning lamps come on.
The application is slower than during normal operation.
To release the electric parking brake:) switch on the ignition. )
pull the control lever and hold it for approximately 3 seconds then
release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a CITROËN dealer or aqualified workshop. and possibl
y


flashin
g

Display of the message "Parking brake fault" and of the followingwarning lamps:

- Only the automatic application on switching off the engine andautomatic release on acceleration functions are available.

- The manual application/release of the electric parking brake and theemergency braking are not available.


an
d possibly


flashin
g

Display of the message "Batter y charge fault".

- You must stop as soon as it is safe to do so. Switch off and
immobilise your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.

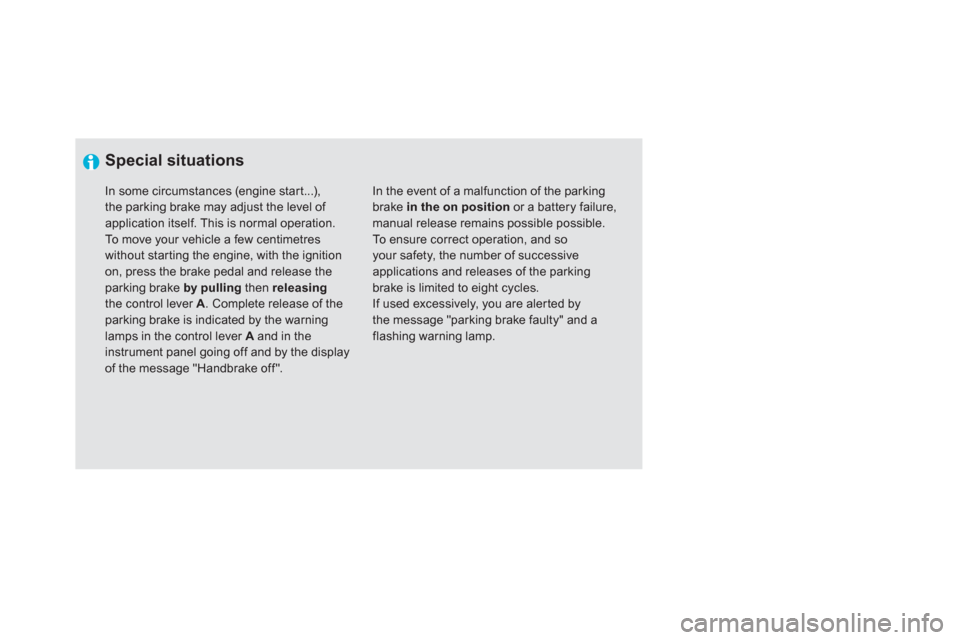

Special situations

In the event of a malfunction of the parking brake in the on positionor a battery failure,manual release remains possible possible. To ensure correct operation, and soyour safety, the number of successive applications and releases of the parking brake is limited to eight cycles.
If used excessively, you are aler ted bythe message "parking brake faulty" and a flashing warning lamp.

In some circumstances (engine start...),the parking brake may adjust the level of application itself. This is normal operation.
To m o v e your vehicle a few centimetreswithout starting the engine, with the ignition on, press the brake pedal and release the parking brake by pullingthen releasingthe control lever A
. Complete release of theparking brake is indicated by the warning lamps in the control lever Aand in theinstrument panel going off and by the display of the message "Handbrake off".

105
Driving





Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) whenstarting on a gradient, the time it takes to move your foot from the brake pedal to the
accelerator pedal.
This s
ystem only operates when:


- the vehicle is completely stationary, with your foot on the brake pedal,

- in par ticular conditions on a slope,

- with the driver’s door closed.
The hill star t assist system cannot be
deactivated.
On an ascendin
g slope, with the vehicle
stationary, the vehicle is held for amomentarily when you release the brake
pedal:- provided you are in first gear or neutral on
a manual
gearbox,
- provided you are in position A
or M
on an electronic gear control gearbox,
- provided you are in position D
or M
on an
automatic gearbox.
Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, thevehicle is held momentarily when you
release the brake pedal.

Do not exit the vehicle while it is beingheld in the hill star t assist phase.
If you need to exit the vehicle with the engine running, apply the parking brake manually then ensure that the parking brake warning lamp (and the warninglamp P
in the lever of the electricparking brake) are on fixed(not flashing).


Operating fault

If a fault in the system occurs, these warning
lamps come on. Contact a CITROËN dealer or a qualified workshop to have the systemchecked.

Only engage reverse gear when thevehicle is stationary with the engine at idle.
As a safety precaution and to facilitatestarting of the engine, always select neutral.









6-speed manual
gearbox
) Move the lever fully to the right to engage 5th or 6th gear.



Engaging 5th or 6th gear
Engaging reverse gear
)Raise the trigger under the knob and move
the gear lever to the left then forwards.

107
Driving











Gear shift indicator * System which reduces fuel consumption by advising the driver to change up on vehicles fitted with a manual gearbox.


Operation
The system intervenes only when driving economically.
Depending on the driving situation and your
vehicle's equipment, the system may advise you to skip one or more gears. You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations mustnot be considered compulsory. In fact, the configuration of the road, the amount of traffic
and safety remain determining factors whenchoosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.

*
Accordin
g to engine. -
You are in third gear.
Example:
-
You press the accelerator pedalmoderately.
-
The system may suggest that you engage a higher gear, if appropriate.

The information appears in the instrument
panel in the form of an arrow accompanied b
y
the suggested gear.

In the case of driving which makes
par ticular demands on the performance of the engine (firm pressure on theaccelerator pedal, for example, whenover taking...), the system will not recommend a gear change.
The system never suggests:


- engaging first gear,

- engaging reverse gear,

- engaging a lower gear.

Displays in the instrument panel

When you move the lever in the gate to select aposition, the corresponding indicator comes on in the instrument panel. P Park R Reverse
N Neutral D Drive (automatic driving)SSport
programme 7
Snowprogramme 1 to 6Gear engaged during manual operation-
Invalid value during manual operation
Six speed automatic gearbox which offers a
choice between the comfor t of fully automatic
operation, enhanced by spor t and snow programmes, or manual gear changing.
Four driving modes are offered:-automaticoperation for electronic
management of the gears by the gearbox, -sport
programme for a more dynamic style
of driving,- snowprogramme to improve driving when
traction is poor,
- manualoperation for sequential changing
of the gears by the driver.














Automatic gearbox
1.
Gear lever.2.
Button "S"
(sport) . 3.Button "7"(snow).
Gear lever
Gear selection
gate
P.Park.


- Immobilisation of the vehicle, parking brake on or off.

- Starting the engine.R.
Reverse.


- Reversing manoeuvres, vehicle stationary,engine at idle. N.Neutral.


- Immobilisation of the vehicle, parking brake on.

- Starting the engine.D.Automatic operation.M. +/-
Manual operation with sequential changing of the six gears. )
Push for wards to change up through the gears.
or ) Pull backwards to change down through
the gears.

109Driving
)With your foot on the brake, selectposition P or N . )Star t the engine.
I
f this procedure is not followed, an audiblesignal is heard, accompanied by a message in
the instrument panel screen.)With the engine running, press the brake pedal. )Release the parking brake, unless it is programmed to automatic mode.)Select position R, Dor M.)Gradually release the brake pedal.
The vehicle moves off immediately.


Moving off
When the engine is running at idle, withthe brakes released, if position R , Dor Mis selected, the vehicle moves even without the accelerator being pressed. When the engine is running, never leave children in the vehicle withoutsupervision.When carrying out maintenance withthe engine running, apply the parking brake and select position P.P


If position N
is engaged inadver tentlywhile driving, allow the engine toreturn to idle then engage position Dto accelerate.
Never select position Nwhile thevehicle is moving. Never select positions Por R
unlessthe vehicle is completely stationary.


Automatic operation
)
Select position D
for automatic
changing
of the six gears.
The gearbox then operates in auto-adaptive
mo
de, without any intervention on the par t of the driver. It continuously selects the
most suitable gear according to the style of
driving, the profile of the road and the load in
the vehicle.
For maximum acceleration without touching
the lever, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
I
f you release the accelerator sharply,
the gearbox will not change to a higher gear for safety reasons.

Manual operation
)Select position M
for sequentialchanging
of the six gears.)Push the lever towards the + sign to change up a gear.
)Pull the lever towards the -
sign to change
down a gear.
It is onl
y possible to change from one gear to
another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears engaged appear in succession on theinstrument panel.
I
f the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to chan
ge from position D(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear 1automatically.
The spor t and snow programmes do not
operate in manual mode.
Sport and snow programmes
Sport programme "S"
)Press button "S"
, after star ting the engine.
The gearbox automatically favours a dynamicstyle of driving.
S appears in the instrument panel.
Snow programme "7
"
)Press button "7", after star ting the engine.
The gearbox adapts to driving on slipperyroads. This programme improves star ting and drive
when traction is poor.
7appears in the instrument panel.



Return to automatic
operation
)
At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode. These two special pro
grammes supplement the automatic operation in very specific conditions of use.
