2012 CITROEN C6 buttons

10
A
B
FED
C
21G
IN BRIE
F
FRONT SEATS
C.Adjustment of the backrest angle.
D. Adjustment of the backrest lumbar support.
E.Seat height and slide adjustments.
F
. Adjustment of the seat cushion
angle.
G
.Memorisation of dashboard
adjustments:
- Driver's seat.
-
Steering wheel.
- Exterior rear view mirrors.
- Head-up displa
y.
You have the possibility to memo-
risetwo driving positions using buttons1and 2.
Electric adjustments
A. Adjustment of the backrest angle.
B.Controls for the heated seats.
5859
GETTING STARTED
Thecorrect positioningof the belt strap is through the middle of the
shoulder. See "Seat belts".
To a djust the seat belt for height, compress the control and slideit
in the desired direction.
SEAT BELT HEIGHTADJUSTMENT
57
Manual adjustments

36
II
B
AC
D
NIGHT DRIVINGA fi rst presson the DARK button puts the display on standby. Only the
time and the temperature remain displayed.
A second
pressswitches off the display and the instrument panel,except for information concerning:The speed indicator.The automatic gearbox.Cruise control/Speed limiter if this has been activated.Note:
Temporary lighting of the display for modifi cation of audio-CD adjustments and air conditioning.
The display lights up if any of the other buttons on the display is pressed. To revert to night driving, press just once on button DARK.KKAll the displays come on if there is an alert.
A third press returns you to normal lighting.


---
-
-
-

DASHBOARD BRIGHTNESS
With lamps switched on, press onbutton Cor Dto alter the intensityof the dashboard lighting.
In the "Main menu", you have a"Confi guration" menu, in which youcan adjust the display brightness.See "Display" and the NaviDrivechapter.
For enhanced visual comfort, youcan also adjust the orientation of
the NaviDrive display by pressingbuttonsA and B.
INSTRUMENT PANEL – DISPLAY

37
II2
1
43
HEAD-UP DISPLAY
The Head-up display projectsessential driving datainto thedriver's fi eld of vision. This enablesthe driver never to take his eyesoff the road.
ACTIVATION/DEACTIVATION
To activate/deactivate the Head-up
display: when you switch on the
ignition, press on button 1.
The function status (activated/deac-
tivated) when you stop the engine is
retained when you restart.
ADJUSTMENTS
OF THE HEAD-UP DISPLAY
Hei
ght adjustment
To a djust the height for the Head-up display, press on buttons 2 and3.
It is recommended to adjust it as low as possible.
Brightness adjustment
The Head-up display has a bri-ghtness sensor so that the infor-
mation can be seen to the best
advantage, whatever the ambient
brightness.
You can enhance the display bri-
ghtness at any time by rotating the control 1.
Note:In certain extreme weather
conditions (rain and/or snow,strong sunlight), the Head-up display may be momentarily subject to interference.
When emerging
from a tunnel, there is a certain delay beforethe system can re-adapt thedisplay brightness to the outside conditions.
Note:
Certain types of spectaclesmay disperse the light coming from
the Head-up display.
There is memorisation of driving positions as well
as those for the Head-updisplay
The adjustments you have madefor the Head-up display are adop-
ted alongside the driving positionmemorisations (see "Memorisation").They are:Height adjustment.
Brightness.
The types of information selected.
•
•


If the Head-up display cannot beseen, it is recommended to adjustit for height (buttons 2 and 3) and tocheck that it is activated (button1).
The controls for the Head-up dis-play are located beneath the air
vent on the driver's side.

60
II
21
M
MEMORISAT ION
DRIVING POSITIONS MEMORISED VIA
BUTTONS 1 AND 2
To memorise a driving position:a. Place the igntion key in "Drive"position (second
position).b. Make your adjustments of the
seat, the steering wheel, the
rear view mirrors and theHead-up Display.c. Press successively on button M then on button 1(fi rst driving position) or 2(second driving position).
The memorisation is confi rmed by
a sound signal.Note: The memorisation of a new driving position cancels and repla-ces the previous one. Th
e memorisation function allowsto make the following dashboard
adjustments:Driver's seat
Steering wheelExterior rear view mirrors
Head-up display.
See "Steering column adjustment","Rear view mirrors" and "Head-up
Display".
You have the possibility to memo-rise two driving positions usingbuttons1and2.



RECALL OF A MEMORISEDDRIVING POSITION
Vehicle stationary(ignition on or enginerunning)
Press briefl y on button1 or 2 torecall the corresponding memo-rised position.
The completion of the adjustments
is confi rmed by a sound signal.
Vehicle in motion
Keep button 1or 2pressed down
to recall the corresponding memo-rised position.Note: After a few consecutiverecalls of a memorised driving position, the function deactivates until the engine is started.

87
III
1
2a2b1
3a3b4
765
AUTOMATIC AIR CONDITIONING
The system has a differentiated adjustment for the driver's side and passenger's side, in terms of temperature andair distribution. The air fl ow is common to both sides.
Symbols and messages relating to the automatic air conditioning controls will display on the multifunction screen.
2. TEMPERATURE ADJUSTMENT
To adjust the temperature, press on button2ato modifythe temperature on the passenger's side and on but-
ton 2b to modify it on the driver's side.
An ad
justment around 21 will give you the optimumcomfort level. However, depending on your preferences
anywhere between 18 and 24 is quite usual.
Operating the air conditioning system on"AUTO"guarantees good ventilation inside the cabin.Note:there may be a difference between the actual
cabin temperature and the fi gure displayed.
This is the normal operatin
g mode for the system. Depending on the temperature chosen, a press on this
button, confi rmed by the lighting of the warning lamp,
will automatically and simultaneously bring all the fol-lowing functions into play:Air fl ow.
Cabin temperature.
Air distribution.Exterior air intake/Air recirculation.
It is recommended to keep all the air vents open. Just by pressing any of the buttons, except for temperature 2aand 2b, you can change to manual mode. The warning lamp goes off, and the automatic air intake function is deactivated.
•
•
••
1. AUTOMATIC OPERATION

89
III
3a3b
4
AUTOMATIC AIR CONDITIONING
3. ADJUSTING THE AIR DISTRIBUTION
Successive or continuous presses on buttons3aand 3b direct the fl ow of air to the passenger' side or to the driver's side.
The s
ymbol (arrows) corresponding to the direction chosen is displayed on the multifunction screen:Windscreen and side windows.
Central, lateral and soft diffusion air conditioning
vents (if open).
Passenger footwells."AUTO"automatic distribution.
•
•
••
Rotate the control to increase or decrease the fl ow of air.
The symbol for air fl ow (helix) is displayed on the multifunction screen and fi lls in as the required fl ow increases.
To prevent misting and poor air quality in the passenger compartment, take care to maintain a suffi cient fl ow of air.
4. ADJUSTING THE AIR FLOW
Soft diffusion system
The soft diffusion air conditioning unit situated at thecentre of the front console guaranteesoptimum diffu-sion of air for the front seat positions.r
This unit eliminates annoying draughts and guarantees
an optimum temperature inside the cabin.
Adjusting the air fl ow with soft diffusion air conditioning
The driver and the passenger can adjust the air fl ow for
the soft diffusion air conditioning unit independently.
To a djust the air fl ow, rotate the control to the desiredposition.
To close off the soft diffusion air conditioning, rotate thecontrol as far down as it will go.
In very hot weather, to improve the central and lateralventilation, closing off the soft diffusion air conditioning
is recommended.

92
III
A
B
C
D

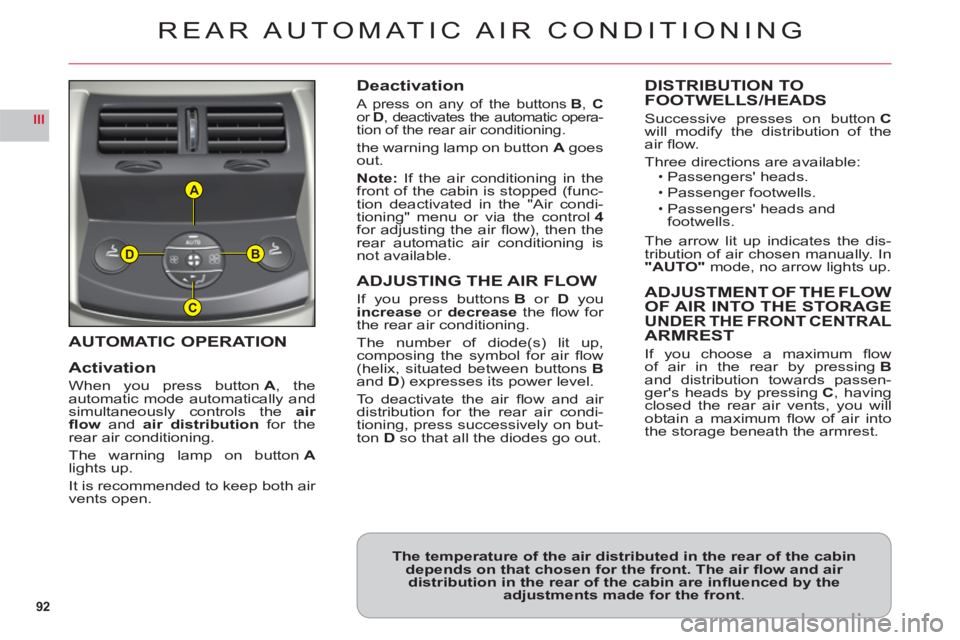

AUTOMATIC OPERATION
Activation
When you press buttonA, the
automatic mode automatically andsimultaneously controls theair
fl ow andair distribution for therear air conditioning.
The warning lamp on buttonAlights up.
It is recommended to kee
p both air
vents open.
Deactivation
A press on any of the buttons B, Cor D, deactivates the automatic opera-
tion of the rear air conditioning.
the warning lamp on button Agoes out.
Note: If the air conditioning in the front of the cabin is stopped (func-
tion deactivated in the "Air condi-
tioning" menu or via the control4for adjusting the air fl ow), then the
rear automatic air conditioning is
not available.
ADJUSTING THE AIR FLOW
If you press buttons Bor Dyou increase or decrease the fl ow for
the rear air conditioning.
The number of diode
(s) lit up, composing the symbol for air fl ow (helix, situated between buttons Band D) expresses its power level.
To deactivate the air fl ow and air distribution for the rear air condi-
tioning, press successively on but-
ton Dso that all the diodes go out.
DISTRIBUTION TO
FOOTWELLS/HEADS
Successive presses on buttonCwill modify the distribution of theair fl ow.
Three directions are available:Passengers' heads.
Passenger footwells.
Passengers' heads and
footwells.
The arrow lit up indicates the dis-
tribution of air chosen manually. In"AUTO"mode, no arrow lights up.
ADJUSTMENT OF THE FLOW
OF AIR INTO THE STORAGEUNDER THE FRONT CENTRALARMREST
If you choose a maximum fl ow
of air in the rear by pressingBand distribution towards passen-ger's heads by pressingC, havingclosed the rear air vents, you willobtain a maximum fl ow of air intothe storage beneath the armrest.
ï
ï
ï
REAR AUTOMATIC AIR CONDITIONING
The temperature of the air distributed in the rear of the cabindepends on that chosen for the front. The air fl ow and air distribution in the rear of the cabin are infl uenced by the adjustments made for the front.

93
III
The programmable heating sys-
tem operates independently of theengine.
With the engine off, it is used topreheat the engine cooling systemso as to have an optimum engine
operating temperature on starting.
The programmable heating sys-
tem is started using a long-rangeremote control. It can be startedimmediately or programmed tostart later.
In the event of a malfunction of the programmable heating sys-tem, contact a CITROËN dealer pg gy
or a qualifi ed workshop.
Remote control
The remote control for the program-
mable heating system includes the following buttons and display infor-
mation:1. Menu function scroll buttons.
2. Function symbols: clock,
temperature, operating duration, programmed time, heater operation, heater control.3. Digital display of: time,
temperature, operating
duration, programmed time
or heating level.4. Off button.5. On button.
In
formation displayed in the remote control screen
Display of functions
Press buttons1repeatedly to bringup the functions.
The fi rst press of the ri
ght or leftbutton displays the time.
The left button then
gives access
to the programming time, then theheating level (C1 to C5).
The right button gives access to
the cabin temperature, then the
operating duration of the heater
where the system is to be startedimmediately.
In
formation on the cabin tem-perature is only available with theengine off.
PROGRAMMABLE HEATING
