2012 CITROEN C6 key

83
IIIA
ACCESS
To make it easier to open the doors,
the windows automatically open bya few millimetres.
Note:This movement occurs immediately you touch an interior door handle.
The window recloses, automati-cally adjusting for a perfect seal.
IMPORTANT
This function has no anti-pinch. Donot leave your hand on the window
when you close the door.
Any interruption of your vehicle'selectrical supply will prevent the
windows from opening and closingcorrectly.
Note: Travelling at high speed,closing of windows may be hin-
dered by the aerodynamic pres-sure. Acoustic comfort may then
be adversely affected.
ELECTRICALLY-CONTROLLED CHILD SAFETY
This deactivates the controls in the rear of the vehicle, both for the rear
windows and for opening the rear doors from the inside.
For Pack Lounge seats, the seat slide adjustments, and those for the front
seats from the rear of the vehicle, are also deactivated.
Activation
The electric safety device is activated by pressing the controlA located on
the windows control panel. A message appears to confi rm that the child
safety is activated.
It is still possible to open the doors from the outside and to operate the
electric windows from the front of the vehicle.
Before changing or repairing the battery, open all four windows.
If you unlock your vehicle using the key because of a problemwith the battery, be aware that opening/closing a door withthe window closed can seriously damage the glass, even tothe point of breaking it.

84
III
A
B
ACCESS

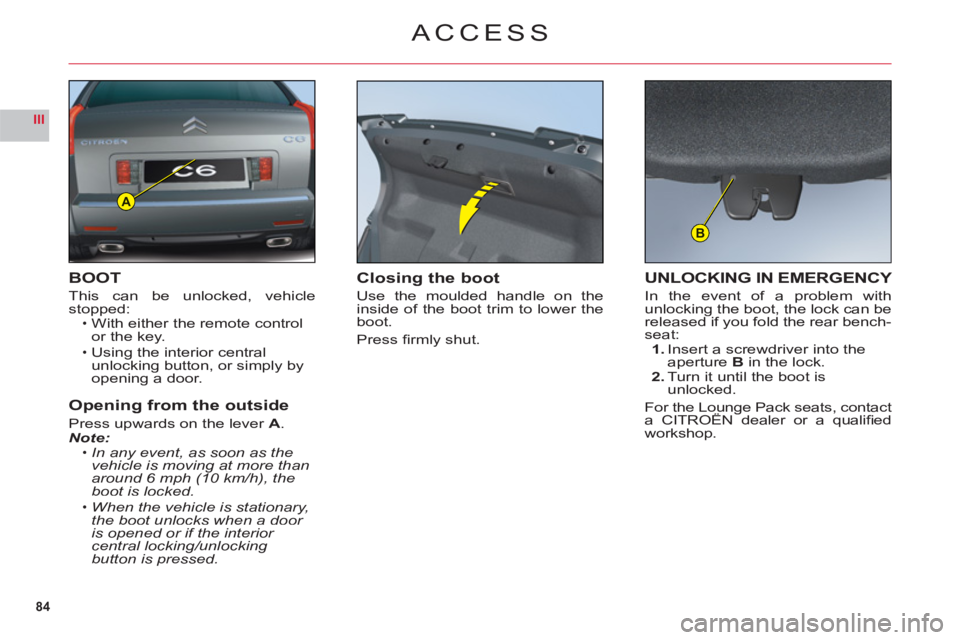

BOOT
This can be unlocked, vehiclestopped:With either the remote control
or the key.
Using the interior central
unlocking button, or simply byopening a door.
Opening from the outside
Press upwards on the lever A.Note:In any event, as soon as the
vehicle is moving at more than
around 6 mph (10 km/h), the boot is locked.
When the vehicle is stationary, the boot unlocks when a door is opened or if the interior
central locking/unlocking button is pressed.
•
•
•
•
Closing the boot
Use the moulded handle on the
inside of the boot trim to lower the boot.
Press fi rml
y shut.
UNLOCKING IN EMERGENCY
In the event of a problem withunlocking the boot, the lock can bereleased if you fold the rear bench-seat:1.Insert a screwdriver into the
aperture Bin the lock.2.Turn it until the boot is unlocked.
For the Lounge Pack seats, contacta CITROËN dealer or a qualifi edg,
workshop.

91
III
AUTOMATIC AIR CONDITIONING
To activate/deactivate
the air conditioningsystem
Press on the control"CLIM"to go into the "air conditioning" mode. Then press button"OK"or on the control to bring up
the "Air Conditioning menu" on the multifunction screen.
This menu allows you:To deactivate the air conditioning:"Cut aircon (A/C OFF)".
Press button"OK", or on the control, to validate the offer to activate or deactivate the air conditioning.The symbol"A/C OFF"displays on the multifunctionscreen in the case of deactivation.
Note
:Your temperature adjustment value may not bereached and you risk having the windows misted up.You can cancel deactivation of the air conditioning,by pressing the control 1"AUTO".
•
-
-
To activate/deactivate the differentiation of the air conditioning adjustment on the driver's side and on
the passenger's side.
A
fter making your selection using the arrow keys,press on "OK"or on the control, to validate the offer to activate or deactivate the air conditioning.
Activation of this function makes the adjust-
ments on the passenger's side identical to thosechosen by the driver.Note:any manual action on button 2b or 3b returns you to the independent adjustments.
•
A press on the "Menu" button brings up the
"Main menu" for access to choices similar to
those offered by the"CLIM" button. See "Mul-
tifunction displays".

99
III
A
BC
D
REAR SEATS
Seat cushion folded.
Stow the head restraints.
Pr
ess the controlA located at theend of the backrest and fully tilt for-
wards.
The benchseat backrest can befolded in two sections. When youreposition the backrest, make sure
that it locks in place.Your vehicle's boot can be kept
isolated from the passen
ger com-
partment.
T
o lock the access to the boot:1.Place the benchseat in its correct position.The red warning lamp oncontrol Ashould no longer be
visible.
2.Insert the ignition key in thelock.3. Lock it.
Before moving the seats
So as to avoid damaging the seat belts by jamming them, takecare to keep them to the sides of the backrest.
LOCKING/UNLOCKING OF THE ACCESS INTO THE BOOT VIA THE REAR BENCHSEATREAR CENTRAL SEAT BELT
For easier opening of the seat beltcover D, you should fi rst raise thecentral head restraint.
Insert the fi rst fasteningC into thefront left hand (black) buckle, then
insert the second fastening B intothe front right hand buckle.

101
IIIA
AIRBAGS
AIRBAG EQUIPMENT
Yo ur vehicle has:A driver's front airbag.
A driver's knees airbag.
A front passenger's airbag
which can be deactivated.
Front lateral airba
gs.
Front and rear curtain airbags.
Rear lateral airbags.
Deplo
yment of your airbags is
dependent on the degree of vio-lence of the collision.
•
•
•
••
•
REACTIVATING THE FRONTPASSENGER'S AIRBAG
Do not forget to reactivate the func-
tion.
For that:With the ignition switched off, insert the key into the switch A.Turn the key to the"ON"position, the airbag is activated.
The warning lamp in the
instrument panel lights up for
a few seconds when youswitch on the ignition.Note: It is compulsory to wear theseat belt.
Never deactivate the passenger'sairbag when a passenger is present(unless a child in a rear-facing child
seat).
•
•
FRONT PASSENGER'SAIRBAG DEACTIVATION
In order to be able to use a rear-facing child seat in the front passen-ger's seat position, it is imperative to
deactivate the passenger's airbag.
For that:With the ignition switched off,
insert the key into the switchA.Turn the key to the "OFF"
position, the passenger's airbag is deactivated.The front passenger's airbag deactivation warning lamp, in
the instrument panel, lights up
when you switch on the ignition.
•
•

109
III221
2
2
INTERIOR LIGHTING
Front
INTERIOR LAMPS
1. Interior lamps
A press on button 1 of the front
interior lamp, switches the interior lamps on or off.
Switching on and off is progressiveafter an action on the remote con-
trol, but immediate after a press on
button 1.
Rear
2. Spotlamps
A press on one of the buttons2switches the corresponding spot-lamp on or off.
These only work when the ignition
is switched on.
Automatic lighting of the
interior lampsThey come on when you
remove the ignition key, unlock
the vehicle or open a door.
They go out progressively
when the doors are closed, the
vehicle locked or the i
gnitionswitched on.
Deactivation/Activation of
automatic lighting
A long press on button1, deacti-
vates the operaton of the inerior lamps. To reactivate them, presson the same button.
Changing bulbsTo change a front interior lamp
bulb: Detach the transparent
screen. Use a W 5 W bulb.
To change a rear interior lamp bulb: Detach the two surroundsof the transparent screen and pull it away. Use a W 5 W bulb.
•
•
•
•

115
IIIABC
FRONT ARMREST
The armrest gives you extra com-
fort in your driving position.
To optimise
your driving position,lift the control B and push the arm-rest forwards.
Th
e armrest returns to its initialposition when you push it rear-
wards.
Storage areas
Two formatsof storage are avail-able:To have bigstorage in the
armrest, lift the controlC.For smallstorage in the
armrest, lift the controlA.
•
•
Ventilation of the bigstorage in the front armrest
The armrest has aventilation
duct for the big storage.
This benefi ts from the air condi-
tioning at a temperature identical
to the setting for the front of the cabin area. To adjust the air con-
ditioning fl ow, see "Rear automatic
air conditioning".
The ventilation duct can beblocked manually.
INTERIOR COMFORT
USB socket
This connection unit, consisting of
a JACK plug and/or a USB port, islocated in the front armrest.
You can connect portable equip-ment such as an iPod®or a USB®
key.
It reads audio fi le formats (mp3,
ogg, wma, wav, etc.) that it trans-mits to your audio system and areheard through the vehicle’s loud-speakers.
Yo u can control these fi les with
the audio system’s steering wheel
or dashboard controls and displaythem on the multifunction screen.
Portable equipment can berecharged while it is being used.

118
III
A
SUN ROOF
Glass sun roof
The sun roof is operated by theelectrical controlA.
An action to the fi rst notch of thecontrol starts a movement whichstops as soon as you release thecontrol.
An action to the second notch of
the control opens or closes the sun
roof fully. A further action stops themovement.
ANTI-PINCH
An anti-pinch device is present to stop the sun roof from sliding shut. If it
meets an obstacle it slides in the opposite direction.
After a battery disconnection or if there has been a malfunction, youhave to re-initialisethe anti-pinch function.
To do that, move the control Ato the second notch to make the sun roof open fully, then keep the control A pressed for at least1seconds.
Warnin
g: During this manœuvre, the anti-pinch does not operate.
Your vehicle's sun roof has a manually-
operated blind.
Always remove the ignition key when leaving the vehicle, even if for a short time.
In the event of anything being caught by the sun roof closing, you must reverse the roof movement.
To do that, reverse the position of the control concerned.
When the driver is operating the sun roof, he or she must always make sure that the passengers are not preventing it from closing properly.
The driver must ensure that passengers use the sun roof control correctly.
PAY SPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF.
