2 - MULTIFUNCTION
SCREENS 51 Î 62
Ventilation 63
Manual air conditioning 65
Dual-zone digital air conditioning 67
Rear screen demist - defrost 70
Front seats 71
Rear seats 75
Mirrors 76
Steering wheel adjustment 78
3 - COMFORT 63 Î 78
Remote control key 79
Alarm 86
Doors 88
Boot 89
Electric windows 90
Panoramic sunroof 92
Fuel tank 93
Misfuel prevention (Diesel) 95
4 - ACCESS 79 Î 95
Lighting controls 96
Automatic illumination
of headlamps 100
Welcome lighting 101
Headlamp adjustment 102
Directional lighting 103
Wiper controls 105
Automatic rain sensitive wipers 106
Courtesy lamps 108
Interior mood lighting 109
Boot lamp 109
5 - VISIBILITY 96 Î 109
Interior fi ttings 110
Centre consoles 113
Front armrest 114
Boot fi ttings 118
6 - FITTINGS 110 Î 120
Instrument panels 28
Rev counter 32
Warning and indicator lamps 33
Indicators 44
Manual test 47
Time and units 48
Customisation 50
FAMILIARISATION 4 Î 25
1 - MONITORING
28 Î 50
Child seats 121
ISOFIX child seats 126
Child lock 129
7 - CHILD
SAFETY 121 Î 129 ECO-DRIVING 26 Î 27

6
OPENING


Remote control
Welcome lighting
Boot



A.
Folding/unfolding the key
(fi rst press this button).



79, 81
When a sensor detects a low level of
light, the remote switching on of the
dipped beam headlamps, the sidela-
mps and the side spotlamps makes
your approach to the vehicle easier.


1.
Selective unlocking of the boot.

2.
Opening the boot.
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Opening the windows
(hold until the desired position is
reached).
Selective unlocking of the
boot.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Closing the windows
(hold until the desired position is
reached). In the same way, the passenger com-
partment lighting, such as the courtesy
lamps and the footwell lamps, comes on.



101



79, 89

27

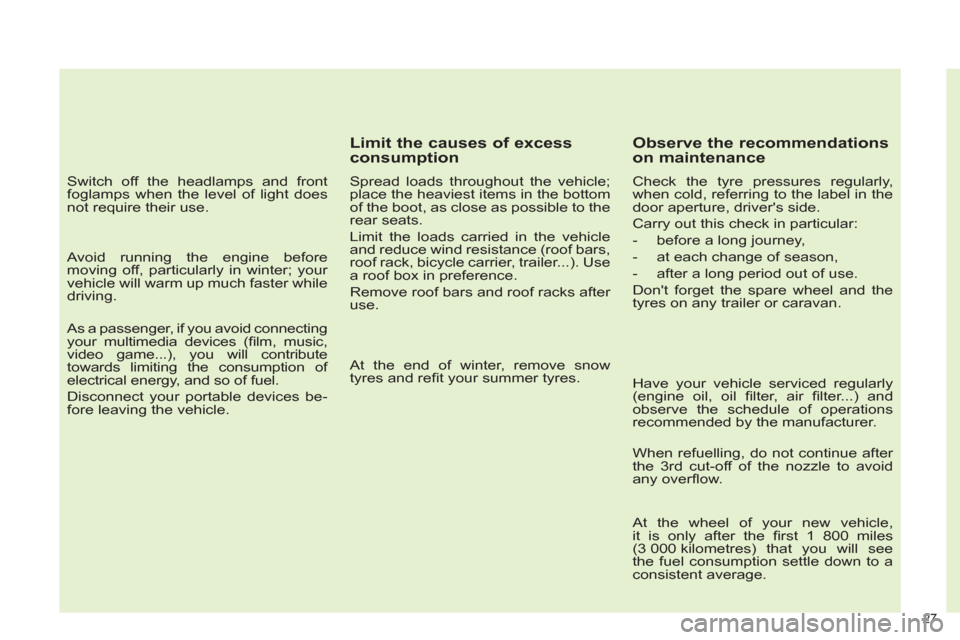

Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster while
driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.



Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.



When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

1
MONITORING
35





Electric
parking brake


fl ashing. The application or release of
the electric parking brake was
interrupted. You must stop as soon as it is safe
to do so.
Park on level ground, switch off the
ignition and contact a CITROËN dealer
or a qualifi ed workshop.

+

Electric
parking brake
malfunction


fi xed. The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a CITROËN dealer or a qualifi ed
workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.

Warning lamp



is on



Cause



Action/Observations








Door(s) open


fi xed if the speed
is below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied by
an audible signal
if the speed is
above 6 mph
(10 km/h).


Seat belt not
fastened/
unfastened *


fi xed, then
fl ashing,
accompanied
by an increasing
audible signal. The driver or front passenger
has not buckled or has
unbuckled their seat belt. Pull on the belt in question and insert the
tongue in the buckle.
This warning repeats the seat belt
information given by the roof console
warning lamps. At least one rear passenger
has unbuckled their seat belt.

* According to country.

1
MONITORING
36





Service


temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:


- the opening of the doors, boot or
bonnet,

- the engine oil level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").

For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.

fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.

Warning lamp



is on



Cause



Action/Observations








Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.

fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.

2
MULTIFUNCTION SCREENS
51



















MONOCHROME SCREEN A

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- openings check (if a door or the
boot is open),

- current audio source,

- trip computer (refer to the end of the
section).
Alert messages (e.g.: "Emission con-
trol system faulty") or information mes-
sages (e.g.: "Boot open") may appear
temporarily. These can be cleared by
pressing the "ESC"
button. From the control panel of your audio
system, you can press:


)
the "MENU"
button for access to
the main menu
,

)
the "
" or "
" buttons to scroll
through the items on the screen,

)
the "
" or "
" buttons to change a
setting value,

)
button A
to change the permanent
application (trip computer, audio
source...),

)
the "OK"
button to confi rm,
or

)
the "ESC"
button to abandon the
operation in progress.



Controls



)
Press the "MENU"
button for ac-
cess to the main menu
, then press
the "
" or "
" buttons to scroll
through the various menus:


- "RADIO",

- "MEDIA",

- "TRIP COMPUTER",

- "DATE AND TIME",

- "LANGUAGES",

- "VEHICLE PARAM",

)
Press the "OK"
button to select the
menu required.


Main menu


Radio/Media
With the audio system switched on,
once the "RADIO" or "MEDIA" menu
has been selected you can activate
or deactivate the functions associated
with use of the radio (RDS, Radio text)
or select the media play mode (normal,
random, repeat).
For more information on the "RADIO" or
"MEDIA" application, refer to the "Audio
and Telematics" section.

2
MULTIFUNCTION SCREENS
52
Once the "TRIP COMPUTER" menu
has been selected, you can start diag-
nostics of the status of the equipment
(active, not active, faulty).
Trip computer
Date and time
Once the "DATE AND TIME" menu has
been selected, you have access to the
following settings:


- year,

- month,

- day,

- hours,

- minutes,

- 12 or 24 hour mode.


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button
to cancel.


Languages
Once the "LANGUAGES" menu has
been selected, you can choose the lan-
guage used by the display, from a pre-
defi ned list.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Vehicle parameters
Once the "VEHICLE PARAM" menu
has been selected, you can activate or
deactivate the following equipment:


- "PARK BRAKE" (Automatic electric
parking brake; refer to the "Driving"
section).

- "BEND LIGHTING" (Directional light-
ing; refer to the "Visibility" section),

- "AUTO HEADLAMPS" (Automatic
illumination of headlamps; refer to
the "Visibility" section),

- "REAR WIPE ACT" (Rear wiper
coupled with reverse gear; refer to
the "Visibility" section),
- "GUIDE LAMPS" (Guide-me-home
lighting; refer to the "Visibility" section),

- "ELECTRIC BOOT" (Selective un-
locking of the boot; refer to the
"Access" section),

- "CABIN SELECT" (Selective unlock-
ing; refer to the "Access" section),

- "DAY LAMPS" (Daytime running
lamps; refer to the "Visibility" section).

2
MULTIFUNCTION SCREENS
53



















MONOCHROME SCREEN C

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- openings check (if a doors or the
boot is open),

- parking sensor information,

- current audio source,

- telephone or Bluetooth system in-
formation,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can be
cleared by pressing the "ESC"
button. From the control panel of your audio
system, you can press:


)
button A
to chooses between the
display of audio information in full
screen or the shared display of au-
dio and trip computer information,

)
the "MENU"
button for access to
the main menu
,

)
the "
" or "
" buttons to scroll
through the items on the screen,

)
the "
" or "
" buttons to change a
setting value,

)
the "OK"
button to confi rm,
or


)
the "ESC"
button to abandon the
operation in progress.



Controls



)
Press the "MENU"
button for ac-
cess to the main menu
:


- "Multimedia",

- "Telephone",

- "Trip computer",

- "Bluetooth connection",

- "Personalisation-confi guration",

)
Press the "
" or "
" button to se-
lect the menu required, then confi rm
by pressing the "OK"
button.



Main menu

"Multimedia" menu

With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB/FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.
