TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre
so that you can drive to the nearest
garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
Access to the kit
The speed limit sticker I
must be
affi xed to the vehicle’s steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.
This kit is installed in the storage box,
under the boot fl oor.
A.
"Sealant" or "Air" position selector.
B.
On "I"
/off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar or p.s.i.).
E.
Compartment housing:
- a cable with adaptor for 12 V
socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
Description of the kit
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
11
PRACTICAL INFORMATION
187
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in the boot under
the fl oor.
To gain access to them:
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its cord on the
hook on the rear shelf support,
)
with a standard size spare wheel,
unclip and remove the box in the
middle of the wheel containing the
tools,
or
)
with a "space-saver" spare wheel;
lift the wheel at the rear towards
you for access to the storage box
containing the tools.
List of tools
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adapting the wheelbrace to the
special "security" bolts.
Wheel with trim
When removing the wheel
, detach the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.
When refi tting the wheel
, refi t the trim starting by placing its notch facing
the valve and press around its edge with the palm of your hand.
11
PRACTICAL INFORMATION
188
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
Depending on version, the spare wheel
may be a standard size steel or alloy
wheel, or for some countries it is the
"space saver" type.
For access to the spare wheel, refer to
the paragraph "Access to the tools" on
the previous page.
Putting the standard wheel back in
place
)
Put the wheel back in its housing.
)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a CITROËN
dealer or aqualifi ed workshop.
Taking out the standard wheel
)
Unscrew the yellow central bolt.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
)
Put the box back in place in the centre
of the wheel and clip it.
11
PRACTICAL INFORMATION
190

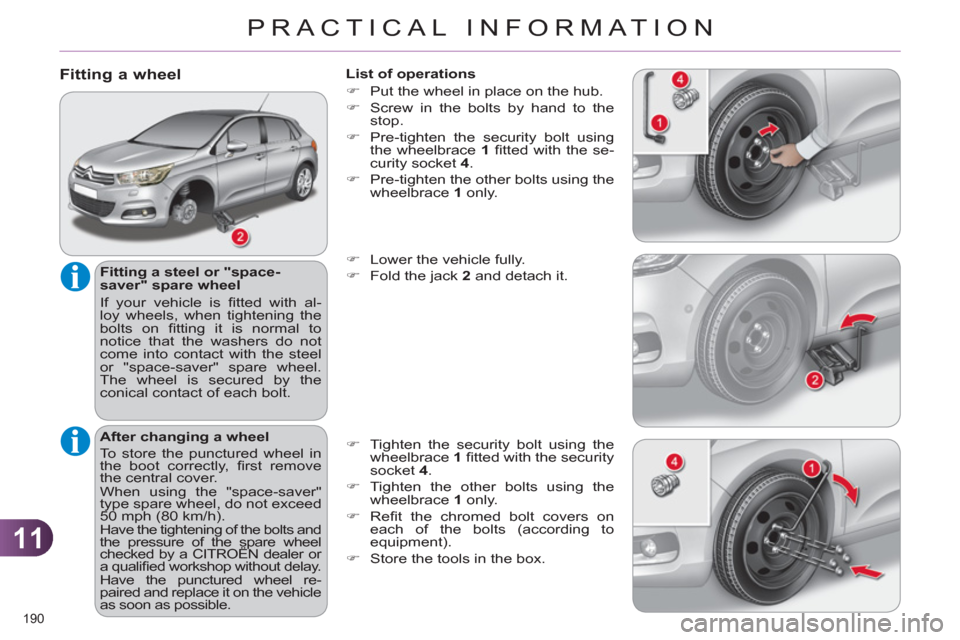

Fitting a wheel
Fitting a steel or "space-
saver" spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the
bolts on fi tting it is normal to
notice that the washers do not
come into contact with the steel
or "space-saver" spare wheel.
The wheel is secured by the
conical contact of each bolt.
After changing a wheel
To store the punctured wheel in
the boot correctly, fi rst remove
the central cover.
When using the "space-saver"
type spare wheel, do not exceed
50 mph (80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a CITROËN dealer or
a qualifi ed workshop without delay.
Have the punctured wheel re-
paired and replace it on the vehicle
as soon as possible.
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand to the
stop.
)
Pre-tighten the security bolt using
the wheelbrace 1
fi tted with the se-
curity socket 4
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
.
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts (according to
equipment).
)
Store the tools in the box.
