2012 Citroen C4 RHD remote start

4
EXTERIOR


Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.



169

Stop & Start system
This system puts the engine temporar-
ily into standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.



158

Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.



101


Directional lighting
This lighting automatically provides
additional visibility when cornering.



103

Cornering lighting
At low speed, this lighting provides
additional visibility when cornering,
at junctions, and when parking...
making use of the corresponding
front foglamp.



104

1
MONITORING
36





Service


temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:


- the opening of the doors, boot or
bonnet,

- the engine oil level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").

For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.

fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.

Warning lamp



is on



Cause



Action/Observations








Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.

fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.

4
ACCESS
79









Unlocking the vehicle


Unfolding the key


)
Press this button to unfold the key.



)
Press the open padlock
to unlock the vehicle com-
pletely.


)
Press the open padlock
once to unlock the driver’s
door only.

)
Press the open padlock again to un-
lock the other doors and the boot.

Selective unlocking using the
remote control


)
Maintain the press on the
open padlock until the de-
sired position is obtained.
The windows stop as soon
as you release the button.

Opening the windows using the
remote control

Unlocking using the key


)
Turn the key forwards in the driver’s
door lock to unlock the vehicle com-
pletely.

Programming the unlocking
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to the version of your vehi-
cle, the door mirrors unfold at the same
time.
In low light, unlocking also brings on
the welcome lighting, both interior and
exterior (see "Visibility").

Selective unlocking of the boot


)
Press the central button on
the remote control to unlock
the boot. The doors remain
locked.
The complete or selective boot
unlocking parameter is set
via the vehicle confi guration
menu.
Selective unlocking of the boot is acti-
vated by default.

Programming the unlocking

Complete unlocking using the
remote control If selective unlocking of the boot is
deactivated, pressing this button also
unlocks the doors. The complete or selective door
unlocking parameter is set
via the vehicle confi guration
menu.
Don’t forget to lock the boot
again by pressing the closed
padlock button.









REMOTE CONTROL KEY

System which permits central unlocking
or locking of the vehicle using the door
lock or from a distance. It is also used
to locate and start the vehicle, as well
as providing protection against theft.

4
ACCESS
81











Anti-theft protection


Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle will not start;
contact a CITROËN dealer as soon as
possible.

)
Insert the key in the ignition switch.
The system recognises the starting
code.

)
Turn the key fully towards the dash-
board to position 3 (Starting)
.

)
When the engine starts, release
the key.



A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.


Switching the vehicle off



)
Immobilise the vehicle.

)
Turn the key fully towards you to
position 1 (Stop)
.

)
Remove the key from the ignition
switch.











Key left in the "Ignition on"
position
On opening the driver's door, an
alert message is displayed, ac-
companied by an audible signal, to
remind you that the key is still in the
ignition switch at position 1 (Stop)
.

If the key has been left in the ignition
switch at position 2 (Ignition on)
,
the ignition will be switched off auto-
matically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition on)
.


Keep safely the label attached to
the keys given to you on acquisi-
tion of the vehicle.







Locating your vehicle

This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.


)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.










Starting the vehicle

4
ACCESS
83














Lost keys

Visit a CITROËN dealer with the vehicle's registration document, your per-
sonal identifi cation documents and if possible the key code label.
The CITROËN dealer will be able to fi nd the key code and the transponder
code required to order a new key.









Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved col-
lection point.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition switch,
even when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition switch when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a
CITROËN dealer, to ensure that only your keys can be used to open and
start the vehicle.

11
PRACTICAL INFORMATION
202

Charging the battery using a
battery charger

)
Operate the starter, let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the earth point C

on the broken down vehicle.

Starting using another battery


The Stop & Start battery does
not have to be disconnected for
charging.


)
Disconnect the battery from the
vehicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.


Before disconnecting the battery

Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation
system.

311
VISUAL SEARCH
EXTERIOR


Remote control ........................... 79-83


- opening/closing

- anti-theft protection

- starting

- battery


Wiper controls......................... 105-107
Changing a wiper blade ................. 203
Door mirrors ................................ 76-77
Blind spot sensors .................. 161-163

Boot ........................................... 79, 89
Temporary puncture repair kit ...182-186
Changing a wheel ................... 187-190


- tools

- removing/refi tting


Changing bulbs....................... 195-196


- rear lamps

- 3 rd lbrake lamp

- number plate lamp


Parking sensors ...................... 171-172
Parking space sensors ........... 169-170
Towbar ........................................... 207
Towing .................................... 205-206

Accessories ............................ 209-210
Roof bars ....................................... 204
Panoramic sunroof .......................... 92

Braking assistance ........................ 132
Trajectory control .................... 133-134
Tyre under-infl ation detection ........ 131
Tyre pressures ....................... 186, 221
Lighting controls ....................... 96-100
Headlamp adjustment.................... 102
Welcome lighting ........................... 101
Directional lighting systems .... 103-104
Changing bulbs....................... 191-194


- front lamps

- front foglamps

- side repeaters



Doors ......................................... 84, 88


- opening/closing

- emergency control
Child lock ....................................... 129
Electric windows ......................... 90-91
Alarm .......................................... 86-87

Fuel tank ..................................... 93-94
Misfuel prevention ........................... 95

316

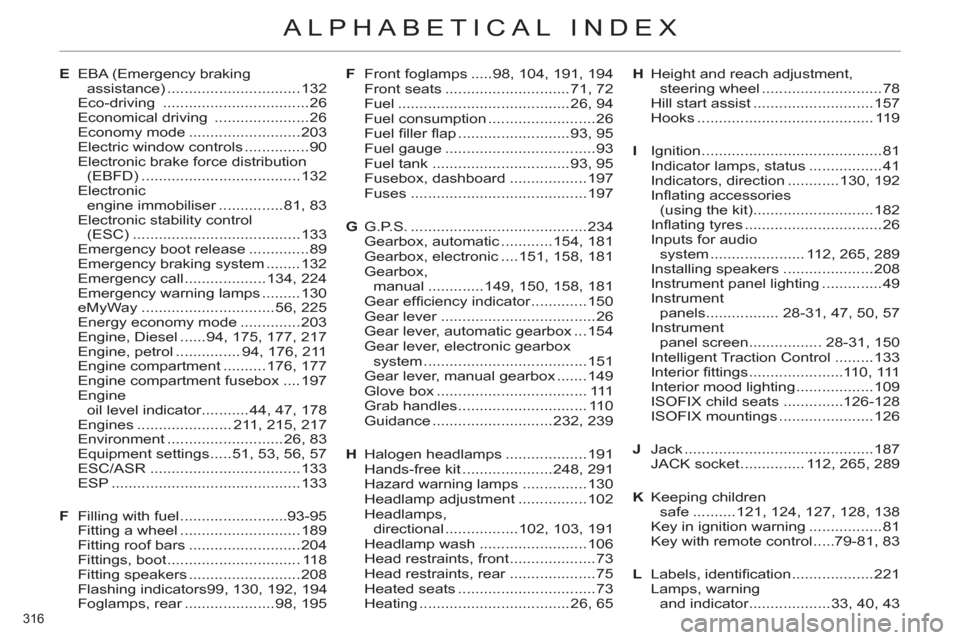

ALPHABETICAL INDEX
E EBA (Emergency braking
assistance) ...............................132
Eco-driving ..................................26
Economical driving ......................26
Economy mode ..........................203
Electric window controls ...............90
Electronic brake force distribution
(EBFD) .....................................132
Electronic
engine immobiliser ...............81, 83
Electronic stability control
(ESC) .......................................133
Emergency boot release ..............89
Emergency braking system ........132
Emergency call ...................134, 224
Emergency warning lamps .........130
eMyWay ...............................56, 225
Energy economy mode ..............203
Engine, Diesel ......94, 175, 177, 217
Engine, petrol ............... 94, 176, 211
Engine compartment ..........176, 177
Engine compartment fusebox ....197
Engine
oil level indicator ...........44, 47, 178
Engines ...................... 211, 215, 217
Environment ...........................26, 83
Equipment settings .....51, 53, 56, 57
ESC/ASR ...................................133
ESP ............................................133
F Filling with fuel .........................93-95
Fitting a wheel ............................189
Fitting roof bars ..........................204
Fittings, boot ............................... 118
Fitting speakers ..........................208
Flashing indicators 99, 130, 192, 194
Foglamps, rear .....................98, 195F Front foglamps .....98, 104, 191, 194
Front seats .............................71, 72
Fuel ........................................26, 94
Fuel consumption .........................26
Fuel fi ller fl ap ..........................93, 95
Fuel gauge ...................................93
Fuel tank ................................93, 95
Fusebox, dashboard ..................197
Fuses .........................................197
G G.P.S. .........................................234
Gearbox, automatic ............154, 181
Gearbox, electronic ....151, 158, 181
Gearbox,
manual .............149, 150, 158, 181
Gear effi ciency indicator .............150
Gear lever ....................................26
Gear lever, automatic gearbox ...154
Gear lever, electronic gearbox
system ......................................151
Gear lever, manual gearbox .......149
Glove box ................................... 111
Grab handles .............................. 110
Guidance ............................232, 239
H Halogen headlamps ...................191
Hands-free kit .....................248, 291
Hazard warning lamps ...............130
Headlamp adjustment ................102
Headlamps,
directional .................102, 103, 191
Headlamp wash .........................106
Head restraints, front ....................73
Head restraints, rear ....................75
Heated seats ................................73
Heating ...................................26, 65H Height and reach adjustment,
steering wheel ............................78
Hill start assist ............................157
Hooks ......................................... 119
I Ignition ..........................................81
Indicator lamps, status .................41
Indicators, direction ............130, 192
Infl ating accessories
(using the kit) ............................182
Infl ating tyres ................................26
Inputs for audio
system ...................... 112, 265, 289
Installing speakers .....................208
Instrument panel lighting ..............49
Instrument
panels ................. 28-31, 47, 50, 57
Instrument
panel screen ................. 28-31, 150
Intelligent Traction Control .........133
Interior fi ttings ......................110, 111
Interior mood lighting ..................109
ISOFIX child seats ..............126-128
ISOFIX mountings ......................126
J Jack ............................................187
JACK socket ............... 112, 265, 289
K Keeping children
safe ..........121, 124, 127, 128, 138
Key in ignition warning .................81
Key with remote control .....79-81, 83
L
Labels, identifi cation ...................221
Lamps, warning
and indicator ...................33, 40, 43
