1.
Controls for audio and telematic
system.

2.
Controls for Bluetooth system or
telephone.

3.
Steering lock and ignition.

4.
Wiper/screenwash/trip computer
control stalk.

5.
Instrument panel.

6.
Driver’s airbag.
Horn.

7.
Cruise control/speed limiter
switches.

8.
Controls for optional functions.

9.
Door mirror controls.
Electric window controls.

10.
Oddments storage.

11 .
Manual headlamp height
adjustment
Lower side switch panel.

12.
Fuel fi ller fl ap opening button.
Upper side switch panel.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

11
FAMILIARISATION
ROOF CONSOLES - CENTRE CONSOLES




A.
Rear view mirror.

B.
Emergency call/Warning lamps
display for front passenger’s airbag
and seat belt/Assistance call.

C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.

D.
Microphone for audio and telematic
system.

E.
Panoramic sunroof blind control.




1.
Central adjustable air vents.

2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.

3.
Audio system or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating/air conditioning controls.

6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.

7.
Gear lever, manual or automatic
gearbox.

8.
Manual parking brake.

9.
Portable ashtray.

10.
Large open storage or front armrest.

3
COMFORT
70
FRONT DEMIST - DEFROST


These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.


With manual air conditioning



)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.

)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

)
Switch on the air conditioning by
pressing the "A/C"
button; the warn-
ing lamp in the button comes on.










REAR SCREEN DEMIST -
DEFROST
The control button is located
on the air conditioning system
control panel.

Switching on

The rear screen demisting/defrosting
can only operate when the engine is
running.


)
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.



Switching off

The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.


)
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated
with the button goes off.


)
Switch off the demisting/de-
frosting of the rear screen
and door mirrors as soon as
appropriate, as lower current
consumption results in re-
duced fuel consumption.



With digital dual-zone air
conditioning

Automatic visibility programme


)
Select this programme to demist
or defrost the windscreen and side
windows as quickly as possible.
The system automatically manages
the air conditioning, air fl ow and air
intake, and provides optimum distribu-
tion towards the windscreen and side
windows.


)
To stop the programme, press ei-
ther the "visibility"
button again or
"AUTO"
, the warning lamp on the
button goes off and the warning lamp
on the "AUTO"
button comes on.
The system starts again with the values
in use before it was overridden by the
visibility programme.







With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
With Stop & Start, when the
demisting, air conditioning and
air fl ow functions are activated,
STOP mode is not available.

4
ACCESS
80

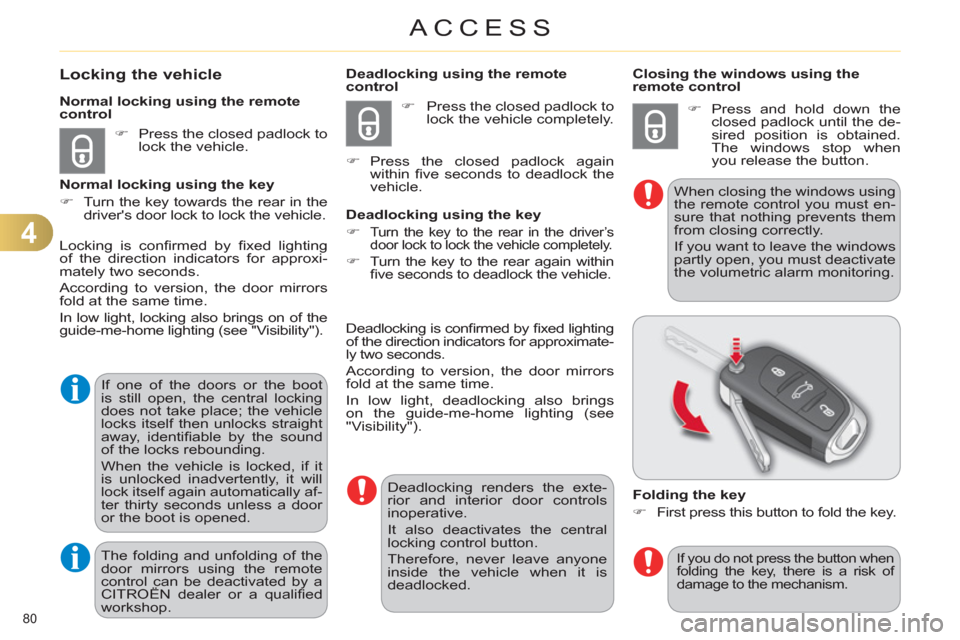

Locking the vehicle



)
Press the closed padlock to
lock the vehicle.

Normal locking using the remote
control

Normal locking using the key


)
Turn the key towards the rear in the
driver's door lock to lock the vehicle.



Folding the key


)
First press this button to fold the key.
Locking is confi rmed by fi xed lighting
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
fold at the same time.
In low light, locking also brings on of the
guide-me-home lighting (see "Visibility").

If one of the doors or the boot
is still open, the central locking
does not take place; the vehicle
locks itself then unlocks straight
away, identifi able by the sound
of the locks rebounding.
When the vehicle is locked, if it
is unlocked inadvertently, it will
lock itself again automatically af-
ter thirty seconds unless a door
or the boot is opened.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.


Closing the windows using the
remote control


)
Press and hold down the
closed padlock until the de-
sired position is obtained.
The windows stop when
you release the button.
When closing the windows using
the remote control you must en-
sure that nothing prevents them
from closing correctly.
If you want to leave the windows
partly open, you must deactivate
the volumetric alarm monitoring.


If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.









Deadlocking using the remote
control


)
Press the closed padlock to
lock the vehicle completely.

)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.




Deadlocking using the key


)

Turn the key to the rear in the driver’s
door lock to lock the vehicle completely.

)
Turn the key to the rear again within
fi ve seconds to deadlock the vehicle.




Deadlocking is confi rmed by fi xed lighting
of the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
In low light, deadlocking also brings
on the guide-me-home lighting (see
"Visibility").

Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the central
locking control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
