1
MONITORING
28
TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM
Dials and screens
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator with man-
ual gearbox or gear lever position
and gear for the electronic gearbox
system or automatic gearbox.
3.
Cruise control or speed limiter setting.
4.
Digital speedometer (mph or km/h).
5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
7.
Trip mileage recorder (miles or km).
8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
according
to version).
9.
Time.
Control buttons
A.
Lighting dimmer (available in night
mode).
B.
Reminder of servicing information
Reset service indicator or trip mile-
age recorder.
A
and B.
Setting the time and selecting
units.
Page 31 of 324
1
MONITORING
29
TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM
Dials and screens
A.
Lighting dimmer (available in night
mode).
B.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
according
to version).
10.
Range (miles or km).
Control buttons
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator for manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Page 32 of 324
1
MONITORING
30
CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator with man-
ual gearbox or gear lever position
and gear for the electronic gearbox
system or automatic gearbox.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of
the background colour of the screens.
C.
Lighting dimmer (available in night
mode).
D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.
Dials and screens
6.
Engine oil level indicator.
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp.
10.
Range (miles or km).
Control buttons
Page 33 of 324
1
MONITORING
31
CUSTOMISABLE COLOUR INSTRUMENT PANEL ASSOCIATED WITH THE SATELLITE NAVIGATION
SYSTEM
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.
3.
Speedometer (mph or km/h).
Dials and screens
4.
Central screen associated with the
satellite navigation system.
5.
Fuel gauge and associated low fuel
level warning lamp.
6.
Trip mileage recorder (miles or km).
7.
Service spanner (if a service is due
or missed),
total mileage recorder.
(miles or km)
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of
the background colour of the screens.
C.
Dashboard lighting dimmer (in night
mode).
D.
Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset service indicator or trip mileage
recorder.
Control buttons
Page 47 of 324
1
MONITORING
45
Service indicator
This information is displayed for a few
seconds after switching on the igni-
tion. It informs the driver when the next
service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last service indica-
tor zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last service.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears in the in-
strument panel central screen.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line or a spe-
cifi c message in the instrument panel
central screen indicates the distance re-
maining before the next service is due.
For example:
1 700 miles (2 800 km)
remain before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
Less than 600 miles (1 000 km) remain
before the next service is due
Example:
560 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is
switched on, the spanner goes off
; the
distance recorder resumes its normal
operation. The screen then indicates
the total and trip distances.
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to indi-
cate that a service must be carried out soon.
Page 48 of 324
1
MONITORING
46
Service overdue
For a few seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be car-
ried out as soon as possible.
Example:
the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.
Service indicator zero reset
This operation cannot be carried
out while a reminder of the ser-
vicing information is being dis-
played.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be registered.
Recalling the service information
You can recall the service information
at any time.
)
Briefl y press the ".../000"
trip dis-
tance recorder zero reset button.
The service information is displayed
for a few seconds, in the total dis-
tance recorder line or in the instru-
ment panel central screen associated
with the satellite navigation system.
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is
as follows:
)
switch off the ignition,
)
press and hold the ".../000"
trip dis-
tance recorder zero reset button,
)
switch on the ignition; the distance re-
corder display begins a countdown,
)
when the screen indicates "=/0"
and
the spanner disappears, release the
button.
Page 50 of 324
1
MONITORING
48

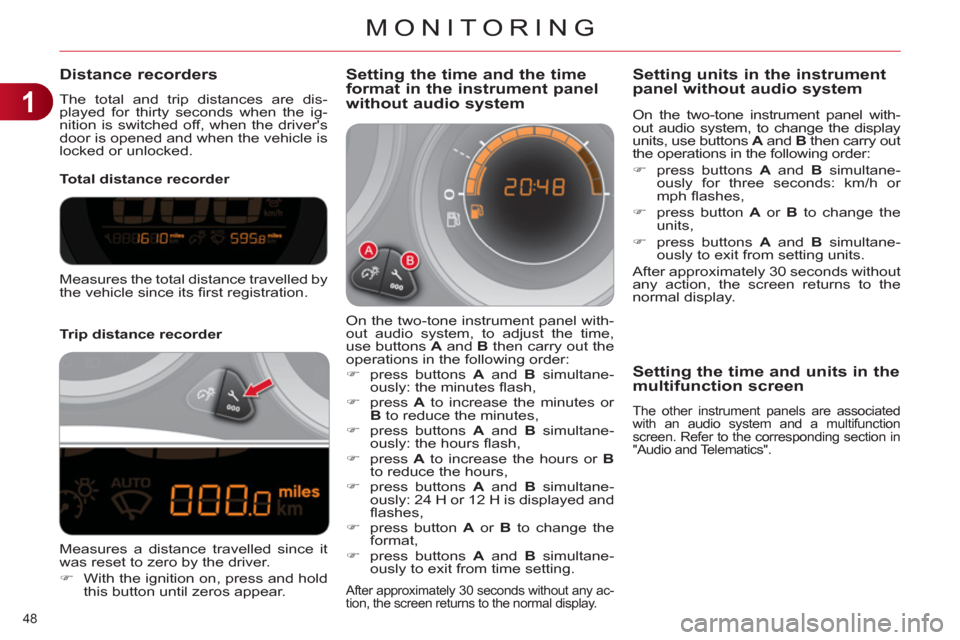

Distance recorders
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
Total distance recorder
Setting the time and the time
format in the instrument panel
without audio system
On the two-tone instrument panel with-
out audio system, to adjust the time,
use buttons A
and B
then carry out the
operations in the following order:
)
press buttons A
and B
simultane-
ously: the minutes fl ash,
)
press A
to increase the minutes or
B
to reduce the minutes,
)
press buttons A
and B
simultane-
ously: the hours fl ash,
)
press A
to increase the hours or B
to reduce the hours,
)
press buttons A
and B
simultane-
ously: 24 H or 12 H is displayed and
fl ashes,
)
press button A
or B
to change the
format,
)
press buttons A
and B
simultane-
ously to exit from time setting.
After approximately 30 seconds without any ac-
tion, the screen returns to the normal display.
Measures the total distance travelled by
the vehicle since its fi rst registration.
Measures a distance travelled since it
was reset to zero by the driver.
)
With the ignition on, press and hold
this button until zeros appear.
On the two-tone instrument panel with-
out audio system, to change the display
units, use buttons A
and B
then carry out
the operations in the following order:
)
press buttons A
and B
simultane-
ously for three seconds: km/h or
mph fl ashes,
)
press button A
or B
to change the
units,
)
press buttons A
and B
simultane-
ously to exit from setting units.
After approximately 30 seconds without
any action, the screen returns to the
normal display
.
Setting units in the instrument
panel without audio system
Setting the time and units in the
multifunction screen
The other instrument panels are associated
with an audio system and a multifunction
screen. Refer to the corresponding section in
"Audio and Telematics".
Page 61 of 324
2
MULTIFUNCTION SCREENS
59
TRIP COMPUTER
Monochrome screen A
Information displays The trip computer provides the follow-
ing information:
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
- average speed.
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
System that gives you current informa-
tion on your journey (range, fuel con-
sumption…).
)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Zero reset
)
The next press then returns you to
the normal display.
