2012 Citroen C3 PICASSO Owner's Manual

5
79
VISIBILITY
Vertical windscreen wiper position Automatic rain sensitive
windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the rear view mirror), adapting
their speed to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen. This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
It is accompanied by a message
in the screen.
The automatic rain sensitive
wipers must be reactivated if the
ignition has been off for more
than one minute, by pushing the
stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
To retain the effectiveness of the
"fl at-blade" wiper blades, it is ad-
visable to:


- handle them with care,

- clean them regularly using
soapy water,

- not use them to hold a sheet
of cardboard against the
windscreen,

- replace them at the fi rst signs
of wear.

5
80
VISIBILITY
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.


1.
Front courtesy lamp


2.
Map reading lamps


3.
Rear courtesy lamp


Front and rear courtesy lamps

Map readin
g lamps



)
With the ignition on, press the cor-
responding switch.
In permanent lighting mode, differ-
ent lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, un-
limited.
In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting. It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to locate
your vehicle.


Footwell lighting

These lamps come on at the same time
as the courtesy lamps.

5
81
VISIBILITY





The lighting time varies accord-
ing to the circumstances:


- when the ignition is off, ap-
proximately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running,

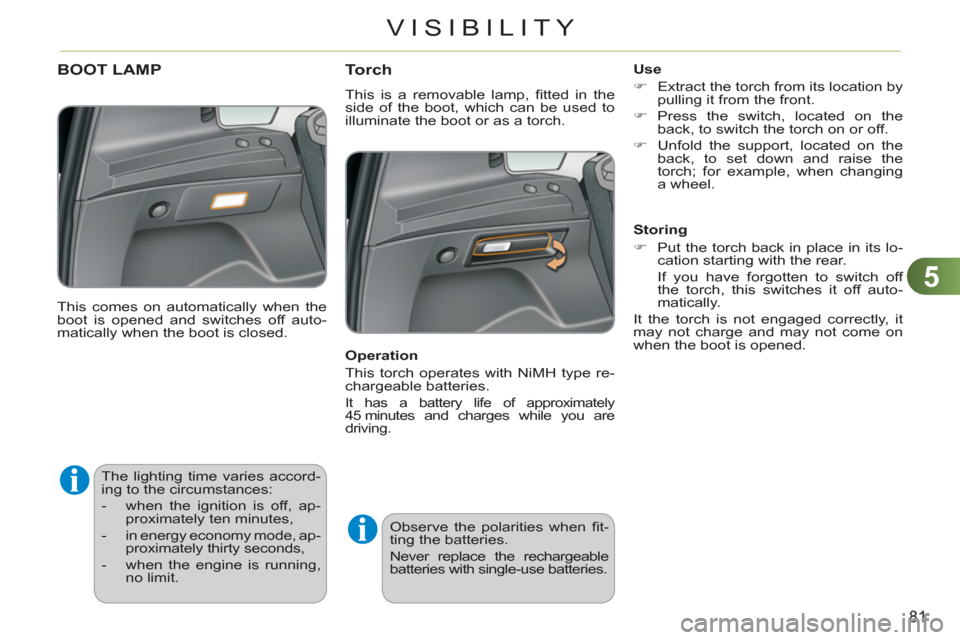

no limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
Torch
This is a removable lamp, fi tted in the
side of the boot, which can be used to
illuminate the boot or as a torch.




BOOT LAMP

Use


)
Extract the torch from its location by
pulling it from the front.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its lo-
cation starting with the rear.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.


Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Observe the polarities when fi t-
ting the batteries.
Never replace the rechargeable
batteries with single-use batteries.

6
FITTINGS
FRONT INTERIOR FITTINGS



1.
Sun visor.

2.
Child surveillance mirror.

3.
Grab handle with coat hook.

4.
Upper storage box.
Scented air freshener adjustment.

5.
Storage compartments.

6.
Illuminated glove box.

7.
Storage pockets.

8.
Open storage compartment at side
of passenger seat.

9.
Ticket holder.

10.
12 volt socket (100 W max).

11 .
USB port/auxiliary socket.

12.
Cup holder.

6
83
FITTINGS
CHILD SURVEILLANCE MIRRORSUN VISOR
Component which protects against sun-
light from the front or the side.
The sun visors are fi tted with a courtesy
mirror with concealing fl ap and a ticket
holder.
GLOVE BOX
This has areas for storing a bottle of
water, the vehicle's handbook, etc.


)
To open the glove box, pull the handle
towards you.
It is illuminated when the lid is open.
A child surveillance mirror is installed
above the interior rear view mirror. This
allows you to monitor the vehicle’s rear
passengers, or it can facilitate conver-
sation between the front and rear pas-
sengers without the need to move the
rear view mirror. It can be folded away
to eliminate dazzle.

6
84
FITTINGS
STORAGE DRAWER
It is located under the front passenger
seat.
12 V ACCESSORY SOCKET


)
To connect a 12 V accessory (max
power: 100 Watts), lift off the cap
and connect a suitable adaptor.
Opening



)
Raise the front of the drawer and pull it.
Do not place heavy objects in
the drawer.

6
85
FITTINGS

To avoid any risk of jamming of
the pedals:


- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,

- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.

MATS

Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.
Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal

To remove the mat on the driver's side:


)
move the seat as far back as pos-
sible,

)
unclip the fi xings,

)
remove the mat.

TICKET HOLDER


It is located at the top of the dashboard
central panel.
It can be used to hold toll or parking
tickets.

6
86
FITTINGS
REAR INTERIOR FITTINGS
They are located on the back of the
front seats. Two boxes are available, located under
the rear passenger footwells.
To open them, lift the lid using the cut-out. There is a cup holder located at the rear
of the centre console.


Storage boxes Seat pockets
Cup holder
