2012 Citroen C ZERO RHD Owner's Manual

8
Practical information
87
Check that the charging warning lamp
in the instrument panel is on fixed.
Fast charging stops automatically whenthe battery is around 80 % charged.It is possible to attain a level of 100 %charged by restarting the procedure. However, the time taken by this additional charge will be relatively long,
as the charging rate is reduced.


During the fast charge, the vehicle's air conditioning may start automatically,if needed to cool the main battery. It istherefore perfectly normal to hear thenoise of a fan running from outside thevehicle and to see a puddle of water form under the vehicle.


As a safety measure, the motor will not star t when the charging cable isconnected to the vehicle's socket. Also, any attempt to star t the motor interrupts the charging procedure. It will then be necessary to disconnectand reconnect the charging cable plug to continue charging, following the instructions for using the charging station.


If the ambient temperature is below 0 °C, the charging time may be longer.
If the ambient temperature is below -25 °C, charging may not be possible. If this is not the case, charging has not star ted;
check the operating instructions for the charging station. The charging warning lamp in the instrument
panel goes off when charging is complete. ) Disconnect the charging cable followingthe instructions for the charging terminal.)
Close the charging socket cover and the
flap.

After charging, close the chargingsocket cover and flap. Take care to avoid the ingress of water or dust to the socket and its cover or the charging plug. Risk of fire or electrocution.

Vehicle out of use for a longperiod
When your vehicle is going to be outof use for a long period, charge the main battery completely every three months (following the normal charging procedure).
Before charging, check that the ancillaries battery is not disconnected or discharged. If this is the case, refer to the "ancillaries battery" section for reconnecting or charging the battery.

Practical information
88





Ancillaries battery
(other than the electric motor, the heating and
the air conditioning) are powered by this 12 V
ancillaries battery.
It is located in the front compartment and isrecharged by the main battery, during phases
of operation ("Ready" lamp on in the instrument
panel) and charging.

If the ancillaries battery is discharged,it will not be possible to star t the motor and the main battery cannot becharged.
)Open the front bonnet using the interior release lever, then the exterior safety catch. )Secure the bonnet stay.)Slacken nut 1.)Remove the battery protective cover for access to the two terminals.



Access to the battery
Disconnecting the battery is not recommended.However, if the vehicle is not to be used for a prolonged period of more than a month, it may be necessary todisconnect and store it to avoid theelectrolyte freezing.


After prolonged disconnection of the battery, you must contact a CITROËNdealer or a qualified workshop to havethe electronic control unit reinitialised.

8
Practical information
89

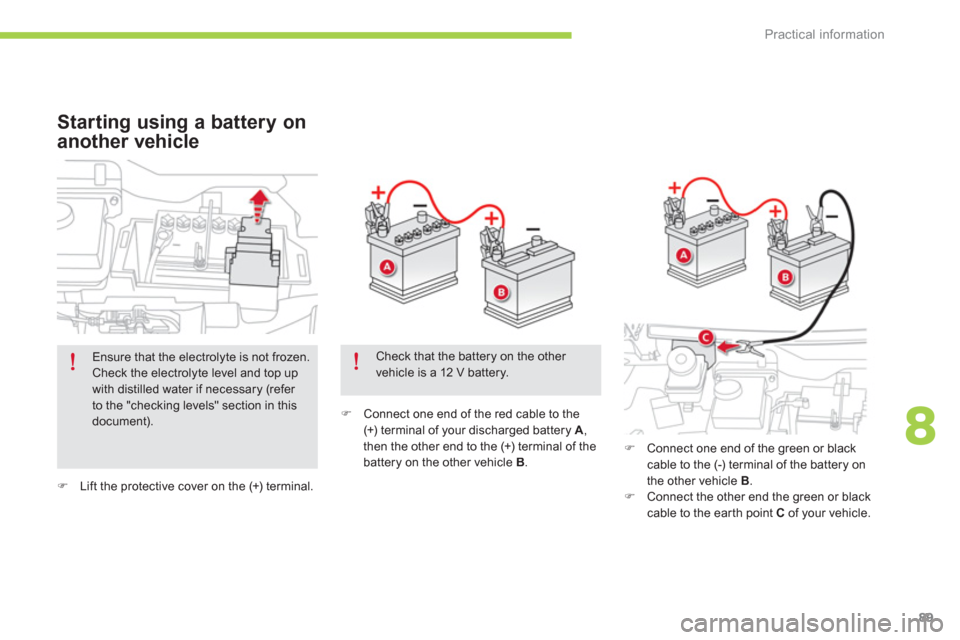

)Lift the protective cover on the (+) terminal.

)
Connect one end of the red cable to the (+) terminal of your discharged battery A,then the other end to the (+) terminal of the battery on the other vehicle B.


Starting using a battery on
another vehicle
)
Connect one end of the green or blackcable to the (-) terminal of the battery on
the other vehicle B.) Connect the other end the green or black cable to the ear th point C
of your vehicle.



Ensure that the electrolyte is not frozen.
Check the electrolyte level and top up with distilled water if necessary (refer to the "checking levels" section in thisdocument).
Check that the battery on the other vehicle is a 12 V battery.

Practical information
90

Charging the battery using
a battery charger
)Star t the other vehicle and wait a fewminutes.)Turn the ignition key on your vehicle, until
the "Ready" lamp comes on.
)Disconnect the cables in the reverse order.)Refit the battery protective cover and
tighten the fixing screw.
I
f the "Ready" lamp does not come on, proceedas follows: )Leave the cables connected. )Return the ignition switch on your vehicle to
the " LOCK" position. )Put the main battery on charge, followingthe procedure for normal charging (see the"charging the main battery" section). )When the charging warning lamp in
the instrument panel comes on fixed,disconnect the cables.)Leave the battery on charge for at least one hour. )Turn the ignition key on your vehicle, until
the "Ready" lamp comes on.
If the problem persists, contact a
CITROËN dealer or a qualified workshop.

)
Remove the protective cover from thebattery.
Ensure that the electrolyte is not frozen.Check the electrolyte level and top upwith distilled water if necessary (refer tothe "checking levels" section).
)Slacken nut 1
and lift off the retaining bar.

8
Practical information
91
Never charge the battery without first disconnecting the terminals and removing it from the vehicle.Do not disconnect the terminals whenthe "Ready" lamp is on, nor when thevehicle is being charged.
Before disconnecting
You must wait 2 minutes after switchingoff the ignition before disconnecting the battery.


Batteries contain harmful substancessuch as sulphuric acid and lead. Theymust be disposed of in line with legal requirements and never put out withhousehold waste. Ta k e used batteries to an authorisedcollection point.
)Disconnect the negative (-) terminal.)Lift the protective cover on the (+) terminal 2.)Slacken nut 3.)Disconnect the positive (+) terminal. )Remove the battery.)Charge the battery following the
instructions given by the manufacturer of
the battery charger. )Reconnect the battery starting with the (+) cable.

After reconnecting

After reconnecting the battery, switch
on the ignition and wait 1 minutebefore starting, to allow initialisation of the electronic systems. However, if minor problems persist after doingthis, contact a CITROËN dealer or a qualified workshop.Remember to enter the radio code yourself, referring to the relevant section.


Ensure that the battery posts and cable terminals are clean. If they are coveredwith sulphates (whitish or greenish deposit), disconnect and clean them.

Practical information
92
This kit is installed in the storage box, under the rear seat, right hand side.
You must therefore remove the rear seat cushion for access to the kit.
Complete system consisting of a compressor and a sealant car tridge which permits the
temporary repair of a tyre so that you can rdrive to the nearest garage.
It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.



















Temporary puncture repair kit
Access to the kit

Removing the rear seat cushion
)
Pull the controls Aforwards to release the
rear seat cushion.


Removing the metal cover
)Remove the four "butterfly" screws. )Remove the metal cover.
You now have access to the repair kit.
)
Lift the front of the cushion and tip itupwards to remove it.

8
Practical information
93
1.12 V compressor with integral pressure gauge, to measure and adjust the tyre
pressure.
Composition of the kit
2.Sealant car tridge for the temporary repair
of a tyre.3.Injection pipe. 4.Suction pipe, to remove the sealant product
if necessary.
5.Sachet containing a replacement valve core, a tool for removing/refitting the valve core and a speed restriction sticker.



The speed restriction sticker must beaffixed to the vehicle's steering wheel toremind you that a wheel is in temporary use.

Do not exceed a speed of 50 mph(80 km/h) when driving with a tyre repaired using this type of kit.



Refi tting the rear seat cushion
)Put the metal cover back into place. )Refit the four "butterfly" screws.)Insert the metal hooks into the seat backrest. )Fold the seat cushion down until it locks in place.



When refitting the cushion, take care not to trap the seat belt buckles.

Practical information
94
Repair procedure
1. Sealing
)Switch off the ignition.)Indicate on the speed restriction sticker provided, the wheel to be repaired, then fix it to the steering wheel as a reminder that a
wheel is in temporary use. )Shake the sealant car tridge, remove the cap and screw on the injection pipe.
) Remove the valve cap for the tyre to be
repaired.) Remove the valve core using the tool
provided, and store in in a clean place.
) Connect the injection pipe to the valve of
the tyre to be repaired.
)Tap the sealant car tridge (top down)several times with your hand, so as to injectall of the product into the tyre. )Remove the injection pipe.)Refit the valve core and tighten it using the
tool provided.

Take care, this product is harmful (e.g. ethylene-glycol, colophony...) if swallowed andcauses irritation to the eyes.Keep it out of reach of children. The use-by date of the sealant is marked on the car tridge.
After use, do not discard the empty cartridge but take it to a CITROËN dealer (France) or an
authorised waste disposal site. Don't forget to obtain a replacement cartridge; they are available from a CITROËN dealer or a qualified workshop.

Avoid removing any foreign bodieswhich have penetrated into the tyre.
