2012 Citroen BERLINGO FIRST Owner's Manual

55 VISIBILITY
-

Windscreen wipers


2
Fast wipe
(heavy rain).

1
Normal wipe
(moderate rain).

I
Intermittent wipe.

0
Off.

È
Single wipe
(press downwards).
WINDSCREEN WIPER STALK










Windscreen and headlamp wash
(according to country)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp wash is also activated,
if the headlamps are on.




Rear windscreen wiper


Turn ring A
to the fi rst notch.
The wiping speed is inverse-
ly proportional to the speed
of the vehicle.
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear win-
dow demister. Once deicing is
complete, remove the snow or
ice which has accumulated on the rear
wiper blade. You can now ope rate the
rear windscreen wiper.

Rear windscreen wash

Turn ring A
past the fi rst
notch: the windscreen wash
then the windscreen wiper
operate for a fi xed time.

Operation
In position 1
or 2
, when the vehicle
stops, the windscreen wiper changes
to a lower wiping speed, then resumes
its initial speed when the vehicle starts
again.
In the I
ntermittent position, the wiping
speed is proportional to the speed of
the vehicle.
Automatic rear windscreen
wiping


)
place the front wipers stalk in a
position other than 0
,

)
engage reverse gear,

)
the rear wiper operates with inter-
mittent wiping.

Note
: if a bicycle carrier is used, contact
a CITROËN dealer to have this function
disarmed.











It is necessary to reactivate wiping
if the ignition has been off for over
one minute:


- rotate the stalk to any position,

- then move it to the desired position.

VISIBILITY
56 -
ELECTRIC WINDOWS

Always remove the ignition
key when leaving the vehicle,
even for a short time.
If an obstacle is encountered while
the electric windows are in use, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.


1. Driver's electric window
switch

2. Passenger electric window
switch
You have two options:


- Manual operation:

Press switch 1
. The window stops
as soon as the switch is released.

- Automatic operation (driver):

Press and hold switch 1
. One
touch completely opens or closes
the window.
Automatic closing only operates
when the engine is running. REAR WINDOWS

To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.

57 VISIBILITY
-
THE EXTERIOR MIRRORS
Passenger side exterior
mirror electric control
From the driver's seat, move the con-
trol 1
in all four directions to adjust.
THE MANUAL INTERIORMIRROR

Manual mirrors

Move the lever in all four directions
to adjust.
When the vehicle is parked, the exterior
mirrors can be folded back manually.
The interior mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.

LIFE ON BOARD
58 -

59 LIFE ON BOARD-

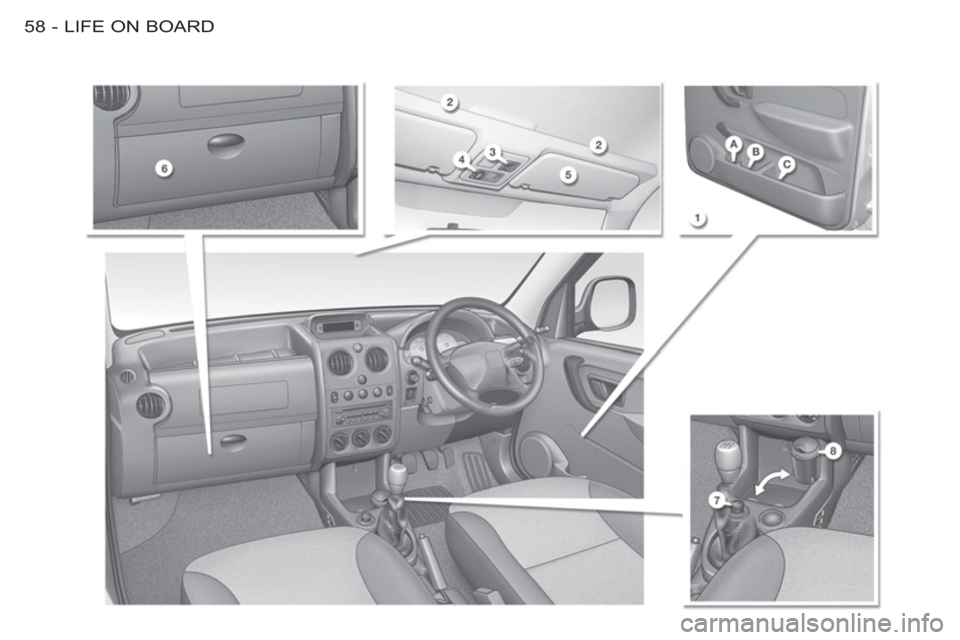

FRONT FITTINGS

4. Courtesy lamps
5. Sun visors
Permanently off.
On entering the vehicle:


- they come on when the
vehicle is unlocked or
when a door is opened, Permanently on when the key
is in the accessories position
or the ignition is on.

1. Storage in the doors


A.
Bottle holder.

B.
Can holder.

C.
Storage compartment.


2. Overhead storage
Maximum load: 5 kg
.

3. Map reading lamps
Turn the dial to the right or to the left
to switch them on.
Place the dial in the centre to switch
them off.

6. Glove box

7. Cigarette lighter
It permits the connection of a telephone
charger, a baby's bottle warmer, ...

8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by
pulling upwards.


- they go off after approximately
30 seconds with the doors closed, or
when the ignition is switched on.
On leaving the vehicle:


- they come on when the key is
removed from the ignition (timing
of approximately 30 seconds) or
when a door is opened,

- they go off after approximately
30 seconds with all of the doors
closed, or immediately when the
vehicle is locked.
In this position, the courtesy light
may fl ash while driving if a door is not
closed correctly.
If a door is open, it will switch off auto-
matically after approximately 10 minutes
or when the ignition is switched on.

LIFE ON BOARD
60 -
STEERING WHEEL
ADJUSTMENT HEADLAMPADJUSTMENTHORN
HAZARD WARNING LIGHT
S
Press the button, the direction indicators
fl ash.

They can operate with the ignition off. Press one of the spokes or
the centre of the steering
wheel.


0 -
With no load.

1 -
With partial load.

2 -
With average load.

3 -
With maximum authorised load.


0 - 1 or 2 people in the front
seats.

- - 3 people.

1 - 4 or 5 people.

2 -

4 or 5 people + maximum
authorised load.

3 -
Driver + maximum authorised
load.

Initial setting is position 0.

Depending on the load in your vehi-
cle, it is recommended that the head-
lamp beam is adjusted. When stationary, lower the handle
to release the steering wheel adjust-
ment mechanism.
Adjust it to the desired height, then lift
the handle to lock the steering wheel
adjustment mechanism.

61 LIFE ON BOARD-
LASHING RINGS
It is recommended that the
load is immobilised by secur-
ing it fi rmly using the lashing
rings on the fl oor. Use the 6 lashing rings on the lug-
gage compartment fl oor to secure
your loads.
You can use suitable load retainers
(half-height partitions, grille, etc.)
supplied by the CITROËN network.

LIFE ON BOARD
