2012 Citroen BERLINGO FIRST Owner's Manual

7 FAMILIARISATION
-
WIPERS
STEERING MOUNTED
CONTROLS
LIGHTING

Front foglamps (1 st turn of the ring
forwards).
Front foglamps and rear foglamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rearwards.
Lighting off
Sidelamps

Dipped/main beam head-
lamps


Vehicles fi tted with a rear
foglamp (ring B)
Turn the ring forwards.

Vehicles fi tted with
front foglamps and a
rear foglamp (ring B)
Off Wash-
wipe Intermittent
wipe
Rear



54




55


Front and rear lamps (ring A)
Front

2
Rapid wipe (heavy rain).

1
Normal wipe (moderate rain).

I
Intermittent wipe.

0
Off.

È
Single wipe.
Screenwash: pull the stalk towards
you.

FAMILIARISATION8-
FRONT SEATS
Never travel with the head
restraints removed.

2.
Armrest.

3.
Seat back angle adjustment.

4.
Forwards-backwards adjustment.



34




1.
Head restraint height adjustment.

9 FAMILIARISATION
-
AIRBAGS


Deactivating the passenger's
airbag


)
With the ignition off
, insert the
ignition key into the passenger's
airbag switch 1
and turn it to the
"OFF"
position.

)
As soon as you remove the child
seat, turn the airbag switch to the
"ON"
position to activate the air-
bag again.
Deactivation check
With the ignition switched
on (2 nd notch), illumination
of this warning lamp indi-
cates that the passenger's
airbag is deactivated (switch
in the "OFF"
position).
The warning lamp remains on until
the airbag is activated again.




71



Front airbags

These are fi tted in the centre of the steering
wheel for the driver and in the dashboard
for the front passenger. They are deployed
simultaneously, except in cases where the
passenger's airbag is deactivated.

Precautions regarding the
passenger's airbag


)
Deactivate the airbag if you install
a rear-facing child seat.

)
Activate the airbag for an adult
passenger.




70



Lateral airbags *

The lateral airbags are fi tted into the
front seat backrest frame, on the
door side.
They are deployed independently of
each other, on whichever side the
collision occurs.

*
According to version.

FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT


)
When stationary, push the control A

forwards to release the steering
wheel adjustment mechanism.

)
Adjust the height of the steering
wheel.

)
Lock the steering wheel adjust-
ment it by pulling control A
to-
wards you fully.


1.
Driver's electric window.


2.
Passenger's electric window.




DOOR MIRRORS



)
Move the manual control 3
in all
four directions to adjust.


Electric control for the
passenger's side mirror


)
From the driver's seat, adjust in
all four directions by operating
the control 4
.
Manual mode:


)
Press the switch. The window
stops as soon as the switch is re-
leased.


Automatic mode (driver):


)
Press and hold the switch. One
touch completely opens or closes
the window.



56




57



60

11 FAMILIARISATION
-
SPEED LIMITER * CRUISE CONTROL *




67



65 If the vehicle is fi tted with
a speed limiter and cruise
control, these functions can-
not both be activated at the
same time. This limiter indicates the status of
selection of the function on the in-
strument panel and displays the
programmed speed. The minimum
speed which can be programmed is
at least 18 mph (30 km/h).
It prevents exceeding of the speed
programmed by the driver, this func-
tion remains active regardless of any
action on the brake or clutch pedals.
On the other hand, pressing the ac-
celerator pedal to the point of resist-
ance does not have any effect.
It is possible to exceed the pro-
grammed speed temporarily by
pressing the accelerator fi rmly be-
yond this point of resistance.
The operating actions must be car-
ried out with the engine running. The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
at least fourth gear engaged.
*
According to version.

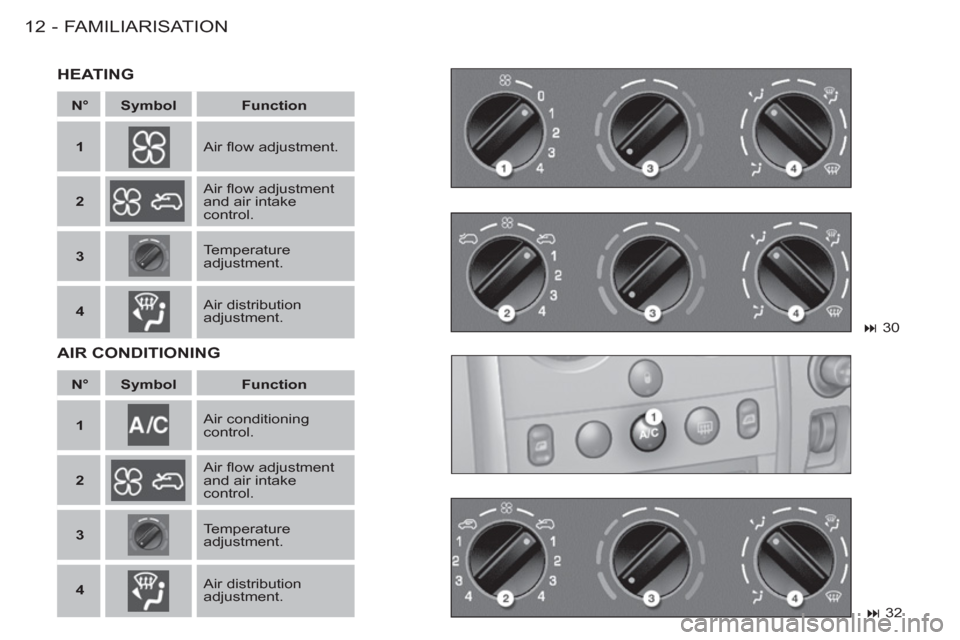

FAMILIARISATION12 -


N°



Symbol



Function




1





Air fl ow adjustment.


2





Air fl ow adjustment
and air intake
control.


3





Temperature
adjustment.


4





Air distribution
adjustment.


N°



Symbol



Function




1





Air conditioning
control.


2





Air fl ow adjustment
and air intake
control.


3





Temperature
adjustment.


4





Air distribution
adjustment.


30



32

HEATING
AIR CONDITIONING

13 FAMILIARISATION
-
RECOMMENDED INTERIOR SETTINGS


I require...

Heating or Manual air conditioning


Air distribution

Air fl ow

Air recirculation/
Intake of exterior air

Temperature

Manual AC


HOT





COLD




DEMISTING
DE-ICING

FAMILIARISATION14 -
FRONT FITTINGS


1.
Storage compartments in the doors.



A.
Bottle holder.

B.
Cup holder.

C.
Storage compartment.

2.
Overhead storage.

3.
Map reading lamp.

4.
Courtesy lamp.

5.
Sun visors.

6.
Glove box.

7.
Cigarette lighter.

8.
Removable ashtray.



58-59
