CavityCartridge
Fuse Mini
Fuse Description
23 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 3
24 — 25 Amp
Natural Sunroof – If
Equipped
25 — 10 Amp
Red Ignition Run —
Heated Mirrors - If
Equipped
26 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 2
27 — 10 Amp
Red Ignition Run – Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)Cavity
Cartridge
Fuse Mini
Fuse Description
28 — 10 Amp
Red Ignition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse
Required)
30 — 20 Amp
Yellow Ignition Run –
Heated Seats – If
Equipped
31 — — Spare
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay 1
7
MAINTAINING YOUR VEHICLE 447

CavityCartridge
Fuse Mini
Fuse Description
33 — 10 Amp
Red Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp
Pink —Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
EquippedCavity
Cartridge
Fuse Mini
Fuse Description
36 30 Amp
Pink —Passenger Door Mod-
ule (PDM)/Driver
Door Module (DDM)
37 — 25 Amp
Natural Power Top Module –
If Equipped
CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
(Continued)
448 MAINTAINING YOUR VEHICLE

CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
7
MAINTAINING YOUR VEHICLE 449

NOTE:For lighted switches, see your authorized dealer
for replacement.
LIGHT BULBS – Exterior Bulb No.
Bi-Halogen Headlamp .................... HIR2
Front Turn Signal Lamp ................3157NAK
Front Park Lamp . . LED (Serviced at Authorized Dealer)
Front Fog Lamp ......................... H11
Center High Mounted Stop (CHMSL) Lamp ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Lamp ................. LED
(Serviced at Authorized Dealer)
Backup Lamp ........................... 921
License Lamp .......................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
450 MAINTAINING YOUR VEHICLE

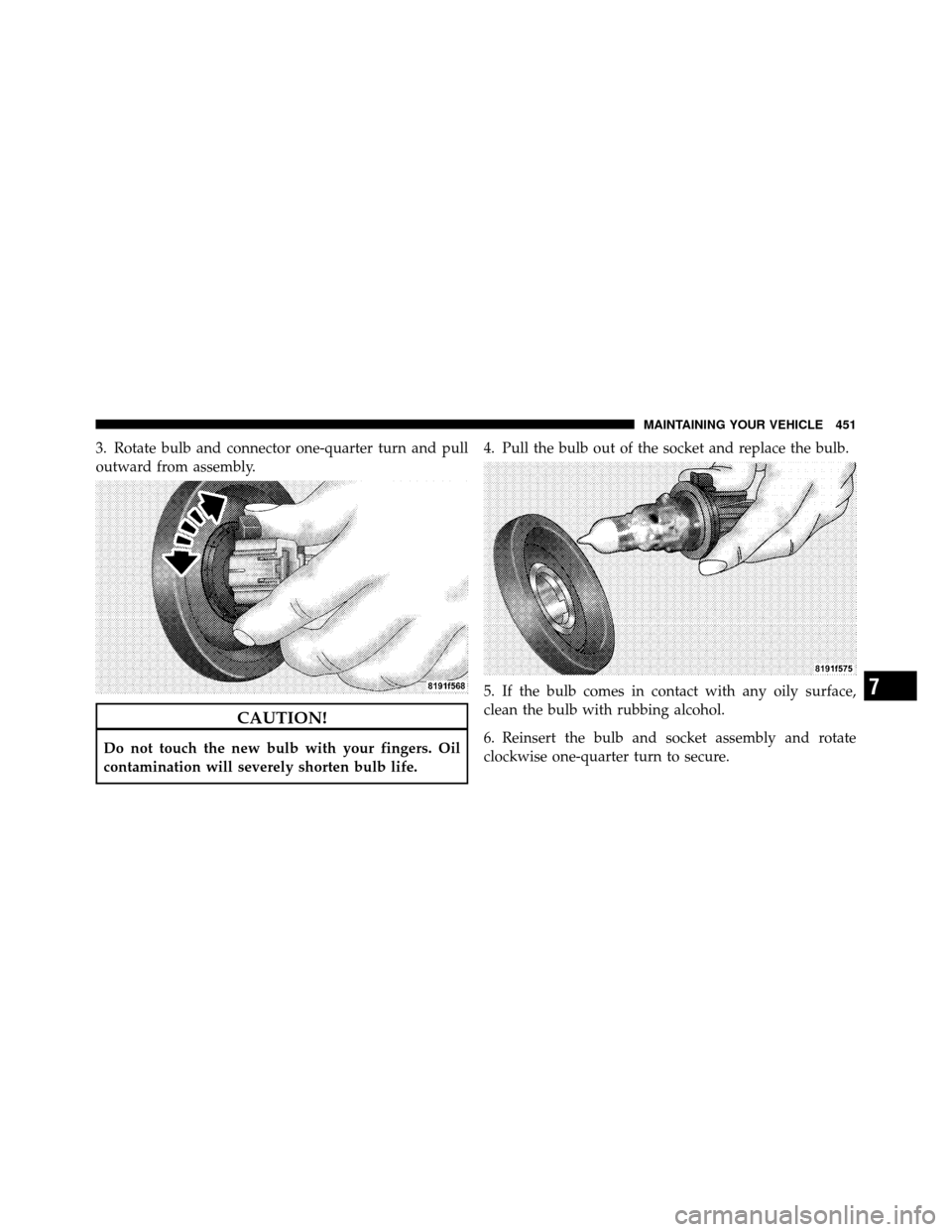

3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.
7
MAINTAINING YOUR VEHICLE 451

Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield. 1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog lamp hous-
ing.
2. Remove the bulb from the connector socket and install
the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.
452 MAINTAINING YOUR VEHICLE

Backup Lamps
1. Open the trunk and gently pull back the trunk liner
behind the tail lamp (requires removal of a push pin
holding the trunk trim in place near the tail lamp).
2. Remove the two plastic wing nuts from the tail lamp
housing.NOTE:
Placing a small flat head screwdriver or similar
tool between the lamp outboard ball stud and plastic
grommet from inside the trunk can help to disengage the
outboard edge of the tail lamp.
3. Grasp the tail lamp by both the outboard and inboard
sides, and pull firmly to disengage the tail lamp from the
vehicle.
7
MAINTAINING YOUR VEHICLE 453

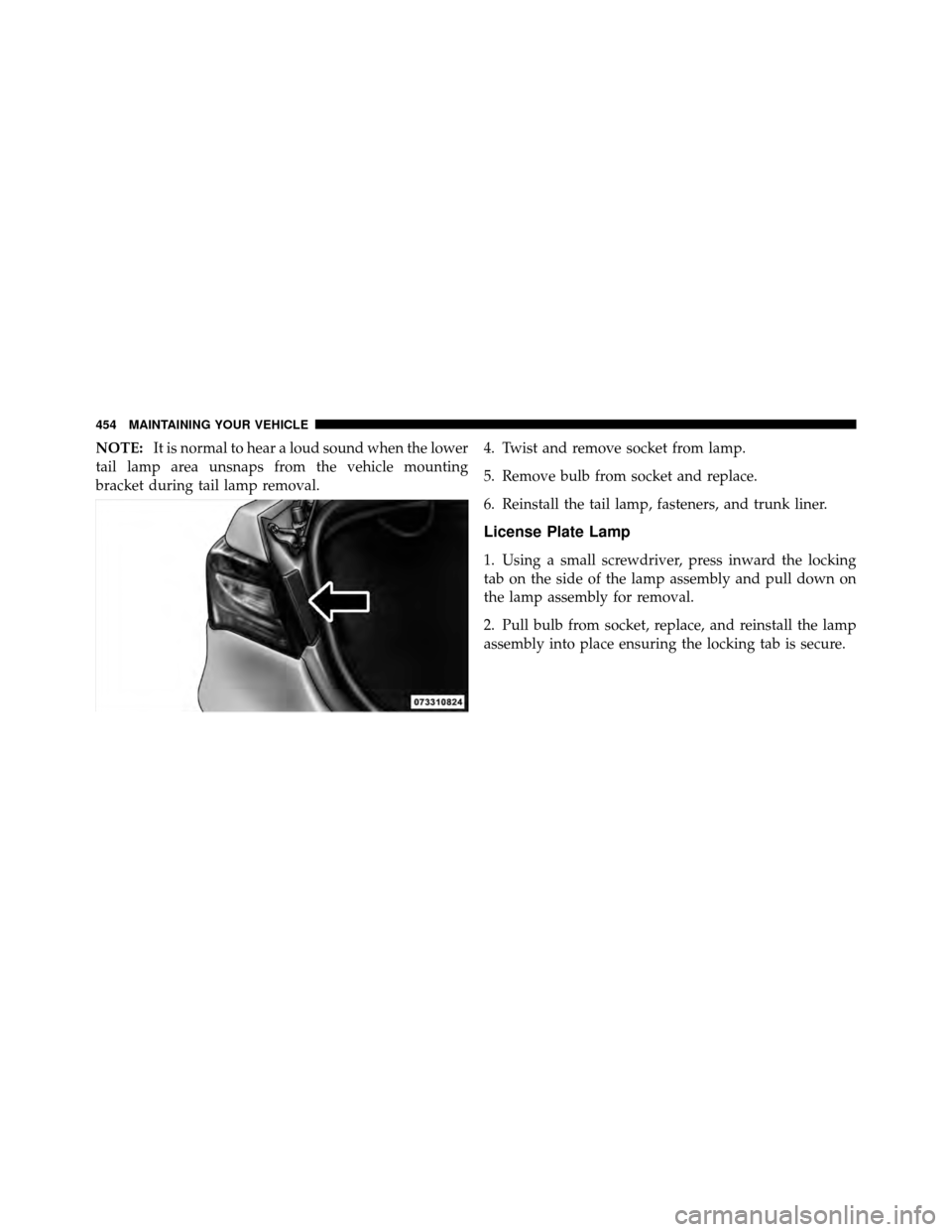

NOTE:It is normal to hear a loud sound when the lower
tail lamp area unsnaps from the vehicle mounting
bracket during tail lamp removal. 4. Twist and remove socket from lamp.
5. Remove bulb from socket and replace.
6. Reinstall the tail lamp, fasteners, and trunk liner.
License Plate Lamp
1. Using a small screwdriver, press inward the locking
tab on the side of the lamp assembly and pull down on
the lamp assembly for removal.
2. Pull bulb from socket, replace, and reinstall the lamp
assembly into place ensuring the locking tab is secure.
