2012 CHRYSLER 200 Owners Manual

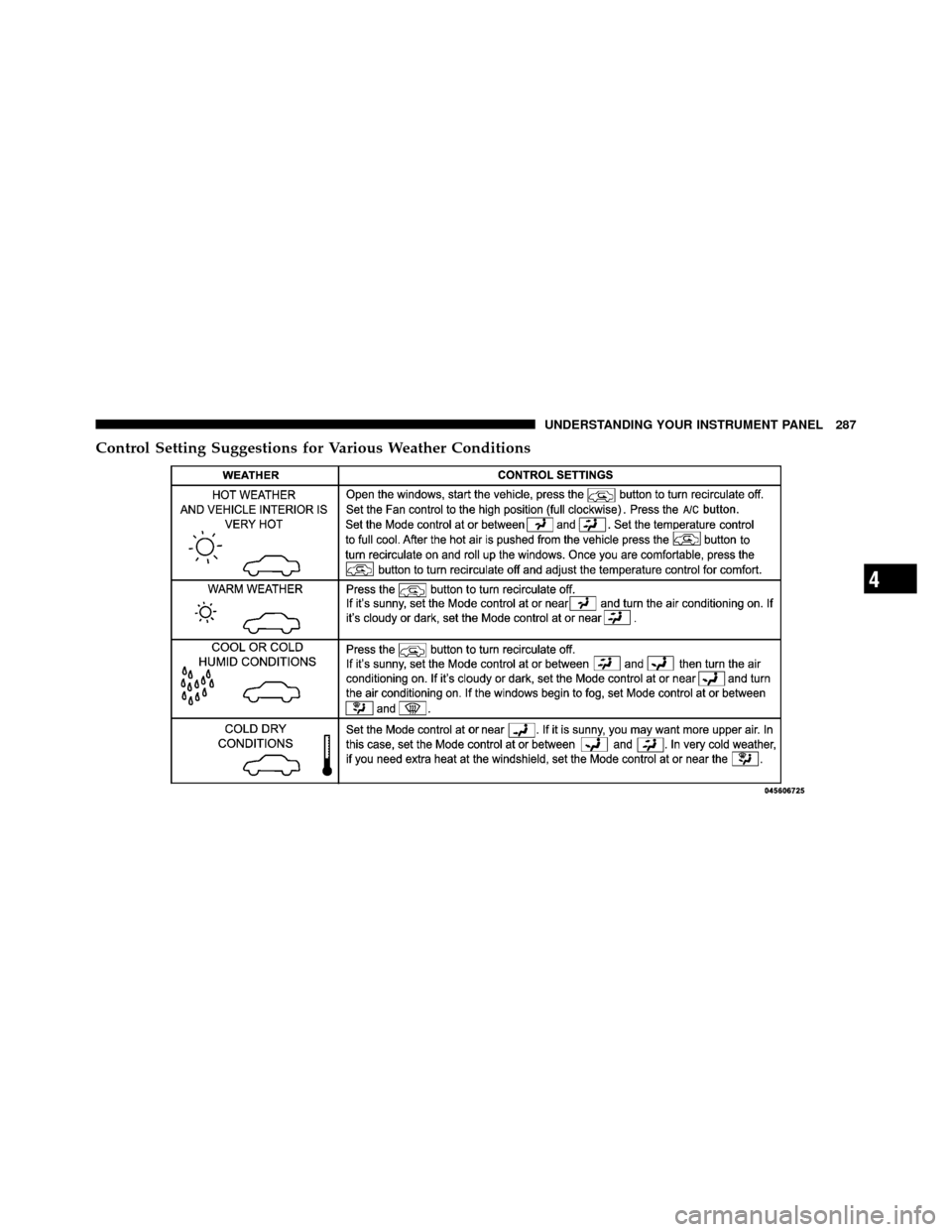

Control Setting Suggestions for Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 294
▫ Automatic Transmission ............... 294
▫ Normal Starting ..................... 294
▫ Extreme Cold Weather
(Below –20°F Or 29°C)............... 295
▫ If Engine Fails To Start ................ 295
▫ After Starting ....................... 297
 Engine Block Heater — If Equipped ........ 297
Automatic Transmission ................. 297
▫ Automatic Transmission Ignition Interlock
Systems ........................... 299
▫ Key Ignition Park Interlock ............. 299
▫ Brake/Transmission Interlock System ...... 299
▫ Four-Speed Automatic Transmission — If
Equipped .......................... 300
▫ Gear Ranges ........................ 300
▫ Six-Speed Automatic Transmission
(62TE) — If Equipped ................. 307
5

▫Gear Ranges ........................ 308
 AutoStick — If Equipped ............... 315
▫ Operation ......................... 315
▫ General Information .................. 316
 Driving On Slippery Surfaces ............. 316
▫ Acceleration ........................ 316
▫ Traction ........................... 317
 Driving Through Water ................. 317
▫ Flowing/Rising Water ................. 318
▫ Shallow Standing Water ............... 318
 Power Steering ....................... 320
▫ Power Steering Fluid Check ............. 321
 Parking Brake ........................ 322
Anti-Lock Brake System (ABS) ............ 324
 Electronic Brake Control System ........... 326
▫ Anti-Lock Brake System (ABS) ........... 327
▫ Traction Control System (TCS) ........... 327
▫ Brake Assist System (BAS) .............. 327
▫ Electronic Stability Control (ESC) ......... 328
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 331
 Tire Safety Information ................. 332
▫ Tire Markings ....................... 332
▫ Tire Identification Number (TIN) ......... 335
▫ Tire Terminology And Definitions ......... 336
▫ Tire Loading And Tire Pressure .......... 337
290 STARTING AND OPERATING

Tires — General Information ............. 341
▫ Tire Pressure ....................... 341
▫ Tire Inflation Pressures ................ 342
▫ Radial-Ply Tires ..................... 344
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 344
▫ Compact Spare Tire – If Equipped ........ 345
▫ Full Size Spare – If Equipped ............ 346
▫ Limited-Use Spare – If Equipped ......... 346
▫ Tire Spinning ....................... 347
▫ Tread Wear Indicators ................. 348
▫ Life Of Tire ........................ 348
▫ Replacement Tires .................... 349
Tire Chains .......................... 350
 Snow Tires .......................... 351
 Tire Rotation Recommendations ........... 351
 Tire Pressure Monitor System (TPMS) ....... 352
▫ Base System ........................ 355
▫ Premium System – If Equipped .......... 357
▫ General Information .................. 360
 Fuel Requirements ..................... 360
▫ Reformulated Gasoline ................ 361
▫ Gasoline/Oxygenate Blends ............. 361
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 362
▫ MMT In Gasoline .................... 362
▫ Materials Added To Fuel ............... 363
5
STARTING AND OPERATING 291

▫Fuel System Cautions ................. 363
▫ Carbon Monoxide Warnings ............ 364
 Flexible Fuel (3.6L Engine Only) —
If Equipped .......................... 365
▫ E-85 General Information ............... 365
▫ Ethanol Fuel (E-85) ................... 366
▫ Fuel Requirements ................... 366
▫ Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 367
▫ Starting ........................... 367
▫ Cruising Range ...................... 368
▫ Replacement Parts ................... 368
▫ Maintenance ........................ 368
Adding Fuel ......................... 368
▫ Fuel Filler Cap (Gas Cap) .............. 368
▫ Loose Filler Cap Message .............. 371
 Vehicle Loading ...................... 371
▫ Vehicle Certification Label .............. 371
▫ Gross Vehicle Weight Rating (GVWR) ...... 372
▫ Gross Axle Weight Rating (GAWR) ........ 372
▫ Overloading ........................ 372
▫ Loading ........................... 373
 Trailer Towing ........................ 373
▫ Common Towing Definitions ............ 373
▫ Trailer Hitch Classification .............. 375
292 STARTING AND OPERATING

▫Trailer Towing Weights
(Maximum Trailer Weight Ratings) ........ 376
▫ Trailer And Tongue Weight ............. 377
▫ Towing Requirements ................. 378
▫ Towing Tips ........................ 382
Recreational Towing
(Behind Motorhome, Etc.) ................ 383
▫ Towing This Vehicle
Behind Another Vehicle ................ 383
▫ Recreational Towing – All Models ........ 384
5
STARTING AND OPERATING 293

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the shift lever.
Automatic Transmission
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
NOTE:The ignition switch must be in the ON position,
and you must press the brake pedal before shifting out of
PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
For vehicles not equipped with Tip Start (Four-Speed
Transmission), turn the ignition switch to the START
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
294 STARTING AND OPERATING
