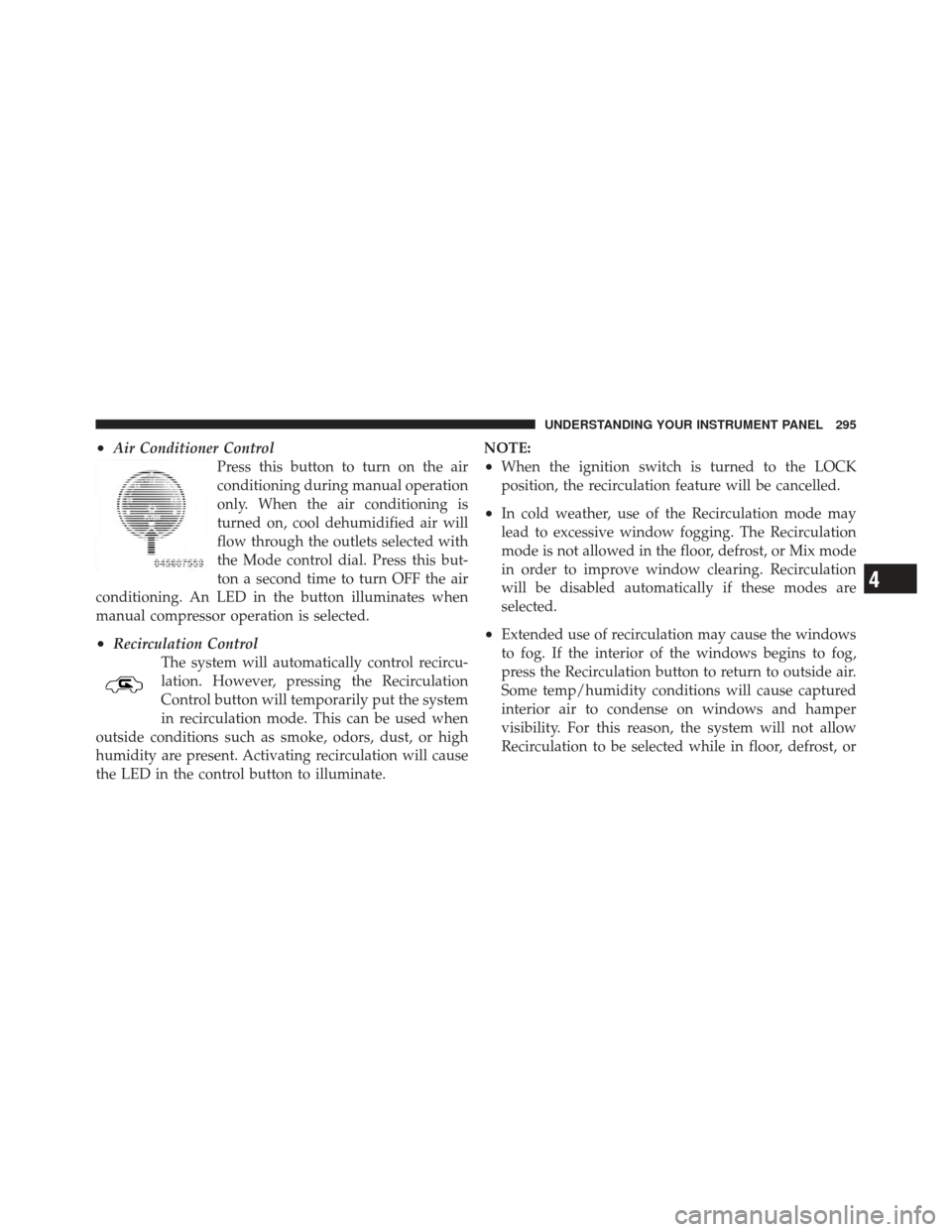

•Air Conditioner ControlPress this button to turn on the air
conditioning during manual operation
only. When the air conditioning is
turned on, cool dehumidified air will
flow through the outlets selected with
the Mode control dial. Press this but-
ton a second time to turn OFF the air
conditioning. An LED in the button illuminates when
manual compressor operation is selected.
•Recirculation Control The system will automatically control recircu-
lation. However, pressing the Recirculation
Control button will temporarily put the system
in recirculation mode. This can be used when
outside conditions such as smoke, odors, dust, or high
humidity are present. Activating recirculation will cause
the LED in the control button to illuminate. NOTE:
•When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
•In cold weather, use of the Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the floor, defrost, or Mix mode
in order to improve window clearing. Recirculation
will be disabled automatically if these modes are
selected.
•Extended use of recirculation may cause the windows
to fog. If the interior of the windows begins to fog,
press the Recirculation button to return to outside air.
Some temp/humidity conditions will cause captured
interior air to condense on windows and hamper
visibility. For this reason, the system will not allow
Recirculation to be selected while in floor, defrost, or
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

Mix mode. Attempting to use the recirculation while in
these modes will cause the LED in the control button
to blink and then turn off.
•Most of the time, when in Automatic Operation, you
can temporarily put the system into Recirculation
Mode by pressing the Recirculation button. However,
under certain conditions, while in Automatic Mode,
the system is blowing air out the defrost vents. When
these conditions are present, and the Recirculation
button is pressed, the indicator will flash and then turn
off. This tells you that you are unable to go into
Recirculation Mode at this time. If you would like the
system to go into Recirculation Mode, you must first
move the Mode knob to Panel, Mix and then press the
Recirculation button. This feature reduces the possibil-
ity of window fogging.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation Mode during winter months
is not recommended because it may cause window
fogging.
296 UNDERSTANDING YOUR INSTRUMENT PANEL

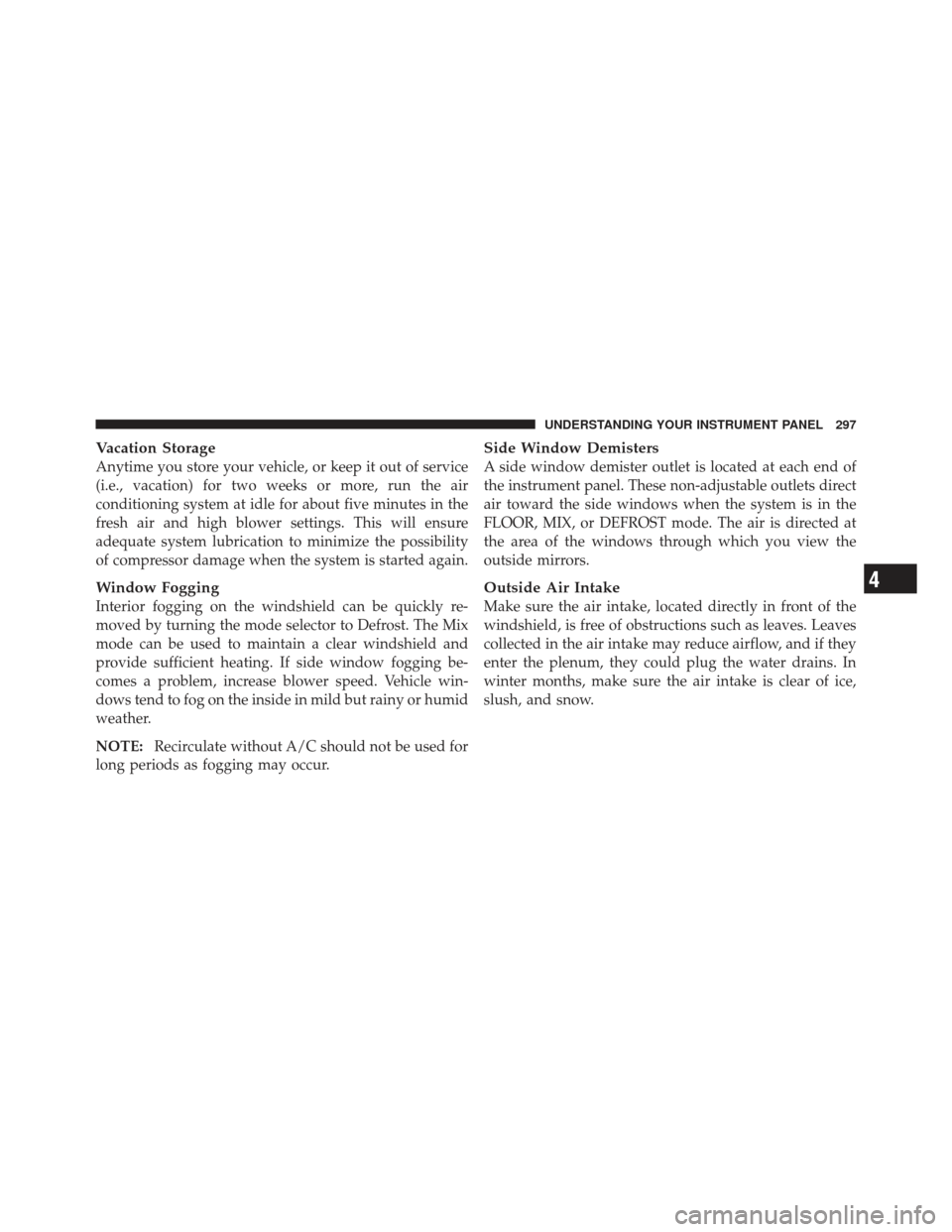

Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The Mix
mode can be used to maintain a clear windshield and
provide sufficient heating. If side window fogging be-
comes a problem, increase blower speed. Vehicle win-
dows tend to fog on the inside in mild but rainy or humid
weather.
NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
FLOOR, MIX, or DEFROST mode. The air is directed at
the area of the windows through which you view the
outside mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 297

A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service
intervals.
298 UNDERSTANDING YOUR INSTRUMENT PANEL

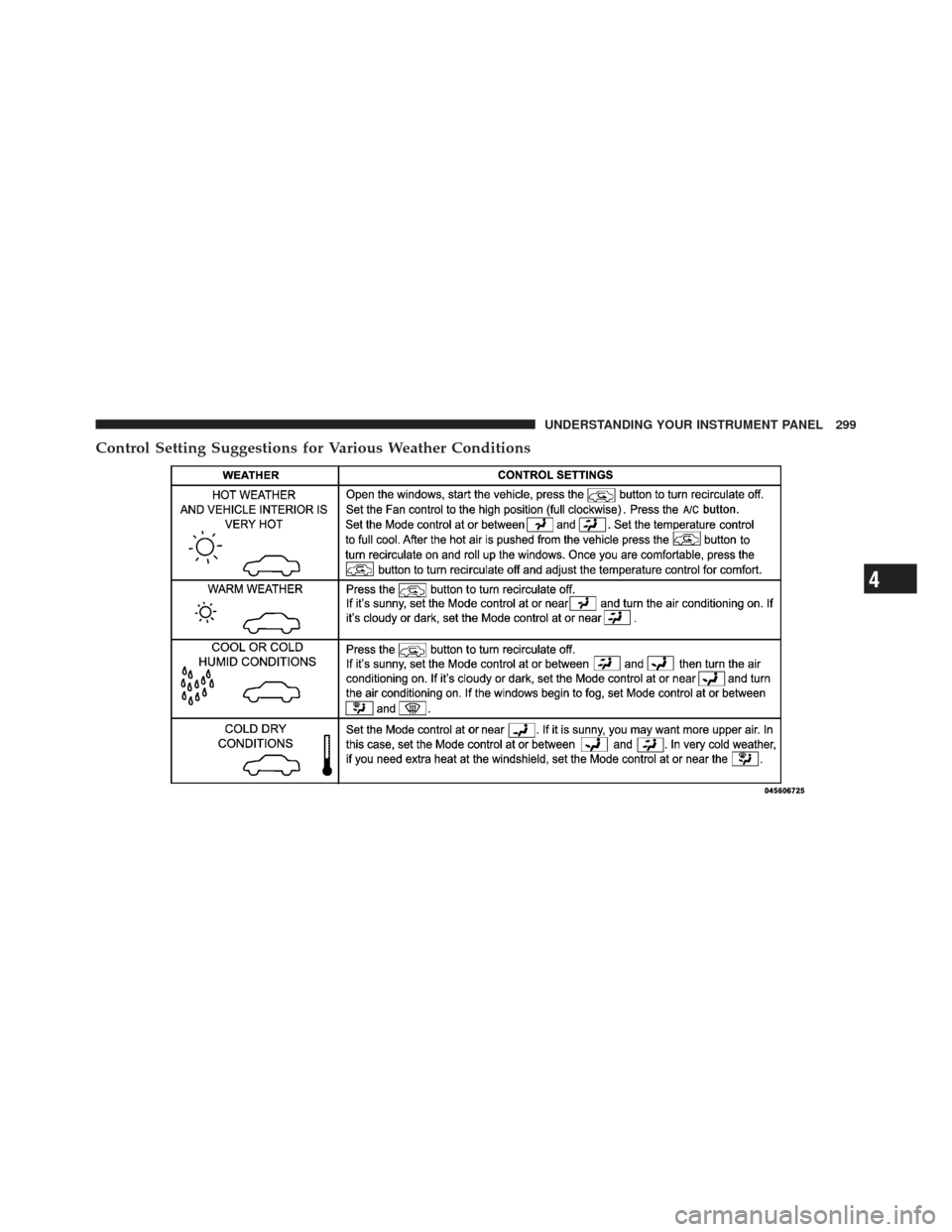

Control Setting Suggestions for Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 299

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 305
▫ Normal Starting ..................... 305
▫ Extreme Cold Weather (Below –20°F Or
29°C) ............................ 306
▫ If Engine Fails To Start ................ 306
▫ After Starting ....................... 307
 Engine Block Heater — If Equipped ........ 307
 Automatic Transmission ................. 308
▫ Automatic Transmission Ignition Interlock
Systems ........................... 309 ▫
Key Ignition Park Interlock ............. 309
▫ Brake/Transmission Interlock System ...... 309
▫ Six-Speed Automatic Transmission (62TE) . . . 310
▫ Gear Ranges ........................ 311
 AutoStick .......................... 318
▫ Operation ......................... 318
▫ General Information .................. 318
 Driving On Slippery Surfaces ............. 319
▫ Acceleration ........................ 319
5

▫Traction ........................... 320
 Driving Through Water ................. 320
▫ Flowing/Rising Water ................. 320
▫ Shallow Standing Water ............... 321
 Power Steering ....................... 322
▫ Power Steering Fluid Check ............. 323
 Parking Brake ........................ 324
 Anti-Lock Brake System (ABS) ............ 326
 Electronic Brake Control System ........... 329
▫ Anti-Lock Brake System (ABS) ........... 329
▫ Traction Control System (TCS) ........... 329
▫ Brake Assist System (BAS) .............. 330
▫ Electronic Stability Control (ESC) ......... 331▫
ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 333
 Tire Safety Information ................. 334
▫ Tire Markings ....................... 334
▫ Tire Identification Number (TIN) ......... 338
▫ Tire Terminology And Definitions ......... 339
▫ Tire Loading And Tire Pressure .......... 340
 Tires — General Information ............. 344
▫ Tire Pressure ....................... 344
▫ Tire Inflation Pressures ................ 345
▫ Radial-Ply Tires ..................... 347
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 347
▫ Compact Spare Tire – If Equipped ........ 348
302 STARTING AND OPERATING
