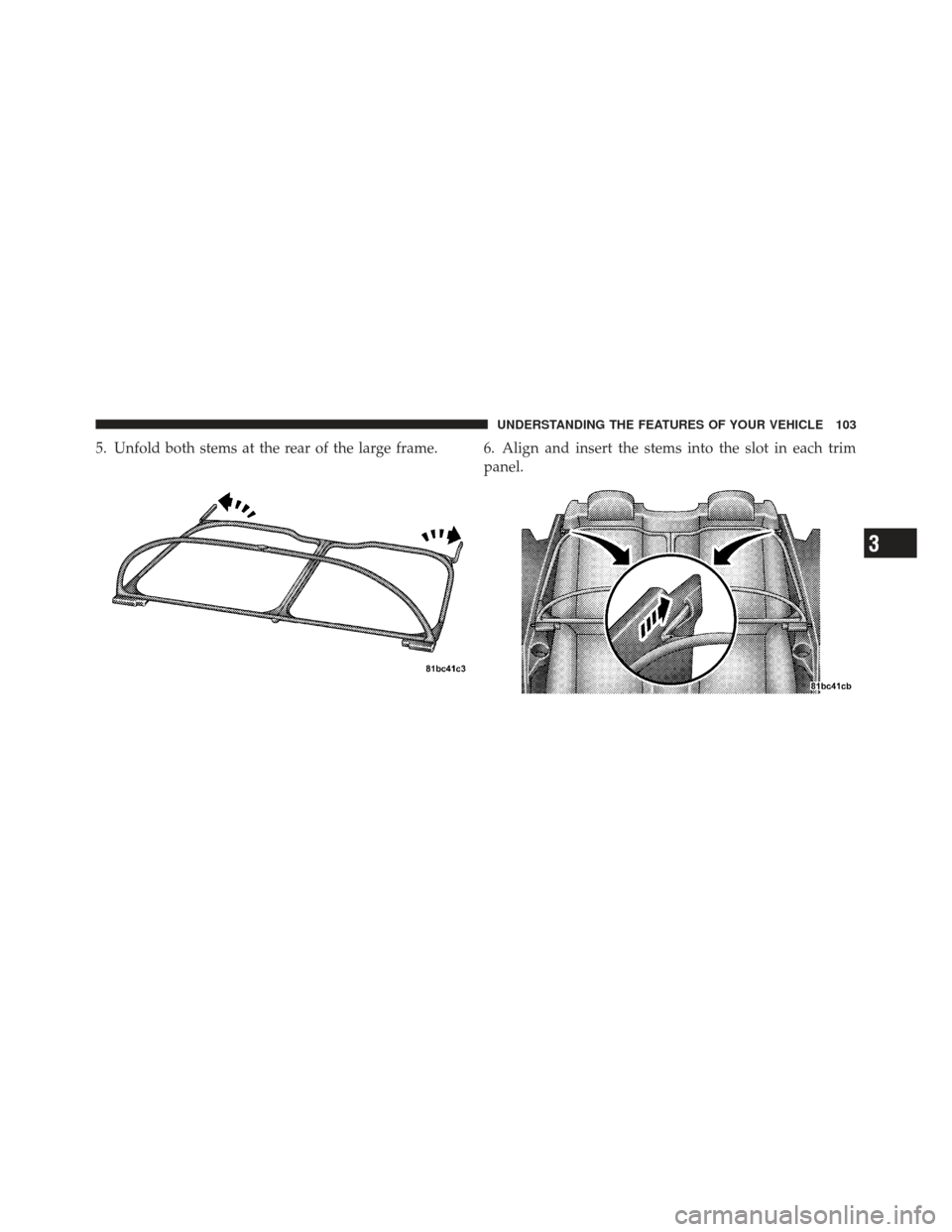

5. Unfold both stems at the rear of the large frame. 6. Align and insert the stems into the slot in each trimpanel.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

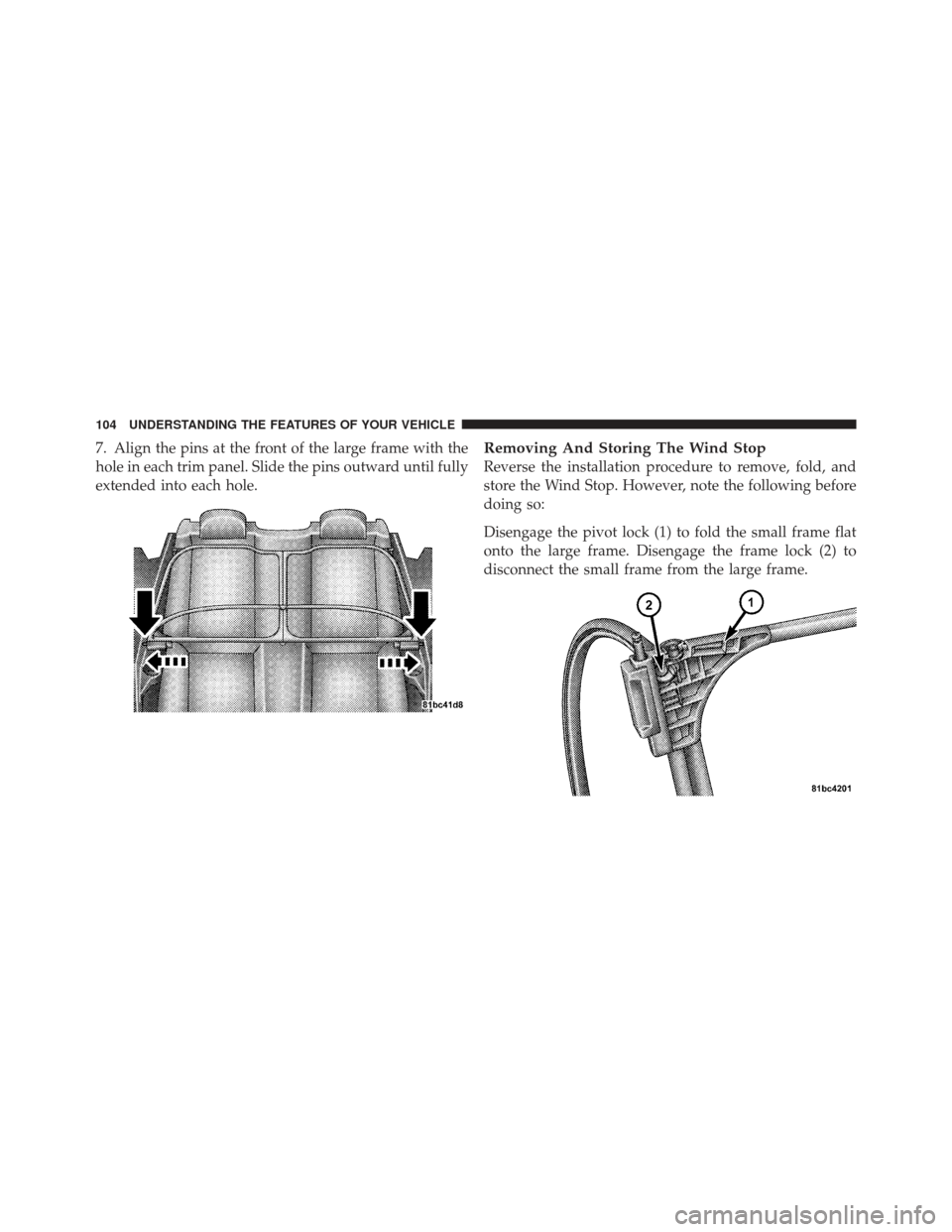

7. Align the pins at the front of the large frame with the
hole in each trim panel. Slide the pins outward until fully
extended into each hole.Removing And Storing The Wind Stop
Reverse the installation procedure to remove, fold, and
store the Wind Stop. However, note the following before
doing so:
Disengage the pivot lock (1) to fold the small frame flat
onto the large frame. Disengage the frame lock (2) to
disconnect the small frame from the large frame.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Convertible Top Operation And Warning
Messages
When the appropriate conditions exist, the PTCM dis-
plays various power convertible top operation and warn-
ing messages in the Electronic Vehicle Information Center(EVIC) – if equipped, or in the Odometer for vehicles not
equipped with the EVIC. Refer to the following chart for
message related information:
EVIC Mes-
sage\b
EVIC
Message
Display
Ti m e
\b Odometer
Message
(<5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Odometer
Message
(>5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Chime Condition
Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT SE-
CUrE
Until Op-
eration is
Complete—
— — The Sys-
tem is
Lowering
or Raising
the Top—
CONVERT-
IBLE TOP
COM-
PLETE 9 sec. TOP DONE Display
Scrolls for
6 sec.—
— Single
ChimeThe Sys-
tem Com-
pletes Op-
eration of
Lowering
or Raising
the Top—3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

EVIC Mes-
sage\bEVIC
Message
Display
Ti m e
\b Odometer
Message
(<5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Odometer
Message
(>5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Chime Condition
Operator
Action
Required
SECURE
CARGO
SHIELD 9 sec. SET CARGO
SHIELD Display
Scrolls for
9 sec.—
— Single
ChimeThe Top
Fails to
Move
When Op-
erating the
Power Top
ControlPosition
the Cargo
Shield in
the Trunk
to Allow
To p O p -
eration
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT SE-
CUrE
Until Op-
eration is
CompleteTOP nOT SE-
CUrE
Until Op-
eration is
CompleteSingle
Chime
The Sys-
tem Fails
to Com-
plete Op-
eration of
Lowering
or Raising
the TopCycle
Power Top
Control
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC Mes-
sage\bEVIC
Message
Display
Ti m e
\b Odometer
Message
(<5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Odometer
Message
(>5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Chime Condition
Operator
Action
Required
SPEED
TOO HIGH 9 sec. SPEED TOO
HIGH Display
Scrolls for
9 sec.TOP
6 sec. Single
ChimeYo u A r e
Operating
the Power
Topata
Vehicle
Speed
Greater
Than
0mph
(0 km/h)The Top
Will Not
Operate
Unless the
Vehicle is
Stationary.
TRUNK
AJAR Continu-
ousDECK Continu-
ousDECK Continu-
ousSingle
ChimeThe Trunk
Lid is Un-
latched or
OpenThe Top
Will Not
Operate
Unless the
Trunk Lid
is Closed
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

EVIC Mes-
sage\bEVIC
Message
Display
Ti m e
\b Odometer
Message
(<5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Odometer
Message
(>5mph
[8 km/h])\b\b Odometer
Message
Display
Ti m e
\b\b Chime Condition
Operator
Action
Required
CONVERT-
IBLE TOP
MAL-
FUNCTION 6 sec. TOP FAIL Display
Scrolls for
6 SecondsTOP
6 sec. Single
ChimeThe PTCM
Activated
the System
LOCKOUT
FeatureRefer to
Foot Note
\b\b\b
CONVERT-
IBLE TOP
MAL-
FUNCTION Until Fault
is No Lon-
ger De-
tected or
RepairedTOP FAIL Display
Scrolls un-
til Fault is
No Longer
Detected
or Re-
pairedTOP
Display
Flashes
until Fault
is No Lon-
ger De-
tected or
RepairedSingle
Chime
The PTCM
Activated
the System
LOCKOUT
FeatureSee your
authorized
dealer for
service
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

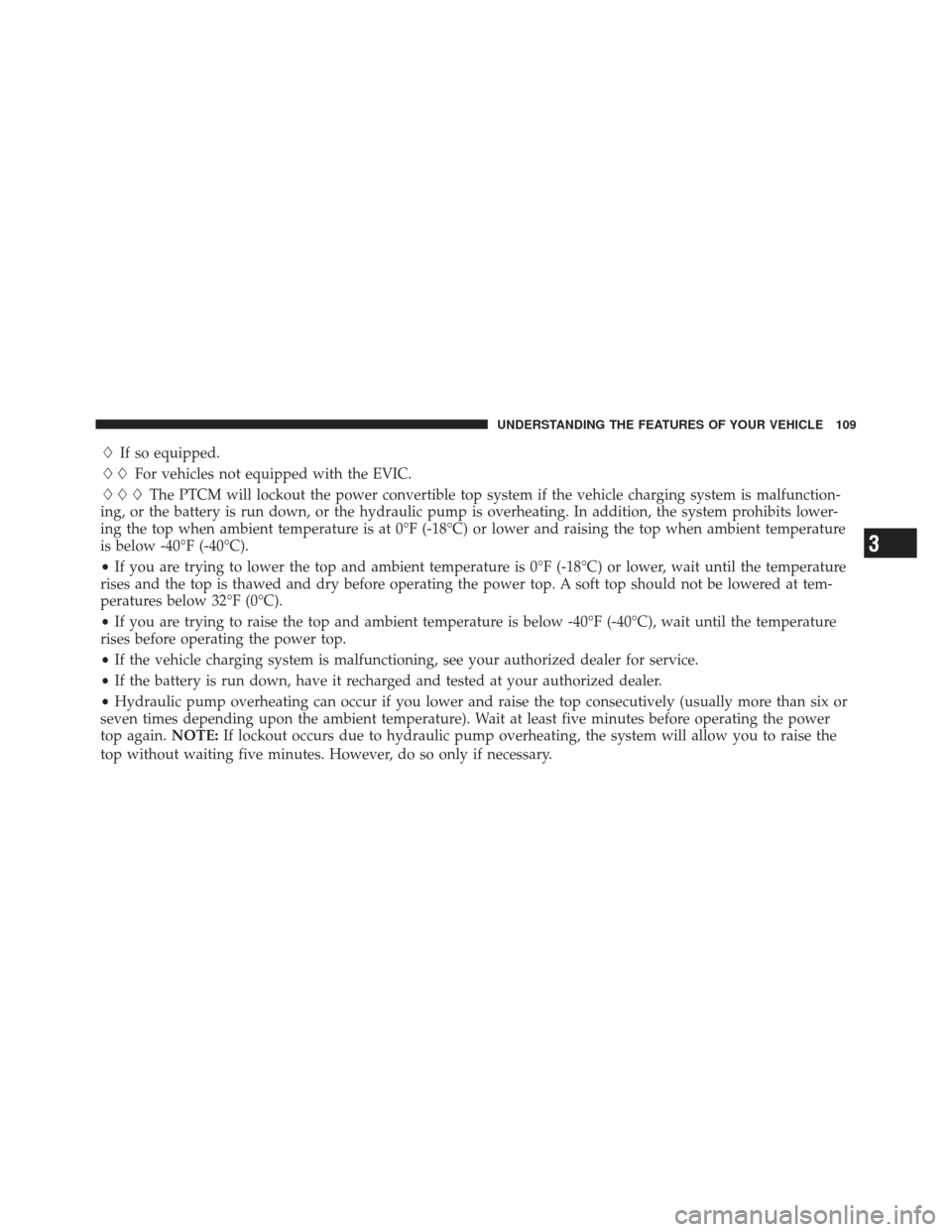

\bIf so equipped.
\b\b For vehicles not equipped with the EVIC.
\b\b\b The PTCM will lockout the power convertible top system if the vehicle charging system is malfunction-
ing, or the battery is run down, or the hydraulic pump is overheating. In addition, the system prohibits lower-
ing the top when ambient temperature is at 0°F (-18°C) or lower and raising the top when ambient temperature
is below -40°F (-40°C).
• If you are trying to lower the top and ambient temperature is 0°F (-18°C) or lower, wait until the temperature
rises and the top is thawed and dry before operating the power top. A soft top should not be lowered at tem-
peratures below 32°F (0°C).
• If you are trying to raise the top and ambient temperature is below -40°F (-40°C), wait until the temperature
rises before operating the power top.
• If the vehicle charging system is malfunctioning, see your authorized dealer for service.
• If the battery is run down, have it recharged and tested at your authorized dealer.
• Hydraulic pump overheating can occur if you lower and raise the top consecutively (usually more than six or
seven times depending upon the ambient temperature). Wait at least five minutes before operating the power
top again. NOTE:If lockout occurs due to hydraulic pump overheating, the system will allow you to raise the
top without waiting five minutes. However, do so only if necessary.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

Emergency Bypass Mode (To Raise The Top
Only)
This procedure is only to be used to raise the top when
the top cannot be returned to the UP (raised) position by
pressing the POWER TOP switch or is in a position in
which the vehicle cannot be driven. Please follow these
emergency bypass instructions to return the top to the UP
(raised) position.
Press the POWER TOP switch in the Top Up direction
five times within two seconds and hold the switch in the
Top Up position for a minimum of two minutes.
CAUTION!
•Once this procedure has been completed and the
top is in the UP (raised) position, see your autho-
rized dealer. DO NOT exceed 40 mph (64 km/h).(Continued)
CAUTION! (Continued)
•Using the Emergency Bypass Mode could poten-
tially damage the convertible top and should only
be used to raise the power top to the UP (raised)
position when the normal top operation is not
functioning.
If damage starts to occur while in the Emergency Bypass
Mode, immediately release the power top switch and see
your authorized dealer.
NOTE: This procedure may take more time to fully raise
and close the power top. It is not uncommon to see
delays of up to 30 seconds before operation begins.
