2012 CHEVROLET COLORADO Owners Manual

Black plate (3,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-3
Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
To adjust the seat:
1. Lift the bar under the front edgeof the seat cushion to unlock
the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.
Power Seat Adjustment
To adjust the seat, if available:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
control up or down.
.Raise or lower the entire seat
by moving the entire control up
or down.

Black plate (4,1)Chevrolet Colorado Owner Manual - 2012
3-4 Seats and Restraints
To adjust the seatback, see“Power
Reclining Seatbacks” under
Reclining Seatbacks on page 3‑4.
Lumbar Adjustment
Manual Lumbar
If available, the manual lumbar
knob is on the outboard side of the
driver seat.
Turn the knob to increase or
decrease lumbar support.
Power Lumbar
If available, press and hold the front
or rear of the control to increase or
decrease lumbar support. Release
the control when the seatback
reaches the desired level of lumbar
support.
Reclining Seatbacks
{WARNING
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
(Continued)

Black plate (5,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-5
WARNING (Continued)
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
Do not have a seatback reclined if
the vehicle is moving.
Manual Reclining Seatbacks
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
To recline a manual seatback:
1. Lift the lever.
2. Move the seatback to thedesired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.

Black plate (6,1)Chevrolet Colorado Owner Manual - 2012
3-6 Seats and Restraints
To return the seatback to the upright
position:
1. Lift the lever fully withoutapplying pressure to the
seatback, and the seatback
will return to the upright position.
2. Push and pull on the seatback to make sure it is locked.Power Reclining Seatbacks
To recline a power seatback,
if available:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
Seatback Latches
The vehicle may have front
seatbacks that fold forward for
easy access to the rear seats or
the storage area behind the seats.
To fold the seatback forward, push
the lever on the side of the seat
rearward and pull the seatback
forward.

Black plate (7,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-7
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
To return the seatback to the upright
position, push the seatback all the
way back until it latches.
If the seatback was reclined before
being folded forward, it will return to
the reclined position.
Heated Front Seats
{WARNING
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns
even at low temperatures. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This
may cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
If available, the switches are on the
outboard sides of the front seats. To
operate, the ignition must be on.
This feature will heat the cushion
and back of the seats.
.Press the top of the switch for
the high setting.
.Press the bottom of the switch
for the low setting.
.Put the switch in the center
position to turn this feature off.

Black plate (8,1)Chevrolet Colorado Owner Manual - 2012
3-8 Seats and Restraints

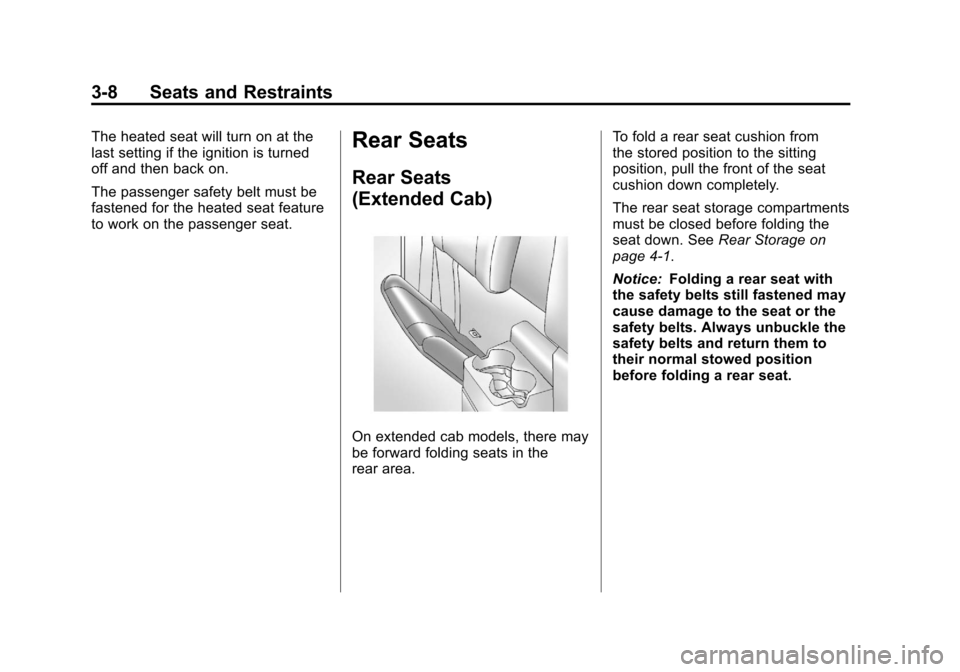

The heated seat will turn on at the
last setting if the ignition is turned
off and then back on.
The passenger safety belt must be
fastened for the heated seat feature
to work on the passenger seat.Rear Seats
Rear Seats
(Extended Cab)
On extended cab models, there may
be forward folding seats in the
rear area.To fold a rear seat cushion from
the stored position to the sitting
position, pull the front of the seat
cushion down completely.
The rear seat storage compartments
must be closed before folding the
seat down. See
Rear Storage on
page 4‑1.
Notice: Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.

Black plate (9,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-9
A. Hook and Loop Fastener
To store the seat:
1. Secure the safety belt buckle tothe inboard side of the seat with
the hook and loop fastener (A),
so that it does not move when
not in use.
2. Push the entire seat up until it is flush with the trim panel.
Rear Seats (Crew Cab)
On crew cab models, the rear
seatbacks can be folded forward.
Notice: Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
To fold a rear seatback:
1. Disconnect the rear center safety belt latch from the
mini-buckle by inserting the tip of the safety belt tongue into the
slot on the buckle. Let the belt
retract.
2. Pull the loop on the outboard
side of the seatback forward
until you hear a click.
3. Fold the seatback forward.

Black plate (10,1)Chevrolet Colorado Owner Manual - 2012
3-10 Seats and Restraints
To return a seatback to the upright
position:
1. Lift the seatback up and push itrearward.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
2. Push and pull on the seatback to make sure it is locked in place.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash.
(Continued)
WARNING (Continued)
The person wearing the belt could
be seriously injured. After raising
the rear seatback, always check
to be sure that the safety belts
are properly routed and attached,
and are not twisted.
3. Reconnect the center safety belt latch plate to the mini-buckle.
Make sure the safety belt is not
twisted.
4. Push and pull on the latch plate to be sure it is secure.
When the seatback is not in use, it
should be kept in the upright, locked
position.
Safety Belts
This section of the manual
describes how to use safety belts
properly. It also describes some
things not to do with safety belts.
{WARNING
Do not let anyone ride where
a safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, injuries can be much
worse than if you are wearing
safety belts. You can be seriously
injured or killed by hitting things
inside the vehicle harder or by
being ejected from the vehicle.
In addition, anyone who is not
buckled up can strike other
passengers in the vehicle. (Continued)
