2012 CHEVROLET COLORADO Owners Manual

Black plate (51,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-51
2. If the child restraintmanufacturer's instructions
recommend that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor. Refer to the child
restraint instructions and the
following steps:
2.1. Pull the seatback forward
to access the top tether
anchor. See Seatback
Latches on page 3‑6.
2.2. Pull on the finger access tab to remove the cover
to access the top tether
anchor. 2.3. Route the top tether
according to your child
restraint instructions and
the following instructions:
If the position you are using
has a fixed headrest or
head restraint and you are
using a single tether, route
the tether over the headrest
or head restraint.
If the position you are using
has an adjustable headrest
or head restraint and you
are using a single tether,
raise the headrest or head
restraint and route the
tether under the headrest
or head restraint and in
between the headrest or
head restraint posts.

Black plate (52,1)Chevrolet Colorado Owner Manual - 2012
3-52 Seats and Restraints
If the position you are using
has a fixed or adjustable
headrest or head restraint
and you are using a dual
tether, route the tether
around the headrest or
head restraint.
3. Attach and tighten the top tether according to your child restraint
instructions.
4. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
LATCH path and attempt to
move it side to side and back
and forth. There should be no
more than 2.5 cm (1 in) of
movement for proper installation.
Center Front Seat —Regular/
Extended Cab without Rear
Seats
For vehicles without rear seats,
manufacturers are required to
provide top tether anchors for all
non-driver seating positions and
instructions for using those anchors.
Even if a top tether anchor is
available, you should not install a
child restraint in the center front
seat position. See Where to Put the
Restraint on page 3‑40 for important
safety information and additional
information on installing a child
restraint in the center front seat
position. See “Securing Child
Restraints (Center Front Seat
Position)” later in this section for
instructions on installing the child
restraint using the safety belts and
top tether anchor.
Replacing LATCH System
Parts After a Crash
{WARNING
A crash can damage the
LATCH system in the vehicle.
A damaged LATCH system may
not properly secure the child
restraint, resulting in serious
injury or even death in a crash.
To help make sure the LATCH
system is working properly after
a crash, see your dealer to have
the system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH system
and it was being used during a
crash, new LATCH system parts
may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at the
time of the crash.

Black plate (53,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-53
Securing Child Restraints
(Rear Seat Position)
When securing a child restraint in
a rear seating position, study the
instructions that came with your
child restraint to make sure it is
compatible with this vehicle.
If your child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH
System) on page 3‑42 for how to
install your child restraint using
LATCH. If you secure a child
restraint using a safety belt and it
uses a top tether, see Lower
Anchors and Tethers for Children
(LATCH System) on page 3‑42 for
top tether anchor locations.
Do not secure a child restraint in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with the
child restraint say that the top strap
must be anchored. In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether be
attached.
If your child restraint does not have
the LATCH system, you will be
using the safety belt to secure
the child restraint in this position.
Be sure to follow the instructions
that came with the child restraint.
Secure the child in the child restraint
when and as the instructions say.
If you need to install more than
one child restraint in the rear seat,
be sure to read
Where to Put the
Restraint on page 3‑40.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder portions of
the vehicle's safety belt through
or around the restraint. The child
restraint instructions will show
you how.
3. Push the latch plate into the
buckle until it clicks.
Make sure the release button
is positioned so you would be
able to unbuckle the safety belt
quickly if necessary.

Black plate (54,1)Chevrolet Colorado Owner Manual - 2012
3-54 Seats and Restraints
4. Pull the shoulder belt all the wayout of the retractor to set the
lock. When the retractor lock is
set, the belt can be tightened but
not pulled out of the retractor.
5. If your child restraint has a top tether, attach the top tether to
the top tether anchor. See
Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑42.6. To tighten the belt, push downon the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt,
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint,
it may be helpful to use your
knee to push down on the child
restraint as you tighten the belt.
Try to pull the belt out of the
retractor to make sure the
retractor is locked. If the
retractor is not locked, repeat
Steps 4 and 6. 7. Tighten the top tether. See
Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑42.
8. Before placing a child in the child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the safety belt path and
attempt to move it side‐to‐side
and back‐and‐forth. When
the child restraint is properly
installed, there should be no
more than 2.5 cm (1 in) of
movement.
To remove the child restraint,
unbuckle the vehicle’s safety belt
and let it go back all the way. If the
top tether is attached to a top tether
anchor, disconnect it.

Black plate (55,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-55
Securing Child Restraints
(Center Front Seat
Position)
For vehicles without rear seats,
manufacturers are required to
provide top tether anchors for all
non-driver seating positions and
instructions for using those anchors.
Even if a top tether anchor is
available, you should not install a
child restraint in the center front
seating position.
{WARNING
A child in a child restraint in the
center front seat can be badly
injured or killed by the frontal
airbags if they inflate. Never
secure a child restraint in the
center front seat. It is always
better to secure a child restraint in
a rear seat.
In addition, some larger child
restraints, if installed in the center
front seating position, may interfere
with access to the driver and right
front passenger safety belt buckles.
See Safety Belts on page 3‑10 for
information, including warnings,
about the importance of safety
belt use. If the vehicle does not have rear
seats, rear-facing child restraints
should not be installed in the
vehicle, even if the passenger
airbag is off.
If a child in a forward-facing child
restraint must be transported in a
vehicle that does not have rear
seats, the child restraint should
be secured in the right front seat
position. See
“Securing Child
Restraints (Right Front Seat
Position)” later in this section, for
instructions on how to install a
child restraint in the right front seat
position.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored.
In Canada, the law requires that
forward‐facing child restraints have
a top tether, and that the tether be
attached.

Black plate (56,1)Chevrolet Colorado Owner Manual - 2012
3-56 Seats and Restraints

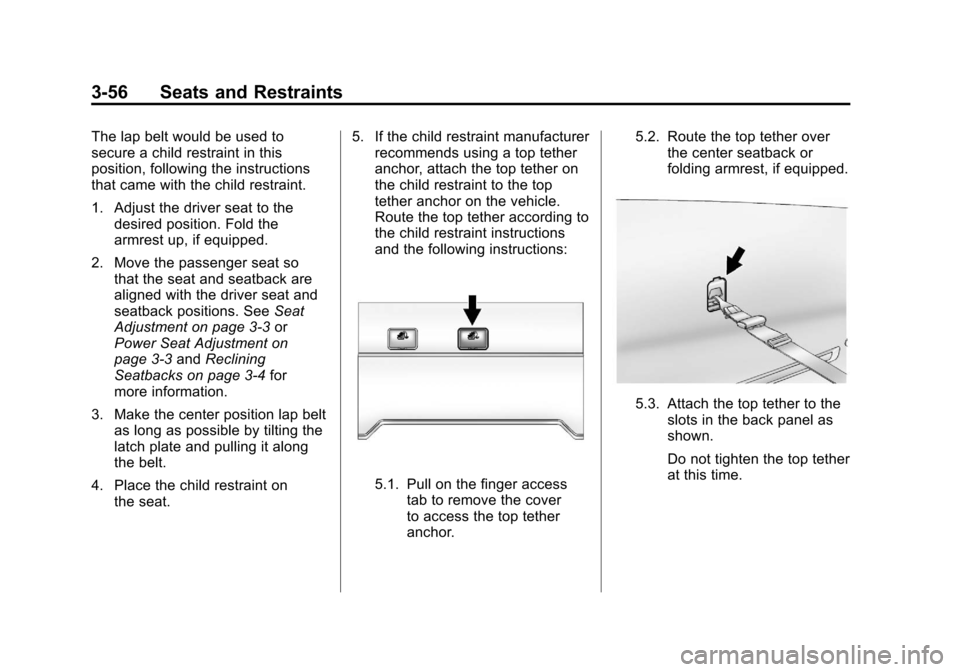

The lap belt would be used to
secure a child restraint in this
position, following the instructions
that came with the child restraint.
1. Adjust the driver seat to thedesired position. Fold the
armrest up, if equipped.
2. Move the passenger seat so that the seat and seatback are
aligned with the driver seat and
seatback positions. See Seat
Adjustment on page 3‑3 or
Power Seat Adjustment on
page 3‑3 andReclining
Seatbacks on page 3‑4 for
more information.
3. Make the center position lap belt as long as possible by tilting the
latch plate and pulling it along
the belt.
4. Place the child restraint on the seat. 5. If the child restraint manufacturer
recommends using a top tether
anchor, attach the top tether on
the child restraint to the top
tether anchor on the vehicle.
Route the top tether according to
the child restraint instructions
and the following instructions:
5.1. Pull on the finger access
tab to remove the cover
to access the top tether
anchor. 5.2. Route the top tether over
the center seatback or
folding armrest, if equipped.
5.3. Attach the top tether to the
slots in the back panel as
shown.
Do not tighten the top tether
at this time.

Black plate (57,1)Chevrolet Colorado Owner Manual - 2012
Seats and Restraints 3-57
6. Pick up the latch plate on thecenter position lap safety belt,
and run the lap safety belt
through the restraint. The child
restraint instructions will show
you how.
7. Push the latch plate into the buckle until it clicks. Position
the release button on the buckle
so that the safety belt can be
unbuckled.
8. Tighten the center position lap belt by pulling on the loose end
of the belt. It may be helpful to
use your knee to push down on
the child restraint as you tighten
the belt. 9. Tighten the top tether. Follow the
child restraint manufacturer's
instructions.
10. Before placing a child in the child restraint, make sure it
is securely held in place. To
check, grasp the child restraint
at the safety belt path and
attempt to move it side to side
and back and forth. When
the child restraint is properly
installed, there should be no
more than 2.5 cm (1 in) of
movement.
To remove the child restraint,
unbuckle the vehicle safety belt.
If the top tether is attached to the
top tether anchor, disconnect it and
reinstall the top tether anchor cover.Securing Child Restraints
(Right Front Seat
Position)
This vehicle has airbags. A rear
seat is a safer place to secure a
forward-facing child restraint. See
Where to Put the Restraint on
page 3‑40.
In addition, the vehicle may have a
passenger sensing system which is
designed to turn off the right front
passenger's frontal airbag under
certain conditions. See Passenger
Sensing System on page 3‑26 and
Passenger Airbag Status Indicator
on page 5‑11 for more information
on this, including important safety
information.

Black plate (58,1)Chevrolet Colorado Owner Manual - 2012
3-58 Seats and Restraints
A label on the sun visor says,
“Never put a rear-facing child seat in
the front.”This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{WARNING
A child in a rear-facing child
restraint can be seriously
injured or killed if the right front
passenger airbag inflates. This
is because the back of the
rear-facing child restraint would
be very close to the inflating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag inflates and the
passenger seat is in a forward
position.
The vehicle may have a
passenger sensing system
which is designed to turn off
the right front passenger frontal
airbag under certain conditions.
(Continued)
WARNING (Continued)
Even if the passenger sensing
system, if equipped, has
turned off the right front
passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will
not deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the
airbag is off. If you secure a
forward-facing child restraint in
the right front seat, always move
the front passenger seat as far
back as it will go. It is better to
secure the child restraint in a
rear seat.
SeePassenger Sensing System
on page 3‑26 for additional
information. If the vehicle does not have a rear
seat that will accommodate a
rear-facing child restraint, a child
restraint should not be installed in
your vehicle, even if the airbag
is off.
If your child restraint has the
LATCH system, see
Lower Anchors
and Tethers for Children (LATCH
System) on page 3‑42 for how and
where to install your child restraint
using LATCH. If a child restraint is
secured using a safety belt and
it uses a top tether, see Lower
Anchors and Tethers for Children
(LATCH System) on page 3‑42 for
top tether anchor locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with the
child restraint say that the top strap
must be anchored.
