Seats and Restraints 3-1
Seats and
Restraints Airbag System Replacing Airbag System Parts
after a Crash . . . . . . . . . . . . . . . . 3-1
Airbag System Replacing Airbag System
Parts after a Crash If an airbag inflates or the vehicle
has been in a crash, the vehicle's
sensing system may command
the automatic hybrid battery
disconnect to open. When the
battery disconnect is open, the
hybrid battery will be off and the
vehicle will not start. The airbag
readiness light and/or SERVICE
HYBRID SYSTEM warning
message may come on in the
Driver Information Center (DIC).
See “ Airbag Readiness Light ”
in the owner manual and Driver
Information Center (DIC) on
page 5 ‑ 5 for more information. To operate the vehicle, the
automatic hybrid battery
disconnect must be reconnected
by a qualified service technician
and sensing system parts will need
to be replaced. Have the vehicle
serviced right away.
Page 10 of 90
Black plate (2,1)Cadillac Escalade Hybrid - 2012
3-2 Seats and Restraints
2 NOTES
Page 11 of 90
Black plate (1,1)Cadillac Escalade Hybrid - 2012
Storage 4-1
Storage Storage Compartments Rear Storage . . . . . . . . . . . . . . . . . 4-1
Storage
Compartments Rear Storage Power Outlet Alternating
Current The vehicle may have a power
outlet that can be used to plug in
electrical equipment that uses a
maximum limit of 150 watts.
The power outlet is located in the
rear cargo area on the driver side. An indicator light on the outlet turns
on to show it is in use. The light
comes on when the ignition is in
ON/RUN and equipment requiring
less than 150 watts is plugged into
the outlet, and no system fault is
detected.
The indicator light does not come on
when the ignition is in LOCK/OFF or
if no equipment is plugged into the
outlet.
If equipment is connected using
more than 150 watts, or a system
fault is detected, a protection circuit
shuts off the power supply and the
indicator light turns off. To reset the
circuit, unplug the item and plug
it back in or turn the Retained
Accessory Power (RAP) off and
then back on. The power restarts
when equipment using 150 watts or
less is plugged into the outlet and a
system fault is not detected.
Page 12 of 90
Black plate (2,1)Cadillac Escalade Hybrid - 2012
4-2 Storage The power outlet is not designed for
the following electrical equipment
and may not work properly if these
items are plugged into the power
outlet: .
Equipment with high initial
peak wattage such as:
compressor-driven refrigerators
and electric power tools. .
Other equipment requiring
an extremely stable
power supply such as:
microcomputer-controlled
electric blankets, touch sensor
lamps, etc.
See High Voltage Devices and
Wiring on page 10 ‑ 13 .
Page 13 of 90
Black plate (1,1)Cadillac Escalade Hybrid - 2012
Instruments and Controls 5-1
Instruments and
Controls Warning Lights, Gauges, and
Indicators Instrument Cluster . . . . . . . . . . . . 5-2
Tachometer . . . . . . . . . . . . . . . . . . . 5-3
Fuel Economy Gauge . . . . . . . . . 5-3
Charging System Light . . . . . . . . 5-4
Engine Oil Pressure Light . . . . . 5-4
Information Displays Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 5-5 Vehicle Messages Vehicle Messages . . . . . . . . . . . . . 5-5
Battery Voltage and Charging
Messages . . . . . . . . . . . . . . . . . . . 5-6
Brake System Messages . . . . . . 5-6
Door Ajar Messages . . . . . . . . . . 5-6
Engine Oil Messages . . . . . . . . . 5-7
Service Vehicle Messages . . . . 5-7
Transmission Messages . . . . . . 5-7
Page 14 of 90
Black plate (2,1)Cadillac Escalade Hybrid - 2012
5-2 Instruments and Controls

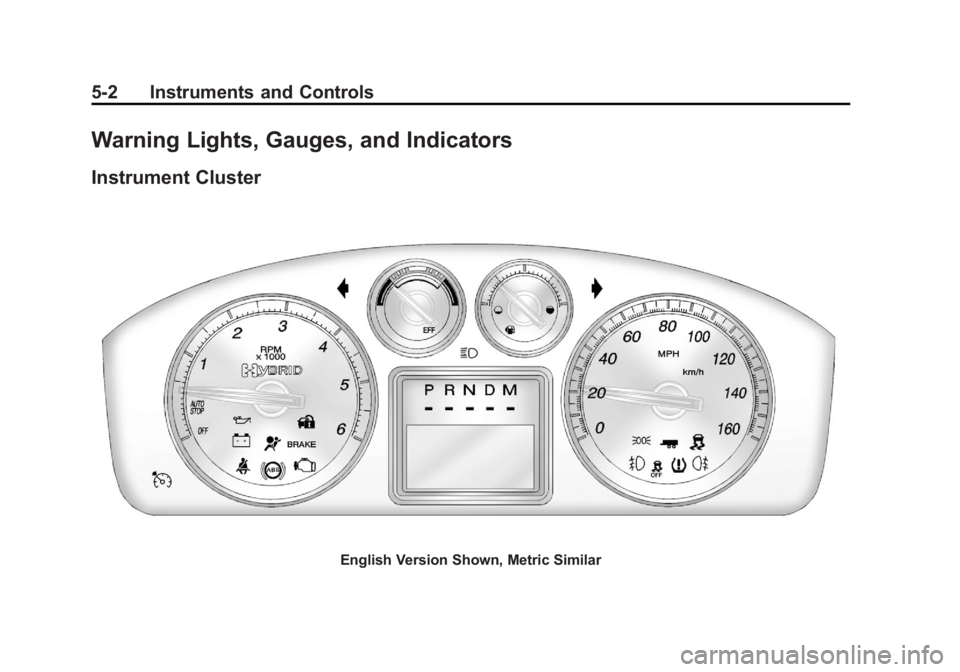

Warning Lights, Gauges, and Indicators Instrument Cluster
English Version Shown, Metric Similar
Page 15 of 90
Black plate (3,1)Cadillac Escalade Hybrid - 2012
Instruments and Controls 5-3
Tachometer
English Version Shown, Metric
Similar
When the ignition is in ON/RUN the
tachometer indicates the vehicle
status:
When pointing to AUTO STOP, the
vehicle is on and can move, the
engine could AUTO START at any
time. When the indicator is OFF, the
vehicle is off. When the engine is
on, the tachometer will indicate
the engine's revolutions per
minute (rpm). The tachometer may vary by several
hundred rpm's, during AUTO STOP
mode, when the engine is shutting
off and restarting. A slight bump
may be felt when the transmission is
determining the most fuel efficient
operating range.
Fuel Economy Gauge
Metric English
This gauge is to assist in driving
efficiently and may vary during
normal operation.
The vehicle is being driven the most
efficient when the gauge is kept in
the middle.
The gauge moves to the left when
braking and to the right when
accelerating. When either are done
aggressively, the efficiency is
decreased.
Page 16 of 90
Black plate (4,1)Cadillac Escalade Hybrid - 2012
5-4 Instruments and Controls
Charging System Light
This 12 ‐ volt battery light comes on
briefly when the ignition is turned to
ON/RUN, but the engine is not
running, as a check to show it is
working.
It should go out once the engine
has been started. If it stays on,
or comes on while driving, there
could be a problem with the 12 ‐ volt
charging system. Have the vehicle
serviced by your dealer. A 12 ‐ volt
charging system Driver Information
Center (DIC) message may also
appear. See Driver Information
Center (DIC) on page 5 ‑ 5 for more
information. This light could indicate
that there are electrical problems.
Have it checked right away. If a short distance must be driven with
the light on, be certain to turn off all
the accessories.
Engine Oil Pressure Light
{ WARNINGDo not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil. This light comes on briefly as a
check it works, when the ignition is
in ON/RUN. If it does not, have the
vehicle serviced.
If the light comes on and stays on, it
means that oil is not flowing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
During an Auto Stop there is zero
oil pressure, but this light will not
come on.
