2012 CADILLAC ESCALADE HYBRID Owners Manual

Black plate (17,1)Cadillac Escalade Hybrid - 2012
Driving and Operating 9-17Vehicle Axle Ratio Maximum Trailer Weight GCWR*
2WD 6.0L V8 3.08 2 631 kg (5,800 lbs) 5 443 kg (12,000 lbs)
4WD 6.0L V8 3.08 2 540 kg (5,600 lbs) 5 443 kg (12,000 lbs)
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and
trailer including any passengers, cargo, equipment and conversions. The GCWR for the vehicle should not be
exceeded.
Towing Equipment Trailer Brakes If a trailer is being towed that has
trailer brakes and the trailer brakes
are manually applied while driving
slower than 40 km/h (25 mph), the
vehicle may go into Auto Stop mode
even if the brakes are not being pressed. Using the trailer brake
system manually can make the
hybrid vehicle perform as if the
brake pedal in the vehicle is being
pressed. The trailer brake operation
check will still work. If the trailer
brakes are manually applied for an
extended period of time, the
SERVICE BRAKE SYSTEM message comes on in the Driver
Information Center. The message
goes off after the trailer brakes have
been released. No other action is
necessary. For more information,
see “ Towing Equipment ” in the
owner manual.

Black plate (18,1)Cadillac Escalade Hybrid - 2012
9-18 Driving and Operating
2 NOTES

Black plate (1,1)Cadillac Escalade Hybrid - 2012
Vehicle Care 10-1
Vehicle Care Vehicle Checks Doing Your Own
Service Work . . . . . . . . . . . . . . . 10-2
Engine Compartment
Overview . . . . . . . . . . . . . . . . . . . 10-4
Automatic Transmission
Fluid . . . . . . . . . . . . . . . . . . . . . . . 10-5
Drive Motor/Generator Control
Module (DMCM) Coolant
Surge Tank
Pressure Cap . . . . . . . . . . . . . . 10-8
Drive Motor/Generator Control
Module (DMCM) Cooling
System . . . . . . . . . . . . . . . . . . . . . 10-8
Battery . . . . . . . . . . . . . . . . . . . . . . 10-11
Four-Wheel Drive . . . . . . . . . . . 10-12 Electrical System High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . 10-13
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . 10-13
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . 10-14
Wheels and Tires Tire Pressure . . . . . . . . . . . . . . . 10-16
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . 10-17
Tire Rotation . . . . . . . . . . . . . . . 10-20
If a Tire Goes Flat . . . . . . . . . . 10-20
Tire Sealant and
Compressor Kit . . . . . . . . . . . 10-22
Storing the Tire Sealant and
Compressor Kit . . . . . . . . . . . 10-29 Jump Starting Jump Starting . . . . . . . . . . . . . . 10-29
Towing Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . 10-33
Appearance Care Exterior Care . . . . . . . . . . . . . . . 10-37

Black plate (2,1)Cadillac Escalade Hybrid - 2012
10-2 Vehicle Care
Vehicle Checks Doing Your Own
Service Work
{ WARNINGNever try to do your own service
on hybrid components. You can
be injured and the vehicle can be
damaged if you try to do your own
service work. Service and repair
of these hybrid components
should only be performed by a
trained service technician with the
proper knowledge and tools. { WARNINGYou can be injured and the
vehicle could be damaged if you
try to do service work on a vehicle
without knowing enough about it. .
Be sure you have sufficient
knowledge, experience,
the proper replacement
parts, and tools before
attempting any vehicle
maintenance task. .
Be sure to use the proper
nuts, bolts, and other
fasteners. Metric and
English fasteners can be
easily confused. If the wrong
fasteners are used, parts can
later break or fall off. You
could be hurt. If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see “ Service
Publications Ordering Information ”
in the owner manual.
This vehicle has an airbag system.
Before attempting to do your own
service work, see “ Airbag System
Check ” in the owner manual.
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
“ Maintenance Records ” in the owner
manual.

Black plate (3,1)Cadillac Escalade Hybrid - 2012
Vehicle Care 10-3
2 NOTES

Black plate (4,1)Cadillac Escalade Hybrid - 2012
10-4 Vehicle Care

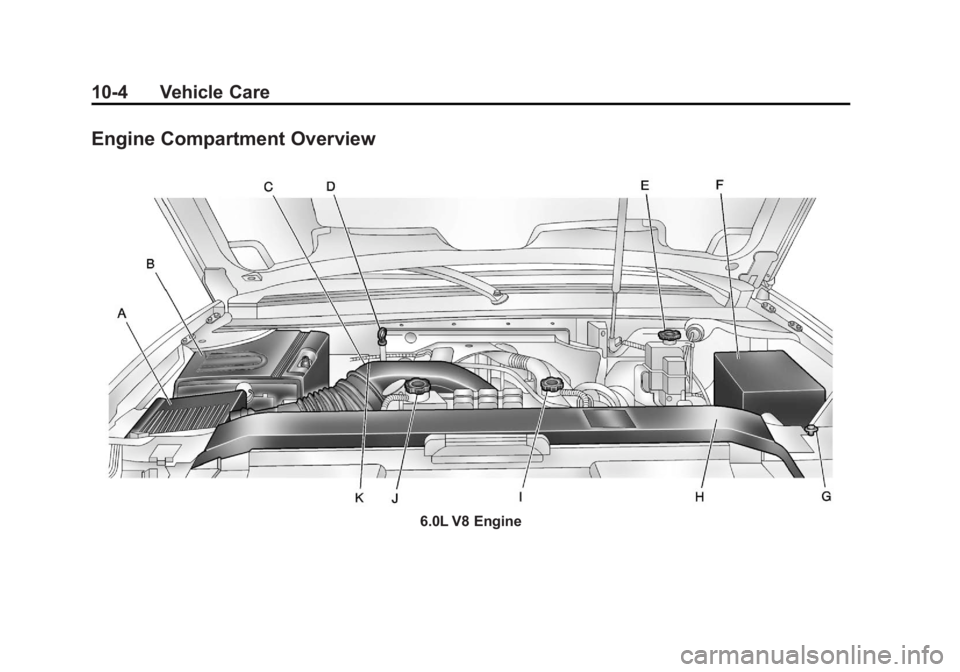

Engine Compartment Overview
6.0L V8 Engine

Black plate (5,1)Cadillac Escalade Hybrid - 2012
Vehicle Care 10-5A. See “ Engine Air Cleaner/Filter ”
in the owner manual.
B. Drive Motor/Generator Control
Module (DMCM). See Drive
Motor/Generator Control
Module (DMCM) Cooling
System on page 10 ‑ 8 .
C. Engine Oil Dipstick (Out of
View). See “ Engine Oil ” in the
owner manual.
D. Automatic Transmission Fluid
Dipstick. See Automatic
Transmission Fluid on
page 10 ‑ 5 .
E. Brake Fluid Reservoir. See
“ Brakes ” in the owner manual.
F. See “ Engine Compartment Fuse
Block ” under Electrical System
in the owner manual.
G. Windshield Washer Fluid
Reservoir. See “ Washer Fluid ”
in the owner manual.
H. Hybrid Auxiliary Fuse Block
(Out of View). See Engine
Compartment Fuse Block on
page 10 ‑ 14 . I. DMCM Coolant Surge Tank
Pressure Cap. See Drive Motor/
Generator Control Module
(DMCM) Coolant Surge Tank
Pressure Cap on page 10 ‑ 8 .
J. Engine Coolant Surge Tank
Pressure Cap. See “ Engine
Coolant ” in the owner manual.
K. Engine Oil Fill Cap (Out of
View). See “ Engine Oil ” in the
owner manual.
Automatic Transmission
Fluid When to Check and Change
Automatic Transmission Fluid It is usually not necessary to
check the transmission fluid level.
The only reason for fluid loss is a
transmission leak or overheating
the transmission. If a small leak is
suspected, then use the following checking procedures to check the
fluid level. However, if there is a
large leak, then it may be necessary
to have the vehicle towed to a
dealer and have it repaired before
driving the vehicle further.
Notice: Use of the incorrect
automatic transmission fluid
may damage the vehicle, and the
damages may not be covered by
the vehicle warranty. Always use
the automatic transmission fluid
listed in Recommended Fluids
and Lubricants on page 11 ‑ 2 .
Change the fluid and filter at the
scheduled maintenance intervals.
See “ Scheduled Maintenance ” in
the owner manual. Be sure to use
the transmission fluid listed in
Recommended Fluids and
Lubricants on page 11 ‑ 2 .

Black plate (6,1)Cadillac Escalade Hybrid - 2012
10-6 Vehicle Care How to Check Automatic
Transmission Fluid Notice: Too much or too
little fluid can damage the
transmission. Too much can
mean that some of the fluid could
come out and fall on hot engine
parts or exhaust system parts,
starting a fire. Too little fluid
could cause the transmission to
overheat. Be sure to get an
accurate reading if checking the
transmission fluid.
Before checking the fluid level,
prepare the vehicle as follows:
1. Start the engine and park the
vehicle on a level surface. Keep
the engine running.
2. Apply the parking brake and
place the shift lever in P (Park).
3. With your foot on the brake
pedal, move the shift lever
through each gear range,
pausing for about three seconds
in each range. Then, move the
shift lever back to P (Park). 4. Allow the engine to idle
(500 – 800 RPM) for at least
one minute. Slowly release the
brake pedal.
5. Keep the engine running and
press the Trip/Fuel button or
trip odometer reset stem until
TRANS TEMP (Transmission
Temperature) displays on the
Driver Information Center (DIC).
6. Using the TRANS TEMP
reading, determine and perform
the appropriate check
procedure. If the TRANS TEMP
reading is not within the required
temperature ranges, allow the
vehicle to cool, or operate the
vehicle until the appropriate
transmission fluid temperature is
reached. Cold Check Procedure
Use this procedure only as a
reference to determine if the
transmission has enough fluid
to be operated safely until a hot
check procedure can be made.
The hot check procedure is the
most accurate method to check the
fluid level. Perform the hot check
procedure at the first opportunity.
Use this cold check procedure
to check fluid level when the
transmission temperature is
between 24°C and 34°C
(75°F and 93°F).
1. Locate the transmission dipstick
at the rear of the engine
compartment, on the passenger
side of the vehicle.
