2012 AUDI A8 display

116 Advanc ed Parking S ystem
Rear vi ew cam era co ve ra ge area
The MM I display shows the area covered by
the rear view camera
c::> fig. 123 @ . Objects
that are not in the area covered @are not
shown on the MMI display.
We recommend that you p ractice park ing with
the rear view camera in a t raffic -free location
or parking lot to become familiar with the sys ­
tem, the orientation lines, and their function.
When doing th is, there sho uld be good light
and weather conditions.
In the MMI disp lay, objects or vehicles appear
closer or further away if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
s lope,
- you are d riving in reverse gear toward pro ­
truding objects,
- the vehicle is carrying too much load in the
rear.
The accuracy of the orientation lines and blue
surfaces dim inishes if:
- the adaptive air suspension/sport* is faulty, the vehicle is lifted or dynamic mode is se­
lected
c::> page 103,
- the rear view camera does not provide a reli­
able image, for examp le, in poor visibility
cond it ions or if the lens is dirty,
- the image on the screen is not visible due to
sun glare and reflect ion.
Car in g for the rear view came ra lens
The rear view camera is located above the rear
license plate bracket . For the parking system
to operate, the lens
c::> fig . 124 must be kept
clean:
- Dampen the lens with a household alcohol­
based glass cleaner, and then wipe the lens
clean with a dry cloth
c::> CD.
- Remove snow with a hand brush and ice
preferably with a de-icing spray
c::> (D .
A WARNING
,-
- Senso rs have blind spots in which objects
cannot be detected . Pay special attention to small children and animals because
the sensors cannot always detect them.
- The parking system cannot replace the
driver's attention. The driver alone is re­
sponsible for parking and similar driving maneuvers.
- Always keep your eyes on the vehicle 's
surroundings, us ing the rear view mirror
as well.
- Do not allow yourself to be distracted
from traffic by the rear view camera p ic­
tures.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end col lis ion, do not continue
to use the system for safety reasons .
H ave it checked by a qualified dea le rship.
(D Note
- Low obstacles a lready s ignaled by a
warning can disappear from the system's detection range as they are approached
and w ill not cont inue to be signaled. Ob­
jects such as ba rr ier chains, trailer draw
bars, thin painted vert ica l poles or fen­
ces may not be detected by the system,
posing risk of damage .
- N ever use warm or hot water to remove
snow or ice from the rear view camera
lens - this could ca use the lens to crack!
- When cleaning the lens, never use prod ­
ucts that are abrasive.

Switching on and off
Applies to vehicles: with parking system advanced
The rear view camera switches on automati­
cally together with the acoustic and visual
park assist when you put the vehicle in re­
verse .
Fig. 125 Cen ter con sol e: Pa rking syst em swi tc h
Fig. 126 MMI display: visual distan ce di splay
Switching on
• Switch the MMI on
• Activate
comfort or auto mode in Audi drive
select
¢ page 103.
• Shift into reverse or
• Press the switch
Pw.!l. in the center console
¢
f ig. 125. A short confirmation tone
sounds and the ind icator light in the sw itch
light s up .
Switching between the rear view camera
and visual display
• Press the Graphic control button
¢
page 118 , fig . 127 @to see the visual
display .
• Press the
Rearview control button to see
the rear view camera image¢
fig. 126 .
Switching off
• Dr ive faste r than 6 mph (10 km/h), or
Advanced Parking System 11 7
• press the switch P1#.!l. or
• switch off the ignit ion .
Segments in the visual display
The red segments in front of and behind the
vehicle
¢ fig. 126 help you to determine the
distance between yo u and an obstacle. As
your vehicle comes closer to the obstacle, the
segments move closer to the veh icle. The co l­
lision area has been reached when the next to
las t segmen t is displayed . Do not continue
driving farther ¢.&
in General Information
on page 116!
A WARNING
- The MMI display cannot show, or cannot
adequately show, certain objects (such as
small posts or grating), recesses in the
g ro und and protruding parts on another
car.
- Only use the rear view camera to assist
you if it shows a good, clear picture . For
examp le, the image may be affected by
the sun s hining into the lens, dirt on the
lens or if there is a defect.
- Use the rear view camera on ly with the
rear lid comp lete ly closed . Make sure any
objects you may have mounted on the
rear lid do not block the rear v iew cam­
era.
(D Tips
- The sensors must be kept clean and free
of snow and ice for the park assist to op­
erate.
- If your ve hicle is near an obstacle, an ad­
ditional v isual ind icator appears in the
rearview camera image. Th is superim­
posed image is there to help you to de­
termined which area of the vehicle is af­
fected .
- You can change the volume and pitch of the signals as well as the display
r:!;; page 119.
-What appears in the display is time-de­
layed .

118 Advanced Parking System
Reverse Parking
Applies to vehicles: with park ing system advanced
Parking mode 1 con be used when parking in
a garage or into a parking space.
Fig. 127 MMI display: aiming at a parking spot
Fig. 128 MMI display : al igning the vehicl e
• Turn the steering wheel until the orange
orientation lines
(D appear in the parking
spot
c::> fig . 12 7 . Use the markings @to help
you estimate the distance from an obstacle. Each marking represents 3
ft (1 meter). The
blue area represents an extension of the ve­
hicle's outline by approximately 16
ft (5 me­
ters) to the rear.
• While driving in reverse gear, adjust the
steering wheel angle to fit the parking space
with the aid of the orange orientation lines
¢(D. @ marks the rear bumper. Stop the
vehicle when the red orientation line © bor­
ders an object
c::> ,& !
_& WARNING
-The rear view camera does not show the
entire area behind the vehicle
¢page 115, fig. 123. Watch out espe­
cially for small children and animals. The rear view camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really are (for example, the
bumper of a parked vehicle, a trailer
hitch, or the rear of a truck). In this case,
you should not use the help lines to help
with parking, which poses danger of an accident!
(D Note
In the M MI dis play , the direction of travel
of the vehicle rear is represented depend­
ing on the steering wheel angle . The vehi­
cle front swings out more than the vehicle
rear. Maintain plenty of distance so that
your outside mirror or a corner of your ve­
hicle does not collide with any obstacles.
This can damage to your vehicle.
Parallel Parking
Applies to vehicles: with parking system adva nced
Use parking mode 2 to help you parallel pork
along the side of a street.
Fig. 129 MMI display: blue surface in the park ing spot
Fig. 130 MMI disp lay: Blu e curve on the curb

The following steps app ly only when there is
no obsta cle such as a wa ll near the parking
spot. Otherwise, please read the information
provided in the "Parking Next to Obstacles"
section
c::> page 119.
~ Activate the turn signal.
~ Position your vehicle parallel to the edge of
the street, approximately 3 ft (1 meter)
from a parked vehicle .
~ Switch the MM I on and se lect reverse gear .
The parking aid tu rns o n and parking mode
1 appears on the display .
~ Press the contro l bu tton (D c::> fig. 129 on
the MMI contro l conso le. Parking mode 2
appea rs .
~ Back up and align yo ur vehicle so t he b lue
area @ borders on the rear end of the vehi­
cle or on the parking spot line. The bl ue area
represents an extension of the veh icle's out­
line by approximate ly 16 ft (5 meters) to the
rear . The long side of the blue area should
be o n the curb . The entire blue area must fit
i nto the parking spot .
~ With the vehicle stopped, turn the steer ing
whee l to the right as far as it w ill go.
~ Back into the park ing spot until the blue
cu rve to uches the curb
c::> fig. 130. Stop the
vehicle.
~ With the veh icle stopped, turn the steer ing
wheel to the left as far as it will go .
~ Continue to back into the park ing spot until
the vehicle is parked para llel to the curb .@
marks the rear bumper. Stop the vehicle
when the red orientation line@ borde rs an
object
c::> .&, . Keep an eye o n the fron t of
yo ur vehicle while do ing this
c::> (j) .
Parking next to obstacles
When t here is an obstacle (such as a wall)
next to the pa rking spot, choose a spot w ith
mo re space on t he sides. Position the long
side of the b lue a rea so that there is sufficient
space from the curb. The a rea m ust no t be on
the c urb. You w ill also need to start turn ing
the steering wheel much earlie r. T he re should
be a suffic ient amo unt of space between the
curb and the blue curve, and the blue c urve
c::> fig. 130 must not touch the curb.
Ad vanced P arking S ystem 119
A WARNING
-The rear view camera does not show the
entire area behind the vehicle
c::> page 115, fig. 12 3 . Watch out espe­
cially fo r small children and anima ls . The
rea r view came ra ca nnot alway s de te ct
them, posing r is k of an a ccident!
- P lease note that objects not touching the
g rou nd can appear to be further away
than they really are (for example, the
bumper of a parked vehicle, a trai ler
hitch, or the rea r of a truck) . In this case,
you shou ld not use the help lines to help
with parking, wh ich poses danger of an
accident!
(D Note
In the MMI display, the direction of travel
of the vehicle rear is represented depend­
i ng on the steering wheel angle . The vehi­
cle front swings out more than the vehicle
rear. Maintain ple nty of d istance so that
your outside mirror or a corner of your ve­
hicle does not col lide with any obstacles.
T his can damage to your ve hicle.
(0 Tips
The left o r right orientation lines and su r­
faces will be disp layed, depending on the
turn s ignal being used .
Adjusting the display
and warning tones
App lies to v ehicl es: wi th parkin g sys tem advanced
The display and warning tones can be adjust­
ed in the MMI.
~ Select: I CAR I function b utton > Car sy stem s
contro l button > Dri ver a ssist > Parking aid
> Setting s control b utton .
Display
On -when the parking system is switched on,
either the vis ual d isp lay or the picture from
the rea r view camera is disp layed .
IJI>

120 Advanc ed Parking S ystem
Off -when the parking system is switched off,
only audible signa ls are given.
Warning tones
Front v olume -front sensor volume
Rea r vo lu m e -rear sensor volume
Front frequ ency -front sensor frequency
Rea r frequ enc y -rear sensor frequency
Mu sic vo lume whil e parking -when the park­
ing system is switched on, the volume of the
active audio sou rce is lowered.
The newly adjusted value is briefly heard from
the signa l generator.
(Di Tips
- The warning tones can a lso be adjusted
directly by the v isual display or the p ic­
ture from the rear v iew camera. Simp ly
press the
S ett ing s cont ro l button.
- Changed settings are activated when
parking system is switched on again .
-The sett ings are automatically stored
and ass igned to the remote control key .
Error messages
Applies to vehicles: with parking system advanced
There is an error in the system if the LED on
the
P'ljA switch is blinking and you hear a con­
tinuous alarm for a few seconds afte r switch­
ing on the parking system or when the pa rk­
ing system is already act ivated. Have your au ­
thor ized Audi dealer correct the error .
(D Tips
If
the error is not corrected before you
switch off the ignition, when you switch on
the par king system aga in , the LED in the
? ljA switch will blink.

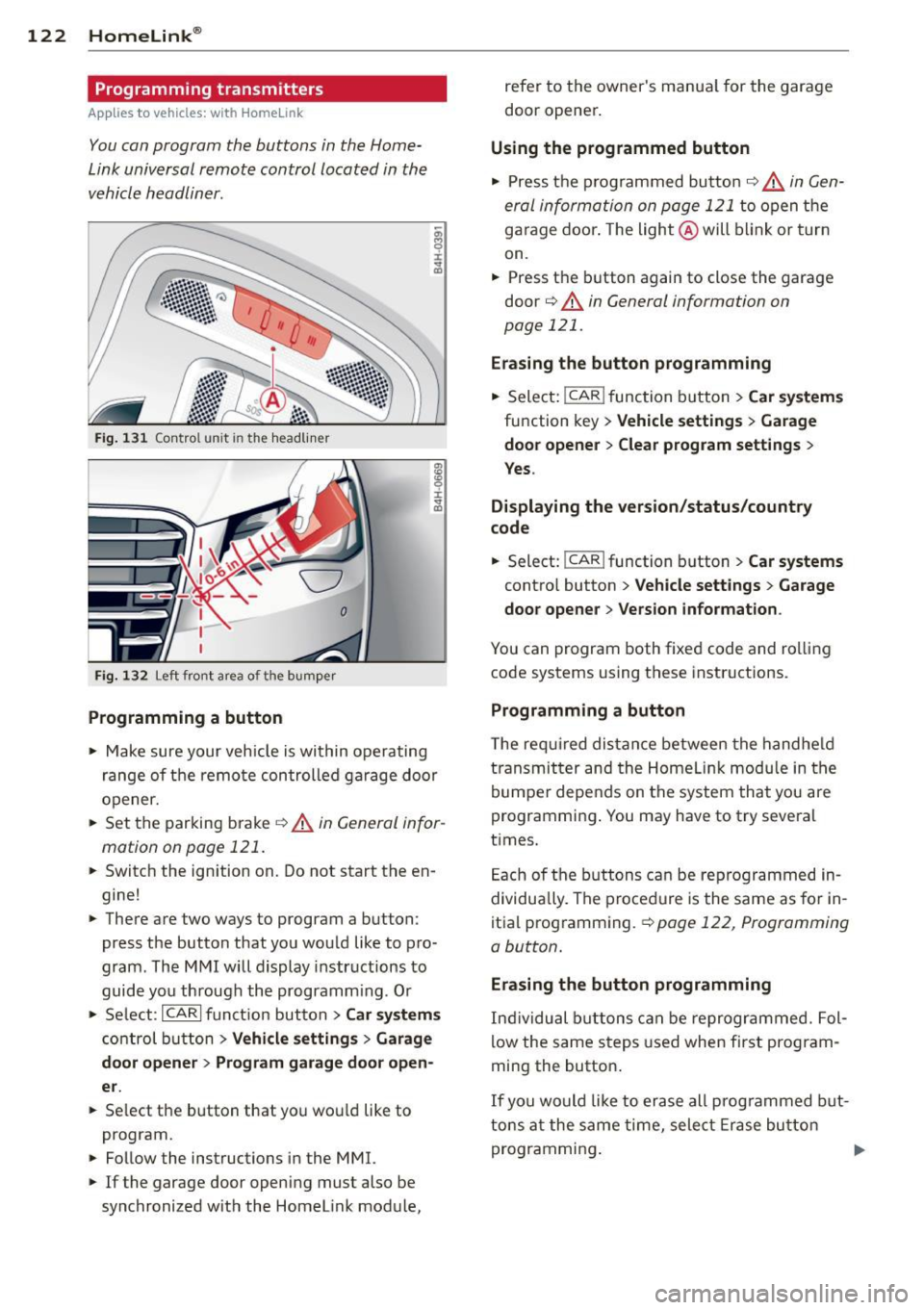

122 Homelink®
Programming transmitters
Applies to vehicles: with Horne link
You con program the buttons in the Home­
Link universal remote control located in the
v e hicle headliner.
F ig. 1 31 Co ntrol un it in the h ead liner
Fi g. 1 32 L eft front area of the bum per
Programming a button
.. Make sure your veh icle is wi thin operating
ra nge of the remo te con trolled ga rage d oor
opener.
.. Set t he parking bra ke
~ A in General infor ­
mation on pa ge 121 .
.. Switc h the ignition on. Do not start the en­
gine!
.. The re a re two ways to program a button :
press the button that yo u would like to pro­
gram . The M MI will display instruct ions to
guide yo u th rough the programm ing . O r
.,. Se lect :
ICARI f u nct io n button > Car systems
cont rol bu tton > Vehicle settings > Garage
door opener > Program garage door open­
er .
.. Se lect t he b utton that yo u wo uld like to
program.
.. Follow the inst ructions in the MMI.
.. If the garage door openi ng must also be
synchronized wit h the Homel ink mod ule, refer to the owner
's manua l for the gar age
door opener .
Using the programmed button
.. Pres s th e pr og rammed butto n~ ,& in Gen­
eral informati on on page 1 21
to open t he
g ar age doo r. T he li ght @ will blink or tur n
on .
.. Press t he bu tton again to close the garage
door
q A in General information on
page 121.
Erasing the button programming
.. Sele ct: I CAR I func tion b utt on > Car systems
function key > Vehicle settings > Garage
door opener > Clear program settings
>
Yes .
Displaying the version/status/country
code
.. Select: I CAR I function b utton > Car systems
contro l button > Vehicle settings > Garage
door opener > Version information .
You can program both fi xed code and ro lling
code systems using these instr uctions.
Programming a button
The re quired di stance between the hand he ld
transmit ter and the Homel ink module in the
bumpe r depe nds on the system tha t you are
programmi ng . You may have to try several
t imes.
E ach of the buttons c an be re progra mmed in ­
dividua lly . The proced ure is the same as fo r in ­
itia l prog ramming .
~page 12 2, Programming
a button.
Erasing the button programming
I n di vidu al but tons ca n b e reprogr ammed. Fol­
l ow the same s teps used when fi rst prog ram ­
ming the butto n.
If y ou wo uld lik e to er ase all prog rammed but ­
t o ns at the same time, sele ct Era se bu tt on
p rogr ammi ng .

as defined in the electronic control unit
¢ page 153, PASSENGER AIR BAG OFF light .
Always remember, a chi ld seat or infant ca rri­
e r i nsta lled on the front seat may be struck
and knocked out of position by the rapidly in­
flating passenger's airbag in a frontal colli­
sion. The airbag could greatly red uce the ef­
fectiveness of the child restraint and even se­ riously injure the child during inflat ion.
F or this reason, and because the back seat is
the safest p lace for children -when properly
restra ined accord ing to their age and si ze -we
strongly recommend that children always sit
in the back seat
¢ page 166, Child Safety.
A WARNING
A child in a rearward-facing child seat in­
stalled on the front passenger seat will be
ser iously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating a irbag w ill hit the child seat
or infant carrier w ith great force and w ill
smash the ch ild seat and child against
the backrest, center armrest, door or
roof .
- Always install rear -facing child seats on
the rear seat .
- If you mus t install a rearward facing
child seat on the front passenge r seat
because of exceptiona l circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rear-facing chi ld seat in a
rear seating position and have the airbag
system inspected by your Aud i deale r.
- Forward-fac ing ch ild seats installed on
the front passenger's seat may interfere
with the deployment of the airbag and cause serious pe rsonal injury to the
child.
A WARNING
If, in exceptional c ircumstances, you mus t
install a forwa rd-facing child restra int on
the front passenger's seat:
A irbag system 145
-Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and s ide a irbag.
- Never put the forward-facing child re­
straint up against or very near the instru­ ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as fa r away from
the airbag as possible before installing
the forward-fa cing ch ild restra int. The
backrest mu st be ad justed to an upright
posi tion.
- Ma ke sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the
time wheneve r the ignit ion is swi tched
on.
A WARNING
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light will be displayed whenever a child re­
straint is installed on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, perform the checks de­
scribed
¢ page 153, Monitoring the Ad­
vanced Airbag System .
-Take t he chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your Aud i dea le r i mmediately.
- Always carefully follow instr uctions from
child restraint manufacture rs when in­
stalling c hild restra ints.
A WARNING
If, in e xcept io na l circumstances, you must
ins tall a forward o r rearwa rd-facing child
restra int on the front passenger's se at:
- Imp roper install ation of ch ild restrai nts
can reduce their effec tiveness o r even
preven t them from providing any protec­
tion. •
•

the message PASS ENGER AIR B AG OFF or
PA SSENGER AIR BA G ON will briefly appear
in the instrument cluster display. Th is is to in ­
form the driver of the current front passenger airbag status .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be someth ing
wrong with the Advanced Airbag System.
It is possible that the airbag will inflate
when it is not supposed to, or w ill not in­
flate when it should.
- Have the airbag system inspected imme ­
diately by your Aud i dealer.
A WARNING
If the front airbag inflates, a ch ild without
a child restra int, or in a rearward-fac ing
child safety seat, or in a forward-facing
child restrain t that has not been properly
installed will be serio usly injured and can
be killed.
- Even though your veh icle is equipped
with an Advanced Airbag System, make
certain that a ll children, especially 12
years and younger, a lways ride on the
back seat properly restrained for their
age and size.
- Always install forward or rear-facing child seats on the rear seat -even w ith
an Advanced Airbag System.
- If you must install a rearward-facing
child seat on the front passenger seat
because of exceptiona l circumstances
and the
PASSENGER AIR BAG OFF light
does not appear and stay on, immediate­
ly i nstall the rea r-facing chi ld seat in a
rear seating position and have the airbag
system inspected by your Aud i dealer.
-
A irbag system 15 5
-A tight tether or other strap on a rea r­
ward-facing child restraint attached to
the front passenger seat can put too much pressure on the weight-sensing
mat in the seat and reg iste r more weight
than is actually on the seat . The heavie r
weight registered can make the system
wo rk as tho ugh an adult were on the seat
and deploy the Advanced Airbag when it
m ust be suppressed causing serious or
even fata l injury to the chi ld .
- If, in exceptiona l c ircumstances, you
m ust install a forward-facing child re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­ sition in the seat's fore and aft adjust­
ment range, as far away from the a irbag
as poss ible. The backrest must be adjust­
ed to an upright pos ition. Make su re that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignit ion is switched on.
A WARNING
-
- If the PASSENGER AIR BAG OFF light
does not go out when an ad ult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adu lt is properly seated and restra ined at
one of the rear seating pos itions.
- Have the airbag system inspected by
your Aud i dealer before transporting
anyone on the front passenger seat.
(D Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenger side wi ll be
turned off, and the
PASSENGER AIR BAG
OFF
light will stay on .
Repair, care and disposal of the airbags
Parts of the airbag system are i nstalled at
many diffe rent p laces o n your Aud i. Insta lling,
removing, servicing or repa iring a part in an
area of the veh icle can damage a part of an .,..
•
•
