2012 AUDI A8 display

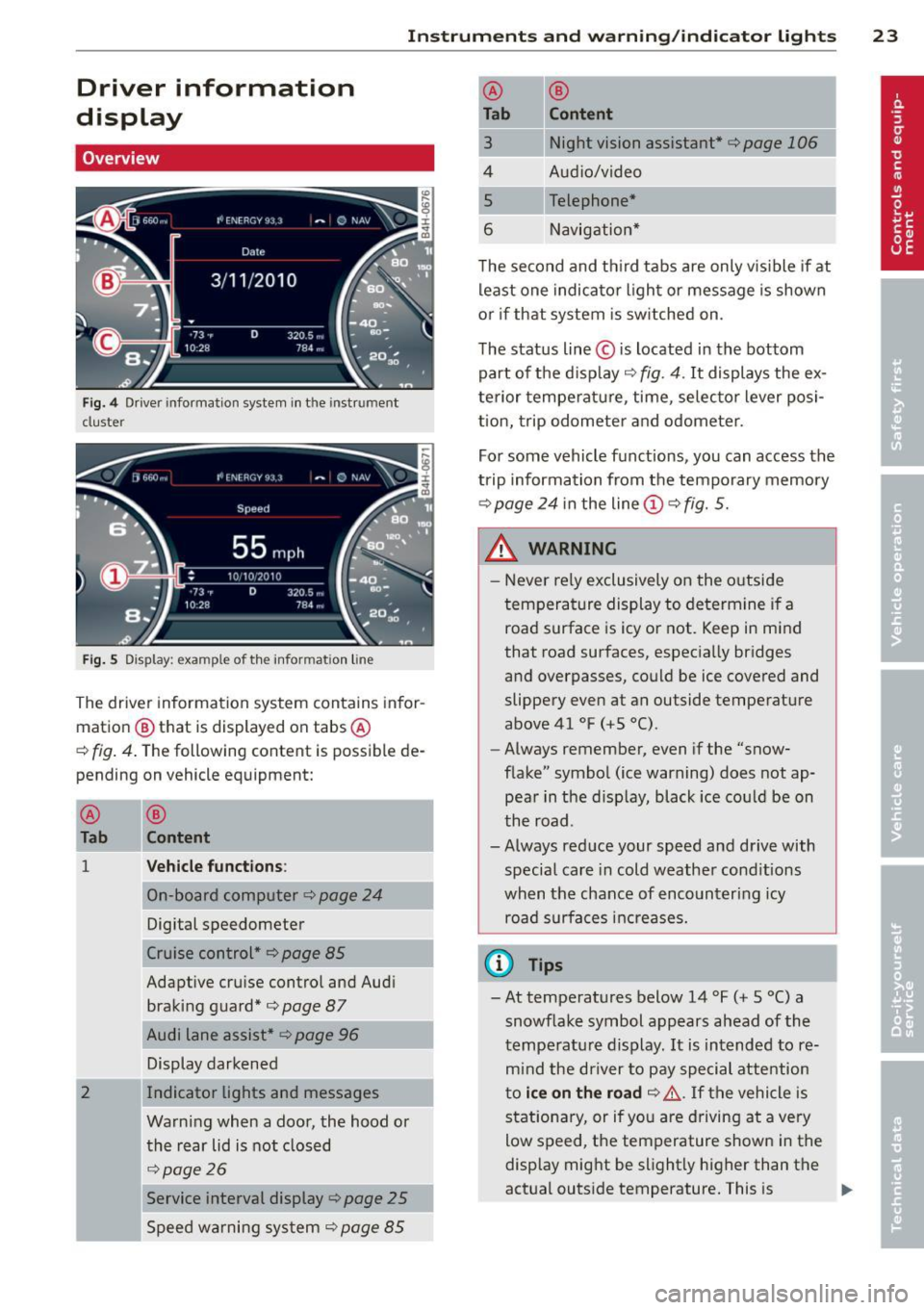

Instrument s and warning /indicator lights 23
Driver information
display
Overview
Fig. 4 Driv er in formation system in t he in strum en t
cl uster
Fig . 5 D isplay: e xample of th e informa tion line
The driver information system contains infor­
mation
® that is displayed on tabs ®
c::> fig. 4. The follow ing content is possibl e de­
pending on vehicle equipment:
®
Tab
1
2
---
®
Content
Vehicle functions:
On-board computer <=;>page 24
Digital speedometer
Cruise control*
c::> page 85
Adaptive cru ise control and Audi
braking guard*
c::>page 87
Audi lane assist* c::> page 96
Display darkened
Indicator lights and messages
Warning when a door, the hood or
the rear lid is not closed
c::> page 26
Service interval display¢
page 25
Speed warning system ¢ page 85
--
® ®
Tab Content
3 Night vision assistant* c::> page 106
4 Audio/video
s Telephone*
6 Navigation*
The second and th ird tabs are only v isible if at
least one indicator light or message is shown
o r i f that system is switched on .
The status line © is located in the bottom
part of the d isplay
c::> fig . 4. It displays the ex­
terior temperature , time , selecto r lever posi­
tion, trip odometer and odometer.
I
For some vehicle functions, you can access the
trip information from the temporary memory
r::!;> page 24 i n the line (D c::> fig. 5.
& WARNING ,.______ -
- Never re ly exclusively on the outside
temperature display to determine if a
road surface is icy or not. Keep in mind
that road surfaces, especia lly bridges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F ( +S
0
() .
-Always remember, even if the "snow­
flake" symbol (ice warning) does not ap­ pear in the display, black ice could be on
the road .
- Always reduce your speed and drive with
special care in cold weather conditions
when the chance of encountering icy road surfaces increases.
(i) Tips
-At temperatures below 14 °F (+ S 0
() a
snowf lake symbol appears ahead of the
temperature display .
It is intended to re­
mind the driver to pay special attention
to
ice on the road c::> &. If the vehicle is
stationary, or if you are driving at a very
low speed, the temperature shown in the
display might be slightly higher than the
actual outside temperature. This is

Instruments and warning/indicator lights 25
For some vehicle functions, you can access the
trip information from the temporary memory
in the line
(I) c:;; page 23, fig. 5.
@ Tips
- All stored values will be lost if the vehi­
cle battery is disconnected.
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian models.
Odometer
Fig. 8 Instrument cluster Odometer and reset b utto n
The odometer shows you how many miles
(kilometers) you have driven. You can switch
th e display from miles to kilometers and vice
versa via the MMI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset.
It can be used to meas­
ure short distances. The last digit indicates 1/10 of a mile (100 meters).
You can reset the trip odometer to zero by
pressing the Reset button~-
Lower odometer
The lower odometer shows the total number
of miles (kilometers) driven .
Malfunction message
If there is a malfunction in the instrument
cluster,
DEF will appear in the trip odometer
display area. Contact your authorized Audi
dealer to have the problem corrected .
Time and date display
...
I~
Fig. 9 Cente r console : analog clock
The date and time are shown in the instru­
ment cluster display
c:;; page 23, fig. 4. There
is also an analog clock in the center console
¢fig . 9 .
:r
~
When you open the driver's door, the date and
time appear in the instrument cluster display
for 30 seconds. When the ignition is switched
on, the time is always displayed in the status
line © regardless of the current display.
You can set the time on both clocks and the
date display in the MMI. Refer to the MMI
owner's manual for instructions.
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 10 Instrument cluster: Serv ice inte rval disp lay
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
accordingly. The display works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
switch the ignition on
¢fig. 10. ..,.

26 Instruments and warning /indicator lights
After abo ut 5 seconds the display sw itches
back to normal. The distance and time re­
maining are updated eac h time the ignition is
switched on until the date due for service is
reached .
Service due
When the due date for service is reached , the
message
Serv ice due! appears in the instr u­
ment cluster immediately after you switch the
ignit io n on . Additionally, a warning tone
sounds . After about
5 seconds the display
sw itches back to no rmal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the MMI d isplay by select ing
the service interva l display in the car menu .
Select the
!CAR ! function button> Car sys­
tems
co ntrol button > Servicing & checks >
Service interval disp lays.
Re setting the service interval display
Your author ized Audi dealer w ill reset the cor­
responding service sched ule after performing
the app rop riate se rv ice on you r vehicle . You
a lso have the possibili ty to reset the o il
change sched ule after having performed an
oil c hange a ccor ding to Audi s pecifications.
Selec t the
I CAR I func tion button > Car sys­
tems
c on trol b utt on > Servicing & checks >
Service interval displays > Reset oil change
inte rval.
{[) Note
If you disconnec t the b attery termi nals, no
calc ulations can be made for the serv ice
interva l display during this t ime and no
service rem inder w ill appea r. Remembe r
that obse rv in g the prope r se rv ice interva ls
is vitally impo rtant to extend ing the life of
your v eh icle, part icu larly the eng ine, and
main taini ng its va lue . Ev en i f th e m ileage
driv en is low, th e maximum per iod o f one
yea r from o ne se rvi ce to the nex t mus t not
be e xcee ded.
(D Tips
- Do not reset the display betwee n oil
c h anges, otherwise the d isp lay w ill be in­
co rrect.
- Th e info rmation in the Se rvice Remin der
remains stored even w hen t he vehicle
battery is disconnected.
Open door /hood /rear lid warning
F ig. 1 1 Display : doors and rea r lid open
Wi th the ig nition sw itched on, t he warn ing il­
lu minates when at least
one doo r or th e hood
or the rear lid is not closed. The sym bo l also
shows you
which d oor(s) or lid is not closed.
In the illustration
r:!> fig. 11 it is the driver's
doo randt he leftrea rdoo ~
On-Board Diagnostic
system (OBD)
Malfunction Ind icator Lamp (MIL )
The Ma lf u nction Indicator Lam p (M IL) f-4 in
t h e instr ume nt cluster is part of t he On -Board
Diagnostic (OBD
II) system .
T he wa rn ing /indic ator lig ht ill uminates when
the ignitio n is switched on and goes ou t after
t h e engine sta rts and t he id le has sta bilized.
This ind icates that the MIL is working proper­
ly.
If the light does not go out afte r the e ngine
is starte d, or illumi nates w hile you are driv­
i ng, a mal function may exist in the engine sys ­
tem . If t he light illum inates, t he catalytic con-
verter could be damaged .
IIJ,-

Instruments and warning/indicator lights 2 7
Continue driving with reduced power (avoid­
ing sustained high speeds and/or rapid accel­
erat ions) and have the condition corrected.
Contact your author iz ed Audi dealer.
If the light ill uminates, the electronic speed
limiter may also be ma lfunctioning . For more
information ¢
page 2 7, Electronic speed
limiter .
An improperly closed fuel fi ller cap may also
cause the MIL light to ill uminate ¢
page 217.
On-Board Diagnostics
Fig. 12 Loca tion of Data Li nk Connector (DLC)
On-Board Diagnostics monitors the compo­
nents of yo ur emission control system. Each
mon itored component in your engine system
has been assigned a code. In case of a ma l­
function, the component will be identified and the fault stored as a code in the contro l
module memory.
The MIL light may a lso illuminate if there is a
l eak in the on-board fue l vapor recovery sys­
tem. If the light illuminates after a ref uelling,
stop the veh icle and make sure the fue l filler
cap is properly closed ¢
page 217.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe­
cial diagnostic equipment (gener ic scan tool
for OBD).
In order to connect the special diagnostic
eq uipment, push the plug into the Data Link
Connector (DLC). The DLC is located to the right of the hood release¢
fig. 12.
Your authorized Audi dea ler or a qualified
service station can interpret the code and per­
form the necessary repair.
A WARNING
Do not use the diagnostic connector for
personal use. Incorrect usage can cause
malfunctions, wh ich can increase the risk
of a collision!
Electronic speed limiter
-
Your vehicle may be factory equipped w ith
t ir es that are rated fo r a maximum speed of
130 mph (210 km/h). This is less than the
maximum speed of your vehicle . To reduce the
risk of sudden tire fai lure and loss of control if
the vehicle is operated at excessive speeds,
your vehicle a lso has an e lectronic speed limit­
er . The e lectronic speed limiter prevents your
vehicle from going faster than the tire speed rating . For more information ¢
page 246.
If the engine contro l unit receives faulty vehi­
cle road speed signa ls, the Ma lfunction Indi·
cator Lamp (MIL)
fllllij w ill illuminate. If this
occurs, contact the nearest authorized Audi
dealer for assistance .
A WARNING
-
Always observe the posted speed limits
and adjust your speed to suit prevailing road, traffic and weather conditions. Never
drive your vehicle faster than the maxi­
mum speed rating of the tires installed.

Removing the mechanical key
Fig. 14 Remote control maste r key : re mov ing the me­
c han ical key
• Press the release button@ ¢ fig. 14.
• Pull the mechanica l key @ out of the mas ­
ter key.
Using the mechan ica l key, you can:
- lock and unlock* the storage compartment
on the passenger's side
<=:> page 71.
-lock and unlock the vehicle manually
c:>page 33 .
-lock the front and rear passenger doors me­
chanically
c:> page 34.
- unlock the rear lid manua lly ¢ page 37 .
Check light and battery in the master
key
Fig. 15 Remote master key : Re mov ing the battery
holder
Check light in the master key
The check light @<=:> fig. 15 in the master key
prov ides information about different cond i­
tions.
• The check light turns on brief ly once when a
button is pressed, and during an "inqu iry"
by the convenience key system .
Opening and closing 29
• If the check light does not come on, the
battery is dead and has to be replaced. In
add ition, when the battery is dead
the m
indicator light appears in the instrument
cluster display as well as the message
Please change the key battery .
Master key battery replacement
We recommend having the battery changed
by an authorized Audi dealer. However, if you
wish to replace the dead battery yourse lf , pro­
ceed as follows:
• Remove the mechanical key
c:> page 29.
.. Press the re lease button ® c:> fig. 15 on the
battery holder and at the same time pull the
battery holder out of the master key in the
direction of the arrow .
.. Install the new battery CR 2032 with the
"+" sign facing down.
• Push the battery holder carefu lly into the
master key.
• Install the mechan ical key.
(® For the sake of the environment
Dispose of dead batteries properly so as
not to poll ute the environment.
(D Tips
The replacement battery must be the
same specification as the original.
Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle .
A computer chip inside your key automatically
deact ivates the electronic immobilizer when
the key is inside the vehicle . When you remove
the key from the vehicle, the elect ronic immo ­
bilizer is automatically activated once again.
& WARNING
Always take the key with you when you
leave the vehicle. The key can disarm the
e lectronic engine immobilizer and permit
an unauthorized person to start the engine
and enable operation of the vehicle
IIJI,-

- The buttons for the power sun shades* in
the side windows,
- The buttons for the power sun shade* in the
rear window,
- Front passenger power seat adj ustment *
button.
_& WARNING
- When you leave your vehicle -even if on­
ly briefly- always take the ignition key
with you. This applies particularly when
children remain in the veh icle. Otherw ise
the ch ildren could start the engine or op­
erate electrical equ ipment (e.g. power
w indows) . The power windows are func­
t ional until t he driver's door or passeng­
er's door has been opened.
- Be careful when closing the windows.
Check to see that no one is in the way, or
serious injury could result!
- When lo cking the veh icle from outside,
t he ve hicle must be unocc upied s in ce the
w indows can no longer be opened in an
emergency.
(D Tips
- The dr iver can lower or raise the power
sun shades * in the side windows by us ing
swi tches © and
@.
-After the ignition has been switched off,
the windows can still be opened o r
closed for about 10 minutes . The powe r
windows are not switched off until the
driver's door or passenger's door has
been opened.
What to do after a malfunction
The one-touch open and close function must
be reactivated if the battery hos been discon ­
nected.
• Pull and hold the power window switch un­
ti l the window is fully closed.
• Release the switch and then pull it again for
at least one second .
Openin g an d clos ing 39
Valet parking
The valet parking feature protects the lug­
gage comportment from unauthorized ac­
cess.
F ig. 30 Valet par king button
Wi th "valet parking" a ctivated, the rear lid
cannot be opened.
• Remove the mechanical key
c::;, page 29 .
• Open the glove compartment and activate
c::;, fig. 30 the "valet parking" feature by
pressing the
! VALET I b utton. The indicator
light in the swi tch illuminates.
• Close the glove compartment and lock it
w ith the mechanical key.
• Leave the master key with the se rvice per ­
sonnel for park ing and keep the mechanical
key with you.
When the "valet parking" feature is activated:
- the unlocki ng button fo r the rear l id
c:s in
the dr ive r's door is inactive
- the button
c:s on the mas ter key is inac tive
- the opening handle in the rear lid is inact ive .
The vehicle can be driven and locked and un­
locked with the master key. Access to the lug­
gage compartment is blocked.
When the valet parking function is switched
on, the message
Vale t par king acti vated ap­
pears in the instrument cluster display when
you sw itch the ignition on.

44 Clear vision
Highway light function* (vehicles with LED
headlights) -this function adapts the lighting
for highway driving based on vehicle speed.
.&_ WARNING
- Automatic headlights are only intended
to assist the driver. They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights §.0
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
@ Tips
- The light sensor* for automatic dynamic
headlight range control* is located in the
rear view mirror mount. You should
therefore not apply any stickers to the
windshield in this area in order to pre­
vent malfunctions or failures .
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display¢
page 21 .
- You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after switching them on. This does not affect
the service life of the lighting.
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle ore in an emer ­
gency situation.
,--~
,_'
. ;.' --- --~-.sc-
Fig. 35 Center console: emergency flasher switch
.,. Press the switch 11 ¢ fig. 35 to turn the
emergency flashers on or off .
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
s ignal ind icator lights
ea in the instrument
cluster, as well as the light in the emergency
flasher switch
11 blink likewise. The emergen­
cy flasher also works when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
(D Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
-your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.

Selecting a color pr ofile
You can select from the Iv ory , Polar and Ru­
b y/ Pol ar
color profiles .
(D Tips
The settings are automa tically sto red and
assigned to the remote con tro l key that is
in use.
Instrument illumination
You con adjust the brightness of the instru ­
ment and display illumination .
Fig . 39 In strument ill um ination
• Press the knob to release it.
• Turn the knob toward"-" or"+" to reduce or
increase the brigh tness .
• Press the knob again to return it to its or igi ­
nal position .
Q Tips
The instrument illumination (for dials and
needles) lights on when the ig nitio n is
sw itched on and the vehicle lig hts are
turned off. As the daylight fades, the ill u­
m ina tion of the dials likewise dims auto­
mat ica lly and will go out com plete ly when
t he o utside light is very low . This fea ture is
meant to remind you to switch on the
headlights when o utside light conditions
become poor. Clear vi
sion 4 7
Vision
Sun visors
E J
Fig . 4 0 Sun viso r
The sun visors for the driver and passenger
can be re leased from their bracke ts and
turned toward the doors
c:> fig. 40 (D . They
can a lso be moved back and forth lengthwise
in th is position .
The m irror light switches on when the cover
over the vanity m irror @opens.
T here is a shade between the dr iver 's and pas­
senge r's s un visors that can be used to cover
the gap above the rearview mirror.
. Sun Shade
Fi g. 41 Cock pit: Sun shad e swit c h
Fig. 4 2 Rear doo r: S un s had e butto n
