2012 Alfa Romeo Giulietta buttons

REGIONAL MODE function
(reception of regional
broadcasts)
Some national broadcasters will transmit re-
gional programmes at certain times of the
day (that vary from region to region). This
function makes it possible to tune into lo-
cal (regional) broadcasters automatically
(see EON function paragraph).
If you want the radio to automatically tune
into the regional stations being broadcast on
the network selected, the function must be
activated.
To turn the function on/off, use buttons

or.The current status of the function will appear
on the display:
❍“Regional On”: function activated;
❍“Regional Off”: function deactivated.
If the function is deactivated and you have
tuned into a regional station working in a
given area and you enter a different area,
then the regional station received in the new
area will be broadcast.
WARNING If the AF and REG functions are
on at the same time, once a border between
two regions is crossed, the radio may not
switch correctly to a valid alternative frequen-
cy.
MP3 DISPLAY FUNCTION
(display of MP3 Compact Disc
information)
This function makes it possible to select the
information shown by the display when lis-
tening to a CD containing MP3 tracks.
The function can only be selected if a CD
MP3 is inserted: in this case “MP3 Display”
will appear on the display.
To change the function, use buttons
or
.
The following settings are available:
❍“Title” (track title, if the ID3-TAG is avail-
able);
❍“Author” (track author, if the ID3-TAG is
available);
❍“Album” (track album, if the ID3-TAG is
available);
❍“Folder” (folder name);
❍“File” (MP3 file name).
SOUND SYSTEM
264

SPEED VOLUME function
(variation of volume
dependent on speed)
(excluding versions
with Bose HI-FI system)
This function allows the volume level to be
adjusted automatically depending on the
speed of the vehicle, increasing it as the
speed increases to maintain the same bal-
ance with the noise level inside the passen-
ger compartment. To turn the function
on/off, press buttons
/. The words
Speed volume should appear on the display
followed by the current status of the func-
tion:
❍Off: function deactivated
❍Low: function activated
(low setting)
❍High: function activated
(high setting).
RADIO ON VOLUME function
(radio volume maximum limit
activation/deactivation)
This function makes it possible to acti-
vate/deactivate the maximum volume lim-
it when turning the radio on.
The display shows the function status:
❍“Radio on vol – Limit on”: when the
radio is switched on the volume level
will be:
– if the volume level is equal to or high-
er than the maximum value, the ra-
dio will come on at the maximum vol-
ume;
– if the volume level is between the
minimum and maximum values, the
radio will come on at the same vol-
ume as before it was switched off;
– if the volume level is equal to or low-
er than the minimum value, the radio
will come on at the minimum volume.
❍“Radio on vol – Limit off”: the radio will
come on at the volume level it was at
before switching off. The volume may
be between 0 and 40.
To change the setting use buttons
/.NOTES
❍Using the MENU it is only possible to ad-
just the activation/deactivation of the
function and not the minimum or max-
imum volume setting.
❍If the “TA” or “TEL” functions or an out-
side audio source are activated when the
radio is turned on, the radio will come
on at the volume set for these sources.
When the outside audio source is deac-
tivated, the volume can be adjusted be-
tween the minimum and maximum lev-
els.
❍If the battery charge is low, it will not
be possible to adjust the volume be-
tween the minimum and maximum
levels.
SOUND SYSTEM
265

SPEECH VOLUME function
(telephone volume
adjustment)
This function makes it possible to adjust (set-
ting from 1 to 40), by turning the left knob
A-fig. 1 or pressing buttons
/or ex-
clude (OFF setting) the volume of the Tele-
phone and Blue&Me
™(except the Media
Player function).
The display shows the current function status:
❍“Speech Off”: function deactivated.
❍“Speech Volume 23”: function activat-
ed with volume set to 23.
AUX OFFSET function
(alignment of the portable
device volume to the one of
the other sources)
This function enables to align the volume
of the AUX source, depending on its own
portable player, to the one of the other
sources. To activate the function, press the
MENU button and then select “AUX offset”.
Press the buttons
orto decrease or in-
crease the volume value (set from −6 to
+6).
RADIO OFF function
(on and off mode)
This function is used to select the mode for
switching off the radio between two differ-
ent procedures. To turn the function on use
buttons
or.
The selected mode will appear on the dis-
play:
❍“00 MIN”: the radio turns off automat-
ically in connection with the ignition key;
the radio turns off automatically as soon
as the key is turned to the STOP posi-
tion;
❍“20 MIN”: the radio turns off indepen-
dently from the ignition key; the radio
remains on for a maximum period of 20
minutes after the key has been turned
to the STOP position.
SOUND SYSTEM
266

269
SOUND SYSTEM
R R
A A
D D
I I
O O
( (
T T
u u
n n
e e
r r
) )

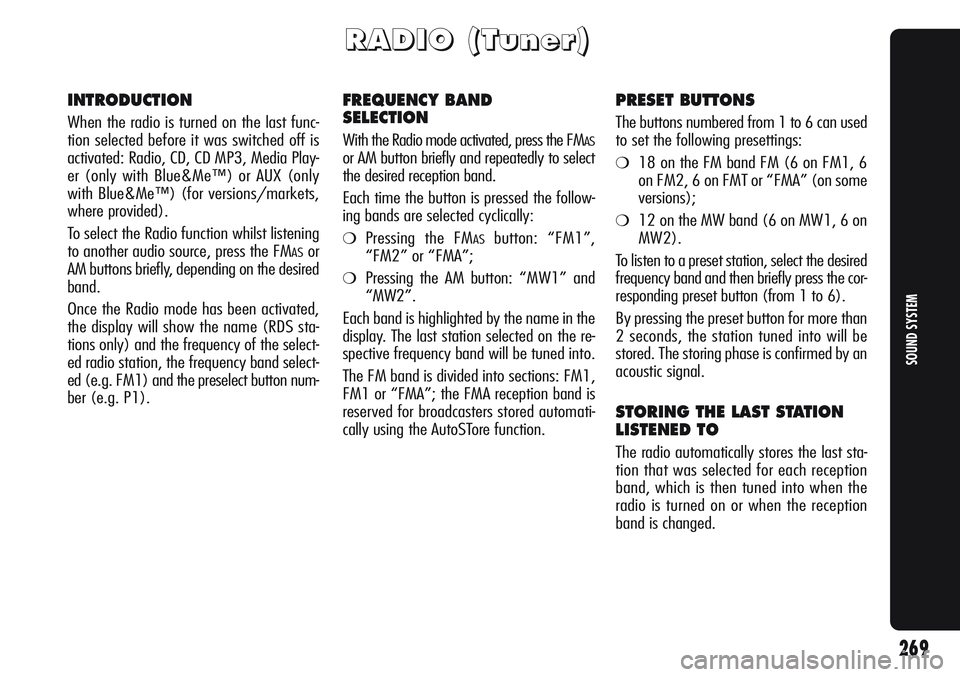

INTRODUCTION
When the radio is turned on the last func-
tion selected before it was switched off is
activated: Radio, CD, CD MP3, Media Play-
er (only with Blue&Me™) or AUX (only
with Blue&Me™) (for versions/markets,
where provided).
To select the Radio function whilst listening
to another audio source, press the FM
ASor
AM buttons briefly, depending on the desired
band.
Once the Radio mode has been activated,
the display will show the name (RDS sta-
tions only) and the frequency of the select-
ed radio station, the frequency band select-
ed (e.g. FM1) and the preselect button num-
ber (e.g. P1).
FREQUENCY BAND
SELECTION
With the Radio mode activated, press the FMAS
or AM button briefly and repeatedly to select
the desired reception band.
Each time the button is pressed the follow-
ing bands are selected cyclically:
❍Pressing the FMASbutton: “FM1”,
“FM2” or “FMA”;
❍Pressing the AM button: “MW1” and
“MW2”.
Each band is highlighted by the name in the
display. The last station selected on the re-
spective frequency band will be tuned into.
The FM band is divided into sections: FM1,
FM1 or “FMA”; the FMA reception band is
reserved for broadcasters stored automati-
cally using the AutoSTore function.
PRESET BUTTONS
The buttons numbered from 1 to 6 can used
to set the following presettings:
❍18 on the FM band FM (6 on FM1, 6
on FM2, 6 on FMT or “FMA” (on some
versions);
❍12 on the MW band (6 on MW1, 6 on
MW2).
To listen to a preset station, select the desired
frequency band and then briefly press the cor-
responding preset button (from 1 to 6).
By pressing the preset button for more than
2 seconds, the station tuned into will be
stored. The storing phase is confirmed by an
acoustic signal.
STORING THE LAST STATION
LISTENED TO
The radio automatically stores the last sta-
tion that was selected for each reception
band, which is then tuned into when the
radio is turned on or when the reception
band is changed.

AUTOMATIC TUNING
Briefly press buttons orto start the
automatic tuning search for the next station
that can be received in the selected direc-
tion.
If the
orbuttons are pressed down for
longer, the fast search starts. When the but-
ton is released, the tuning will stop at the
next station that can be received.
If the TA function (traffic information) is on,
the tuner will only search for stations that
broadcast traffic updates.
MANUAL TUNING
This allows a manual search for stations on
the preselected band.
Select the desired frequency band and then
press the
orbutton briefly and repeat-
edly to start to the search in the desired di-
rection. If the
orbuttons are pressed
for longer, the fast search will start and then
stop when the button is released.
AUTOSTORE FUNCTION
To activate the AutoSTore function, keep the
FM
ASbutton pressed until the acoustic con-
firmation signal. With this function, the ra-
dio automatically stores the 6 stations with
the strongest signal in a decreasing order on
the FMA frequency band.
During the automatic storing process,
“Autostore” will appear flashing on the dis-
play.
To interrupt the Autostore function, press the
FM
ASbutton again: the radio will again tune
into the station listened to before the activa-
tion of the function.
When the AutoSTore function is over, the ra-
dio automatically tunes into the first prese-
lected station on the FMA band on the pre-
setting 1 side.
The stations that have a strong signal at that
moment are then automatically stored in the
preselected band in the buttons numbered
1 to 6.
When the AutoSTore function is activated
within the MW band, the FMA band is au-
tomatically selected and the function is per-
formed.IMPORTANT Sometimes the AutoSTore func-
tion does not manage to find 6 stations with
a strong signal. In this case, the strongest
stations will be duplicated in the free pre-
set buttons.
IMPORTANT When the AutoSTore function is
activated, the stations that were previously
stored on the FMA band are deleted.
SOUND SYSTEM
270

DASHBOARD
1. Fixed vent for sending air to side windows - 2. Adjustable air vent - 3. Passenger front air bag - 4. Upper adjustable vents - 5. Hazard warning
lights - 6. Radio navigator display (for versions/markets, where provided) - 7. External light control stalk - 8. Instrument panel - 9. Windscreen
wiper/rear window wiper/trip computer stalk - 10. Headlight alignment corrector (for versions/markets, where provided) and Set Up Menu
access buttons - 11. Ignition device - 12. Driver's front air bag - 13. Cruise Control stalk (for versions/markets, where provided) - 14. Control
buttons: fog lights/rear fog light, Start&Stop system (for versions/markets, where provided), door locking/unlocking, AFS light on/off (for
versions/markets, where provided) - 15. “Alfa DNA” system - 16. Gear lever - 17. Heating/ventilation/air conditioning controls - 18. Sound sys-
tem (for versions/markets, where provided) - 19. Central adjustable air vents - 20. Glove compartment.
A0K0225m
19.522.0cACAAUT O
MONOC
123
4
56
4789
21
20
19
1817
16
1514
1312
1110
281
RIGHT-HAND DRIVE VERSIONS

286
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
– courtesy lights ................... 83
– front ceiling light ................ 81
– glove compartment light ...... 84
– puddle lights ..................... 84
Changing a wheel ................... 162
Changing bulbs
– exterior lights .................... 177
– interior lights ..................... 182
Checking liquid
levels .............208-209-210-211
Child safety lock ..................... 96
Child seat (compliance for use) .. 141
Child seat assembly
“Universal model” ................ 139
Cigar lighter............................ 90
Cleaning and maintenance
– bodywork ......................... 221
– engine compartment ........... 222
– interiors ............................ 223
– leather upholstery .............. 224
– plastic parts........................ 223– seats................................. 223
– windows............................ 222
Climate control system ............. 57
– air vents .....................57-58
Climatic comfort ..................... 59
Clutch .................................... 230
CO
2emissions ......................... 245
CODE card ............................. 41
Control buttons ....................... 23
Controls................................. 85
Courtesy lights ........................ 76
Cruise Control ......................... 79
D.R.L. (Daytime Running Lights) 74
Dashboard............................. 3
Dimensions of the car .............. 236
Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74
Direction indicators
– bulb replacement........... 178-179
– control............................... 75
Direction indicators
– bulb replacement ................ 178
– control............................... 75
Display
– Multifunction display ........... 20
– Reconfigurable multifunction
display ............................. 21
Door locks ............................. 86
Doors..................................... 95
– child safety lock ................. 95
– emergency rear door
locking device .................... 97
– remote locking/unlocking ... 95
DPF (Diesel Particulate Filter) ... 129
DST system............................. 112
