2012 Alfa Romeo Giulietta buttons

Switching on
Switching off
Volume adjustment
Selection of radio source FM1, FM2, FM Autostore
Selection of radio source MW
Selection of CD/Media Player source (only with Blue&Me™)/
AUX (only with Blue&Me™) (for versions/markets,
where provided)
Volume on/off (MUTE/PAUSE)
Audio adjustments: low tones (BASS), high tones (TREBLE),
left/right balance (BALANCE), front/rear balance (FADER)
Advanced functions adjustmentShort button press
Short button press
Left/right rotation of left knob
Short cyclical button press
Short cyclical button press
Short cyclical button press
Short button press
Menu activation: short button press
Selection of type of adjustment: pressing buttons
or
Adjustment of values: pressing buttons or
Menu activation: short button press
Selection of type of adjustment: pressing buttons
or
Adjustment of values: pressing buttons or
252
SOUND SYSTEM
GENERAL FUNCTIONS MODEBUTTON
(fig. 1)
g
A(fig. 1)
FMAS
AM
MEDIA
MUTE
O
MENU

253
SOUND SYSTEM
Short button press
Short press buttons
or
Hold down buttons or
Short press buttons or
Automatic search: press buttons or
(hold down for fast forward)
Manual search: press buttons
or
(hold down for fast forward)
Hold down the respective buttons for preset
memories 1 to 6
Briefly press the respective buttons for preset
memories 1 to 6
Radio station search:
•Automatic search
•Manual search
Storing current radio station
Stored station recall
RADIO FUNCTIONS MODE
CD FUNCTIONS MODE
Eject CD
Play previous/next track
CD track fast forward/rewind
Play previous/next folder (for CD-MP3)
MODE
Short button press
Short button pressSelecting previous/next folder/artist/genre/album
depending on selected selection mode
Play previous/next track
BUTTON
(fig. 1)



1 2 3 4 5 6
BUTTON
(fig. 1)


BUTTON
(fig. 1)
˚


Media Player FUNCTIONS
(only with Blue&Me
™)

AUDIO ADJUSTMENTS
The functions in the audio menu differ ac-
cording to the activated source: AM/ FM/
CD/Media Player (only with Blue&Me
™)/
AUX (only with Blue&Me
™) (for ver-
sions/markets, where provided).
Press the
Obutton briefly to change the
Audio functions. After the
Obutton is first
pressed, the display will show the bass lev-
el value for the source activated at that time
(e.g. in FM mode the display will show “FM
Bass + 2”).
To scroll through the Menu functions use but-
tons
or. To change the setting of the
selected function, use buttons
or.
The current status of the function selected
will be shown on the display.The functions managed by the Menu are:
❍BASS (bass adjustment);
❍TREBLE (treble adjustment);
❍BALANCE (right/left balance adjust-
ment);
❍FADER (front/rear balance adjustment);
❍LOUDNESS (excluding versions with
Bose HI-FI system) (activation/deacti-
vation of LOUDNESS function);
❍EQUALIZER (excluding versions with
Bose HI-FI system) (activation and se-
lection of equalizer factory settings);
❍USER EQUALISER (excluding versions
with Bose HI-FI Bose) (personalised
equalizer settings).
MUTE/PAUSE FUNCTION
(zeroing the volume)
Press the MUTE button briefly to activate the
Mute function. The volume will gradually de-
crease and the words “RADIO Mute” will ap-
pear on the display (in radio mode) or
“PAUSE” (in CD mode).
Press the MUTE button again to deactivate
the Mute function. The volume will gradual-
ly increase until it reaches the level set pre-
viously.
When the volume is changed using the ded-
icated controls, the Mute function is deacti-
vated and the volume is adjusted to the new
level selected.
With the Mute function activated, it will be
ignored when there is an incoming traffic alert
(if the TA function is activated), or if an emer-
gency alarm is received. The function will be
reactivated when the alert is over.
SOUND SYSTEM
258

BALANCE ADJUSTMENT
Proceed as follows:
❍Use buttons orto set the “Bal-
ance” in the AUDIO menu;
❍press button to increase the sound
from the right speakers or
to increase
the sound from the left speakers.
By pressing the buttons briefly, the levels
will change progressively. By pressing them
for longer, the levels will change quickly.
Select the “
0” value to set the right
and left audio outputs at the same value.
FADER ADJUSTMENT
Proceed as follows:
❍Use buttons orto set the “Fad-
er balance” in the AUDIO menu;
❍press button to increase the sound
coming from the rear speakers or
to
increase the sound coming from the
front speakers.
By pressing the buttons briefly, the levels
will change progressively. By pressing them
for longer, the levels will change quickly.
Select the “
0” value to set the front
and rear audio outputs at the same value.
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❍Use buttons orto set the “Bass”
or “Treble” in the AUDIO menu;
❍press buttons orto increase/
decrease the bass or treble settings.
By pressing the buttons briefly, the levels
will change progressively. By pressing them
for longer, the levels will change quickly.
SOUND SYSTEM
259

EQ function
(activation/deactivation of
equalizer)
(excluding versions with Bose
HI-FI system)
The built-in equalizer can be activated/
deactivated. When the equalizer function
is off, the audio settings can only be
changed by adjusting the bass and treble
settings, whereas when the function is on,
the acoustic curves can be adjusted. To de-
activate the equalizer, select the “EQ OFF”
function using buttons
or.To activate the equalizer, select one of the
following adjustments using buttons
or
:
❍“FM/AM/CD...EQ User” (adjustment
of the 7 equalizer bands that can be
changed by the user);
❍“Classic” (predefined equalizer setting
for optimum playback of classical mu-
sic);
❍“Rock” (predefined equalizer setting for
optimum playback of rock and pop mu-
sic);
❍“Jazz” (predefined equalizer setting for
optimum playback of jazz music).
When one of the equalizer adjustments is
activated the letters “EQ” light up.
LOUDNESS FUNCTION
(excluding versions with Bose
HI-FI system)
The Loudness function improves the volume
of the sound whilst listening at low volumes,
increasing the bass and treble.
To activate/deactivate the function, select
the Loudness setting on the AUDIO menu us-
ing the
orbuttons. The function sta-
tus (on or off) is shown on the display for
a few seconds by the words Loudness On or
Loudness Off.
SOUND SYSTEM
260

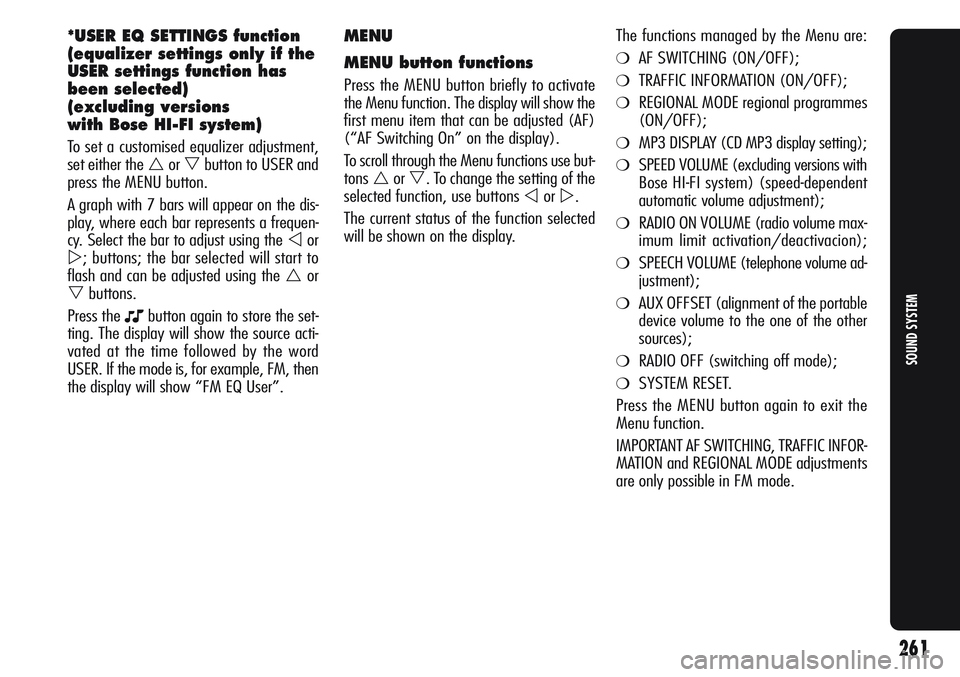

MENU
MENU button functions
Press the MENU button briefly to activate
the Menu function. The display will show the
first menu item that can be adjusted (AF)
(“AF Switching On” on the display).
To scroll through the Menu functions use but-
tons
or. To change the setting of the
selected function, use buttons
or.
The current status of the function selected
will be shown on the display.The functions managed by the Menu are:
❍AF SWITCHING (ON/OFF);
❍TRAFFIC INFORMATION (ON/OFF);
❍REGIONAL MODE regional programmes
(ON/OFF);
❍MP3 DISPLAY (CD MP3 display setting);
❍SPEED VOLUME (excluding versions with
Bose HI-FI system) (speed-dependent
automatic volume adjustment);
❍RADIO ON VOLUME (radio volume max-
imum limit activation/deactivacion);
❍SPEECH VOLUME (telephone volume ad-
justment);
❍AUX OFFSET (alignment of the portable
device volume to the one of the other
sources);
❍RADIO OFF (switching off mode);
❍SYSTEM RESET.
Press the MENU button again to exit the
Menu function.
IMPORTANT AF SWITCHING, TRAFFIC INFOR-
MATION and REGIONAL MODE adjustments
are only possible in FM mode.
*USER EQ SETTINGS function
(equalizer settings only if the
USER settings function has
been selected)
(excluding versions
with Bose HI-FI system)
To set a customised equalizer adjustment,
set either the
orbutton to USER and
press the MENU button.
A graph with 7 bars will appear on the dis-
play, where each bar represents a frequen-
cy. Select the bar to adjust using the
or
; buttons; the bar selected will start to
flash and can be adjusted using the
or
buttons.
Press the
Obutton again to store the set-
ting. The display will show the source acti-
vated at the time followed by the word
USER. If the mode is, for example, FM, then
the display will show “FM EQ User”.
SOUND SYSTEM
261

With the function activated, the radio auto-
matically tunes into the station with the
strongest signal broadcasting the same pro-
gram. In this way when driving you can con-
tinue listening to the same station without
having to change the frequency when you
change areas.
Obviously, it must be possible to receive the
station that you are listening to in the area
you are driving through.
If the AF function is activated, “AF” will light
up in the display.
If the AF function has been activated and
the radio is no longer capable of receiving
the station tuned into, the radio will activate
the automatic search during which the dis-
play will show “FM Search” (only for the
high end radio).With the AF function deactivated, the re-
maining RDS functions such as the display
of the name of the radio station continue to
remain activated.
The AF function can only be activated on FM
bands.AF SWITCHING function
(alternative frequency
search)
The radio can operate in two different modes
in the RDS system:
❍“AF Switching On”: search for alterna-
tive frequencies activated (the letters
“AF” appear on the display);
❍“AF Switching Off”: search for alterna-
tive frequencies not activated.
Proceed as follows to switch the function
on/off:
❍press the MENU button and select “AF
Switching On”;
❍press the /buttons to switch the
function on/off.
SOUND SYSTEM
262

TRAFFIC INFORMATION
function (traffic information)
Some stations on the FM band (FM1, FM2
and FMA) can transmit information about
traffic conditions. In this case the letters “TA”
will appear on the display.
Proceed as follows to switch the TA function
on/off:
❍briefly press the MENU button and se-
lect “Traffic Info”;
❍press buttons /to switch the
function on/off.
If the TA function is activated, “TA” will light
up on the display.
IMPORTANT If the TA function is activated
with an audio source other than Tuner (Ra-
dio) (CD, MP3, Telephone or Mute/Pause),
the radio can carry out an automatic search
and therefore it is possible, when reactivat-
ing the Tuner (Radio) source, that the fre-
quency tuned into will be different from the
one set previously.With the TA function it is possible to:
❍search only for RDS stations that trans-
mit on the FM band, which are enabled
to transmit traffic information;
❍receive traffic information even if the CD
player is on;
❍receive traffic information at a minimum
preset volume even with the radio vol-
ume off.
IMPORTANT In some countries there are ra-
dio stations that do not broadcast traffic in-
formation even with the TP function acti-
vated (“TP” in the display).
If the radio is working on the AM band,
when the TA function is activated it will
switch to the last station tuned into on the
FM1 band. The volume at which the traffic news is trans-
mitted depends on the listening volume:
❍listening volume below 5: traffic news
volume 5 (fixed value);
❍listening volume above 5: traffic news
volume equal to listening volume +1.
If the volume is changed during a traffic up-
date, the level will not be shown on the dis-
play; the new level will only be maintained
during the update.
The display will show the words TRAFFIC IN-
FORMATION whilst a traffic update is being
received.
The TA function can be interrupted by press-
ing any button on the car radio.
SOUND SYSTEM
263
