EBU23386Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas-
ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the gasket for damage, and replace it if
necessary.
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
U1P066E0.book Page 18 Thursday, August 5, 2010 4:15 PM

8-19
8To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the final gear case guard by remov-
ing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt, the final
gear oil drain bolt, and their gasket to drain the
oil from the final gear case.5. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00421]
1. Final gear case guard
2. Bolt
1. Final gear oil drain bolt
2. GasketTightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
1
2
U1P066E0.book Page 19 Thursday, August 5, 2010 4:15 PM

8-20
8
7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.9. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
10. Install the final gear case guard by installing
the bolts and tightening them to the specified
torque.
EBU23686Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
Tightening torque:
Final gear case guard bolt:
17 Nm (1.7 m·kgf, 12 ft·lbf)
U1P066E0.book Page 20 Thursday, August 5, 2010 4:15 PM

8-21

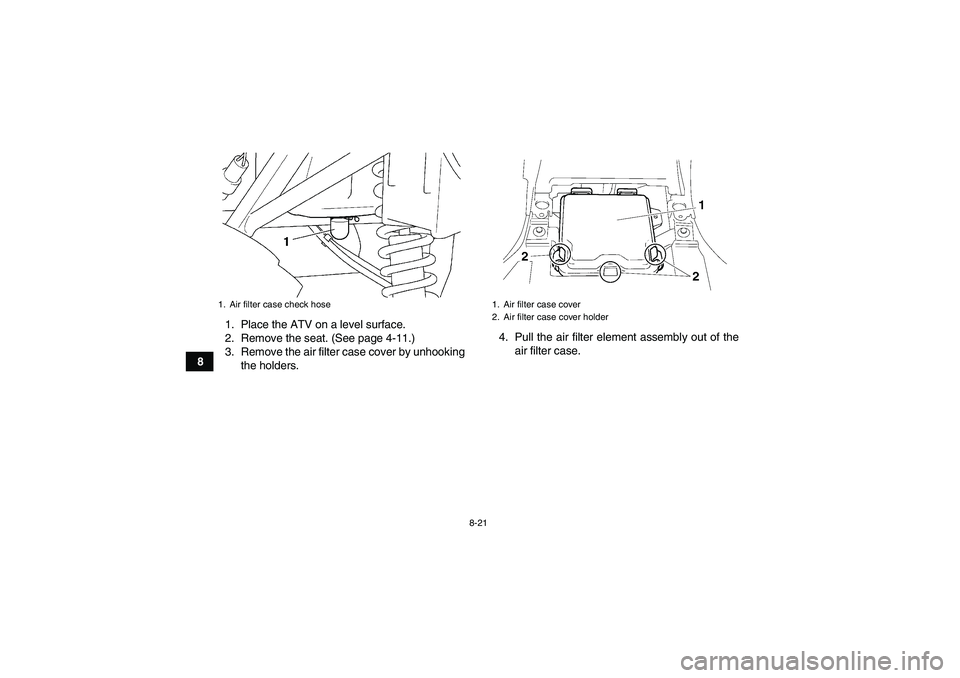

81. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)
3. Remove the air filter case cover by unhooking
the holders.4. Pull the air filter element assembly out of the
air filter case.
1. Air filter case check hose
1. Air filter case cover
2. Air filter case cover holder
U1P066E0.book Page 21 Thursday, August 5, 2010 4:15 PM

8-22

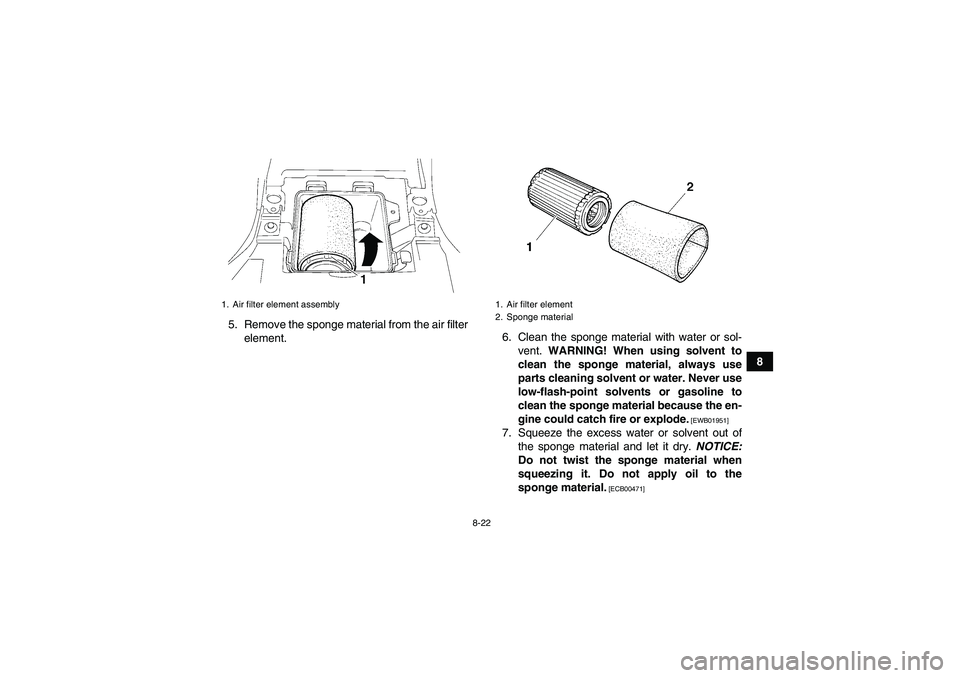

8 5. Remove the sponge material from the air filter
element.6. Clean the sponge material with water or sol-
vent. WARNING! When using solvent to
clean the sponge material, always use
parts cleaning solvent or water. Never use
low-flash-point solvents or gasoline to
clean the sponge material because the en-
gine could catch fire or explode.
[EWB01951]
7. Squeeze the excess water or solvent out of
the sponge material and let it dry. NOTICE:
Do not twist the sponge material when
squeezing it. Do not apply oil to the
sponge material.
[ECB00471]
1. Air filter element assembly
1. Air filter element
2. Sponge material
U1P066E0.book Page 22 Thursday, August 5, 2010 4:15 PM

8-23
88. Check the sponge material and replace it if
damaged.
9. Tap the air filter element lightly to remove
most of the dust and dirt. Blow out the remain-
ing dirt with compressed air as shown. If the
air filter element is damaged, replace it.10. Pull the sponge material over the air filter ele-
ment.
11. Insert the air filter element assembly into the
air filter case, and then install the air filter case
cover by hooking the holders. NOTICE: Make
sure that the air filter element is properly
seated in the air filter case. Never operate
the engine with the air filter element re-
moved. This will allow unfiltered air to en-
ter the engine, causing rapid engine wear
and possible engine damage. Additionally,
operation without the air filter element will
affect carburetor jetting with subsequent
poor performance and possible engine
overheating.
[ECB00461]
U1P066E0.book Page 23 Thursday, August 5, 2010 4:15 PM

8-24
8 12. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned more often if the
ATV is operated in extremely dusty areas. Each
time the air filter element maintenance is per-
formed, check the air inlet of the air filter case for
obstructions. Check the air filter case rubber joint
to the carburetor fittings and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-
tering the engine.EBU27082Cleaning the spark arrester Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolts.2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Tailpipe bolt
2. Tailpipe
U1P066E0.book Page 24 Thursday, August 5, 2010 4:15 PM

8-25
84. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install the tailpipe bolts and tighten them to the
specified torque.
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components.EBU23940Adjusting the carburetor The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.
1. Tailpipe
2. Spark arresterTightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
