WARNING

EWB02571
Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.
EBU29821

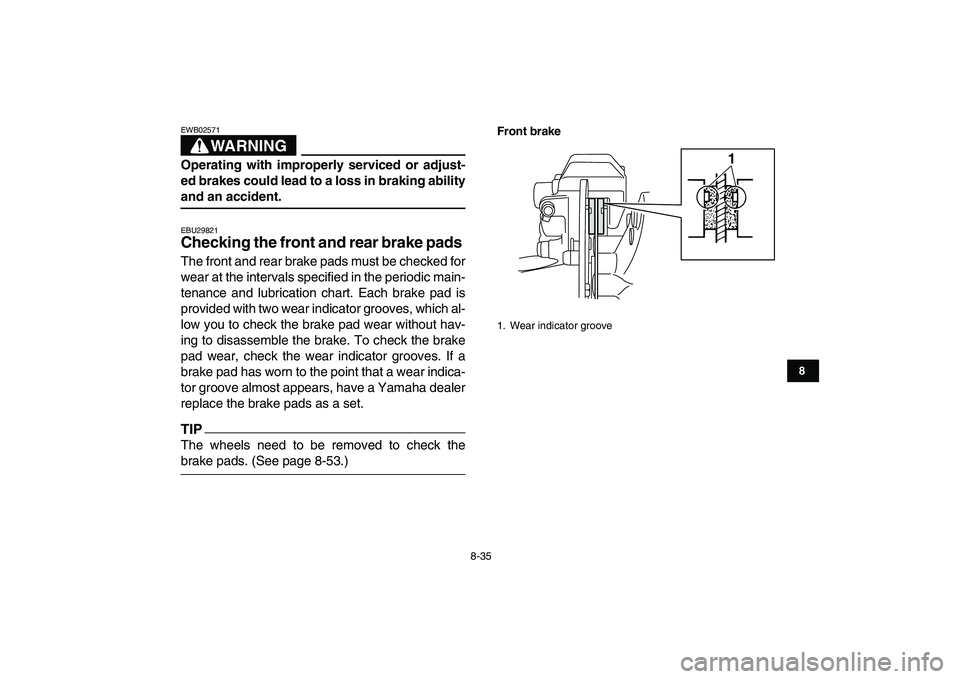

Checking the front and rear brake pads
The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart. Each brake pad is
provided with two wear indicator grooves, which al-
low you to check the brake pad wear without hav-
ing to disassemble the brake. To check the brake
pad wear, check the wear indicator grooves. If a
brake pad has worn to the point that a wear indica-
tor groove almost appears, have a Yamaha dealer
replace the brake pads as a set.
TIP

The wheels need to be removed to check the
brake pads. (See page 8-53.)
Front brake
1. Wear indicator groove
1

8-36
1
2
3
4
5
6
78
9
10
11

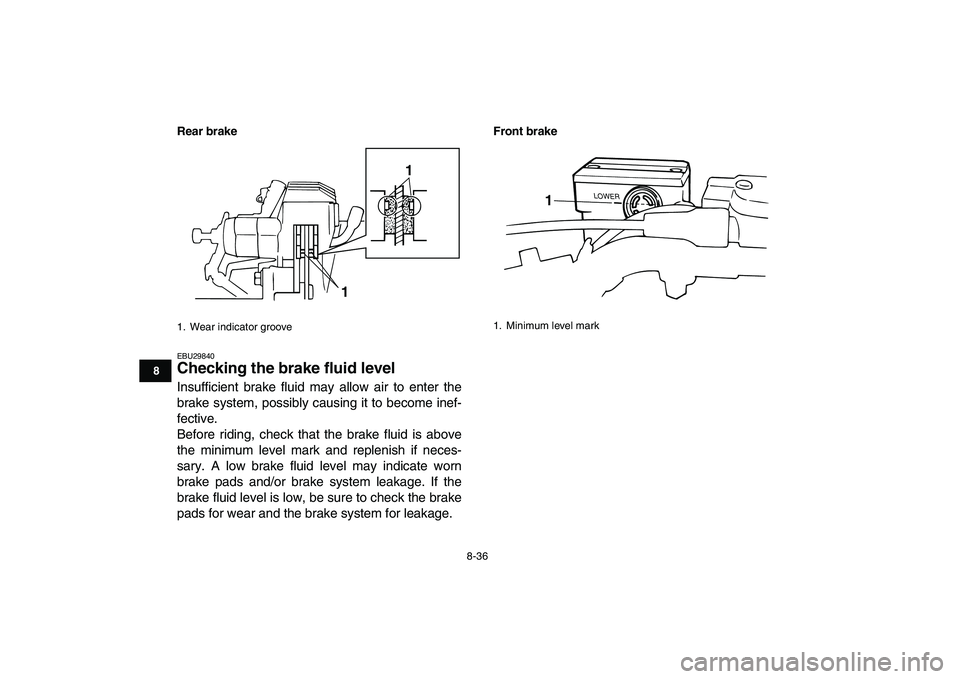

Rear brake

EBU29840
Checking the brake fluid level
Insufficient brake fluid may allow air to enter the
brake system, possibly causing it to become inef-
fective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Front brake
1. Wear indicator groove
11

1. Minimum level mark
LOWER
1

8-37
1
2
3
4
5
6
78
9
10
11
Rear brake

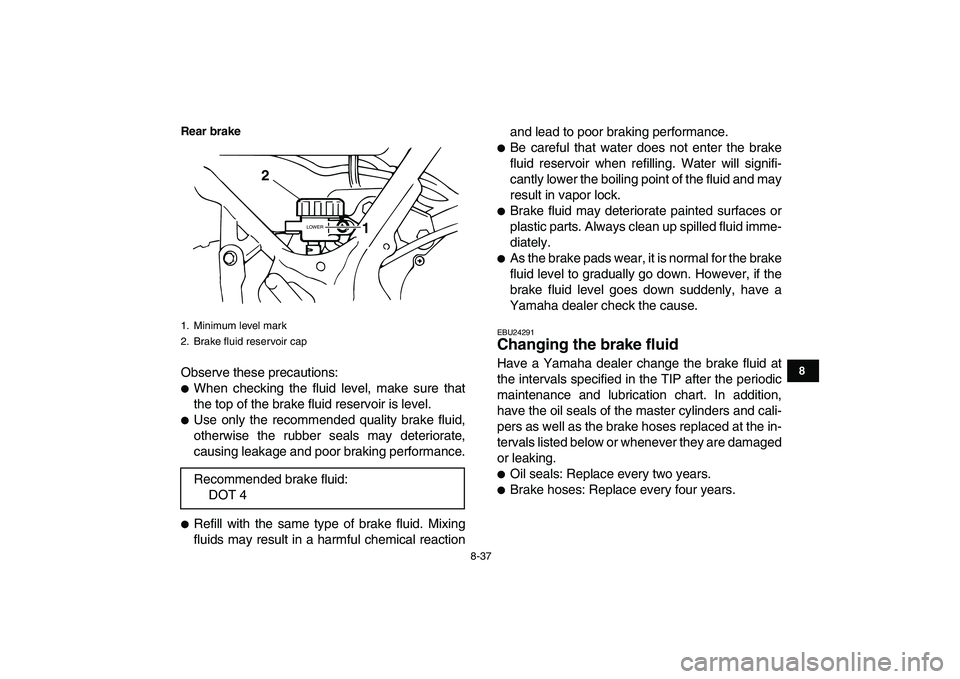

Observe these precautions:

When checking the fluid level, make sure that
the top of the brake fluid reservoir is level.

Use only the recommended quality brake fluid,
otherwise the rubber seals may deteriorate,
causing leakage and poor braking performance.

Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reactionand lead to poor braking performance.

Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.

Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.

As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a
Yamaha dealer check the cause.
EBU24291
Changing the brake fluid
Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.

Oil seals: Replace every two years.

Brake hoses: Replace every four years.
1. Minimum level mark
2. Brake fluid reservoir cap
Recommended brake fluid:
DOT 4
LOWER
1 2

8-38
1
2
3
4
5
6
78
9
10
11

EBU24394

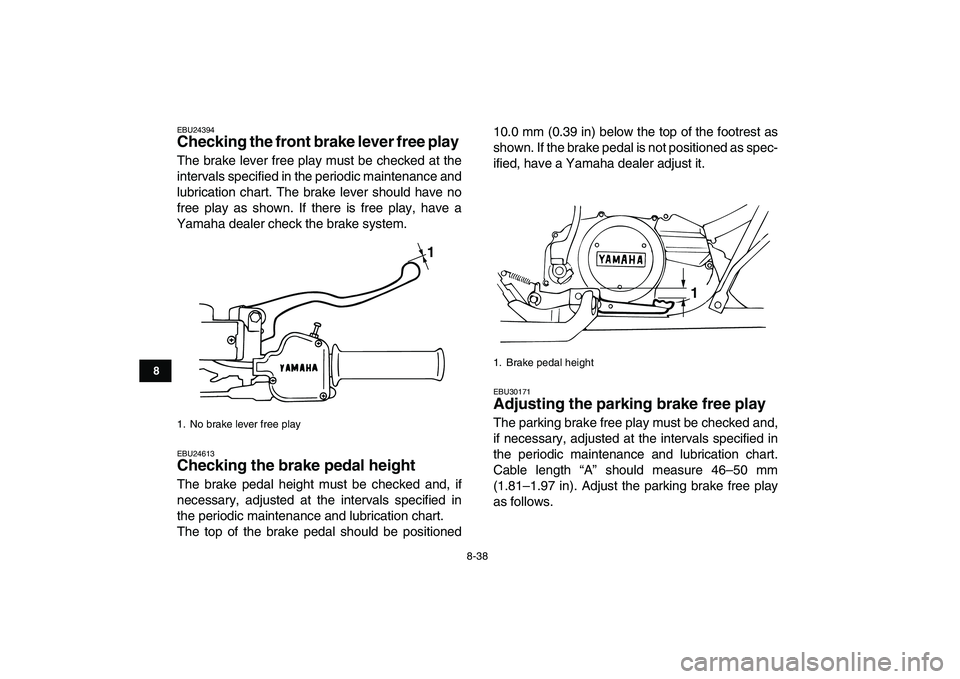

Checking the front brake lever free play
The brake lever free play must be checked at the
intervals specified in the periodic maintenance and
lubrication chart. The brake lever should have no
free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
EBU24613
Checking the brake pedal height
The brake pedal height must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned10.0 mm (0.39 in) below the top of the footrest as
shown. If the brake pedal is not positioned as spec-
ified, have a Yamaha dealer adjust it.
EBU30171
Adjusting the parking brake free play
The parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Cable length “A” should measure 46–50 mm
(1.81–1.97 in). Adjust the parking brake free play
as follows.
1. No brake lever free play
1

1. Brake pedal height
1

8-39
1
2
3
4
5
6
78
9
10
11

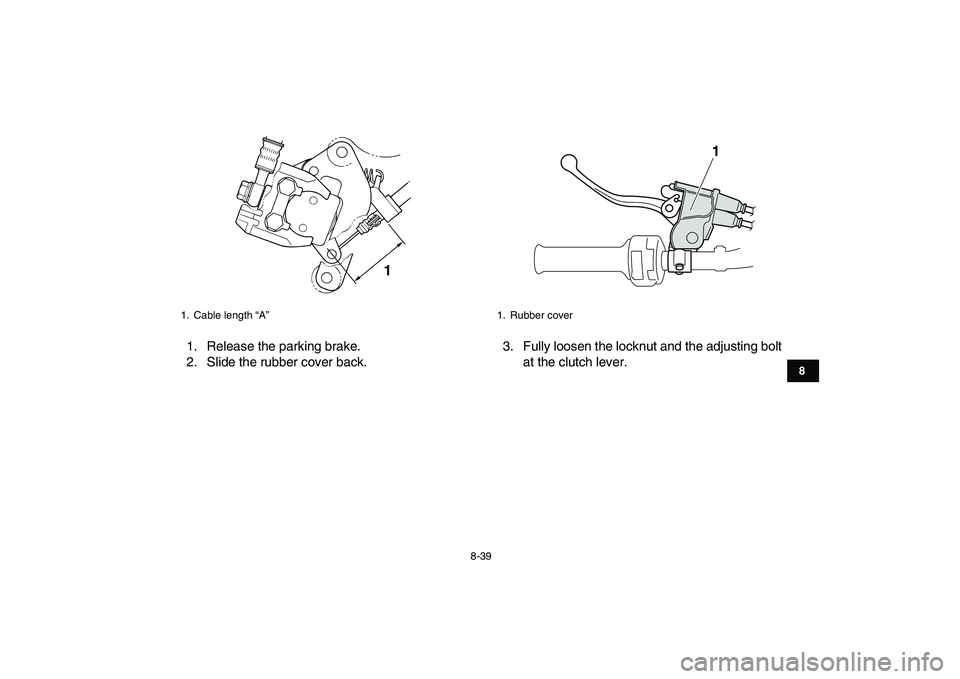

1. Release the parking brake.
2. Slide the rubber cover back.3. Fully loosen the locknut and the adjusting bolt
at the clutch lever.
1. Cable length “A”
1

1. Rubber cover
1

8-40
1
2
3
4
5
6
78
9
10
11

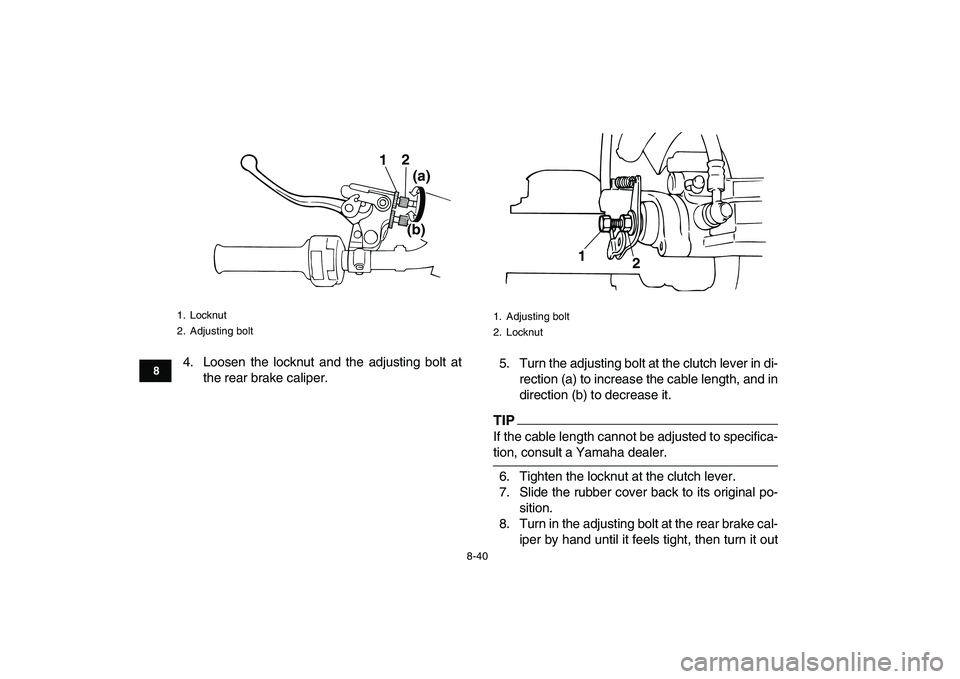

4. Loosen the locknut and the adjusting bolt at
the rear brake caliper.5. Turn the adjusting bolt at the clutch lever in di-
rection (a) to increase the cable length, and in
direction (b) to decrease it.TIP
If the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.
6. Tighten the locknut at the clutch lever.
7. Slide the rubber cover back to its original po-
sition.
8. Turn in the adjusting bolt at the rear brake cal-
iper by hand until it feels tight, then turn it out
1. Locknut
2. Adjusting bolt
12
(a)
(b)

1. Adjusting bolt
2. Locknut
1
2

8-41
1
2
3
4
5
6
78
9
10
11

1/8 turn and tighten its locknut to the specified
torque.
NOTICE:
When tightening the lock-
nut, hold the adjusting bolt with a wrench
so that it does not turn together with the
locknut.
[ECB00521]

WARNING

EWB02090
Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.
EBU24742
Brake light switches
The brake light, which is activated by the brake
pedal and brake lever, should come on just beforebraking takes effect.
The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light switch
should be adjusted by a Yamaha dealer.
Turn the adjusting nut while holding the brake light
switch in place. To make the brake light come on
earlier, turn the adjusting nut in direction (a). To
make the brake light come on later, turn the adjust-
ing nut in direction (b).
EBU24812
Adjusting the clutch lever free play
The clutch lever free play must be checked and, if Tightening torque:
Locknut (rear brake caliper):
16 Nm (1.6 m·kgf, 12 ft·lbf)
1. Brake light switch
2. Rear brake light switch adjusting nut
1
2
(a)
(b)

8-42
1
2
3
4
5
6
78
9
10
11

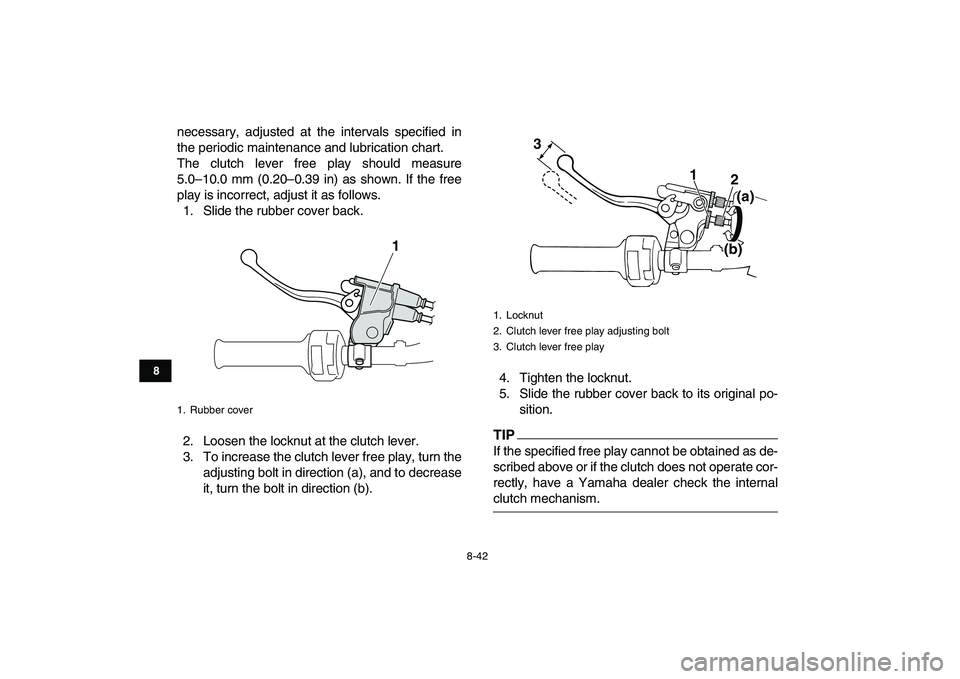

necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The clutch lever free play should measure
5.0–10.0 mm (0.20–0.39 in) as shown. If the free
play is incorrect, adjust it as follows.
1. Slide the rubber cover back.
2. Loosen the locknut at the clutch lever.
3. To increase the clutch lever free play, turn the
adjusting bolt in direction (a), and to decrease
it, turn the bolt in direction (b).4. Tighten the locknut.
5. Slide the rubber cover back to its original po-
sition.TIP
If the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-
rectly, have a Yamaha dealer check the internal
clutch mechanism.
1. Rubber cover
1

1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
1
2 3
(a)
(b)
