461 5-2. Steps to take in an emergency
When trouble arises

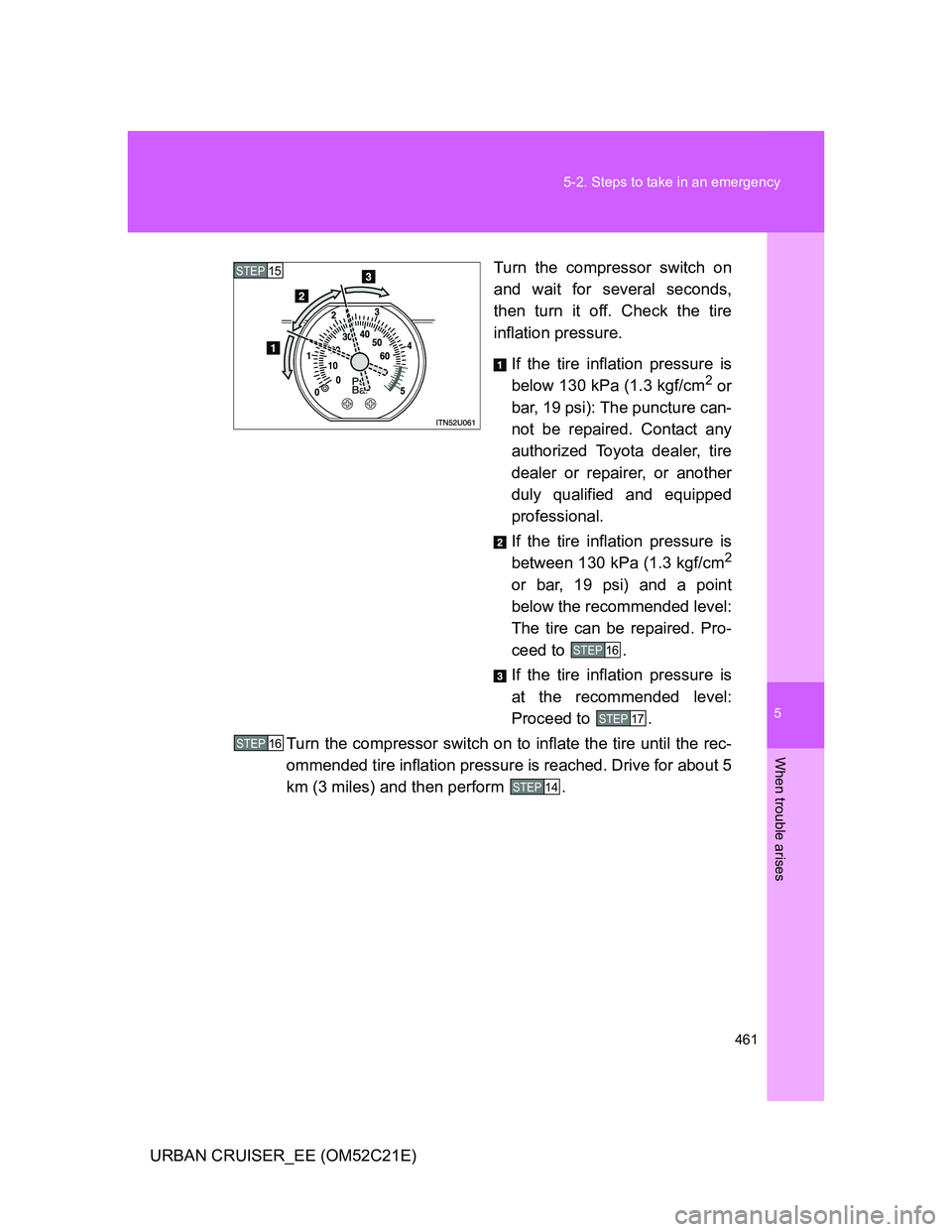

URBAN CRUISER_EE (OM52C21E)Turn the compressor switch on
and wait for several seconds,
then turn it off. Check the tire
inflation pressure.
If the tire inflation pressure is
below 130 kPa (1.3 kgf/cm
2 or
bar, 19 psi): The puncture can-
not be repaired. Contact any
authorized Toyota dealer, tire
dealer or repairer, or another
duly qualified and equipped
professional.
If the tire inflation pressure is
between 130 kPa (1.3 kgf/cm
2
or bar, 19 psi) and a point
below the recommended level:
The tire can be repaired. Pro-
ceed to .
If the tire inflation pressure is
at the recommended level:
Proceed to .
Turn the compressor switch on to inflate the tire until the rec-
ommended tire inflation pressure is reached. Drive for about 5
km (3 miles) and then perform .
STEP15
STEP16
STEP17
STEP16
STEP14

462 5-2. Steps to take in an emergency

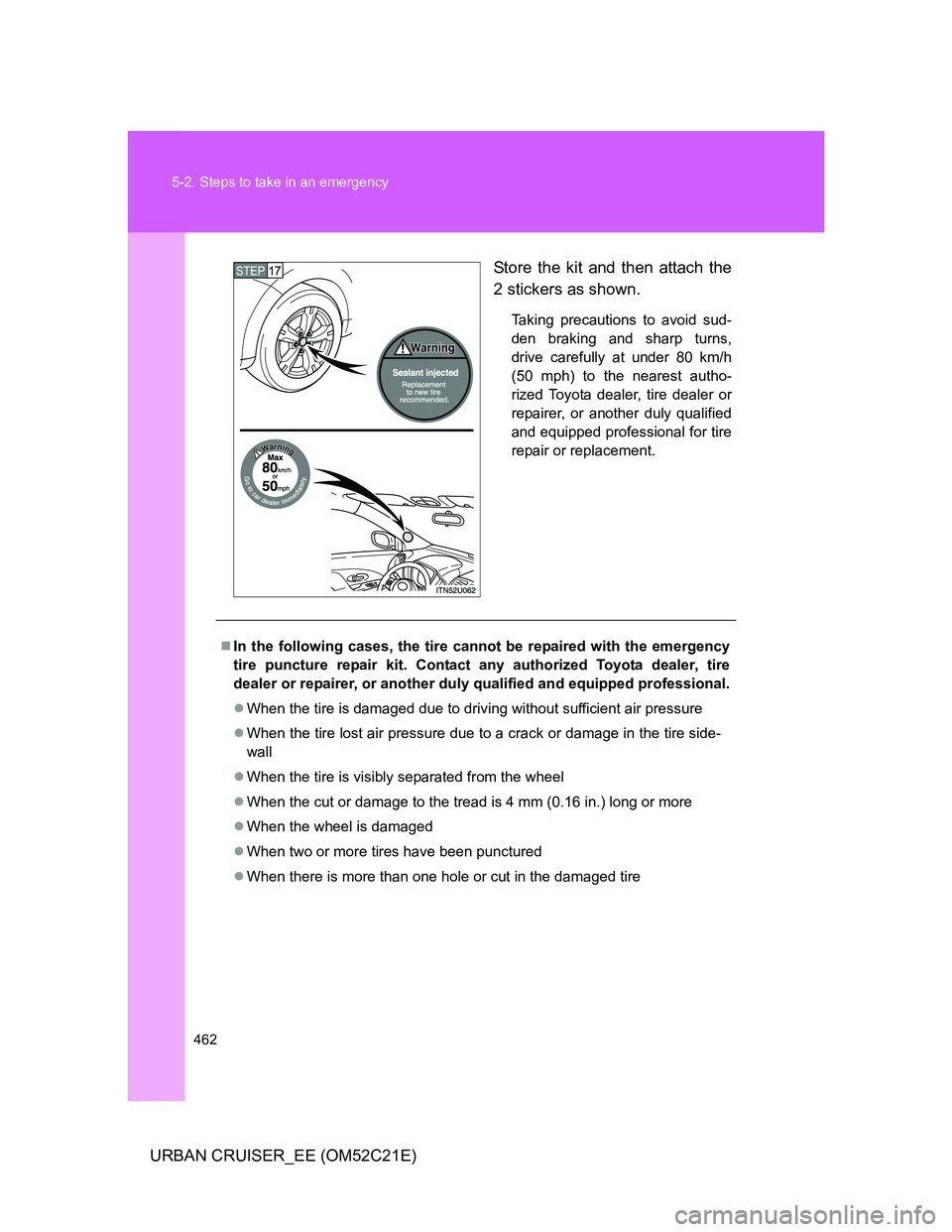

URBAN CRUISER_EE (OM52C21E)Store the kit and then attach the
2 stickers as shown.
Taking precautions to avoid sud-
den braking and sharp turns,
drive carefully at under 80 km/h
(50 mph) to the nearest autho-
rized Toyota dealer, tire dealer or
repairer, or another duly qualified
and equipped professional for tire
repair or replacement.
STEP17
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer, tire
dealer or repairer, or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When the tire lost air pressure due to a crack or damage in the tire side-
wall
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When there is more than one hole or cut in the damaged tire

464 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

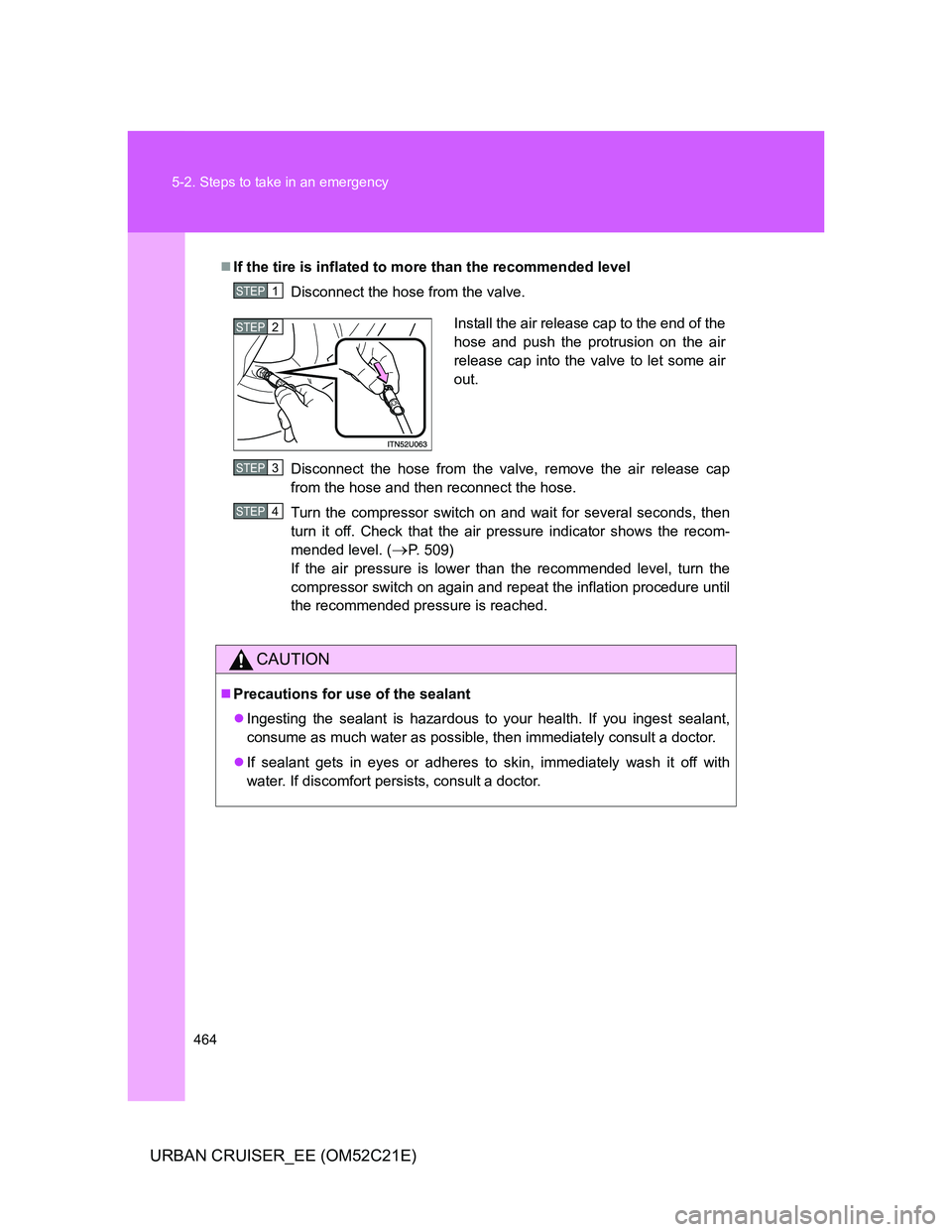

If the tire is inflated to more than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap
from the hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, then
turn it off. Check that the air pressure indicator shows the recom-
mended level. (
P. 509)
If the air pressure is lower than the recommended level, turn the
compressor switch on again and repeat the inflation procedure until
the recommended pressure is reached.
CAUTION
Precautions for use of the sealant
Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, then immediately consult a doctor.
If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
STEP1
Install the air release cap to the end of the
hose and push the protrusion on the air
release cap into the valve to let some air
out.STEP2
STEP3
STEP4

5
465 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
CAUTION
When fixing the flat tire
Stop your vehicle in a safe and flat area.
Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur or
sealant may be sprayed out.
If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The kit may overheat if operated for a long period of time. Do not operate
the compressor continuously for more than 10 minutes.
Parts of the kit become hot during operation. Be careful handling the kit
during and after operation.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air
bag from operating properly.

466 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
CAUTION
Driving to spread the liquid sealant evenly
Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm
2
or bar, 19 psi) or below, this may indicate severe tire damage.
NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When performing an emergency repair
Perform the emergency repair without removing the nail or screw that has
punctured the tread of the tire. If the object that has punctured the tire is
removed, repair by the emergency tire puncture repair kit may not be pos-
sible.
The kit is not waterproof. Make sure that the kit is not exposed to water,
such as when it is being used in the rain.
Do not put the kit directly onto dusty ground such as sand at the side of the
road. If the kit vacuums up dust etc., a malfunction may occur.
Use the kit with the top facing upward. The kit cannot work properly if it is
laid on its side.

5
467 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
NOTICE
Handling the emergency tire puncture repair kit
The compressor power source should be 12 V DC suitable for vehicle use.
Do not connect the compressor to any other source.
If gasoline splatters on the kit, the kit may deteriorate. Take care not to
allow gasoline to contact it.
Store the kit in its assigned place out of reach of children.
Do not disassemble or modify the kit. Do not subject parts such as the air
pressure indicator to impacts. This may cause a malfunction.

509 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
Tires and wheels
Standard
Sparse (if equipped)
Tire size 195/60R16 89H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph) or
less230 (2.3, 33) 230 (2.3, 33)
Wheel size 16  6J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT135/70D16 100M, T125/70D17 98M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

525 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Side mirror
Adjusting ................................. 96
Defogger ............................... 262
Folding .................................... 97
Smart entry & start system
Entry function .......................... 35
Starting the engine ................ 179
Spare tire
Inflation pressure .................. 509
Storage location .................... 437
Spark plug ................................ 505
Specifications .......................... 494
Speech command switch
*...... 299
Speedometer ............................ 190
Steering
Adjustment .............................. 93
Column lock release ..... 181, 177
Steering wheel
audio switches .................... 289
Stop lights
Replacing light bulbs ............. 406
Wattage................................. 510
Stop & Start system................. 211
Stop & Start system
off switch................................ 212
Stop & Start system
total operation time ............... 199
Stop & Start system
operation time........................ 199
Storage feature ........................ 322
Storage precautions ................ 224
Stuck
If your vehicle becomes
stuck ................................... 488Sun visors ................................ 328
Switch
Emergency flasher switch ..... 416
Engine switch................ 179, 175
Fog light switch ..................... 205
Hazard lights switch .............. 416
Ignition switch ............... 179, 175
Light switches ....................... 201
Power window switch.............. 99
Rear window wiper and
washer switch ..................... 209
Window lock switch................. 99
Wipers and washer
switch ......................... 207, 209
Tachometer .............................. 190
Tail lights
Switch ................................... 201
Talk switch
*............................. 299
Telephone switch
*.................. 299
Theft deterrent system
Alarm .................................... 118
Engine immobilizer system ... 108
Tire inflation pressure ............. 378
Tires
Chains................................... 229
Checking ............................... 375
If you have a flat tire ..... 437, 452
Inflation pressure .................. 378
Replacing .............................. 437
Rotating tires......................... 375
Size ....................................... 509
Snow tires ............................. 227
Spare tire .............................. 437
Tools ................................. 437, 452
Towing
Emergency towing ................ 418
Trailer towing ........................ 231
T
