2011 TOYOTA TUNDRA Owners Manual

5
When trouble arises
641
5-2. Steps to take in an emergency

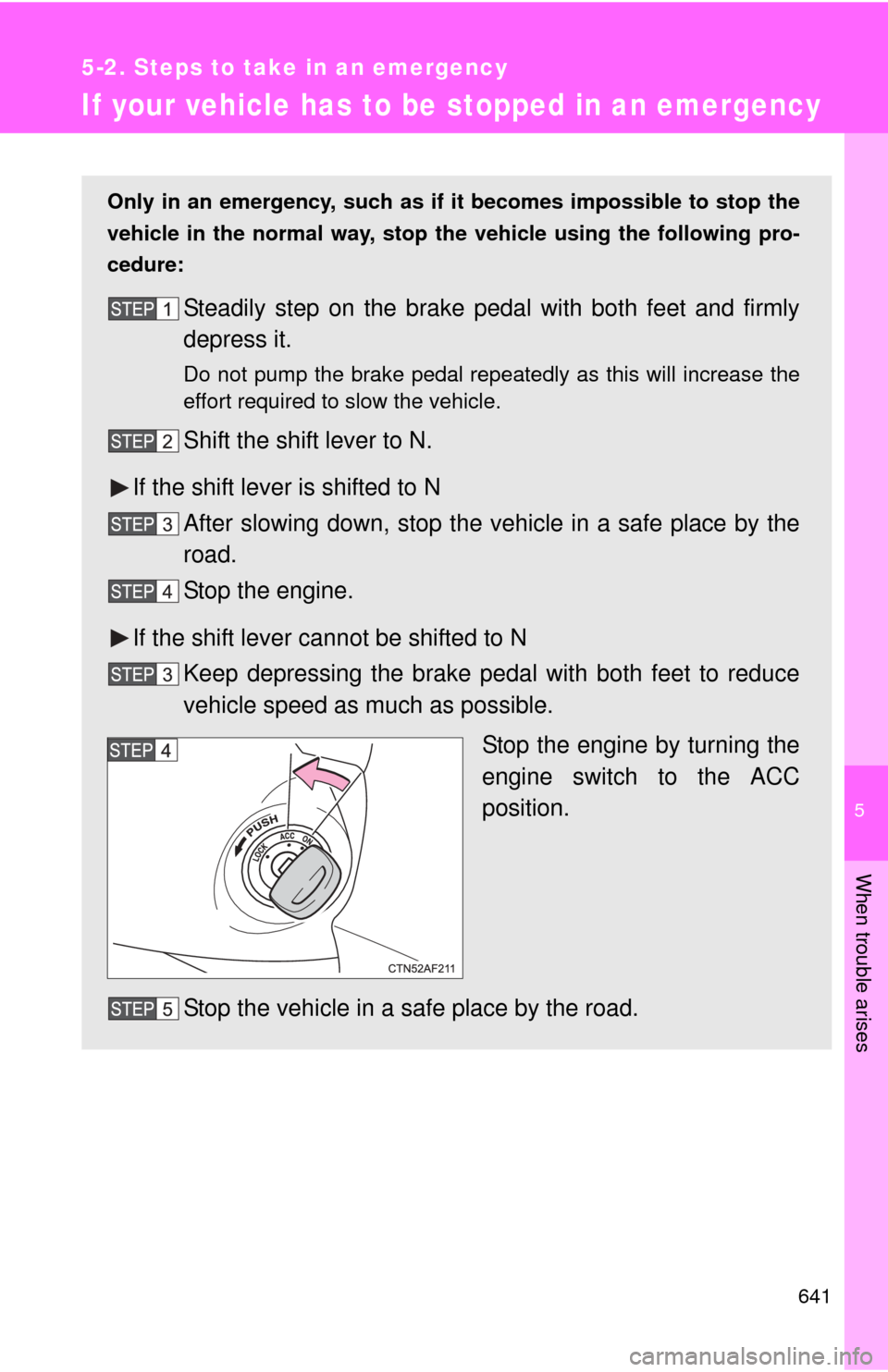

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

642 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

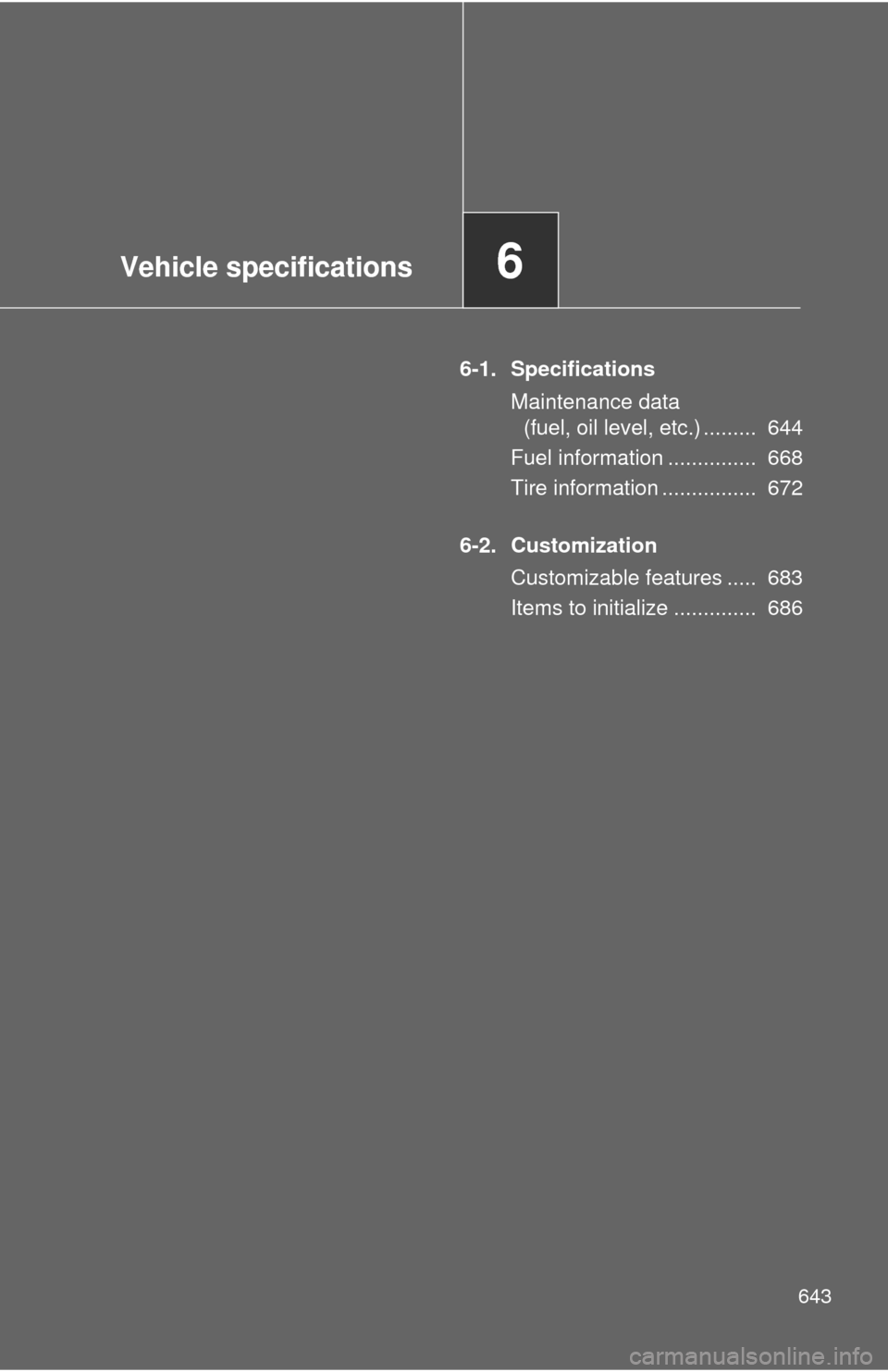

Vehicle specifications6
643
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 644
Fuel information ............... 668
Tire information ................ 672
6-2. Customization Customizable features ..... 683
Items to initialize .............. 686

644
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions2WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type Regular Cab Double Cab
Bed type Standard Long Standard Long
Overall
length210.2 in.
(5340 mm) 229.1 in. (5820 mm) 248.0 in.
(6300 mm)
Overall width 79.9 in. (2030 mm)
Overall
height*1
75.9 in.
(1930 mm)*275.7 in.
(1925 mm)*275.9 in.
(1930 mm)*275.7 in.
(1925 mm)*2
75.7 in.
(1925 mm)*3,*475.5 in.
(1920 mm)*375.7 in.
(1925 mm)*3,*475.5 in.
(1920 mm)*3
Wheelbase 126.7 in.
(3220 mm) 145.6 in. (3700 mm) 164.5 in.
(4180 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

645
6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type
CrewMax
Bed type Short
Overall
length229.1 in. (5820 mm)
Overall width
79.9 in. (2030 mm)
Overall
height*1
75.7 in. (1925 mm)*2
75.5 in. (1920 mm)*3,*4
Wheelbase145.6 in. (3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

646 6-1. Specifications
4WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab typeRegular Cab Double Cab
Bed type Standard Long Standard Long
Overall
length210.2 in.
(5340 mm) 229.1 in. (5820 mm) 248.0 in.
(6300 mm)
Overall width 79.9 in. (2030 mm)
Overall
height*1
76.3 in.
(1940 mm)*276.1 in.
(1935 mm)*276.3 in.
(1940 mm)*276.1 in.
(1935 mm)*2
76.1 in.
(1935 mm)*3,*475.9 in.
(1930 mm)*376.1 in.
(1935 mm)*3,*475.9 in.
(1930 mm)*3
Wheelbase 126.7 in.
(3220 mm) 145.6 in. (3700 mm) 164.5 in.
(4180 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

647
6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type
CrewMax
Bed type Short
Overall length229.1 in. (5820 mm)
Overall width 79.9 in. (2030 mm)
Overall height*176.1 in. (1935 mm)*2
75.9 in. (1930 mm)*3,*4
Wheelbase145.6 in. (3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

648 6-1. Specifications
Vehicle capacity weightRegular Cab models
*1: The model code is indicated on the Certification Label. (P. 654)*2: With towing package*3: Without option
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
GSK50L-TRADKA 4.0L V6
(1GR-FE) engine 2WD
Standard 1485 lb. (670 kg)
GSK51L-THADKA Long 1580 lb. (715 kg)
UPK50L-TRTDKA 4.6L V8
(1UR-FE) engine 2WD Standard 1710 lb. (775 kg)
1635 lb. (740 kg)
*2
USK51L-THTDKA
5.7L V8
(3UR-FE) engine 2WD Long
1960 lb. (885 kg)
1885 lb. (855 kg)*2
2055 lb. (930 kg)*3
USK55L-TRTDKA
4WDStandard
1595 lb. (720 kg)
1520 lb. (685 kg)*2
USK56L-THTDKA Long1895 lb. (855 kg)
1820 lb. (825 kg)*2
USK55L-TRTDGA 5.7L V8
(3UR-FBE) engine 4WDStandard
1595 lb. (720 kg)
1520 lb. (685 kg)*2
USK56L-THTDGA Long1895 lb. (855 kg)
1820 lb. (825 kg)*2
