Replacing light bulbs
■ Headlight high beam
Unplug the connector while
depressing the lock release.

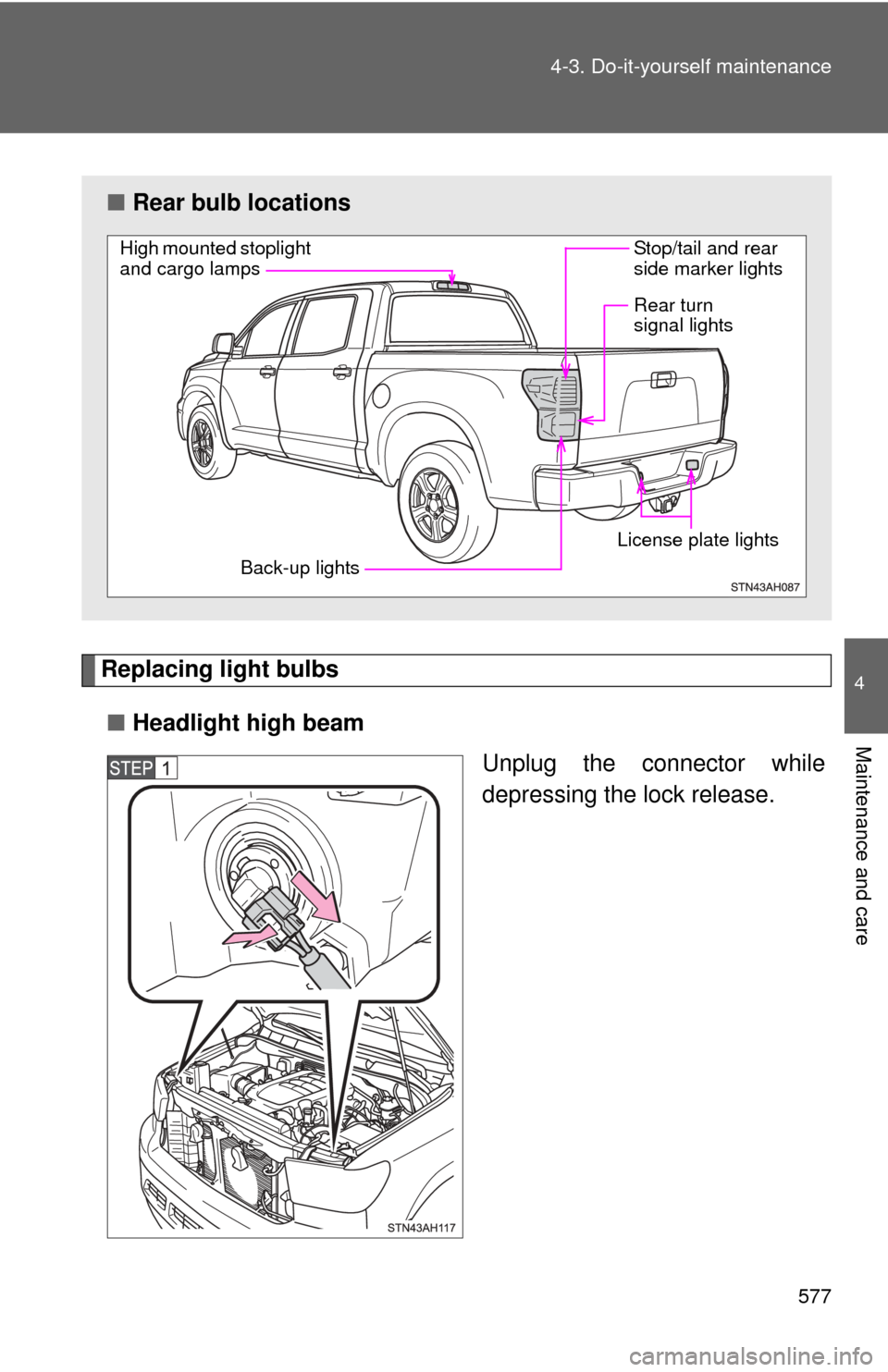

■Rear bulb locations
High mounted stoplight
and cargo lamps
License plate lights
Back-up lights
Rear turn
signal lights Stop/tail and rear
side marker lights

578 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.

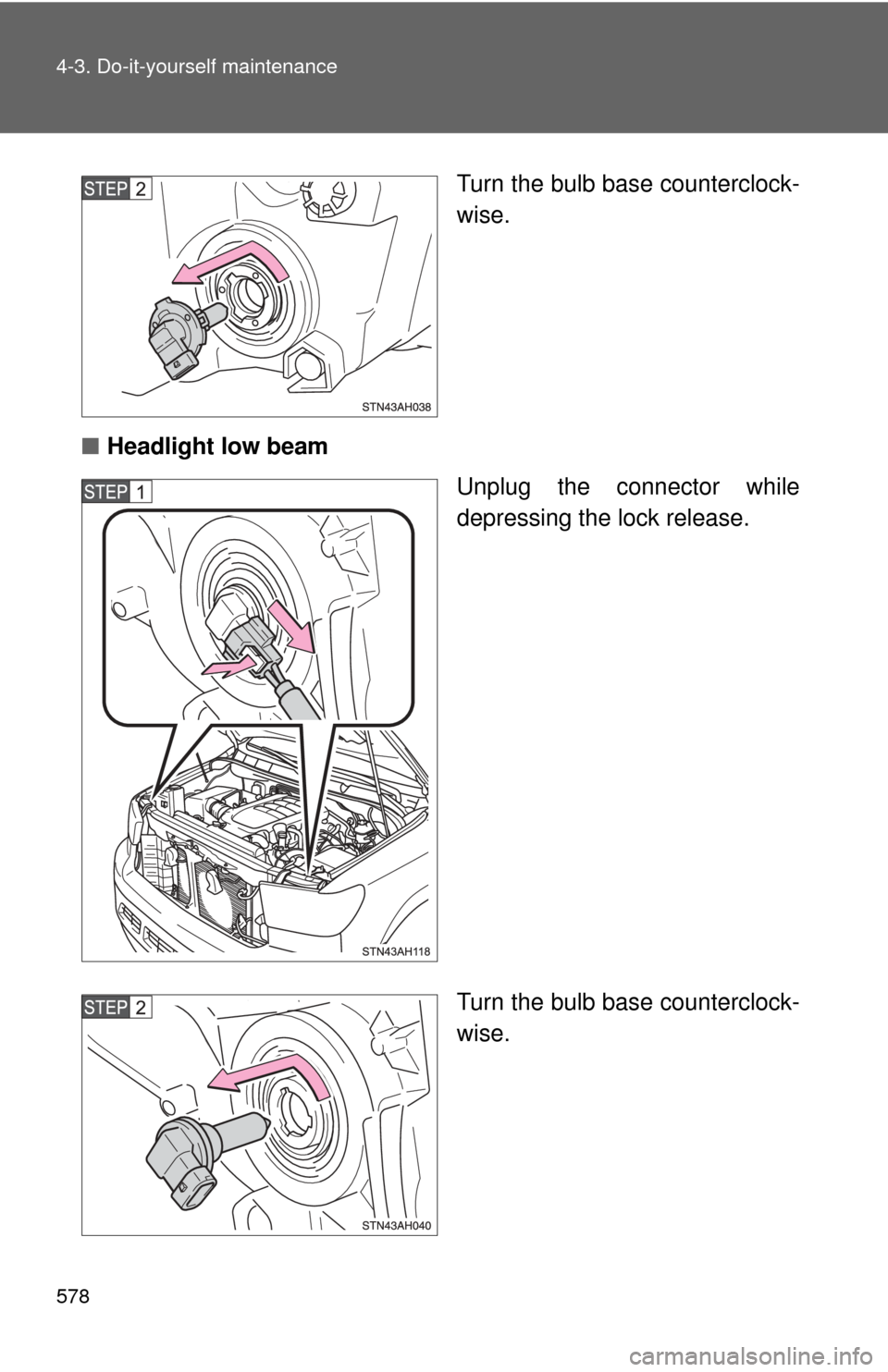

■ Headlight low beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

579
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

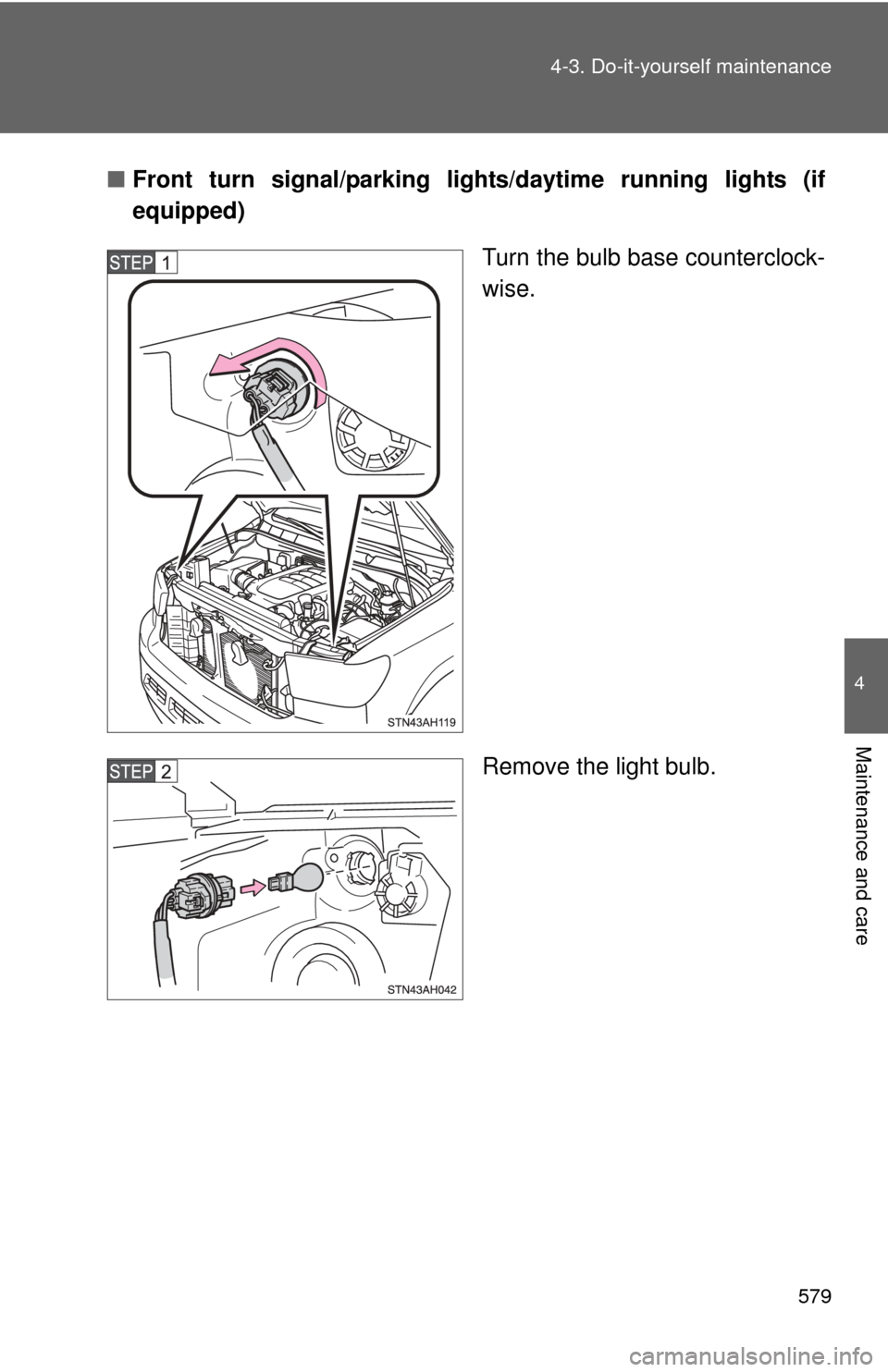

Front turn signal/parking lig hts/daytime running lights (if
equipped)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

580 4-3. Do-it-yourself maintenance
■Front side marker lights
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.

581
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.

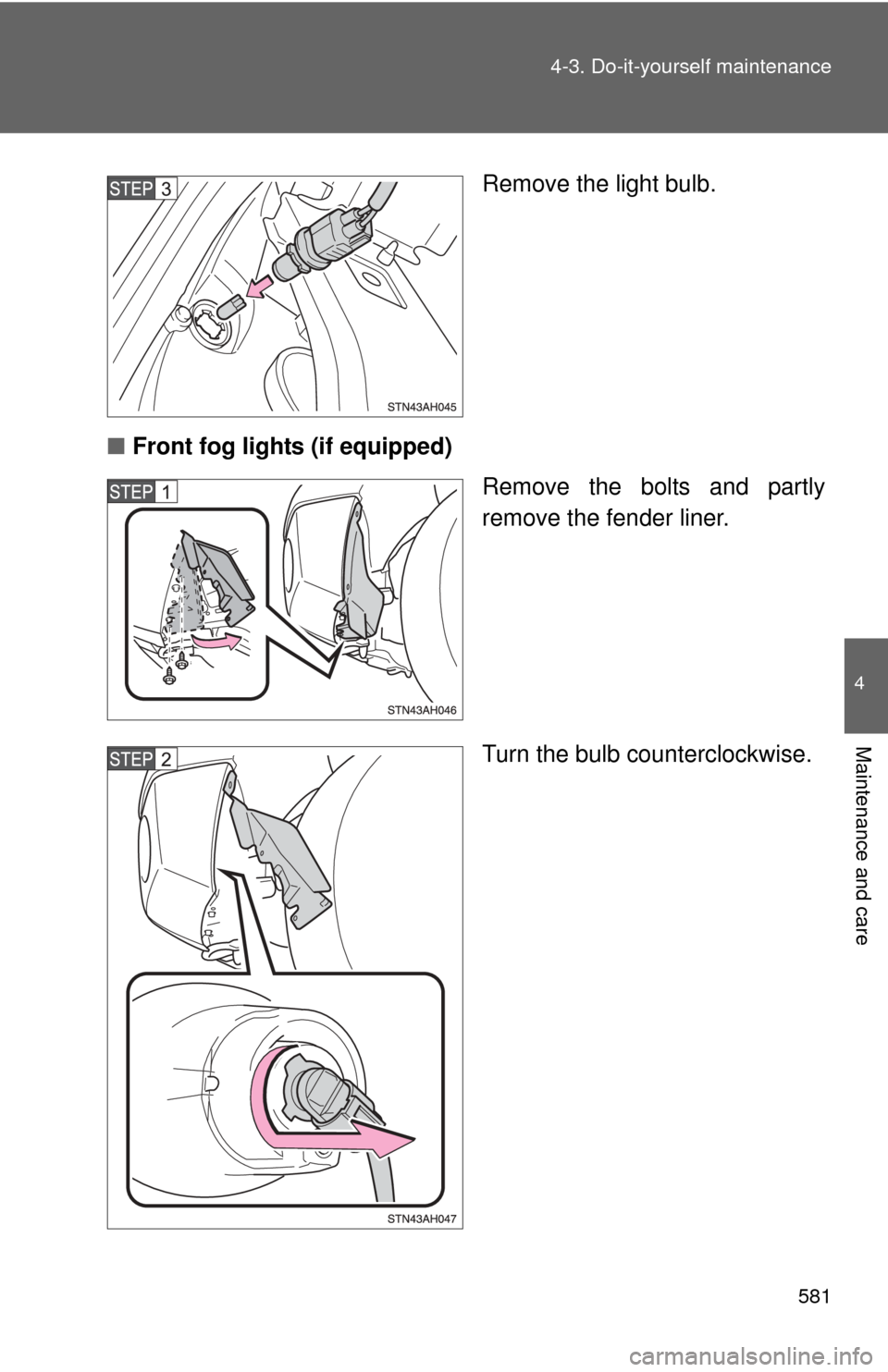

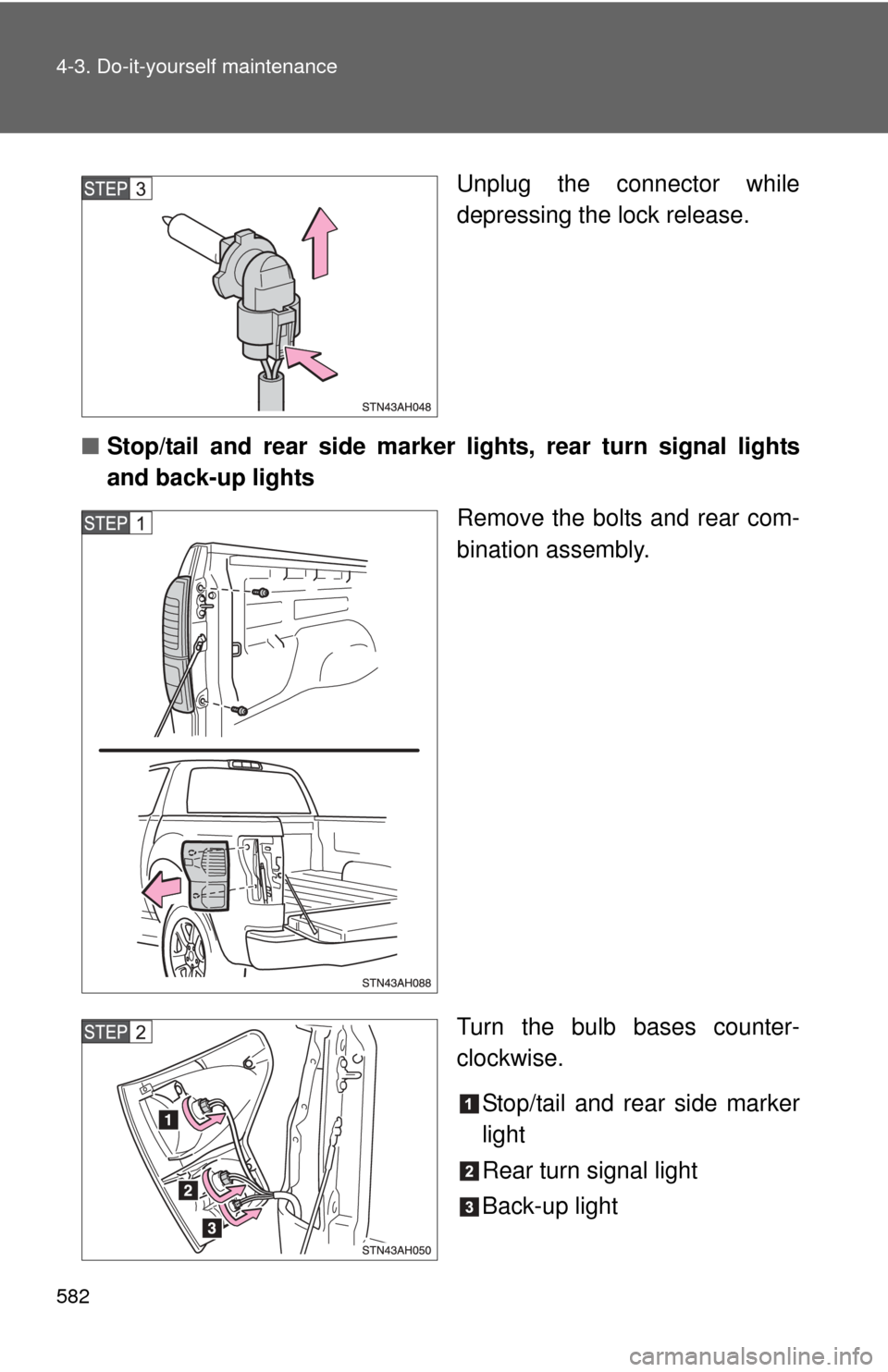

■ Front fog lights (if equipped)
Remove the bolts and partly
remove the fender liner.
Turn the bulb counterclockwise.

582 4-3. Do-it-yourself maintenance
Unplug the connector while
depressing the lock release.
■ Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Remove the bolts and rear com-
bination assembly.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light

583
4-3. Do-it-yourself maintenance
4
Maintenance and care

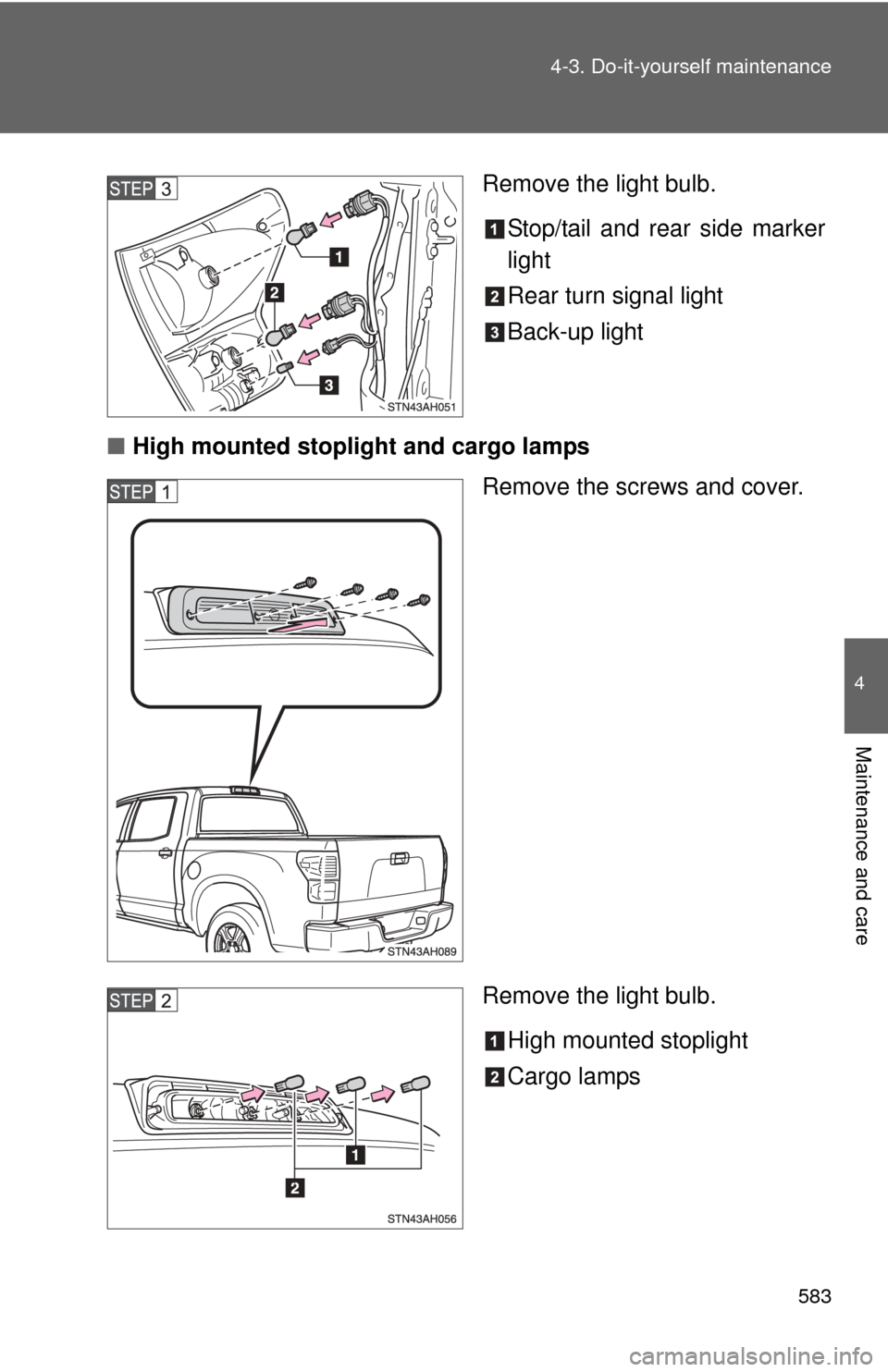

Remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
■ High mounted stoplight and cargo lamps
Remove the screws and cover.
Remove the light bulb.
High mounted stoplight
Cargo lamps

584 4-3. Do-it-yourself maintenance
■License plate lights
Remove the screw and light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
