2011 TOYOTA TUNDRA Owners Manual

89
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

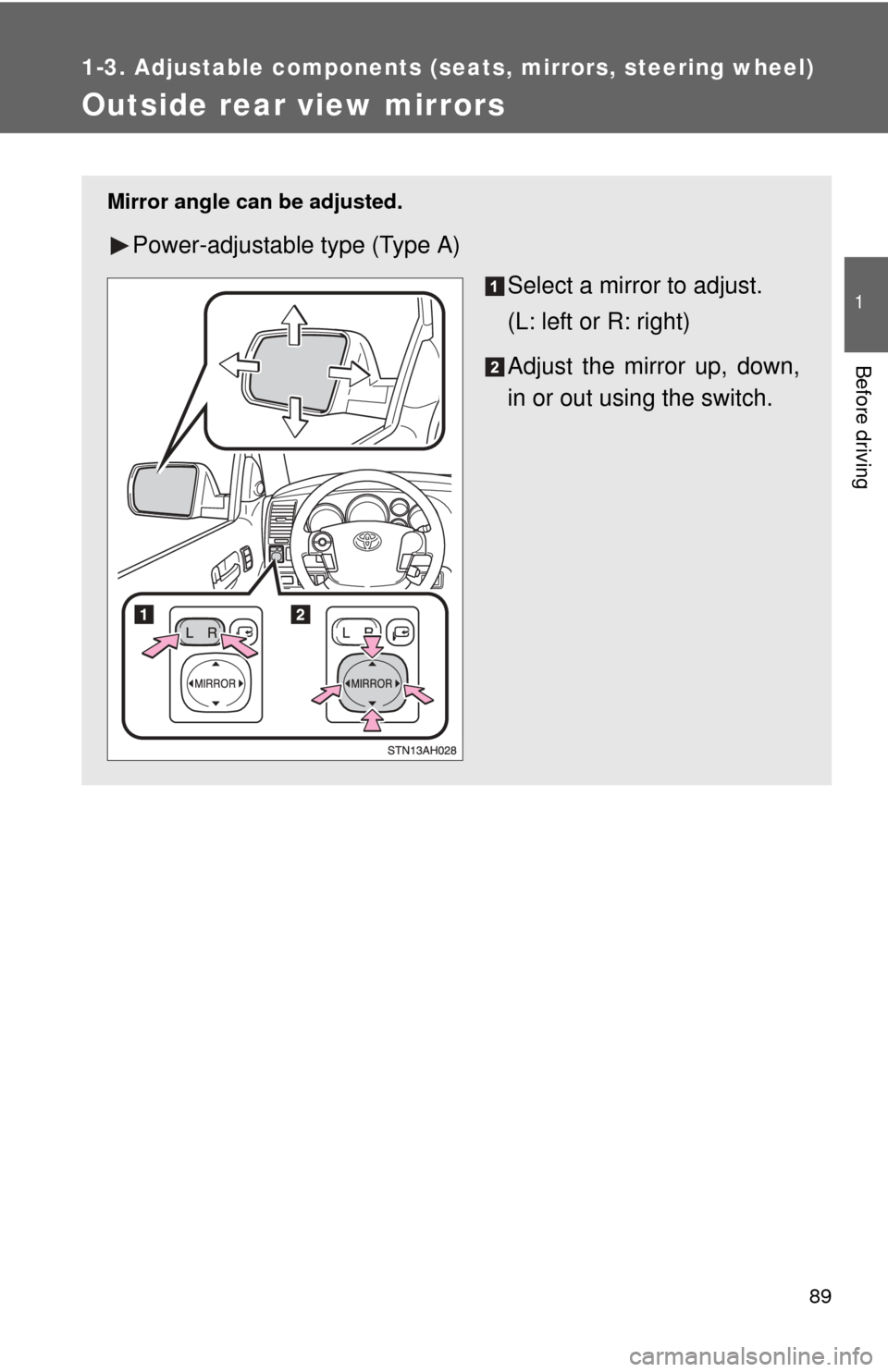

Outside rear view mirrors
Mirror angle can be adjusted.
Power-adjustable type (Type A)
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.

90 1-3. Adjustable components (seats, mirrors, steering wheel)

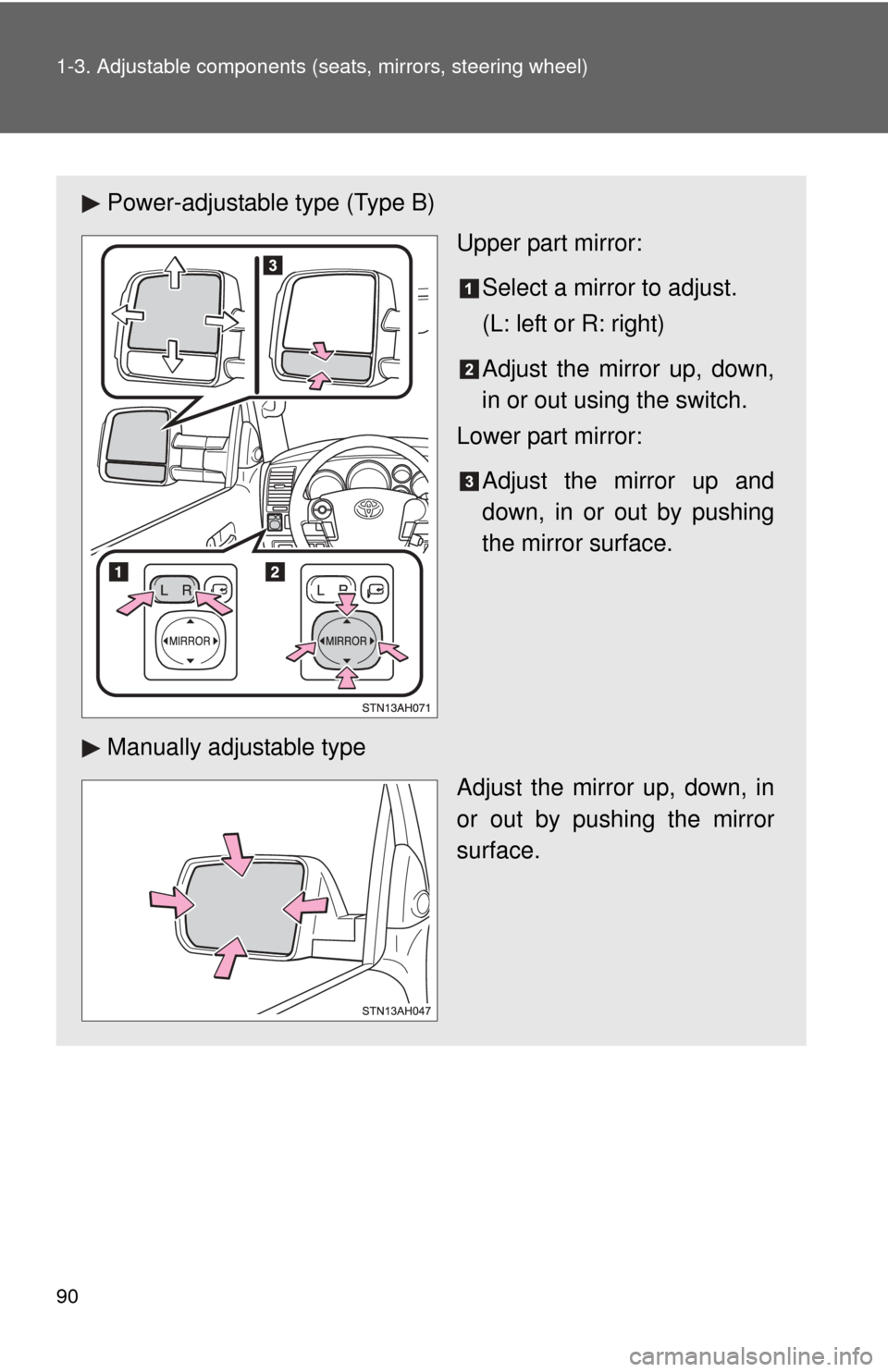

Power-adjustable type (Type B)
Upper part mirror:
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.
Lower part mirror:
Adjust the mirror up and
down, in or out by pushing
the mirror surface.
Manually adjustable type Adjust the mirror up, down, in
or out by pushing the mirror
surface.

91
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding back the mirrors
From outside Push the mirrors towards the
back of the vehicle to fold them.
From inside (if equipped) Press the switch.
Pressing again will unfold the mir-
rors.

92 1-3. Adjustable components (seats, mirrors, steering wheel)
Extending the mirrors (if equipped)
The mirrors can be manually slid
outward to improve visibility
around wide trailers.
■Recommended mirror angle when towing a trailer (vehicles with
extending mirrors)
■ Mirror operating conditions (if equipped)
The engine switch is in the ACC or ON position.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. ( P. 309, 311)
Power adjust the upper part of the mir-
ror until an appropriate view is
obtained. It is recommended that the
outer 2/3 of the upper mirror be filled
with images other than the vehicle and
trailer.
Manually adjust the lower part of the
mirror until an appropriate view of the
towed object is obtained. It is recom-
mended that the outer 2/3 of the lower
mirror be filled with images other than
the trailer.

93
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Automatic adjustment of the mirror angle (vehicles with driving posi-
tion memory)
A desired mirror face angle can be entered to memory and recalled automat-
ically by the driving position memory. ( P. 6 8 )
■ Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side rear view mirrors wi ll activate in conjunction with the anti-glare inside
rear view mirror to reduce reflected light. ( P. 86)
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded back.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are oper ating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

94
1-4. Opening and closing the windows and moon roof

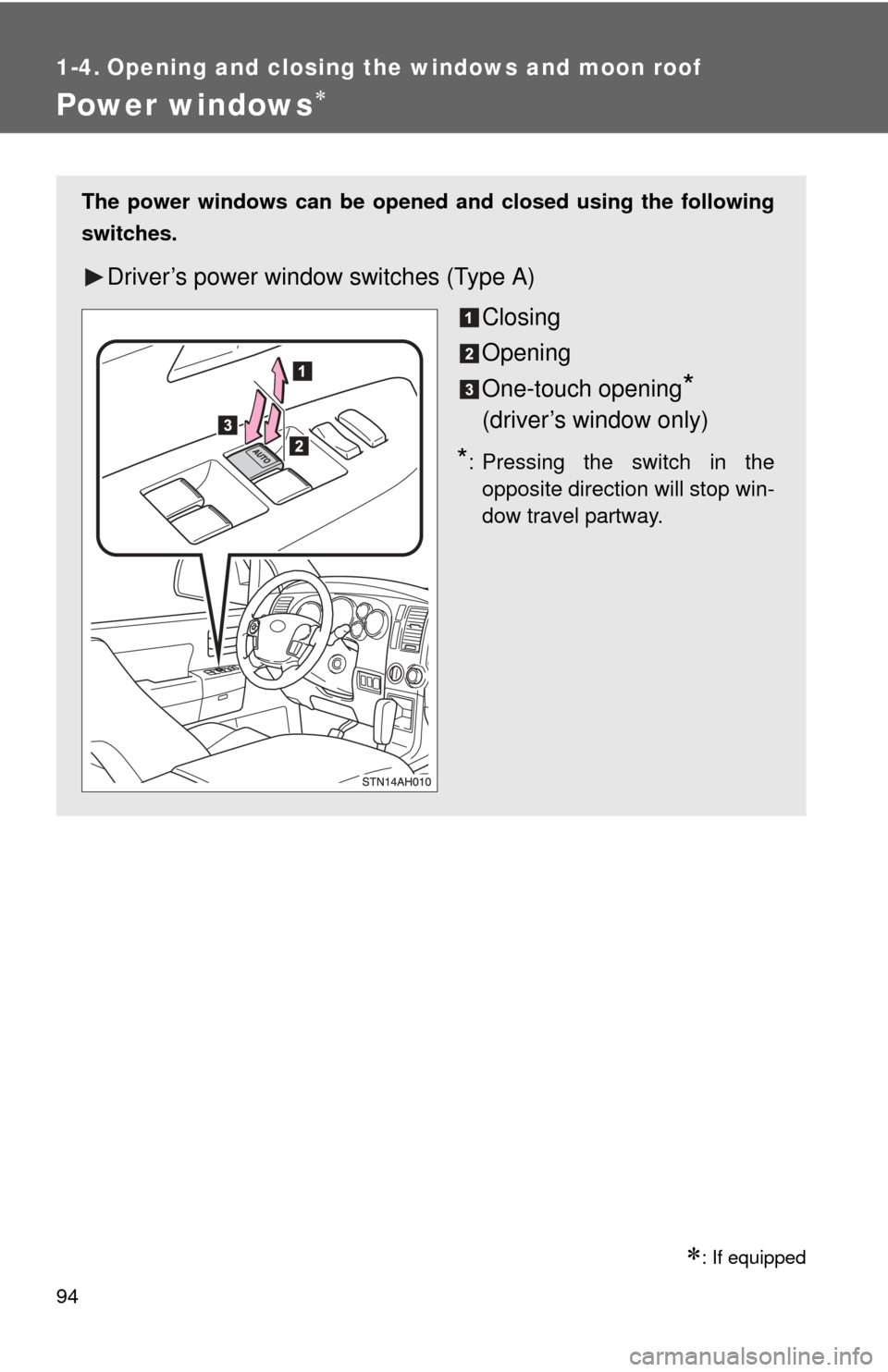

Power windows
: If equipped
The power windows can be opened and closed using the following
switches.
Driver’s power window switches (Type A)
Closing
Opening
One-touch opening
*
(driver’s window only)
*: Pressing the switch in the opposite direction will stop win-
dow travel partway.

95
1-4. Opening and closing the windows and moon roof
1
Before driving

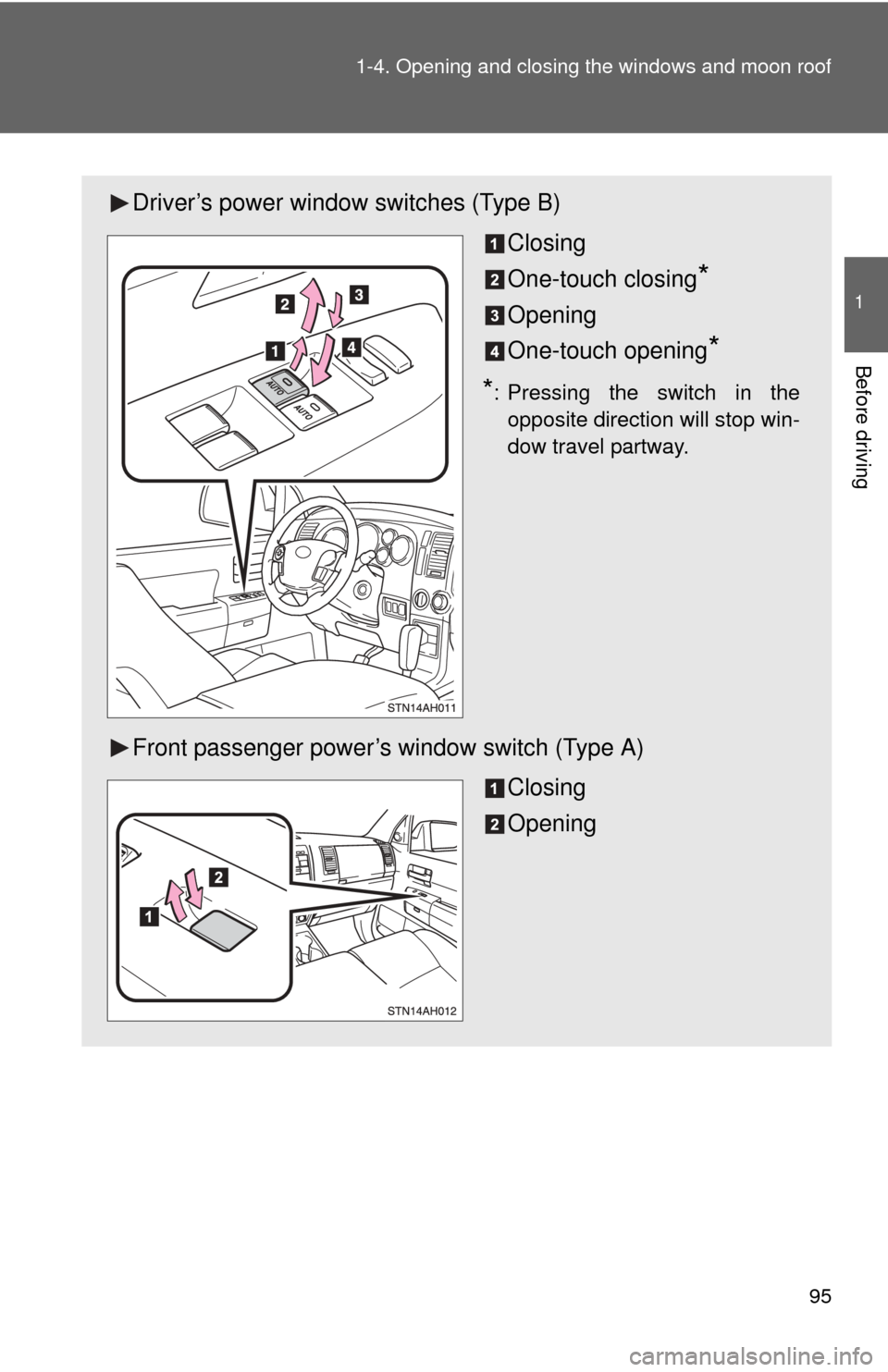

Driver’s power window switches (Type B)
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pressing the switch in theopposite direction will stop win-
dow travel partway.
Front passenger power’s window switch (Type A)
Closing
Opening

96 1-4. Opening and closing the windows and moon roof
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.

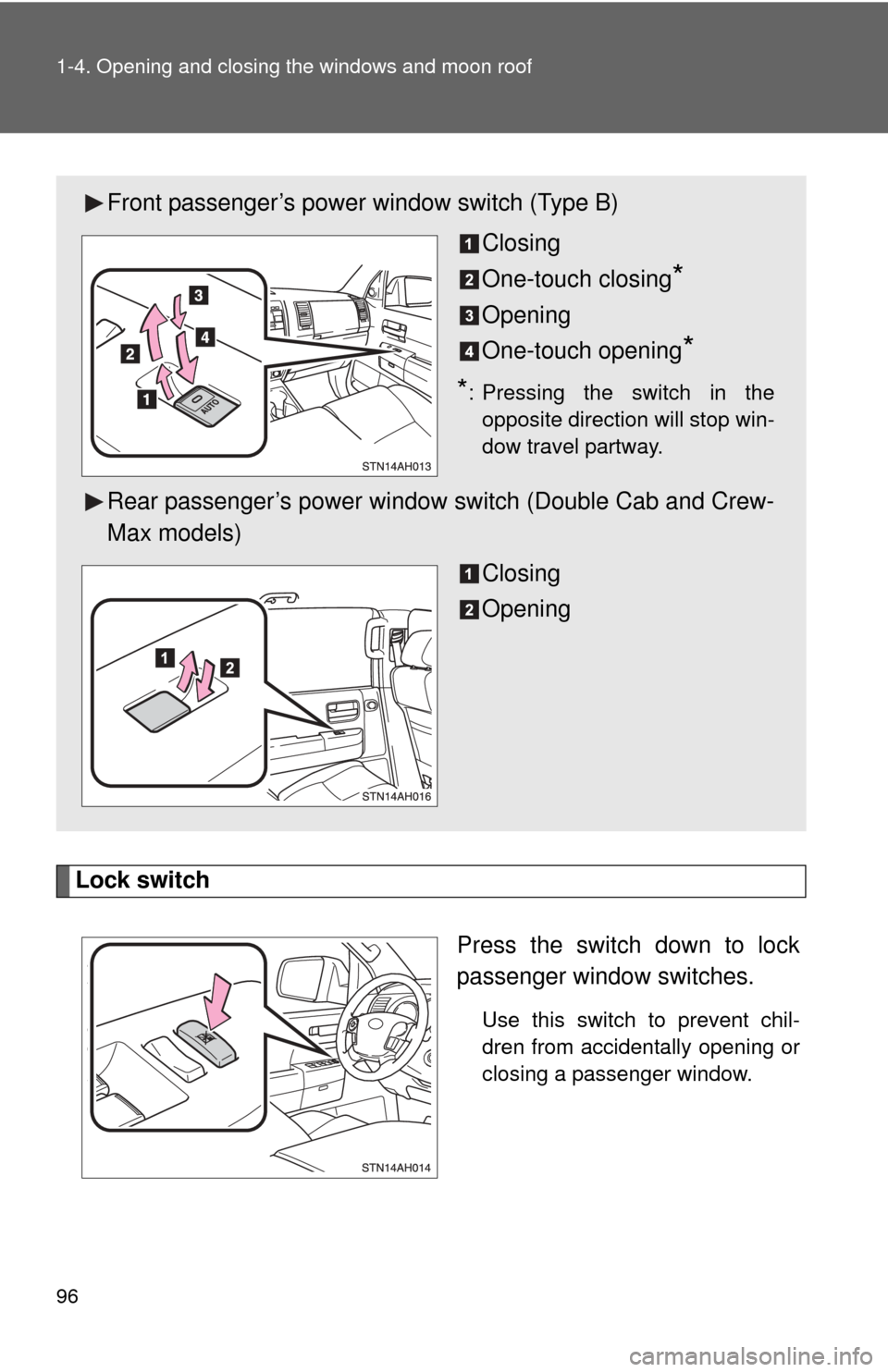

Front passenger’s power window switch (Type B)Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pressing the switch in theopposite direction will stop win-
dow travel partway.
Rear passenger’s power window switch (Double Cab and Crew-
Max models)
Closing
Opening
