2011 TOYOTA FJ CRUISER remove seats

47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

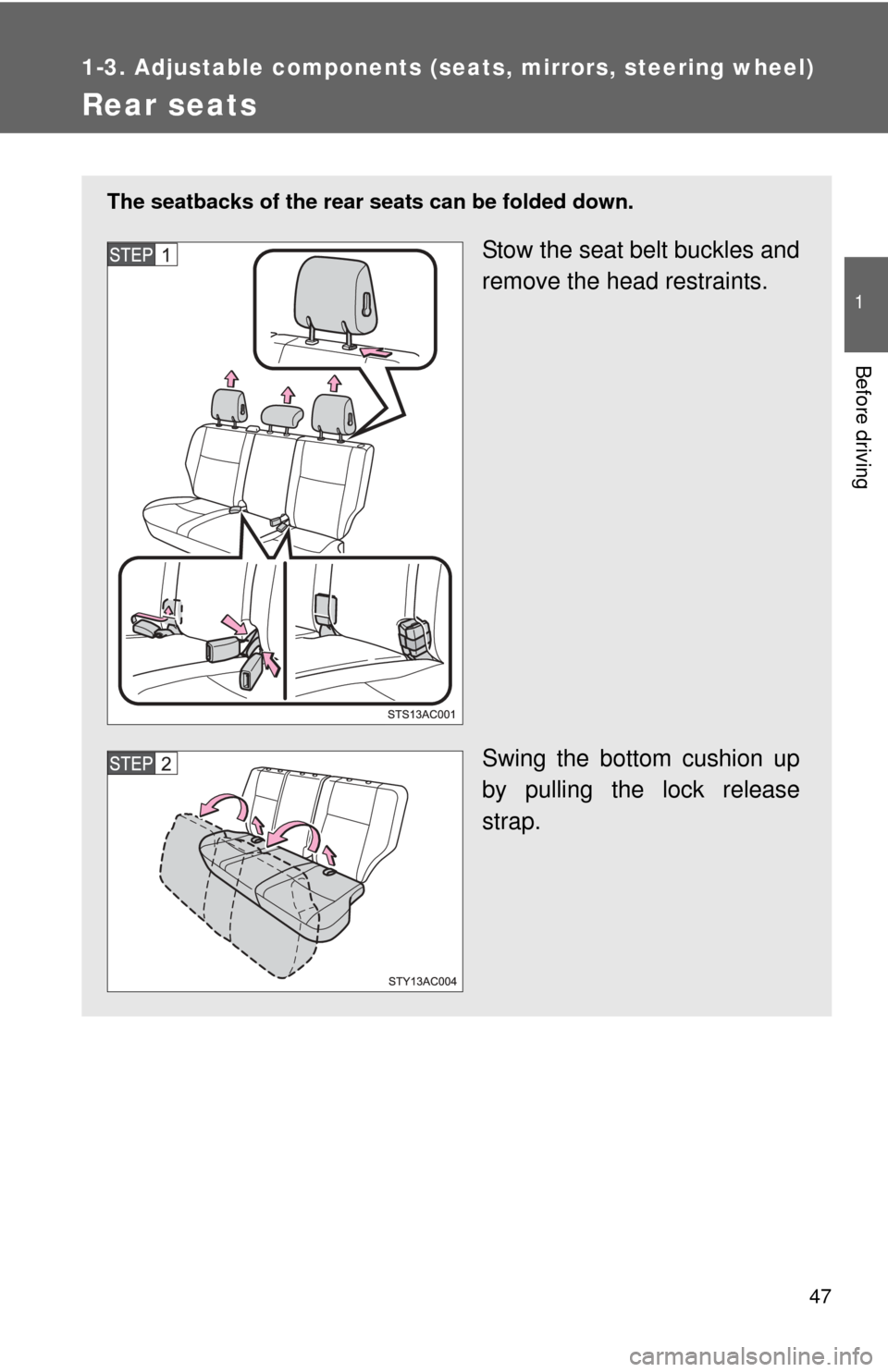

Rear seats
The seatbacks of the rear seats can be folded down.
Stow the seat belt buckles and
remove the head restraints.
Swing the bottom cushion up
by pulling the lock release
strap.

48 1-3. Adjustable components (seats, mirrors, steering wheel)
Removing rear seat bottom cushions
Loosen the bolts with a wrench
at first and turn the dials by hand
to remove them.
Push the lock release button
and fold down the seatback.
Hexagon
head bolt
Dial

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When the seatback is folded
Do not sit on or place anything on the seatback while the vehicle is in
motion.
■ When returning the seats to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not return the seatback while the vehicle is in motion.
● Be careful not to get your hands or feet pinched in the seat.
● Make sure the seatbacks and bottom cushions are securely locked. Fail-
ure to do so will prevent the seat belt from operating properly.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
■ When removing or reinstalling the bottom cushion
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not remove or reinstall the bottom cushion while the vehicle is in
motion.
● Do not get in the vehicle with the bottom cushions uninstalled.
● Do not leave the removed bottom cushion unsecured in the vehicle.
● Do not try to sit on or place anything on the removed bottom cushion.
● Do not drop the bottom cushion.
● Have the hexagon head bolts tightened with a torque wrench to 12.5 ft·lbf
(17 N·m, 1.7 kgf·m), or have them tightened by your Toyota dealer.
Failure to do so may cause the dials to be loosened and the bottom cush-
ions to be removed.

52 1-3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
■Before folding down or removing the seats
●The seat belts buckles must be stowed.
● The head restraints must be removed before you fold down the seatback.
■ After returning the seatback and re installing the bottom cushion
Return the seat belt buckles to their cor-
rect position.
Always pass seat belt buckles through
the bands to secure them.

96 1-7. Safety information
CAUTION
■Front passenger occupant cl assification system precautions
● If an adult sits in the front passenger seat, the AIR BAG ON indicator light
is illuminated. If the AIR BAG OFF indicator is illuminated, ask the passen-
ger to sit up straight, well back in the seat, feet on the floor, and with the
seat belt worn correctly. If the AIR BAG OFF indicator still remain illumi-
nated, either ask the passenger to move to the rear seat, or if that is not
possible, move the front passenger seat fully rearward.
● When it is unavoidable to install the forward-facing child restraint system
on the front passenger seat, install the child restraint system on the front
passenger seat in the proper order. (P. 101)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
detection system. In this case, contact your Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion or seat cover, that covers
the seat cushion surface.
● Do not attach a commercial seatback table or other heavy item to the back
of the front passenger seat.
● Do not modify or replace the upholstery of the front seat.

515
Alphabetical index
Battery
Charging system warning
light .................................... 431
Checking .............................. 376
If the vehicle battery is discharged ......................... 456
Preparing and checking before winter ...................... 190
Bluetooth audio
®..................... 262
Bluetooth phone®................... 278
Bottle holders .................. 318, 323
Brake assist ............................. 175
Brakes Brake system warning
buzzer ................ 168, 170, 178
Brake system warning light .................................... 430
Fluid...................................... 373
Parking brake ....................... 132
Break-in tips ............................ 116
Care
Exterior ................................. 350
Interior .................................. 353
Seat belts ............................. 354
Cargo capacity ........................ 185
Cargo net hook ........................ 341
CD player ................................. 225
Center differential lock ........... 161
Certification label ............ 193, 469
Chains ...................................... 191 Child restraint system
Booster seats, definition ..........97
Booster seats, installation .....107
Convertible seats, definition ....97
Convertible seats,
installation ...........................105
Front passenger occupant classification system .............92
Infant seat, definition ...............97
Infant seats, installation.........104
Installing CRS with LATCH anchors ...............................103
Installing CRS with seat belts ....................................101
Installing CRS with top tether straps ..................................108
Child safety
Airbag precautions ..................86
Battery precautions .......378, 458
Child restraint syst em..............97
How your child should wear the seat belt ..........................58
Installing child restraints ........101
Power window lock switch.......69
Power window precautions .....70
Removed key battery
precautions .........................398
Seat belt extender precautions ...........................59
Seat belt precautions ..............59
Cleaning Exterior ..................................350
Interior ...................................353
Seat belts ..............................354
