468 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light
Malfunction in the vehicle’s charging system.
Low engine oil pressure warning light
Abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil
and adding oil if necessary.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Malfunction indicator lamp
Malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The transmission control system.

5
When trouble arises
471 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
*1: Open door warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more with any door open.
*2: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 10 seconds after the vehicle has reached a
speed of at least 9 mph (15 km/h). Then, if the seat belt is still unfastened,
the buzzer will continue to sound.
Warning lightWarning light/DetailsCorrection procedure
Low washer fluid warning
light
Low level of washer fluidFill the tank.

(U.S.A.)
Engine oil replacement
reminder light
Illuminates for about 3 sec-
onds and then flashes for
about 15 seconds:
Engine oil is scheduled to
be changed.Check the engine oil, and
change if necessary.
Comes on and remains:
Engine oil should be
changed.Check and change the
engine oil.

472 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Have the malfunction repaired immediately. (vehicles with smart
key system)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Interior
buzzerExterior
buzzerWarning lightDetailsCorrection
procedure
Once
(Flashing)
The electronic key
is not detected
when attempting to
start the engine.
• Confirm the
location of the
electronic key.
• The electronic
key battery
maybe dis-
charged.
(P. 428)
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of the
electronic key.

5
When trouble arises
473 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Interior
buzzerExterior
buzzerWarning lightDetailsCorrection
procedure
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the shift
lever in “P”.
Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Contin-
uousContin-
uous
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the shift
lever not in “P”.
Shift the shift
lever to “P”.
Confirm the
location of the
electronic key.

476 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
■If the tire pressure warning light continues to comes on after blink-
ing for 1 minute frequently
Vehicles with smart key system
If the tire pressure warning light comes on after blinking for 1 minute when
the “ENGINE START STOP” switch is turned to IGNITION ON mode, have it
checked by your Toyota dealer.
Vehicles without smart key system
If the tire pressure warning light comes on after blinking for 1 minute when
the engine switch is turned to the “ON” position, have it checked by your
Toyota dealer.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
Pushing the tire pressure warning reset switch does not turn off the tire
pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the tire inflation pressure will turn off the
light (after a few minutes).
■When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and
transmitter. The tire pressure warning light will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, even though the flat
tire is replaced with the spare tire, the tire pressure warning light does
not turn off. Replace the spare tire with the repaired tire and adjust the
proper tire inflation pressure. The tire pressure warning light will turn off
after a few minutes.

5
When trouble arises
479
5-2. Steps to take in an emergency
AVALON_U (OM41428U)

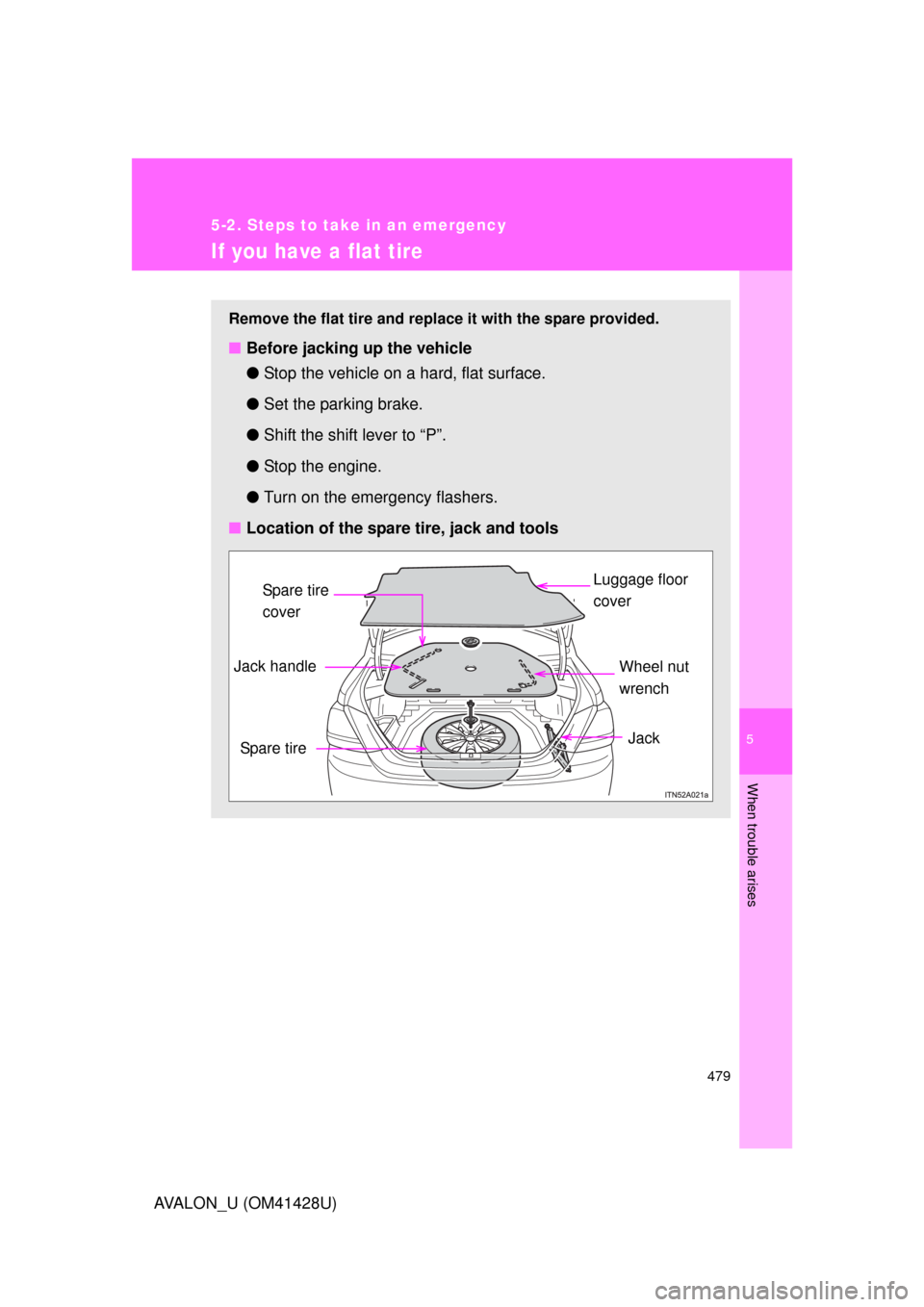

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to “P”.
●Stop the engine.
●Turn on the emergency flashers.
■Location of the spare tire, jack and tools
Jack handle
Jack Wheel nut
wrench Spare tire
coverLuggage floor
cover
Spare tire

486 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the
vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

5
When trouble arises
489
5-2. Steps to take in an emergency
AVALON_U (OM41428U)
If the engine will not star t
If the engine will not start even though correct starting procedures
are being followed (
P. 149, P. 153), consider each of the following
points.
■The engine will not start even when the starter motor oper-
ates normally
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Add fuel to the vehicle.
●The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (P. 149)
●There may be a malfunction in the engine immobilizer system.
(P. 9 1 )
■The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume
One of the following may be the cause of the problem.
●The battery may be discharged. (P. 496)
●The battery terminal connections may be loose or corroded.
■The starter motor does not turn over (vehicles with smart
key system).
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 149)
