2011 SUBARU IMPREZA WRX STI CD player

Black plate (222,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
5-32
Audio
& How to eject a CD from the
player (type A and C)When a disc is being played back or when
a disc is in the player, press the eject
button “
”. The disc will be ejected.
NOTE.Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out. .
If the disc is left ejected for more
than approximately 15 seconds after
the ignition switch is turned to the
“ OFF ”position, a disc protection func-
tion will operate, automatically reload-
ing the disc. In this case, the disc is not
played.
& How to eject CDs from the
player (type B)! Ejecting a CD from the player
Of the discs loaded, you can select and
remove only one disc.Disc select buttons1. Use the disc select button to select the
disc to be ejected.
2. Briefly press the “
”button. The
selected disc will be ejected. The disc
number indicator will flash at this time.
When you remove the ejected disc, the
disc number indicator will turn off.
To remove more discs in succession,
repeat steps 1 and 2.

Black plate (223,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
! Ejecting all discs from the player
(all disc ejection mode)1. If you continue to press the “
”
button, the player will produce beep sound
and will enter the all disc ejection mode. At
this time, the disc number indicator and
“ALL EJECT ”indicator will flash.
2. Remove the disc that has been
ejected. The other discs loaded will then
be ejected one after another. If you do not
remove the disc that has been ejected, the
“All disc ejection mode ”will be canceled.
NOTE. Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out.
. If you press the “
”button while the player is in all disc ejection mode,
the mode will be cancelled following
ejection of the disc that is currently
being ejected.
.
If you press the “CD/AUX ”button or
“ LOAD ”button while the player is in all
disc ejection mode, the player will draw
in the discs that have been ejected and
play them.
& When the following mes-
sages are displayedIf one of the following messages is
displayed while operating the CD player,
determine the cause based on the follow-
ing information. If you cannot clear those
messages, please contact your SUBARU
dealer.
! When “PUSH EJECT ”is displayed
Press the eject button to unload the disc.
Check the disc for damage or deforma-
tion, and also check that the correct disc is
inserted. Do not try to unload the disc
forcibly. Single CDs (i.e., 8 cm/3 inch CDs)
are not supported, and if inserted, they will
be immediately ejected and this message
will be displayed. If the disc cannot be
unloaded or this message remains dis-
played, please contact your SUBARU
dealer. !
When “CHECK DISC ”is displayed
Press the eject button to unload the discs.
Check that the disc is not damaged or
scratched, and also check that the disc is
inserted correctly. This message may
appear when using some CD-RW discs.
Check that the disc type (i.e., 8 cm/3 inch
CDs are not supported) and data format
are correct. This player can only play
MP3, WMA and AAC (type C audio) data
formats. If the disc cannot be unloaded or
this message remains displayed, please
contact your SUBARU dealer.
Audio
5-33
5

Black plate (224,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
5-34
Audio

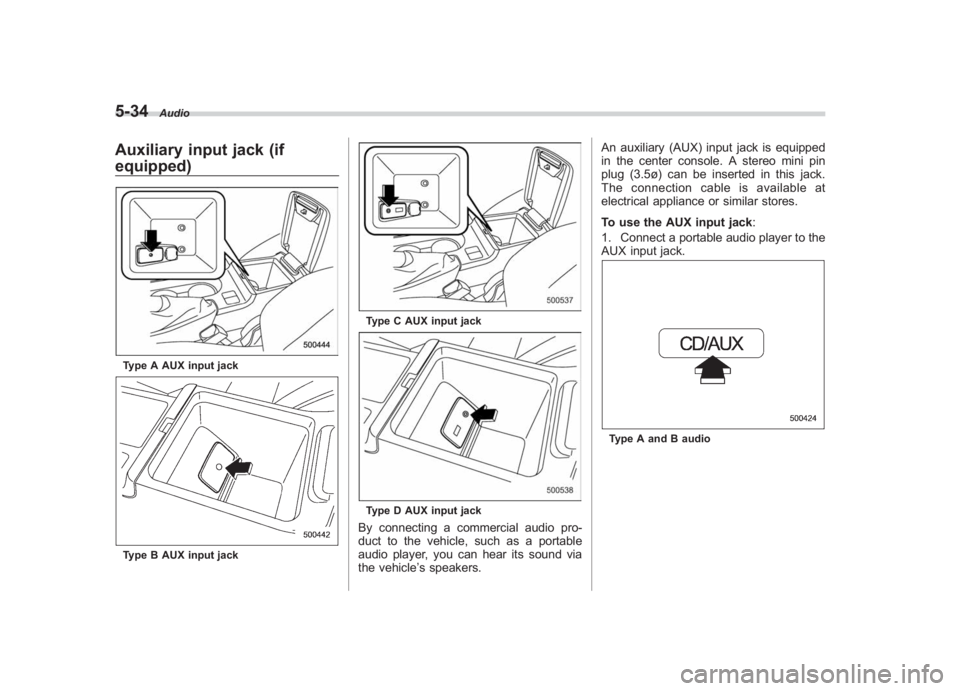

Auxiliary input jack (if
equipped)Type A AUX input jackType B AUX input jack
Type C AUX input jackType D AUX input jackBy connecting a commercial audio pro-
duct to the vehicle, such as a portable
audio player, you can hear its sound via
the vehicle’ s speakers. An auxiliary (AUX) input jack is equipped
in the center console. A stereo mini pin
plug (3.5ø) can be inserted in this jack.
The connection cable is available at
electrical appliance or similar stores.
To use the AUX input jack
:
1. Connect a portable audio player to the
AUX input jack.
Type A and B audio

Black plate (225,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

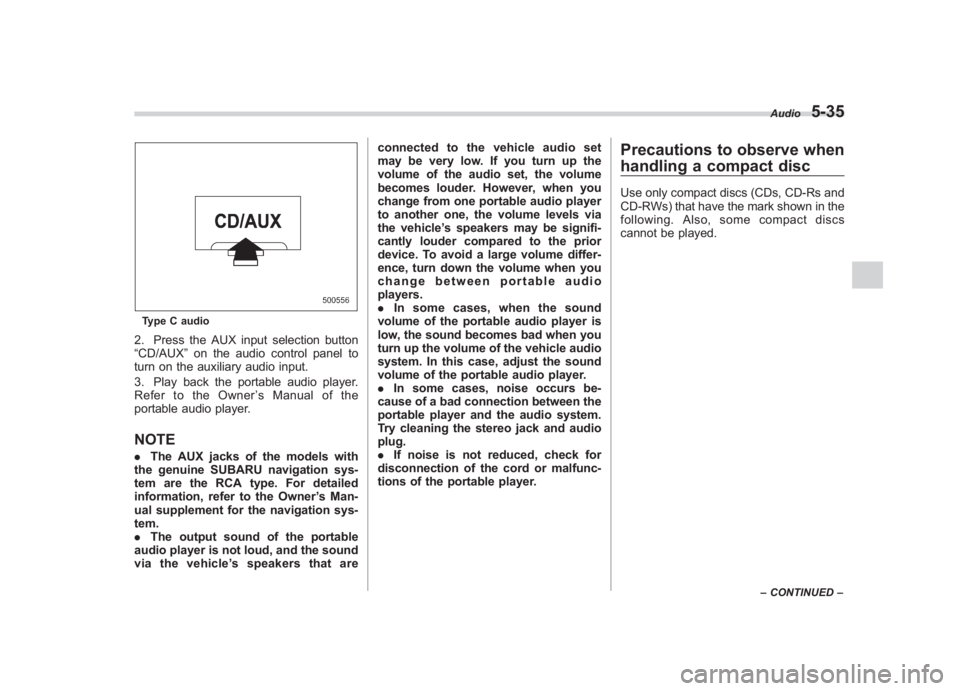

Type C audio2. Press the AUX input selection button
“CD/AUX ”on the audio control panel to
turn on the auxiliary audio input.
3. Play back the portable audio player.
Refer to the Owner ’s Manual of the
portable audio player.NOTE. The AUX jacks of the models with
the genuine SUBARU navigation sys-
tem are the RCA type. For detailed
information, refer to the Owner ’s Man-
ual supplement for the navigation sys-
tem.
. The output sound of the portable
audio player is not loud, and the sound
via the vehicle ’s speakers that are connected to the vehicle audio set
may be very low. If you turn up the
volume of the audio set, the volume
becomes louder. However, when you
change from one portable audio player
to another one, the volume levels via
the vehicle
’s speakers may be signifi-
cantly louder compared to the prior
device. To avoid a large volume differ-
ence, turn down the volume when you
change between portable audio
players.
. In some cases, when the sound
volume of the portable audio player is
low, the sound becomes bad when you
turn up the volume of the vehicle audio
system. In this case, adjust the sound
volume of the portable audio player.
. In some cases, noise occurs be-
cause of a bad connection between the
portable player and the audio system.
Try cleaning the stereo jack and audio
plug.
. If noise is not reduced, check for
disconnection of the cord or malfunc-
tions of the portable player.
Precautions to observe when
handling a compact discUse only compact discs (CDs, CD-Rs and
CD-RWs) that have the mark shown in the
following. Also, some compact discs
cannot be played.
Audio
5-35
– CONTINUED –
5

Black plate (226,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
5-36
Audio

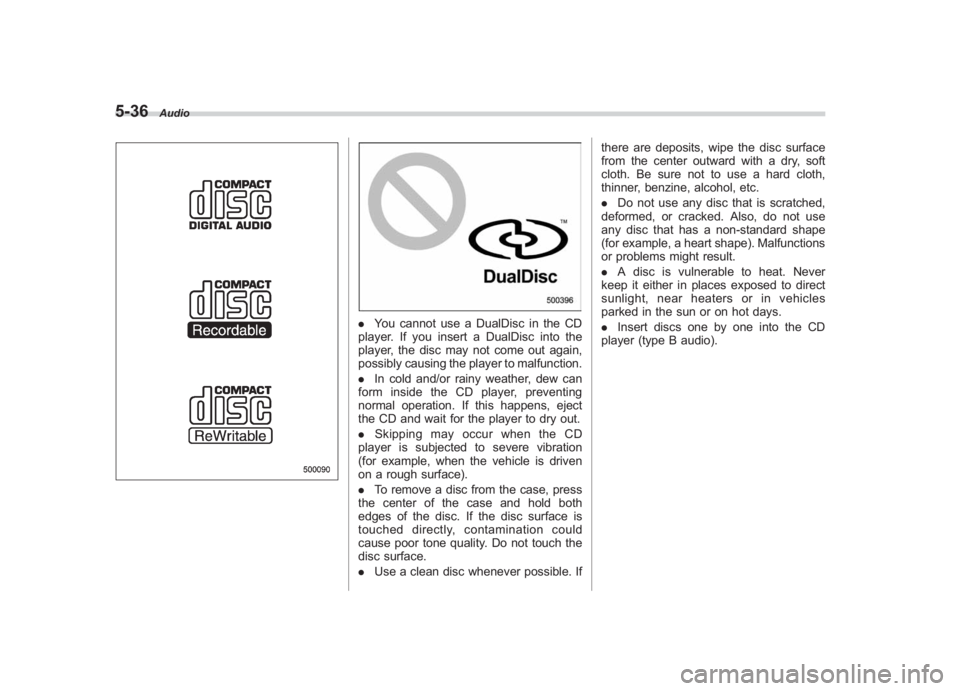

. You cannot use a DualDisc in the CD
player. If you insert a DualDisc into the
player, the disc may not come out again,
possibly causing the player to malfunction.
. In cold and/or rainy weather, dew can
form inside the CD player, preventing
normal operation. If this happens, eject
the CD and wait for the player to dry out.
. Skipping may occur when the CD
player is subjected to severe vibration
(for example, when the vehicle is driven
on a rough surface).
. To remove a disc from the case, press
the center of the case and hold both
edges of the disc. If the disc surface is
touched directly, contamination could
cause poor tone quality. Do not touch the
disc surface.
. Use a clean disc whenever possible. If there are deposits, wipe the disc surface
from the center outward with a dry, soft
cloth. Be sure not to use a hard cloth,
thinner, benzine, alcohol, etc.
.
Do not use any disc that is scratched,
deformed, or cracked. Also, do not use
any disc that has a non-standard shape
(for example, a heart shape). Malfunctions
or problems might result.
. A disc is vulnerable to heat. Never
keep it either in places exposed to direct
sunlight, near heaters or in vehicles
parked in the sun or on hot days.
. Insert discs one by one into the CD
player (type B audio).

Black plate (227,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

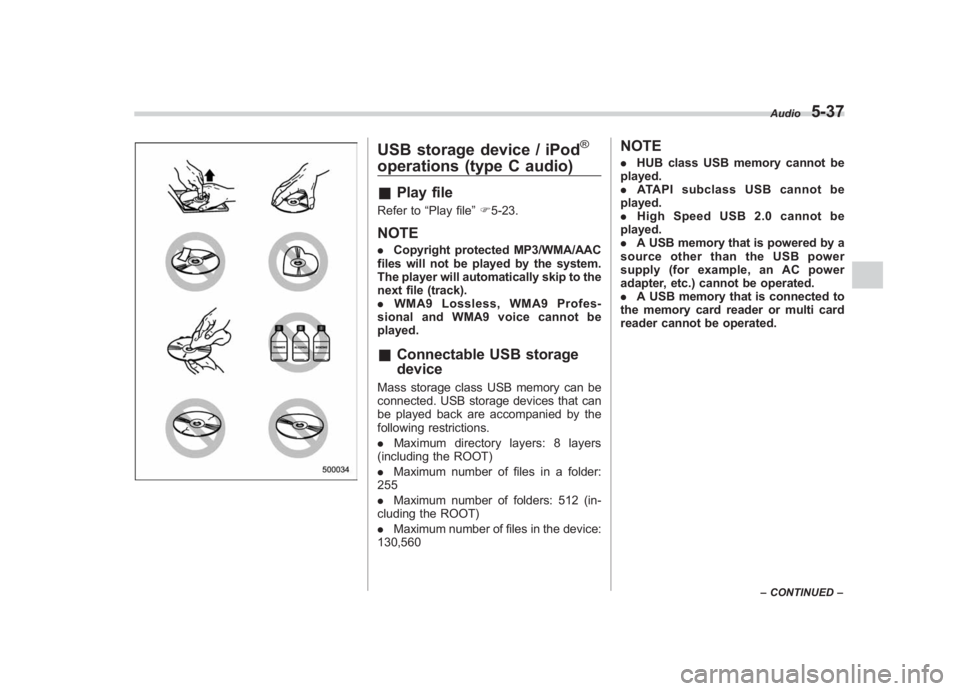

USB storage device / iPod
®
operations (type C audio)& Play fileRefer to “Play file”F 5-23.NOTE. Copyright protected MP3/WMA/AAC
files will not be played by the system.
The player will automatically skip to the
next file (track).
. WMA9 Lossless, WMA9 Profes-
sional and WMA9 voice cannot be
played.& Connectable USB storage
deviceMass storage class USB memory can be
connected. USB storage devices that can
be played back are accompanied by the
following restrictions.
. Maximum directory layers: 8 layers
(including the ROOT)
. Maximum number of files in a folder:
255
. Maximum number of folders: 512 (in-
cluding the ROOT)
. Maximum number of files in the device:
130,560
NOTE. HUB class USB memory cannot be
played.
. ATAPI subclass USB cannot be
played.
. High Speed USB 2.0 cannot be
played.
. A USB memory that is powered by a
source other than the USB power
supply (for example, an AC power
adapter, etc.) cannot be operated.
. A USB memory that is connected to
the memory card reader or multi card
reader cannot be operated.
Audio
5-37
– CONTINUED –
5

Black plate (229,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

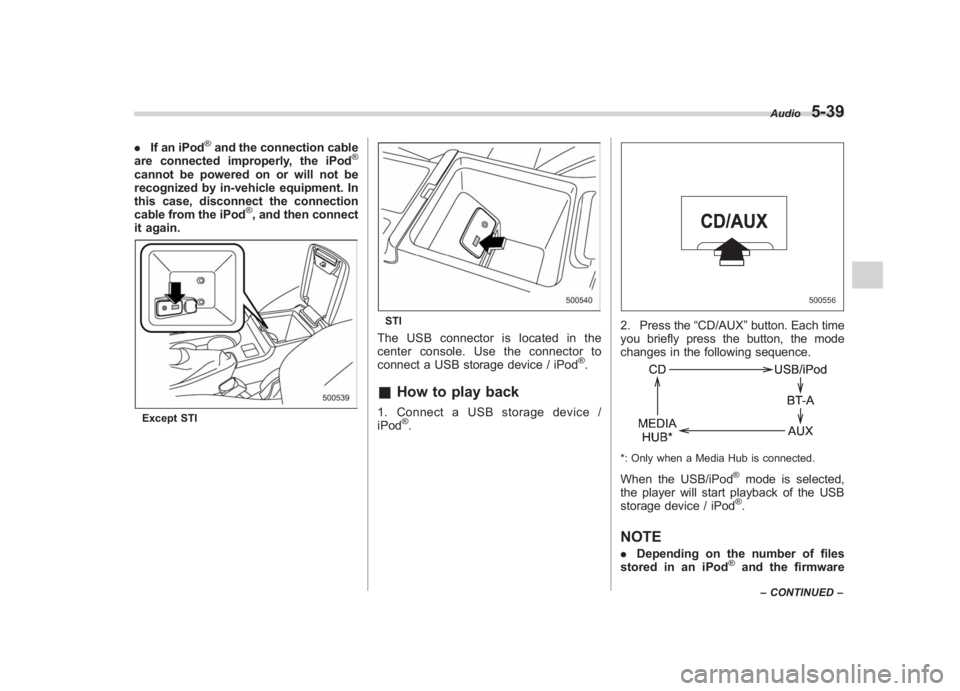

. If an iPod
®and the connection cable
are connected improperly, the iPod
®
cannot be powered on or will not be
recognized by in-vehicle equipment. In
this case, disconnect the connection
cable from the iPod
®, and then connect
it again.
Except STI
STIThe USB connector is located in the
center console. Use the connector to
connect a USB storage device / iPod
®.
& How to play back1. Connect a USB storage device /
iPod
®.
2. Press the “CD/AUX”button. Each time
you briefly press the button, the mode
changes in the following sequence.*: Only when a Media Hub is connected.When the USB/iPod
®mode is selected,
the player will start playback of the USB
storage device / iPod®.
NOTE. Depending on the number of files
stored in an iPod
®and the firmware
Audio
5-39
– CONTINUED –
5

Black plate (233,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Models with Hands-free systemThe “MODE ”button is used to select the
desiredaudiomode.Eachtimeitis
pressed, the mode changes to the next
one in the following sequence:
Type A and B audio:Type C audio:*1: The frequency last received in the selected waveband will be displayed.
*2: Only when a CD is in the player.
*3: Only when the device is connected.
!
Models with Hands-free system
Press this button for more than 1.5
seconds if you wish to immediately cut
the volume to zero.
The audio display will show “MUTE”.
If you press the button for more than 1.5
seconds again, the original sound volume
will return and “MUTE”turns off.& “
”and “
”buttons
Models without Hands-free system
Models with Hands-free system! With radio mode selected
Press the “
”button or “
”button. The
radio will seek the next receivable station
and stop on it. That station ’s frequency will
be shown on the audio display.
! With CD mode selected
Press the “
”button to skip forward in the
track/file order. Press the “
”button to
skip backward in the track/file order. The
track/file number will be shown on the
audio display.
For models with the Hands-free system,
press the “
”button continuously to
select the next folder. Press the “
”
button continuously to go back to the
previous folder.
Audio
5-43
– CONTINUED –
5
