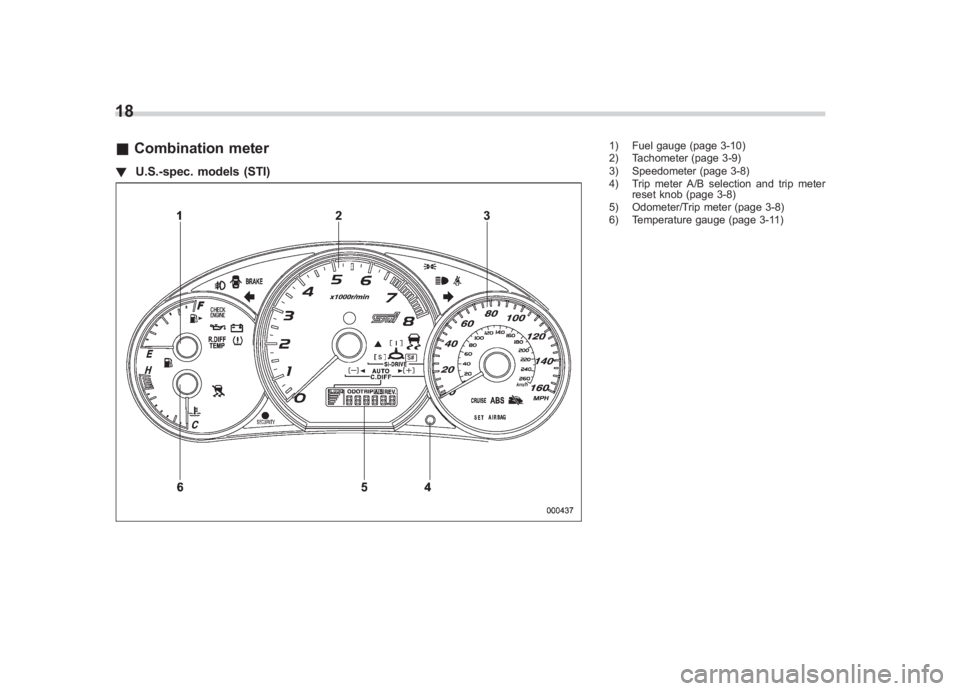

18& Combination meter! U.S.-spec. models (STI)
1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Temperature gauge (page 3-11)

Black plate (21,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

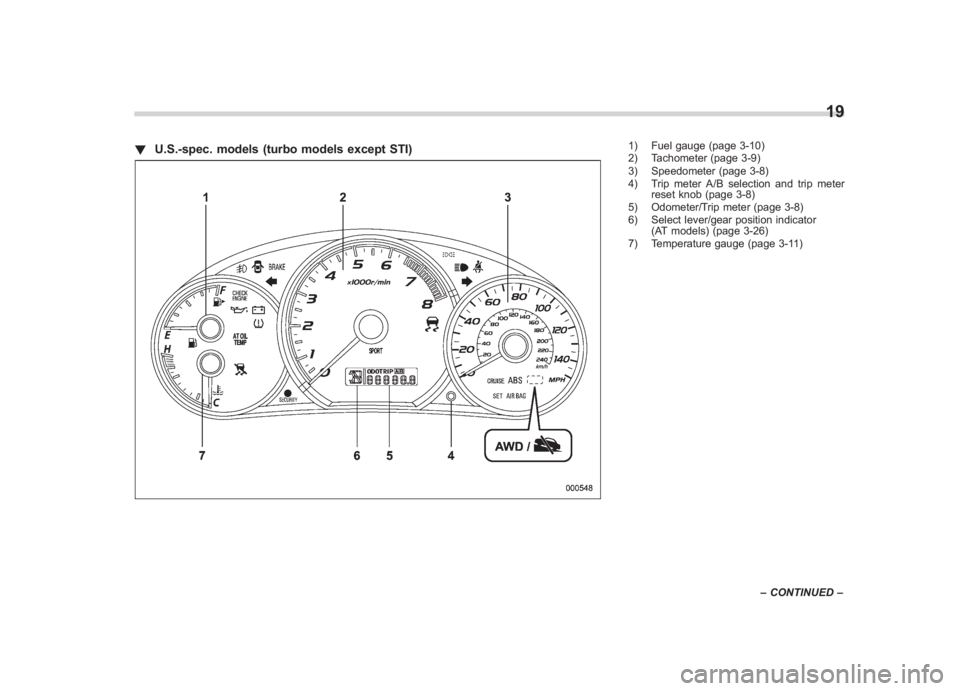

! U.S.-spec. models (turbo models except STI)
1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Temperature gauge (page 3-11)
19
– CONTINUED –
0

Black plate (22,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

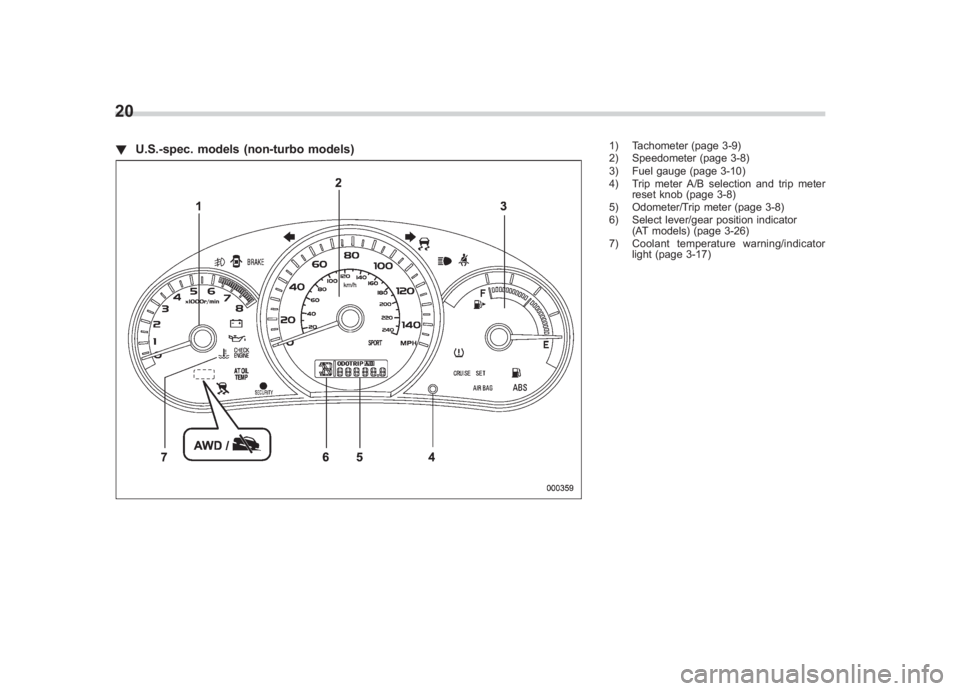

20! U.S.-spec. models (non-turbo models)
1) Tachometer (page 3-9)
2) Speedometer (page 3-8)
3) Fuel gauge (page 3-10)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Coolant temperature warning/indicator light (page 3-17)

Black plate (23,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

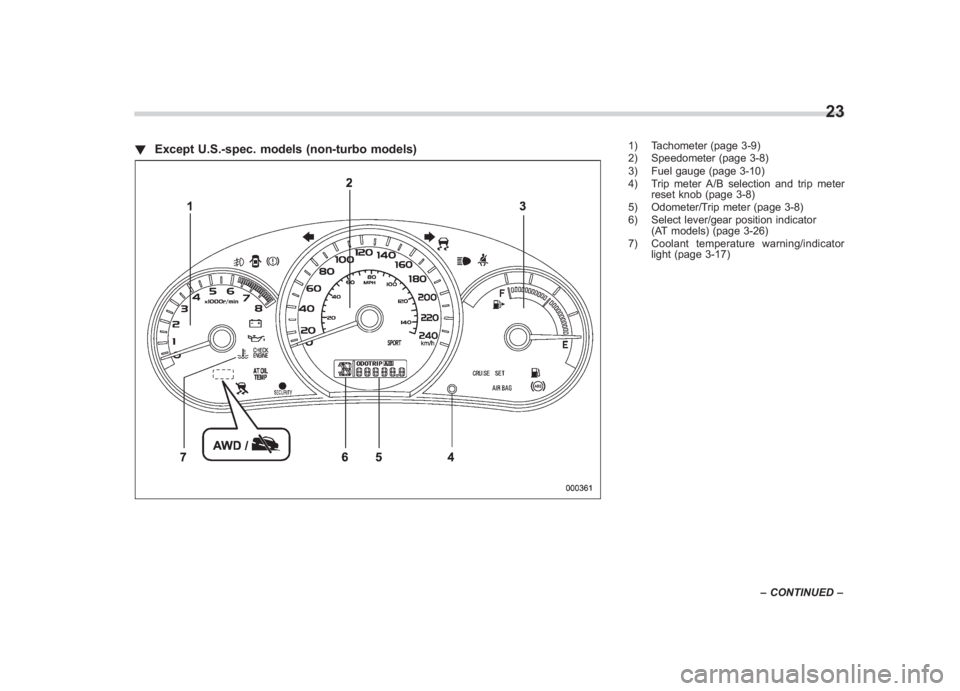

! Except U.S.-spec. models (STI)
1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Temperature gauge (page 3-11)
21
– CONTINUED –
0

Black plate (24,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
22! Except U.S.-spec. models (turbo models except STI)
1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Temperature gauge (page 3-11)

Black plate (25,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
! Except U.S.-spec. models (non-turbo models)
1) Tachometer (page 3-9)
2) Speedometer (page 3-8)
3) Fuel gauge (page 3-10)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Coolant temperature warning/indicator light (page 3-17)
23
–CONTINUED –
0

Black plate (106,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
2-16
Keys and doors
Alarm systemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the turn signal lights flash if
someone attempts to break into your
vehicle. The starter motor is also inter-
rupted to prevent starting the vehicle
without a key.
The system can be armed and disarmed
with the remote transmitter.
The system does not operate when the
key is inserted into the ignition switch.
Your vehicle’ s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for
deactivation yourself or have it done by
your SUBARU dealer.& System operationThe alarm system will sound the following
alarms when triggered.
. The vehicle’ s horn will sound for 30
seconds.
. The turn signal lights will flash for 30
seconds.
If any of the doors or the rear gate/trunk lid
remains open after the 30-second period,
the horn will continue to sound for a
maximum of 3 minutes. If the door or the rear gate/trunk lid is closed while the horn
is sounding, the horn will stop sounding
with a delay of up to 30 seconds.
The alarm is triggered by:
.
Opening any of the doors, the rear gate
or trunk lid
. Physical impact to the vehicle, such as
forced entry (only models with shock
sensors (dealer option))
NOTEThe alarm system can be set to trigger
the illumination of the following interior
lights.
. Dome light (illuminates only when
the dome light switch is in the “DOOR ”
position)
. Map lights (models with moonroof)
The notifications regarding the dome
light and the map lights are deactivated
as the factory setting. A SUBARU
dealer can activate the system. Contact
your SUBARU dealer for details.& Activating and deactivating
the alarm systemTo change the setting of your vehicle’ s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system. Refer to “Disarming the system
”F 2-19.
2. Sit in the driver ’s seat and shut all
doors (and the rear gate if your vehicle is a
5-door).
3. Turn the ignition switch to the “ON”
position.
4. Hold down the REAR (UNLOCK) side
of the driver ’s power door locking switch,
open the driver ’s door within the following
1 second, and wait 10 seconds without
releasing the switch. The setting will then
be changed as follows.
If the system was previously activated:
The odometer/trip meter screen displays
“ AL oF ”and the horn sounds twice,
indicating that the system is now deacti-
vated.
If the system was previously deacti-
vated:
The odometer/trip meter screen displays
“ AL on” and the horn sounds once,
indicating that the system is now acti-
vated.
NOTEYou may have the above setting
change done by your SUBARU dealer.
