2011 Seat Alhambra technical data

346

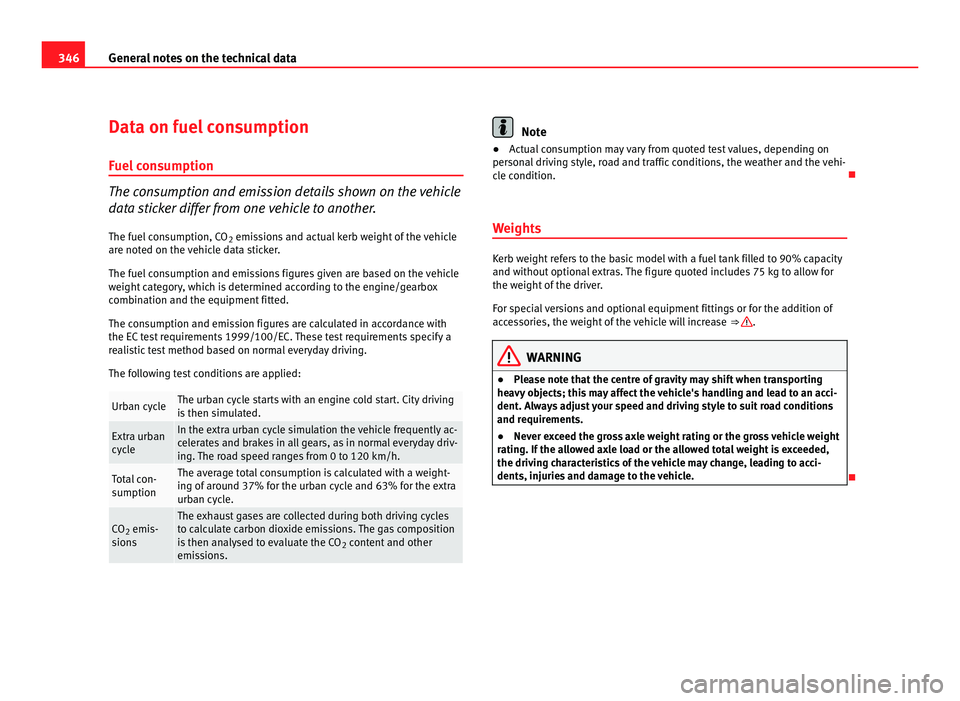

General notes on the technical data
Data on fuel consumption
Fuel c
onsumption The consumption and emission details shown on the vehicle
data
s

ticker differ from one vehicle to another.
The fuel consumption, CO 2 emissions and actual kerb weight of the vehicle
are noted on the vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determined according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures are calculated in accordance with
the EC test requirements 1999/100/EC. These test requirements specify a
realistic test method based on normal everyday driving.
The following test conditions are applied: Urban cycle The urban cycle starts with an engine cold start. City driving
is
then s

imulated. Extra urban
cyc
l

e In the extra urban cycle simulation the vehicle frequently ac-
cel
er
ates and brakes in all gears, as in normal everyday driv-
ing. The road speed ranges from 0 to 120 km/h. Total con-
sumption The average total consumption is calculated with a weight-
ing of
ar

ound 37% for the urban cycle and 63% for the extra
urban cycle. CO
2 emis-
s ion

s The exhaust gases are collected during both driving cycles
to c
alc
ulate carbon dioxide emissions. The gas composition
is then analysed to evaluate the CO 2 content and other
emissions. Note
● Actual consumption may vary from quoted test values, depending on
per son

al driving style, road and traffic conditions, the weather and the vehi-
cle condition. 
Weights Kerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without
option

al extras. The figure quoted includes 75 kg to allow for
the weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒  .
WARNING
● Please note that the centre of gravity may shift when transporting
he avy

objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.
● Never exceed the gross axle weight rating or the gross vehicle weight
rating. If
the allowed axle load or the allowed total weight is exceeded,
the driving characteristics of the vehicle may change, leading to acci-
dents, injuries and damage to the vehicle. 

347
General notes on the technical data
Towing a trailer Tr ai
ler weights Trailer weight
The trai
l

er weights and drawbar loads approved are selected in intensive tri-
als according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain cir-
cumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒  .
Dra wb

ar load
The maximum permitted weight exerted by the trailer drawbar on the ball
joint of the towing bracket must not exceed 85 kg.
In the interest of road safety, we recommend that you always tow approach-
ing the maximum drawbar load. The response of the trailer on the road will
be poor if the drawbar load is too small.
If the maximum permitted drawbar load is not reached (e.g. in the case of
small single-axle trailers, light and without load, or tandem axle trailers with
a wheelbase of less than 1 m) it is compulsory for the drawbar load to be at
least 4% of the trailer's weight. WARNING
● For safety reasons, do not exceed the 80 km/h limit. This is also valid
in c ou

ntries where higher speeds are permitted.
● Never exceed the maximum trailer weights or the drawbar load. If the
permiss
ible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle. Wheels
Ty r

e pressure, snow chains, wheel bolts Tyre pressures
The stic
k

er with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
raised pressures of warm tyres must not be reduced. ⇒  Snow chains
Snow c
h

ains may be fitted only to the front wheels.
Consult the chapter “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel
bolts should be checked as soon as possible with a torque wrench ⇒  .
The tightenin g t

orque for steel and alloy wheels is 120 Nm. WARNING
● Check the tyre pressure at least once per month. Checking tyre pres-
s ur

e value is very important. If the tyre pressure is too high or too low,
there is an increased danger of accidents, particularly at high speeds.
● If the torque of the wheel bolts is too low, they could loosen while the
vehicl
e is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads can be damaged. Note
We recommend that you ask your Authorised Service Centre for information
about ap pr

opriate wheel, tyre and snow chain size. Safety First Operating instructions Practical tips Technical Data

348
Technical Data
Technical Data
Checking fluid levels From time to time, the levels of the different fluids in the ve-
hicle must
be c
hecked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused. Fig. 221 Diagram for the location of the various elements Liquid coolant deposit
Engine oi
l

dipstick
Oil filler neck
Brake fluid reservoir
Vehicle battery (underneath a cover)
Windscreen washer fluid reservoir
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in ⇒ page 275.
Overview
Further explanations, instructions and restrictions on the technical data are
contained as of ⇒ page 344 
1 2
3
4
5
6

349
Technical Data
Petrol engine 1.4 110 kW (150 PS) Engine specifications
Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 240/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 197
Acceleration from 0-80 km/h in sec. 6.9
Acceleration from 0-100 km/h in sec. 10.7Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 9.2/214
Extra urban cycle 6.1/143
Combined 7.2/167Weights
5 seats 7 seats
Gross vehicle weight in kg 2290 2480
Weight in running order (with driver) in kg 1723 1771
Gross front axle weight in kg 1170/1220 1170/1220
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100Safety First Operating instructions Practical tips Technical Data

350
Technical Data
Trailer weight Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 
Petrol engine 1.4 110 kW (150 HP). Automatic Engine specifications
Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 240/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 197
Acceleration from 0-80 km/h in sec. 6.6
Acceleration from 0-100 km/h in sec. 9.9Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 9.4/218
Extra urban cycle 6.6/154
Combined 7.6/178

351
Technical Data
Weights 5 seats 7 seats
Gross vehicle weight in kg 2310 2500
Weight in running order (with driver) in kg 1742 1790
Gross front axle weight in kg 1190/1240 1190/1240
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 
Petrol engine 2.0 147 kW (200 HP). Automatic Engine specifications
Power output in kW (PS) rpm 147 (200)/ 5100
Maximum torque in Nm at rpm 280/ 1700-5000
No. of cylinders/capacity in cm3
4.6/ 1984
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 221
Acceleration from 0-80 km/h in sec. 5.8
Acceleration from 0-100 km/h in sec. 8.3 Safety First Operating instructions Practical tips Technical Data

352
Technical Data
Consumption (litres/100 km)/ CO 2 (g/km)
5 seats 7 seats
Urban cycle 11.5/268 11.6/270
Extra urban cycle 6.6/155 6.7/156
Combined 8.4/196 8.5/198Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1790 1838
Gross front axle weight in kg 1100/1150 1220/1270
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000Engine oil capacity
Approximate engine oil capacity with oil filter change 4.6 
Diesel engine 2.0 TDI CR 85 kW (115 PS) Engine specifications
Power output in kW (PS) rpm 85 (115)/ 4200
Maximum torque in Nm at rpm 280/1750-2500 

353
Technical Data
No. of cylinders/capacity in cm3
4.6/1984
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 12.6
Acceleration from 0-100 km/h in sec. 14Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6.8/179 6.9/182
Extra urban cycle 4.8/127 4.9/130
Combined 5.5/143 5.6/146Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1772 1823
Gross front axle weight in kg 1210/1260 1210/1260
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Safety First Operating instructions Practical tips Technical Data
