2011 Seat Alhambra technical data

239
Trailer towing
● The trailer must have a fixed drawbar.
● Tr
ailers with brakes must be equipped with a mechanical inertia brake. WARNING
Do not let the extra safety afforded by the stabilisation system tempt you
into t ak

ing any risks when driving.
● Adjust your speed and driving style to visibility, road, traffic and
weather c
onditions.
● If the road surface is slippery, take care when accelerating.
● When a system is operating, lift your foot off the accelerator. WARNING
It is possible that the combination stabilisation system does not correct-
ly r ec

ognised all driving situations.
● It is possible that the stabilisation system does not detect snaking of
a light trai
ler and thus does not intervene.
● When driving on slippery ground, the trailer could jack-knife
despite
the stabilisation system.
● Trailers with a high centre of gravity may even tip over before they
star
t to rock sideways.
● If a trailer is not used at the trailer socket is connected (for example,
inst
allation of a bicycle carrier with lights), repeated automatic braking
may occur in extreme driving conditions. Retrofitting a tow hitch
Fig. 157 Measurements and attachments to retrofit a tow hitch.
SEA T r

ecommends visiting a specialist workshop to retrofit a tow hitch. For
example, it may be necessary to adjust the cooling system or to include
thermal plates. SEAT recommends visiting a Technical Service.
In any case, the separation distances must be observed when fitting a tow
hitch. The distance between the centre of the tow hitch ball and the road
surface ⇒ fig. 157 D must never be lower than that indicated. This also ap-
plie s

when the vehicle is fully laden, including maximum drawbar load.
Separation distances ⇒ fig. 157:
Attachment points.
1.040 mm (41 inches)
74 mm (3 inches)
364 mm (14 inches) 
A B
C
D
Safety First Operating instructions Practical tips Technical Data

241
Trailer towing CAUTION
Exceeding the maximum gross combined weight rating indicated could
cau se d
amage to the vehicle.
● Never exceed the gross combined weight rating. Safety First Operating instructions Practical tips Technical Data

243
Vehicle maintenance and cleaning
Washing the vehicle The longer substances such as insects, bird droppings, resinous tree sap,
ro
a
d dirt, industrial deposits, tar, soot or road salt and other aggressive ma-
terials remain on the vehicle, the more damage they do to the paintwork.
High temperatures (for instance due to strong sunlight) further intensify the
corrosive effect. The vehicle undercarriage should also be thoroughly wash-
ed at regular intervals.
Automatic car washes
Always observe the instructions provided at the automatic car wash. The
standard precautionary measures prior to entering the car wash should be
taken to avoid damage to the vehicle (close all windows, fold in exterior mir-
rors). If the vehicle is fitted with additional components (spoiler, roof-rack,
aerial...), check with the car wash supervisor whether these can enter the
car wash ⇒  .
The v ehic

le paintwork is so durable that the car can normally be washed
without problems in an automatic car washing tunnel. However, wear and
damage to the paintwork will depend on the type of car wash used. SEAT
recommends the use of car washed without brushes.
To remove traces of wax on windows and to prevent wiper blades from
scratching, please observe the following ⇒ page 245, Cleaning windows
and exterior mirrors.
Washing the car by hand
When washing the car by hand, use plenty of water to soften the dirt first,
and rinse off as well as possible.
Then clean the vehicle with a soft sponge, glove or brush using only slight
pressure. Start at the roof and work downwards. Special car shampoo
should only be used for very persistent dirt.
Rinse the sponge or glove thoroughly and often.
Wheels, sills and similar should be cleaned last. Use a second sponge for
this. WARNING
Sharp components on the vehicle may cause injury.
● Protect arms and hands from sharp edges when cleaning the vehicle
under c

arriage or the interior of the wheel hubs. WARNING
After the vehicle has been washed, the braking effect will be reduced
(and the brakin
g distance increased) due to moisture (and ice in winter)
on the brakes.
● Dry the brakes and remove ice by braking carefully. Ensure that you
are not end
angering other road-users or breaking traffic regulations in
the process. CAUTION
● The temperature of the water must not exceed +60°C (+140°F).
● To av

oid damage to the paintwork, do not wash the vehicle in full sun.
● Do not use rough sponges or similar which could damage the surface to
cle

an away the traces of insects.
● Never wipe the headlights with a dry cloth or sponge, always moisten
first
. It is best to use soapy water.
● Washing the vehicle in low temperatures: When washing the vehicle
with a hose, do not
direct water into the lock cylinders or the gaps around
the doors, tailgate, or sunroof. Locks and seals could freeze! CAUTION
To prevent damage to the vehicle, please observe the following before en-
terin g

an automatic car wash :
● Compare the distance between the vehicle wheels and the distance be-
tween the guide-rai
ls of the car wash to prevent damage to the wheels and
tyres! Safety First Operating instructions Practical tips Technical Data

245
Vehicle maintenance and cleaning

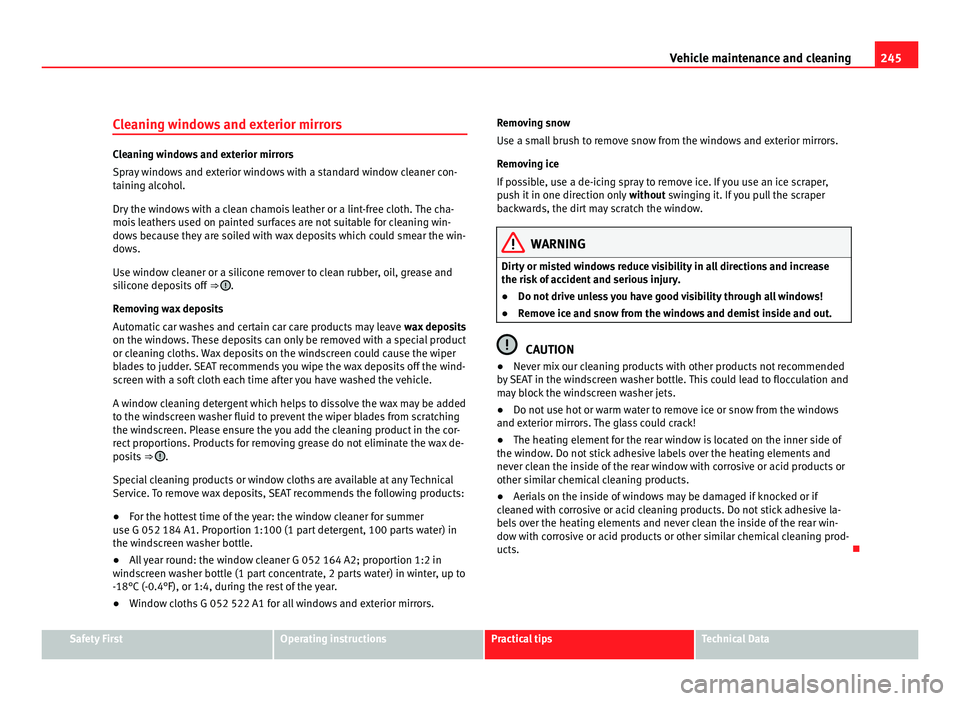

Cleaning windows and exterior mirrors Cleaning windows and exterior mirrors
Spr
a
y windows and exterior windows with a standard window cleaner con-
taining alcohol.
Dry the windows with a clean chamois leather or a lint-free cloth. The cha-
mois leathers used on painted surfaces are not suitable for cleaning win-
dows because they are soiled with wax deposits which could smear the win-
dows.
Use window cleaner or a silicone remover to clean rubber, oil, grease and
silicone deposits off ⇒  .
Remo v

ing wax deposits
Automatic car washes and certain car care products may leave wax deposits
on the windows. These deposits can only be removed with a special product
or cleaning cloths. Wax deposits on the windscreen could cause the wiper
blades to judder. SEAT recommends you wipe the wax deposits off the wind-
screen with a soft cloth each time after you have washed the vehicle.
A window cleaning detergent which helps to dissolve the wax may be added
to the windscreen washer fluid to prevent the wiper blades from scratching
the windscreen. Please ensure the you add the cleaning product in the cor-
rect proportions. Products for removing grease do not eliminate the wax de-
posits ⇒  .
Spec i

al cleaning products or window cloths are available at any Technical
Service. To remove wax deposits, SEAT recommends the following products:
● For the hottest time of the year: the window cleaner for summer
use G 052 184 A1. Propor
tion 1:100 (1 part detergent, 100 parts water) in
the windscreen washer bottle.
● All year round: the window cleaner G 052 164 A2; proportion 1:2 in
winds
creen washer bottle (1 part concentrate, 2 parts water) in winter, up to
-18°C (-0.4°F), or 1:4, during the rest of the year.
● Window cloths G 052 522 A1 for all windows and exterior mirrors. Removing snow
Use a smal

l brush to remove snow from the windows and exterior mirrors.
Removing ice
If possible, use a de-icing spray to remove ice. If you use an ice scraper,
push it in one direction only without swinging it. If you pull the scraper
backwards, the dirt may scratch the window. WARNING
Dirty or misted windows reduce visibility in all directions and increase
the risk of

accident and serious injury.
● Do not drive unless you have good visibility through all windows!
● Remove ice and snow from the windows and demist inside and out. CAUTION
● Never mix our cleaning products with other products not recommended
b y

SEAT in the windscreen washer bottle. This could lead to flocculation and
may block the windscreen washer jets.
● Do not use hot or warm water to remove ice or snow from the windows
and exterior mirr
ors. The glass could crack!
● The heating element for the rear window is located on the inner side of
the window
. Do not stick adhesive labels over the heating elements and
never clean the inside of the rear window with corrosive or acid products or
other similar chemical cleaning products.
● Aerials on the inside of windows may be damaged if knocked or if
cle

aned with corrosive or acid cleaning products. Do not stick adhesive la-
bels over the heating elements and never clean the inside of the rear win-
dow with corrosive or acid products or other similar chemical cleaning prod-
ucts. Safety First Operating instructions Practical tips Technical Data

247
Vehicle maintenance and cleaning
● Insert a new blade of the same l ength and type in the wiper arm in the
opposite direction to the arrow B and hook into place. This feature is op-
eration al
when the knob is in position (arrow A ).
● Replace the wiper arm on the rear window. WARNING
Worn or dirty wiper blades reduce visibility and increase the risk of acci-
dent and seriou s

injury.
● Always replace damaged or worn blades or blades which do not clean
the winds
creen correctly. CAUTION
● Damaged or dirty windscreen wipers could scratch the glass.
● If pr

oducts containing solvents, rough sponges or sharp objects are
used to c
lean the blades, the graphite layer will be damaged.
● Never use fuel, nail varnish remover, paint thinner or similar products to
cle

an the windows. 
Caring for and polishing the vehicle paintwork Waxing
Re
gu

lar waxing protects the paintwork. It is time to apply a good coat of wax
when water no longer forms droplets and rolls off the clean paintwork.
Even if a wax solution is used regularly in the automatic car wash, SEAT rec-
ommends protecting the paint with a hard wax coating at least twice a year.
Polishing
Polishing is only necessary if the paint has lost its shine, and the gloss can-
not be brought back by applying wax. If the polish does not contain wax, a wax product should be applied after
polishin

g. CAUTION
● To prevent damage, car polish or hard wax should not be used on com-
ponents p

ainted in matt paint, plastic components and the glass headlamp
and tail light covers.
● Do not polish the paintwork if it is dirty, apply polish in dusty or sandy
zones. 
C

leaning chrome parts Clean chrome parts with a damp cloth. SEAT recommends the use of a
chr
ome c

are product to clean stains and dirt from chrome surfaces. Use a
soft dry cloth to polish chrome parts. CAUTION
To prevent scratching chrome surfaces:
● Do not use abrasive products.
● Do not clean or polish chrome parts in a sandy or dusty environment.
● Do not polish dirty surfaces. 
Caring for and cleaning anodized surfaces It is not easy to detect the difference between aluminium and an anodized
sur
f

ace, for example, a radiator grille. However, anodized surfaces must not
be treated in the same way as aluminium surfaces. Never use rough spong-
es or cloths to wipe away insect remains. Safety First Operating instructions Practical tips Technical Data

249
Vehicle maintenance and cleaning WARNING
Additional underseal or anti-corrosion products could catch fire due to
the high temper at
ures reached by the exhaust gas system and other en-
gine components.
● Do not apply additional underseal or anti-corrosion products to the
exhau
st pipes, catalytic converters, heat shields or other parts of the ve-
hicle which reach high temperatures. 
Cleaning the engine compartment The engine compartment of any motor vehicle is a potentially hazardous
are
a

⇒ page 275.
The engine compartment should only be cleaned by qualified personnel. If
it is not correctly cleaned, the anti-corrosion coating and consequently elec-
trical components may be damaged. Moreover, water may filter directly into
the vehicle interior through the water chamber ⇒  .
If the en gine c

ompartment is very dirty, always take the vehicle to a Techni-
cal Service for professional cleaning. SEAT recommends visiting a Technical
Service.
Water box
The water box is in the engine compartment, between the windscreen and
the engine, and beneath a perforated cover. Air is taken in through the wa-
ter box from outside to the vehicle interior via the heating and air condition-
ing system.
Leaves and other loose objects should be regularly cleaned away from the
water box either by hand or with a vacuum. WARNING
When working on the engine or in the engine compartment, there is a
risk of

injury, burns, accident or fire.
● Before starting work, please ensure you are familiar with the required
procedur
e and the safety precautions ⇒ page 275.
● SEAT recommends you have this work performed by a qualified deal-
ership. CAUTION
If water is manually poured into the water box (for example, using a high
pre s

sure cleaning appliance), this could cause significant damage to the ve-
hicle. For the sake of the environment
Only wash the engine compartment in areas allocated for this purpose, to
prev ent

dirty water which may be contaminated by oil, grease or fuel, from
entering the drains. In some districts, the engine compartment may not be
washed outside the wash bays provided for this purpose. 
Caring for and cleaning the vehicle interior Introduction The dye from many items of modern clothing (e.g. dark jeans) is not always
solid enough.
Se

at upholstery (material and leather), especially when light-
coloured, may visibly discolour if the dye comes out of clothing (even when
used correctly). This is not an upholstery defect but indicates that the dye in
the item of clothing is not solid enough. Safety First Operating instructions Practical tips Technical Data

251
Vehicle maintenance and cleaning CAUTION
Failure to observe the instructions in the check list for caring for your up-
hol s
tery could result in damage or discolouration of the upholstery and cov-
ers.
● Always follow the check list and perform the necessary operations. Note
SEAT recommends you take the vehicle to a Technical Service to treat any
stain
s on the upholstery caused by the discolouration of clothing. 
Cleaning upholstery, textile covers and Alcantara ®
mat eri
alNormal cleaning
●
Before applying cleaning products, please read the instructions for han-
dling and the w arnin

gs shown on the container.
● The upholstery, textile covers, Alcantara ®
materi
al and mats should be
regularly vacuumed (with vacuum brush).
● We recommend that you use a soft sponge or lint-free, micro-fibre cloth
for normal
cleaning ⇒  .
● Clean Alcantara ®
sur f
aces with a damp lint-free cotton, wool or micro-
fibre cloth used for normal cleaning ⇒  .
General s
uperficial dirt on upholstery and textile covers can be cleaned with
a normal foam cleaning product.
If the upholstery and the material trims are very dirty, we recommend you
have them cleaned by a specialist cleaning form.
Cleaning stains
It may be necessary to clean the whole surface and not only the stain itself.
Especially if the surface has been dirtied through normal use. Otherwise, the stained area may become lighter than the rest of the surface after treat-
ment. Type of stain Cleaning the vehicle
Water-based stains
,
e.g. c off

ee or fruit
juice. 
Use a sponge and wipe with a solution of water
and w oo
l wash.
 Dry the area gently with a soft dry cloth. Persistent stains
,
e.g. c hoc

olate or
make-up. 
Apply cleaning paste a)
dir ectly to the stain and
treat.
 Next, rinse with clean water using a sponge or
damp cloth to remove the cleaning product deposits.
 Carefully dry the area with an absorbent dry cloth. Grease-based
st
ain

s, e.g. oil or lip-
stick. 
Apply a neutral soap or cleaning paste a)
and tr e at
the stain.
 Apply absorbent material to loose colorants or par-
ticles of grease.
 Then rinse the area with clean water. Take care not
to soak the upholstery. a)
Bile soap can be used as a cleaning paste. CAUTION
● Brushes should only be used to clean the mats and floor mat! Other sur-
f ac

es may be damaged if a brush is used.
● Do not use steam cleaning equipment, as the dirt becomes more incrus-
ted in the mat
erial when steam is applied.
● Alcantara ®
uphols
teries should never be soaked.
● Do not use leather cleaning products, solvents, wax polish, shoe cream,
spot r
emovers or similar products on Alcantara ®
.
● Never use brushes for cleaning damp material as they could damage the
surf
ace.
● Do not use steam cleaning equipment, as the dirt becomes more incrus-
ted in the mat
erial when steam is applied. Safety First Operating instructions Practical tips Technical Data

253
Vehicle maintenance and cleaning

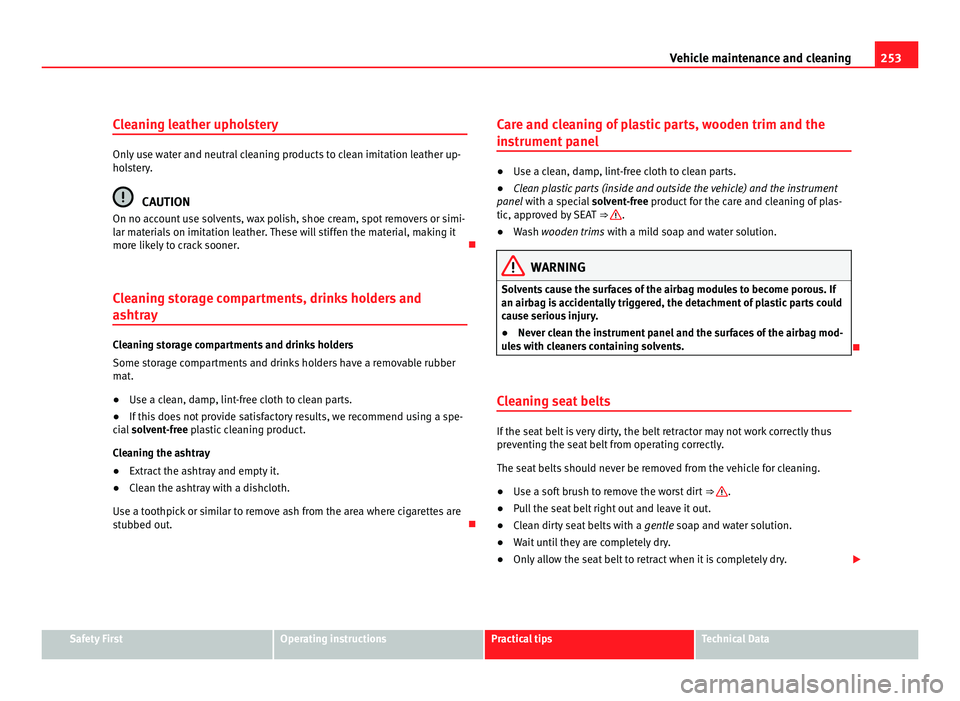

Cleaning leather upholstery Only use water and neutral cleaning products to clean imitation leather up-
hol
s
tery. CAUTION
On no account use solvents, wax polish, shoe cream, spot removers or simi-
lar m at

erials on imitation leather. These will stiffen the material, making it
more likely to crack sooner. 
Cleaning storage compartments, drinks holders and
ashtr a

y Cleaning storage compartments and drinks holders
Some st
or

age compartments and drinks holders have a removable rubber
mat.
● Use a clean, damp, lint-free cloth to clean parts.
● If this does not provide satisfactory results, we recommend using a spe-
cial

solvent-free plastic cleaning product.
Cleaning the ashtray
● Extract the ashtray and empty it.
● Clean the ashtray with a dishcloth.
Use a toothpic
k or similar to remove ash from the area where cigarettes are
stubbed out. Care and cleaning of plastic parts, wooden trim and the
instrument

panel ●
Use a clean, damp, lint-free cloth to clean parts.
● Clean plastic parts (inside and outside the vehicle) and the instrument
pane l

with a special solvent-free product for the care and cleaning of plas-
tic, approved by SEAT ⇒  .
● Wash wooden trims with a mi
ld soap and water solution. WARNING
Solvents cause the surfaces of the airbag modules to become porous. If
an airbag i s

accidentally triggered, the detachment of plastic parts could
cause serious injury.
● Never clean the instrument panel and the surfaces of the airbag mod-
ule

s with cleaners containing solvents. 
Cleaning seat belts If the seat belt is very dirty, the belt retractor may not work correctly thus
prev
entin

g the seat belt from operating correctly.
The seat belts should never be removed from the vehicle for cleaning.
● Use a soft brush to remove the worst dirt ⇒  .
● Pull the seat belt right out and leave it out.
● Clean dirty seat belts with a gentle so
ap and water solution.
● Wait until they are completely dry.
● Only allow the seat belt to retract when it is completely dry. Safety First Operating instructions Practical tips Technical Data
