Page 138 of 236
13B - 138
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
DRIVER PARAMETERS
(*) PEDAL VOLTAGES - COLD, IGNITION OFF
(Average values given as examples).
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as examples.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1 Engine running PR055: Engine speedIndicates the engine's
speed in rpm
At idling speed
PR055= 800rpmIn the event of a fault,
consult the interpretation of
fault DF005 Engine speed
sensor circuit.
2Accelerator
pedal positionPR030: Accelerator
pedal position *Indicates the
accelerator pedal
position
If no pressure is
being applied to the
pedal PR030 = 0 %In the event of a fault,
consult the interpretation of
fault DF008 Pedal
potentiometer circuit
gang 1 or DF009 Pedal
potentiometer circuit
gang 2.
3 Sensor feedPR147: Pedal
potentiometer
gang 1 voltageAccelerator pedal
released
0.70 < PR147 < 0.80 VIn the event of a fault,
consult the interpretation of
fault DF011 Sensor feed
voltage no. 1
or
DF012 Sensor feed
voltage no. 2. PR148: Pedal
potentiometer
gang 2 voltageAccelerator pedal
released
0.35 < PR148 < 0.40 V
Pedal load 0 % 25 % 50 % 100 % 120 %
Gang 1 voltage 0.76 V 1.52 V 2.09 V 3.23 V 3.68 V
Gang 2 voltage 0.37 V 0.74 V 1.02 V 1.56 V 1.79 V
Page 139 of 236
13B - 139
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
HEATING
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Coolant
temperaturePR064:Coolant
temperatureShows the engine coolant
temperature in °C
Default value: 119 °CIn the event of a
fault, consult the
interpretation of
DF001 Coolant
temperature sensor
circuit.
2Resistance
Heating
Passenger
compartmentET111:RCH number
setIndicates the number of
passenger compartment
resistors supplied. The
passenger compartment
resistor function
programming is performed
through the UCH.
Certain operating parameters
determine the operation of
one or more passenger
compartment resistors.
The injection computer only
receives a signal relating to
the number of passenger
compartment resistors to
control.
Warm engine
ET111 = NOIn the event of a
fault, refer to the UCH
fault finding note.
ET112:RCH cut-offStatus ET112 is indicated if
the passenger compartment
resistors are being controlled.
The computer receives the
signal to cut-off the resistors
through the UCH.
Warm engine
ET112 = YES
Page 140 of 236
13B - 140
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
CRUISE CONTROL/SPEED LIMITER
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Cruise
control/
speed
limiterPR089:Vehicle
speedIndicates the vehicle speed in
mph (km/h). This parameter is
transmitted by the ABS
computer. This signal is
transmitted to the injection on
the multiplex network.
At idling speed
PR089= 0mphIn the event of a fault, test
the multiplex network.
(See 38C, ABS) for the
interpretation of possible
faults.
PR130:Cruise
control
setpointIndicates the cruise control
limit speed
At idling speed
X = 0 mph (km/h)In the event of a fault, consult
the interpretation of statuses
ET703 Cruise control/Speed
limiter buttons and ET415
Cruise control/Speed limiter
deactivation.
Page 141 of 236
13B - 141
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
CRUISE-CONTROL/SPEED LIMITER (continued)
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
2Cruise
control/
speed
limiter
(continued)ET415: Deactivation
of cruise
control/speed
limiterNONE
STATUS 1: Traction control
request
The cruise control and speed
limiter functions can be
deactivated by various
events.
In the event of a fault,
consult the interpretation of
statuses ET703 Cruise
control/Speed limiter
buttons and ET415 Cruise
control/Speed limiter
deactivation. STATUS 2: Brake pedal
depressed
STATUS 3: Clutch pedal
depressed
STATUS 4: Suspend button
pressed
STATUS 5: Cruise control or
speed limiter monitoring
STATUS 6: Gear lever in
neutral (manual gearbox) or
neutral position (automatic
transmission).
Note: the cruise control
can only be activated at
a speed of >18 mph
(30 km/h).STATUS 7: Inconsistency
between request and vehicle
speed
STATUS 9: Vehicle speed
monitoring
STATUS 10: Monitoring by
injection computer
ET703: Cruise
control/speed
limiter
buttonsINACTIVE: no button
pressed
In the event of a fault,
consult the interpretation of
statuses ET703 Cruise
control/Speed limiter
buttons and ET415 Cruise
control/Speed limiter
deactivation. INCREASE: increase button
pressed
DECREASE: decrease
button pressed
SUSPEND: Suspend button
pressed
RESUME: Resume button
pressed
Page 142 of 236
13B - 142
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
CRUISE-CONTROL/SPEED LIMITER (continued)
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
3Brake
switchET704:Brake
switch no. 1
signalIndicates the position of the
brake pedal
With the ignition on, pedal
released:
ET704 = ET705 = INACTIVEIn the event of a fault,
consult the
interpretation of
statuses ET704 and
ET705. ET705:Brake
switch no. 2
signal
4Clutch
SwitchET405:Clutch pedal
switchIndicates the position of the
clutch pedal
With the ignition on, pedal
released:
ET405 = INACTIVEIn the event of a fault,
consult the
interpretation of status
ET405.
Page 143 of 236
13B - 143
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ENGINE COOLING
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Coolant
temperaturePR064:Coolant
temperatureShows the engine coolant
temperature in °C
Default value: 119 °CIn the event of a fault,
consult the
interpretation of DF001
Coolant temperature
sensor circuit.
2 Fan assembliesET022:Low speed
fan assembly
requestINACTIVE if air
conditioning not
switched onIf the fan assemblies
are supplied with the
ignition on, the
injection may be in
defect mode.
Carry out a system fault
test and consult the
interpretation of any
faults. ET021:High speed
fan assembly
request
ET014:Fan assembly
1 checkRUNNING if air
conditioning is active
ET015:Fan assembly
2 checkRUNNING if operating
temperature is reached
3 Sensor feed PR084:Coolant
temperature
sensor
voltageidle speed, engine warm
PR084 = 0.54 V
Safe value: 5 VIn the event of a fault,
consult the
interpretation of DF001
Coolant temperature
sensor circuit.

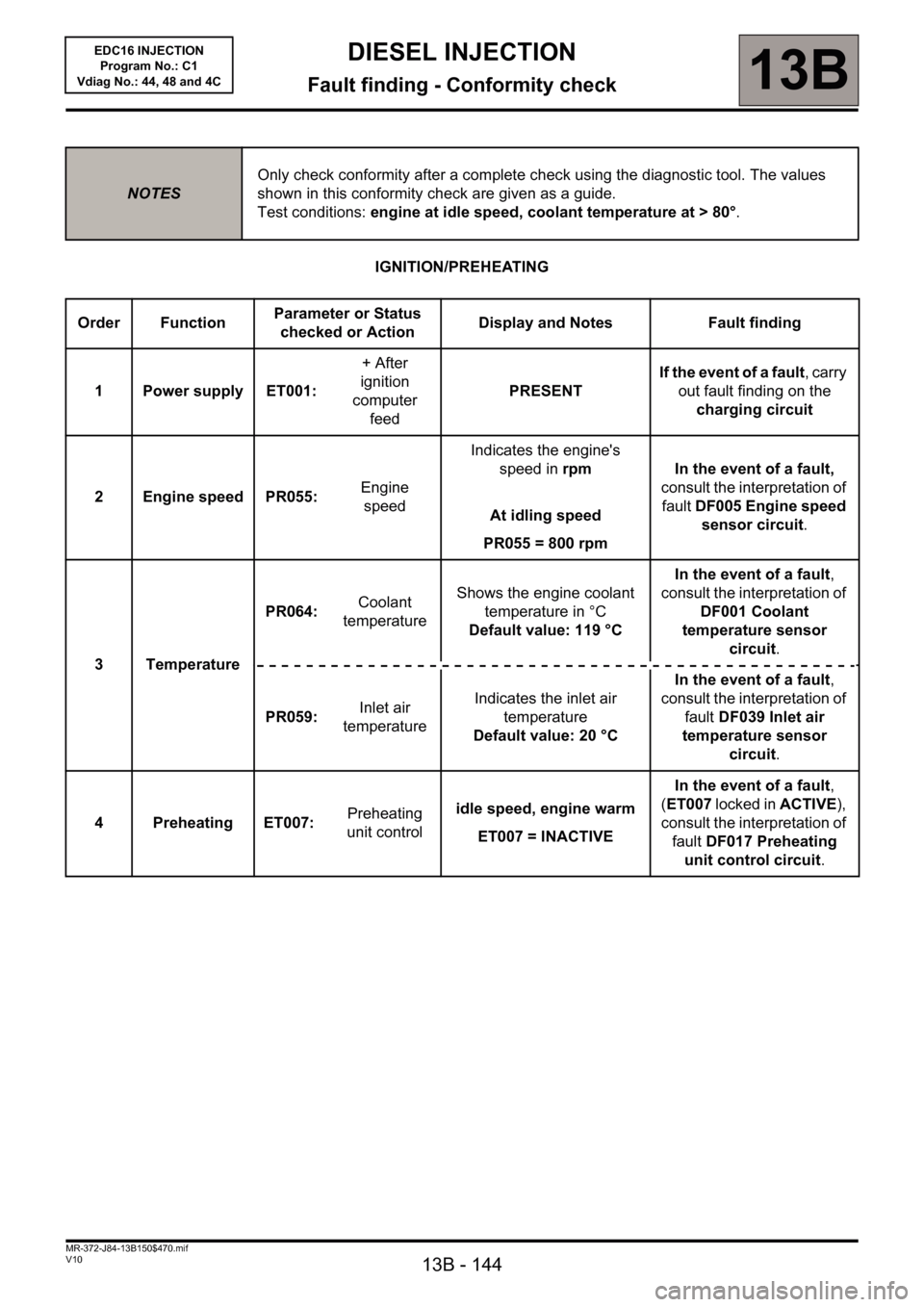

Page 144 of 236
13B - 144
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
IGNITION/PREHEATING
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1 Power supply ET001:+ After
ignition
computer
feedPRESENT If the event of a fault, carry
out fault finding on the
charging circuit
2 Engine speed PR055: Engine
speedIndicates the engine's
speed in rpm
At idling speed
PR055 = 800 rpmIn the event of a fault,
consult the interpretation of
fault DF005 Engine speed
sensor circuit.
3TemperaturePR064: Coolant
temperatureShows the engine coolant
temperature in °C
Default value: 119 °CIn the event of a fault,
consult the interpretation of
DF001 Coolant
temperature sensor
circuit.
PR059:Inlet air
temperatureIndicates the inlet air
temperature
Default value: 20 °CIn the event of a fault,
consult the interpretation of
fault DF039 Inlet air
temperature sensor
circuit.
4 Preheating ET007:Preheating
unit controlidle speed, engine warm
ET007 = INACTIVEIn the event of a fault,
(ET007 locked in ACTIVE),
consult the interpretation of
fault DF017 Preheating
unit control circuit.
Page 145 of 236
13B - 145
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
STARTING
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1 Power supplyET001: + After ignition
computer feedPRESENTIf the event of a fault,
carry out fault finding on
the charging circuit
PR071: Computer feed
voltage9 V < X < 16 VIn the event of a fault,
carry out fault finding on
the charging circuit.
PR358: Sensor
reference
voltage3.47 < X < 3.75 V
(Average of the three
sensor feed voltages)In the event of a fault,
consult the interpretation
of faults DF011 Sensor
feed voltage no. 1, DF012
Sensor feed voltage no. 2,
and DF013 Sensor feed
voltage no. 3.
2 Starting ET076:StartingAUTHORISED:
The injection gives
authorisation to start
or
PROHIBITED:
The injection does not
give authorisation to
start.If status ET076 is
PROHIBITED, carry out
fault finding on the entire
multiplex network.
3 Engine operation ET038:EngineAt idling speed
RunningNone
4 Synchronisation ET238: SynchronisationPERFORMEDIn the event of a fault,
consult the interpretation
of status ET238
