AIRBAG - SEAT BELT PRETENSIONERS
AIRBAG ACU4
Vdiag: 04
Fault finding - Introduction 88C - 2
Fault finding - System operation 88C - 9
Fault finding - Computer track allocation 88C - 10
Fault finding - Replacement of components 88C - 12
Fault finding - Configuration and programming 88C - 13
Fault finding - Summary table of faults 88C - 18
Fault finding - Interpretation of faults 88C - 19
Fault finding - Fault Interpretation 88C - 49
Fault finding - States and parameter summary table 88C - 66
Fault finding - Conformity check 88C - 67
Fault finding - Fault finding chart 88C - 68

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C - 2
88C
V3 MR-372-J84-88C000$010.mif
188C
AIRBAG ACU4
Vdiag: 04
AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding method applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this manual):
– Assisted fault finding (incorporated into the diagnostic tool), paper version (Workshop Repair Manual
or Technical Note) and Dialogys.
Wiring Diagrams:
– Visu-Diagram (CD-ROM), paper.
Type of diagnostic tools:
–CLIP
Special tooling required:Véhicule: SCENIC II
Function concerned: AIRBAGName of computer: AUTOLIV - ACU 4
Program no.:
Vdiag No.: 04
SPECIAL TOOLING REQUIRED
– Multimeter.
– Set of adapters and terminal blocks for using the airbag and
pretensioner wiring harness check function of CLIP and XRBAG
tools for updates including the terminal blocks listed below.
– Modifying the series of new airbag ignition module
connectors entails modifying the dummy ignition module.
LOCAL MODIFICATION OF THE DUMMY IGNITION MODULE:
–Remove the ignition module from its red mounting and
remove one of the brown locking notches.
– 22-track computer terminal block: Elé. 1685
– 64-track computer terminal block: Elé. 1717
– 22-track seat terminal block: Elé. 1687
– 10-track rotary switch terminal block: Elé. 1617
ACU4 Vdiag04 J84 1.0
MR-372-J84-88C000$010.mif

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C
88C - 3V3 MR-372-J84-88C000$010.mif
AIRBAG ACU4
Vdiag: 04
3. REMINDERS
Procedure:
To run diagnostics on the vehicle's computers, switch on the ignition in fault finding mode (+ after ignition forced
setting):
– vehicle card in card reader.
– Press and hold start button (longer than 5 seconds) with start-up conditions not fulfilled,
– Then connect the diagnostic tool and perform the required operations.
+ After ignition feed cut-out is performed as follows:
– Disconnect the diagnostic tool,
– Press the start button twice briefly (less then 3 seconds),
– See that the + after ignition feed has been cut off by checking that the computer warning lights on the instrument
panel have gone out.
Faults:
Faults are declared to be either present or stored (depending on whether they appeared in a certain situation and
have disappeared since, or whether they remain but are not diagnosed within the current context).
The present or stored state of faults should be taken into consideration when the diagnostic tool is used after the
+ after ignition feed (without acting on the system components).
Deal with present faults according to the procedure specified in the Interpretation of faults section.
For stored faults, note the faults displayed and follow the instructions in the "Notes" section.
If the fault is confirmed when the instructions in the Notes section are applied, the fault is present. In this case, deal
with the fault
If the fault is not confirmed, carry out basic checks. Check:
– the electrical lines which correspond to the fault,
– the connectors for these lines (for oxidation, bent pins, etc.),
– - the resistance of the faulty component,
– the condition of the wires (melted or cut insulation, wear).
or use the fault finding procedure to check the circuit of the faulty component.
Conformity check
The conformity check is designed to check the states and parameters which do not display any faults on the
diagnostic tool when inconsistent. This phase therefore:
– diagnosis of faults that do not have a fault display, and which may correspond to a customer complaint.
– checks that the system is operating correctly and that there is no risk of a fault reappearing after repairs.
This section gives the fault finding procedures for states and parameters and the conditions for checking them.
If a state is not behaving normally or a parameter is outside permitted tolerance values, you should consult the
corresponding fault finding page.
Customer complaints – Fault finding charts
If the diagnostic tool check is correct, but the customer complaint persists, it should be dealt with according to the
customer complaint.IMPORTANT
The left-hand and right-hand Xenon bulb computers are powered when the dipped headlights are lit. Fault finding
procedures can only be carried out on them after the ignition has been switched on in fault finding mode (+ after
ignition imposed) and the dipped headlights are on.
A synopsis of the general procedure to follow is provided on the following
page in the form of a logic flow chart.
ACU4 Vdiag04 J84 1.0

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C
88C - 4V3 MR-372-J84-88C000$010.mif
AIRBAG ACU4
Vdiag: 04
4. FAULT FINDING PROCEDURE
Check the battery charge and
condition of the fuses
Print the system diagnostic sheet
(available in CLIP and in the
Workshop Repair Manual or
Technical Note)
Connect CLIP
Dialogue with
computer?no
yes
Read faults
no
Faults present
yes
Deal with faults found
Deal with stored faults
no
The symptom
persistsFault
solved
yes
See CHART 1
ACU4 Vdiag04 J84 1.0
Conformity check
no
The symptom
persistsFault
solved
Use ALP charts (fault finding
charts)
no
The symptom
persistsFault
solved
Contact Techline with the
completed fault finding log

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C
88C - 5V3 MR-372-J84-88C000$010.mif
AIRBAG ACU4
Vdiag: 04
All faults requiring replacement of a computer for thorough fault finding with the appropriate tools. The diagnostic
sheet must be filled out during the process and indicate the findings for the warranty refund.
6. SAFETY INSTRUCTIONS
All work on components requires obeying safety rules to prevent physical damage or human injury:
– Make sure the battery is properly charged to avoid damaging the computers with a low charge.
During operations on the airbag/seat belt pretensioner systems it is vital that you lock the computer using
the diagnostic tool to prevent any risk of accidental triggering (all the ignition lines will be inhibited). The
locked mode is signalled when the Instrument panel warning light comes on.
If it is impossible to connect the fault-finding tool, switch off the ignition, remove the system power fuse,
and wait at least 2 seconds for the reserve power capacity to discharge.
Never measure the airbag or pretensioner trigger lines with any device other than XRBAG or CLIP's "Airbag
and pretensioner wiring harness check".
Before using a dummy ignition module, ensure that its resistance is between 1.8 and 2.5 ohms.
While working, make sure the computer power supply does not drop below 10 V. WARNING!
5. FAULT FINDING LOG
WARNING:
A properly documented diagnostic sheet is required for all monitored part (computer-type)
reimbursements or Techline calls.
IT IS THEREFORE COMPULSORY TO FILL OUT A FAULT FINDING SHEET EVERY
TIME
A FAULT FINDING OPERATION IS PERFORMED.
WARNING
Airbag and pretensioner destruction and disposal is subject to national legislation.
ACU4 Vdiag04 J84 1.0

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C
88C - 6V3 MR-372-J84-88C000$010.mif
AIRBAG ACU4
Vdiag: 04

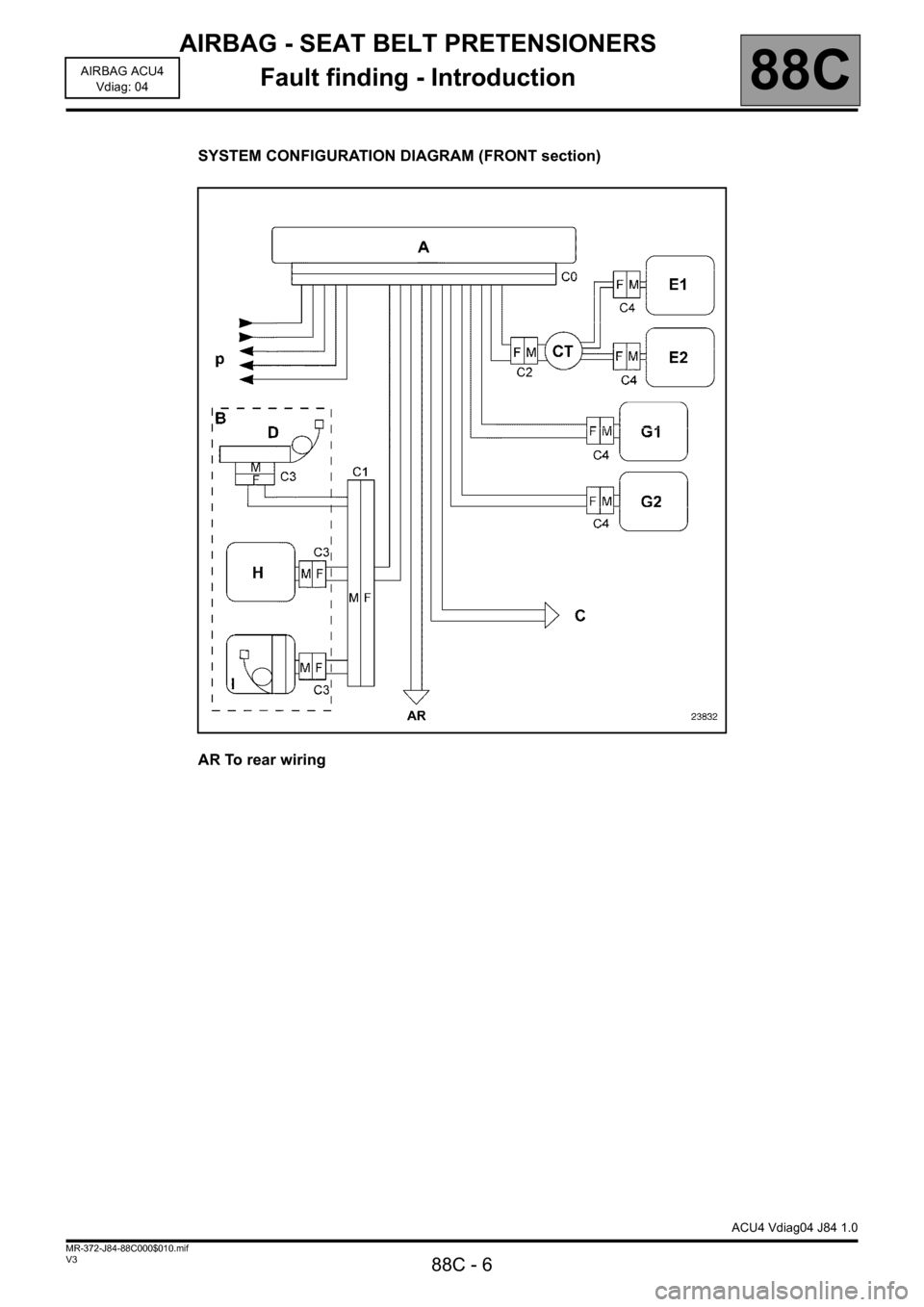

SYSTEM CONFIGURATION DIAGRAM (FRONT section)
AR To rear wiring
ACU4 Vdiag04 J84 1.0

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C - 7
88C
V3 MR-372-J84-88C000$010.mif

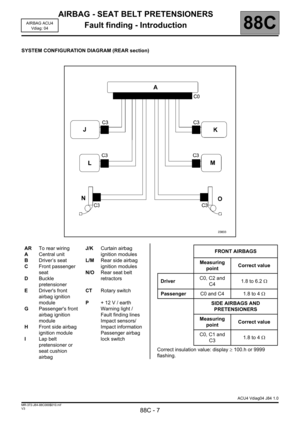

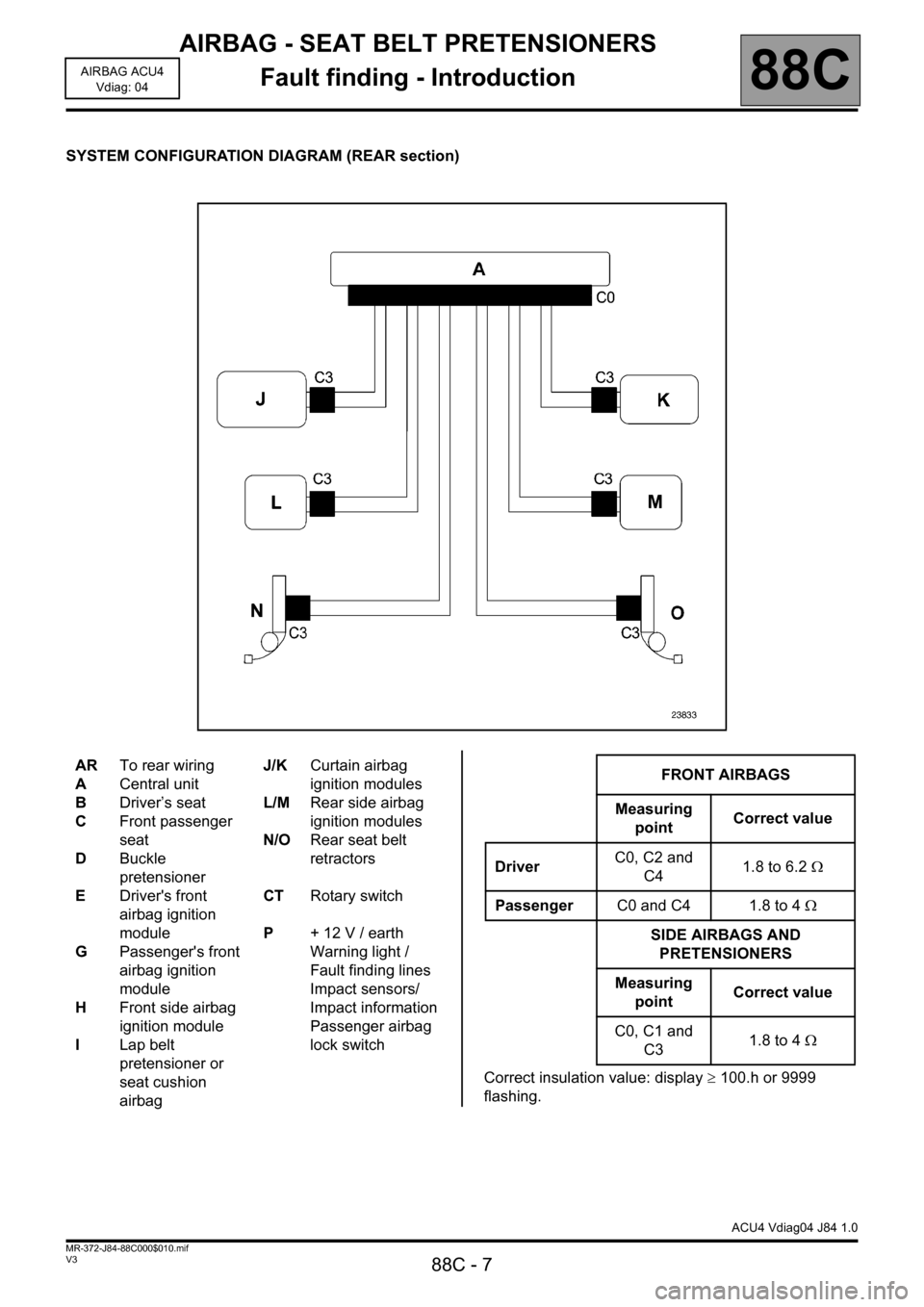

SYSTEM CONFIGURATION DIAGRAM (REAR section)
AIRBAG ACU4
Vdiag: 04
ACU4 Vdiag04 J84 1.0
Correct insulation value: display ≥ 100.h or 9999
flashing. AR
A
B
C
D
E
G
H
ITo rear wiring
Central unit
Driver’s seat
Front passenger
seat
Buckle
pretensioner
Driver's front
airbag ignition
module
Passenger's front
airbag ignition
module
Front side airbag
ignition module
Lap belt
pretensioner or
seat cushion
airbagJ/K
L/M
N/O
CT
PCurtain airbag
ignition modules
Rear side airbag
ignition modules
Rear seat belt
retractors
Rotary switch
+ 12 V / earth
Warning light /
Fault finding lines
Impact sensors/
Impact information
Passenger airbag
lock switchFRONT AIRBAGS
Measuring
pointCorrect value
DriverC0, C2 and
C41.8 to 6.2Ω
PassengerC0 and C4 1.8 to 4 Ω
SIDE AIRBAGS AND
PRETENSIONERS
Measuring
pointCorrect value
C0, C1 and
C31.8 to 4 Ω

AIRBAG - SEAT BELT PRETENSIONERS
Fault finding - Introduction
88C - 8
88C
V3 MR-372-J84-88C000$010.mif
AIRBAG ACU4
Vdiag: 04
DEFINITION OF THE TRIGGER LINES
L1:Driver's seat cushion / frontal airbag circuit (cable B of 64-track terminal block Elé. 1717)
L2:Passenger's seat cushion / frontal airbag circuit (cable D of 64-track terminal block Elé. 1717)
L3:Passenger's frontal airbag circuit 1 (cable B of 22-track terminal block Elé. 1685)
L4:Passenger's frontal airbag circuit 2 (cable A of 22-track terminal block Elé. 1685)
L5:Driver's frontal airbag circuit 1 (cable C of 22-track terminal block Elé. 1685)
L6:Driver's frontal airbag circuit 2 (cable D of 22-track terminal block Elé. 1685)
L7:Driver's side curtain airbag circuit (cable I of 64-track terminal block Elé. 1717)
L8:Passenger's side curtain airbag circuit (cable G of 64-track terminal block Elé. 1717)
L9:Driver's front chest side airbag circuit (cable H of 64-track terminal block Elé. 1717
L10:Passenger's front chest side airbag circuit (cable F of 64-track terminal block Elé. 1717)
L11:Driver's rear chest side airbag circuit (cable N of 64-track terminal block Elé. 1717)
L12:Passenger's rear chest side airbag circuit (cable L of 64-track terminal block Elé. 1717)
L13:Front buckles pretensioner circuit (cables A and C of 64-track terminal block Elé. 1717)
L14:Rear seat belt retractors (cables E and J of 64-track terminal block Elé. 1717)
ACU4 Vdiag04 J84 1.0
