2011 Ram 5500 Chassis Cab Owner's Manual

Memo
To switch to the voice recorder mode, say “Memo”. In
this mode, you may say the following commands:
•“New Memo” (to record a new memo) — During the
recording, you may press the Voice Command
button to stop recording. You proceed by saying one of
the following commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
•“Play Memos” (to play previously recorded memos)
— During the playback you may press the Voice
Command
button to stop playing memos. You
proceed by saying one of the following commands:
“Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
•“Delete All” (to delete all memos)
System Setup
To switch to system setup, say “Setup”. In this mode, you
may say the following commands:
•“Language German”
•“Language Dutch”
•“Language Italian”
•“Language English”
•“Language French”
•“Language Spanish”
•“Tutorial”
•“Voice Training”
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Keep in mind that you have to press the Voice
Command
button first and wait for the beep
before speaking the “Barge In” commands.
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers the Uconnect™
Voice “Voice Training” feature may be used.
1. Press the Voice Command
button, say “System
Setup” and once you are in that menu then say “Voice
Training.” This will train your own voice to the system
and will improve recognition.
2. Repeat the words and phrases when prompted by
Uconnect™ Voice. For best results, the “Voice Training”
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.
SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. Proper use of the seats is needed for safe
operation of the vehicle.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

Manual Seat Adjuster — If Equipped
Both front seats are independently adjustable forward or
rearward and are equipped with a seatback recliner. The
manual forward or rearward seat adjustment handle is
found under the seat cushion at the front edge of each
seat. Pull up on the handle and slide the seat forward or
backward to move the seat into the most comfortable
position, then release the handle to lock the seat into
position. Using body pressure, move forward and rear-
ward on the seat to be sure that the seat adjusters have
latched.
Manual Seat Adjuster
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.

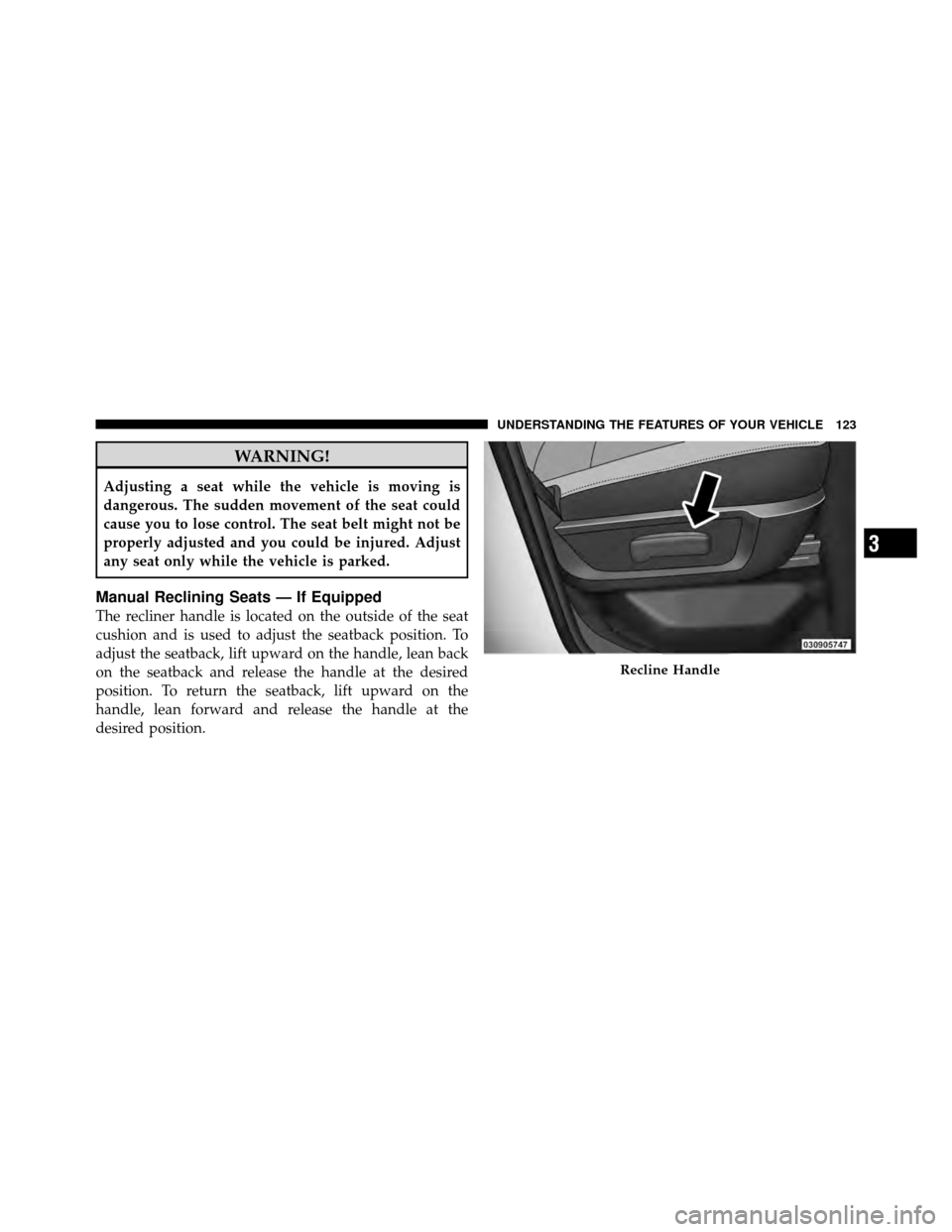

Manual Reclining Seats — If Equipped
The recliner handle is located on the outside of the seat
cushion and is used to adjust the seatback position. To
adjust the seatback, lift upward on the handle, lean back
on the seatback and release the handle at the desired
position. To return the seatback, lift upward on the
handle, lean forward and release the handle at the
desired position.
Recline Handle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

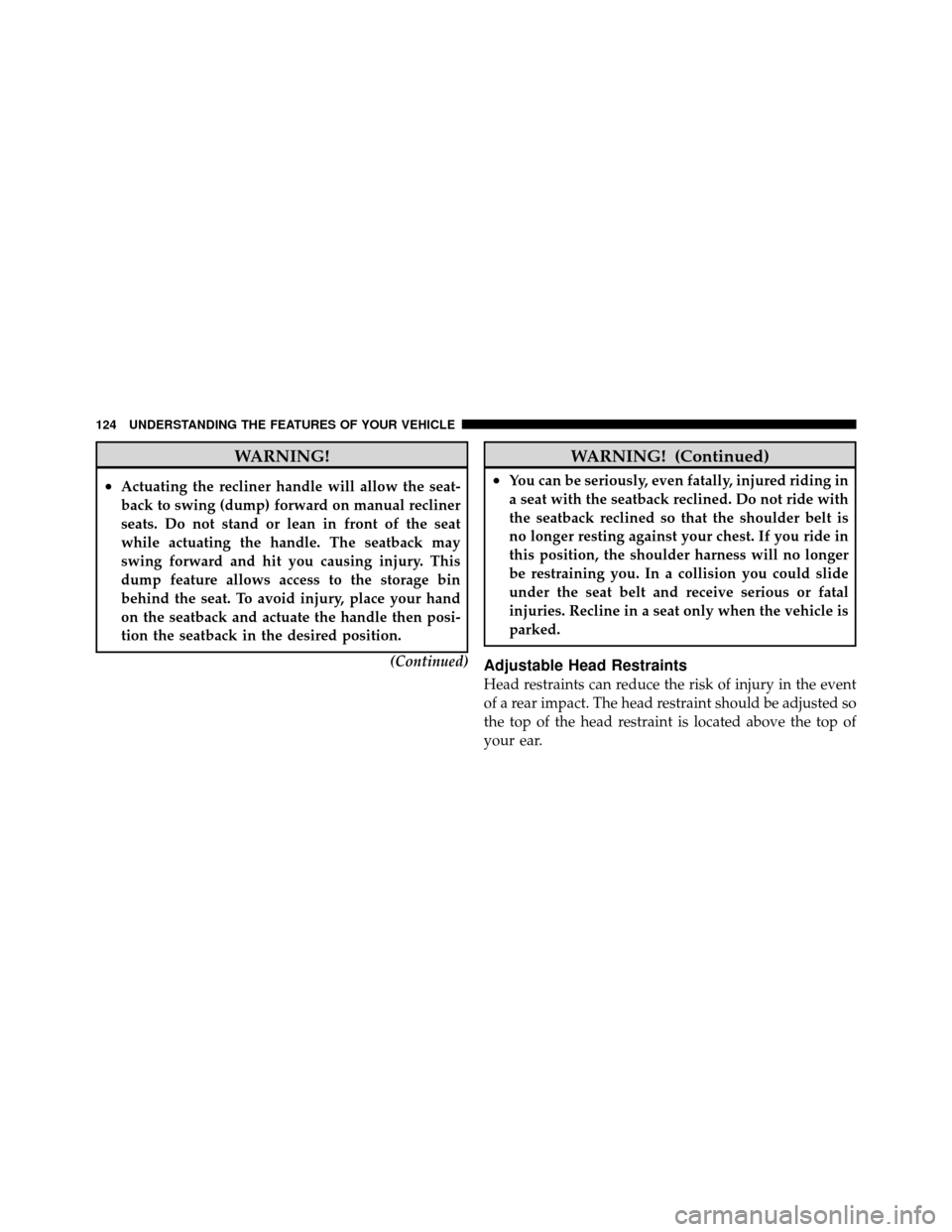

WARNING!
•Actuating the recliner handle will allow the seat-
back to swing (dump) forward on manual recliner
seats. Do not stand or lean in front of the seat
while actuating the handle. The seatback may
swing forward and hit you causing injury. This
dump feature allows access to the storage bin
behind the seat. To avoid injury, place your hand
on the seatback and actuate the handle then posi-
tion the seatback in the desired position.(Continued)
WARNING! (Continued)
•You can be seriously, even fatally, injured riding in
a seat with the seatback reclined. Do not ride with
the seatback reclined so that the shoulder belt is
no longer resting against your chest. If you ride in
this position, the shoulder harness will no longer
be restraining you. In a collision you could slide
under the seat belt and receive serious or fatal
injuries. Recline in a seat only when the vehicle is
parked.
Adjustable Head Restraints
Head restraints can reduce the risk of injury in the event
of a rear impact. The head restraint should be adjusted so
the top of the head restraint is located above the top of
your ear.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the large
button, located on the base of the head restraint, and
push downward on the head restraint.To remove the head restraint, pull upward on the head
restraint to it’s highest position, push in both buttons at
the base of each head restraint rod, and simultaneously
pull up on the head restraint.
To install the head restraint, insert the head restraint rods
into each guide, apply pressure down on the headrest
Adjusting Head RestraintRemoving Head Restraint
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

until the head restraint reaches the first lock position,
push the large button in and push down and adjust head
restraint to desired position.
NOTE:Ensure that the front of the head restraint is
facing toward the front of the vehicle.
WARNING!
Driving a vehicle with the head restraints removed or
improperly adjusted could cause serious injury or
death in the event of a collision. The head restraints
should always be checked prior to operating the
vehicle and never adjusted while the vehicle is in
motion. Always adjust the head restraints when the
vehicle is in PARK.
Rear Head Restraints
The outboard head restraints can be adjusted. To raise the
head restraint, pull upward on the head restraint. To lower the head restraint, press the large button, located
on the base of the head restraint, and push downward on
the head restraint.
NOTE:
The rear center head restraint (Crew Cab only) is
fixed and cannot be adjusted.
Adjustable Rear Head Restraints
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Eight-Way Power Seats — If Equipped
The power seat controls are on the outboard side of the
front seat cushions. The power seat switch can be moved
forward and backward as well as up and down to control
the position of the seat. The power seatback switch is
used to adjust the angle of the seatback to position
yourself in the most comfortable driving position. Push
forward or rearward on the switch and the seatback will
move in either direction.
Power Seat Switches
1 — Power Seat Switch
2 — Power Seatback Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
