Cavity CartridgeFuseMini
Fuse Description
M19 5 Amp
Ta nIgn R/ACC –
Sunroof/Window Sw
Illum
M20 25 Amp
NaturalFrt Wiper
M21 25 Amp
NaturalDoor Locks
M22 20 Amp
YellowFuel Pump
M23 20 Amp
YellowBat – Trlr Light/Pre-
Safe #2
M24 20 Amp
YellowBat – Trlr Tow BUX/
HGM
M25 10 Amp
RedBat – J1962 Diag/
Mirrors
M26 10 Amp
RedBat – Ign Sw, WIN,
PASSCavity Cartridge
FuseMini
Fuse Description
M27 15 Amp
BlueBat – CHMSL/Brake
Sw
M28 10 Amp
RedBat – Corax TPM/
PEM/HVAC Htr
Pump
M29 15 Amp
BlueBat – Folding Mirror
M30 25 Amp
NaturalBat – Inverter
M31 20 Amp
YellowBat – Pwr Out #1
M32 20 Amp
YellowFr/Rr Washer
M33 15 Amp
BlueBat – NGC/EATX/
PCM
M34 15 Amp
BlueBat – CCN/Interior
Light/SCM/Sw Bank
416 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
M35 20 Amp
YellowHtd Seat/Htd Str
Wheel/Rear Htd Seat
M36 20 Amp
YellowIgn R-Rear Seat/Steer
Wheel
M37 10 Amp
RedHorn #1
M38 20 Amp
YellowIOD-CCN/Interior
Mods
M39 30 Amp
GreenIOD-Amp/Radio
M40 25 Amp
NaturalRear Wiper
M41 15 Amp
BlueIOD-SDARS/VES
2–3/DVD/HFM/
UGDO/Vanity Lamp
M42 10 Amp
RedIOD-HVAC, U/Hood
LampCavity Cartridge
FuseMini
Fuse Description
M43 10 Amp
RedHorn #2
M44 10 Amp
RedIGN R/S-ORC/OCM
M45 10 Amp
RedIGN R-ORC/Trail
Tow (BUX) Sense
M46 20 Amp
YellowIGN R-Trail Tow
(BUX)
M47 10 Amp
RedIGN R-H/Lamp
Wash/HVAC/Park
Assist/Ir Sns
M48 20 Amp
YellowIGN R/ACC-Pwr
Outlet #2
M49 20 Amp
YellowIGN R/ACC/Bat-Pwr
Outlet #3
M50 25 Amp
NaturalASD #1, #2
7
MAINTAINING YOUR VEHICLE 417

Cavity CartridgeFuseMini
Fuse Description
M51 20 Amp
YellowASD #3
M52 10 Amp
RedIGN R/S-SWAY/
TCASE/DTCM/
FAD/TRLR BRAKE
MOD.
M53 15 Amp
BlueIGN R/S-MFSW/
CNN/SCM/TPM/RR
View
M54 20 Amp
YellowIOD – SpareCAUTION!
•When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
418 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition-Off Draw (IOD) fuse located in
the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.
•As an alternative to the above steps you may discon-
nect the negative cables from both batteries.
•Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.NOTE:
•When reinstalling the IOD fuse push firmly until fully
seated; the gauges in the instrument cluster will do a
full sweep when the ignition switch is turned to the
RUN position. This is a normal condition.
•When the vehicle is shipped from the factory, the IOD
fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play
NO FUSE.”
7
MAINTAINING YOUR VEHICLE 419

REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb No.
Overhead Console Lamps ............... TS212-2
Dome Lamp ........................... 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS – Exterior Bulb No.
Center High Mounted Stop Lamp (CHMSL) ..... 921
Fog Lamp ............................. 9145
Dual Headlamp ......................... H13
Quad Headlamp – Low Beam ............... H11
Quad Headlamp – High Beam ..............9005
Side Marker (Dual Headlamp) .............3157K
Side Marker (Quad Headlamp) ............3157NA
Rear Cargo Lamp ........................ 921
Cab Roof Marker Lamps .................194NA
BULB REPLACEMENT
Dual or Quad Headlamp/Front Park and Turn
Signal – If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the four plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the
upper radiator seal to the radiator.
5. Remove the upper radiator seal from the vehicle.
6. Remove the two headlamp assembly attachment
screws.
420 MAINTAINING YOUR VEHICLE

7. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash shield.
Access to the rear of the lamp can be gained through this
access hole.8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough to
disengage it from the lock post on the back of the front
lamp unit housing.
9. Remove the headlamp assembly. Grasp the outboard
edge of the lamp and pull it straight forward to disen-
gage the ball stud from the plastic grommet.
7
MAINTAINING YOUR VEHICLE 421

10. Disconnect electrical connectors.
11. Replace bulb(s) as necessary.
CAUTION!
•Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.
NOTE: There are access covers over both headlamp
bulb access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.
Fog Lamps – If Equipped
1. Reach under and behind the front bumper to access
the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector
from the fog lamp bulb.
3. Rotate the bulb counterclockwise
14turn to unlock the
bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
422 MAINTAINING YOUR VEHICLE

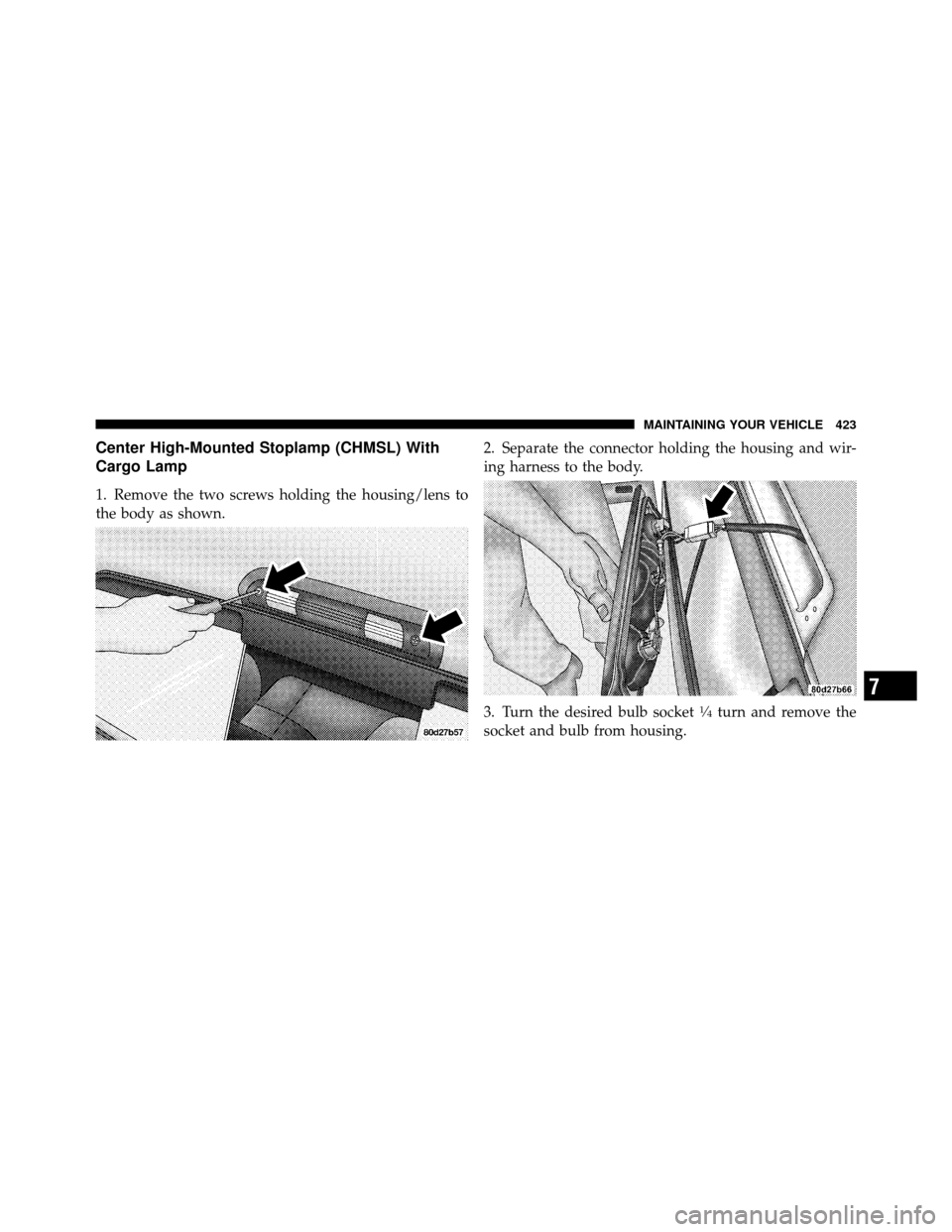

Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp
1. Remove the two screws holding the housing/lens to
the body as shown.2. Separate the connector holding the housing and wir-
ing harness to the body.
3. Turn the desired bulb socket
14turn and remove the
socket and bulb from housing.
7
